E-Flite Habu SS 70mm Nose
IP Report
Print Profile(1)
0.28mm layer, 1 walls, 0% infill
Designer
20 min
1 plate
Open in Bambu Studio
Boost
0
0
0
0
1
1
Released
Description
Content has been automatically translated.

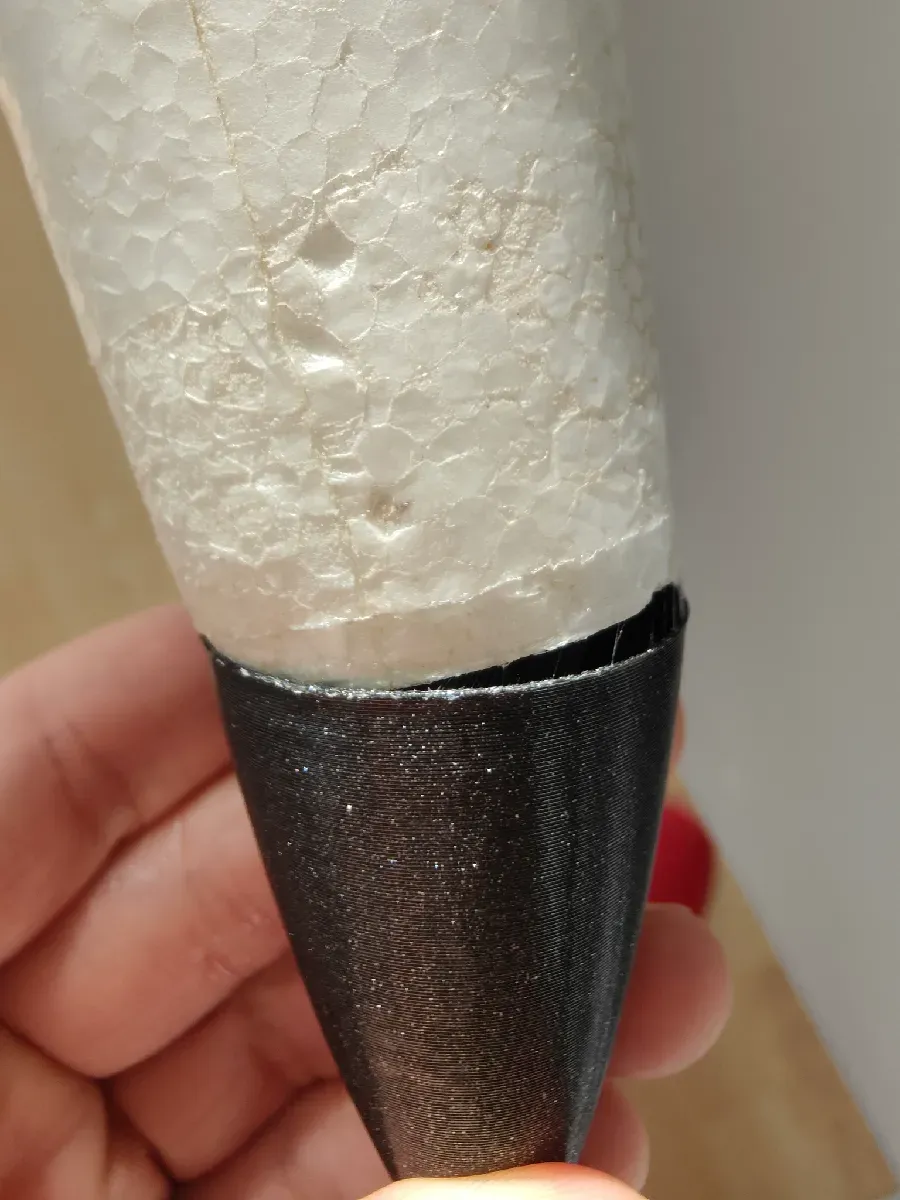

The original fuselage nose flew off during a landing and was also unnecessarily heavy. This version is significantly lighter, as the wall thickness is only 0.4 mm. The tip is slightly flexible – with a small bump it can indent slightly but then returns to its original shape.
- activate mode (Spiral Vase)
- Flow: 1.1
- Layer height: 0.28 mm
- Wall thickness: 0.4 mm (one perimeter line)

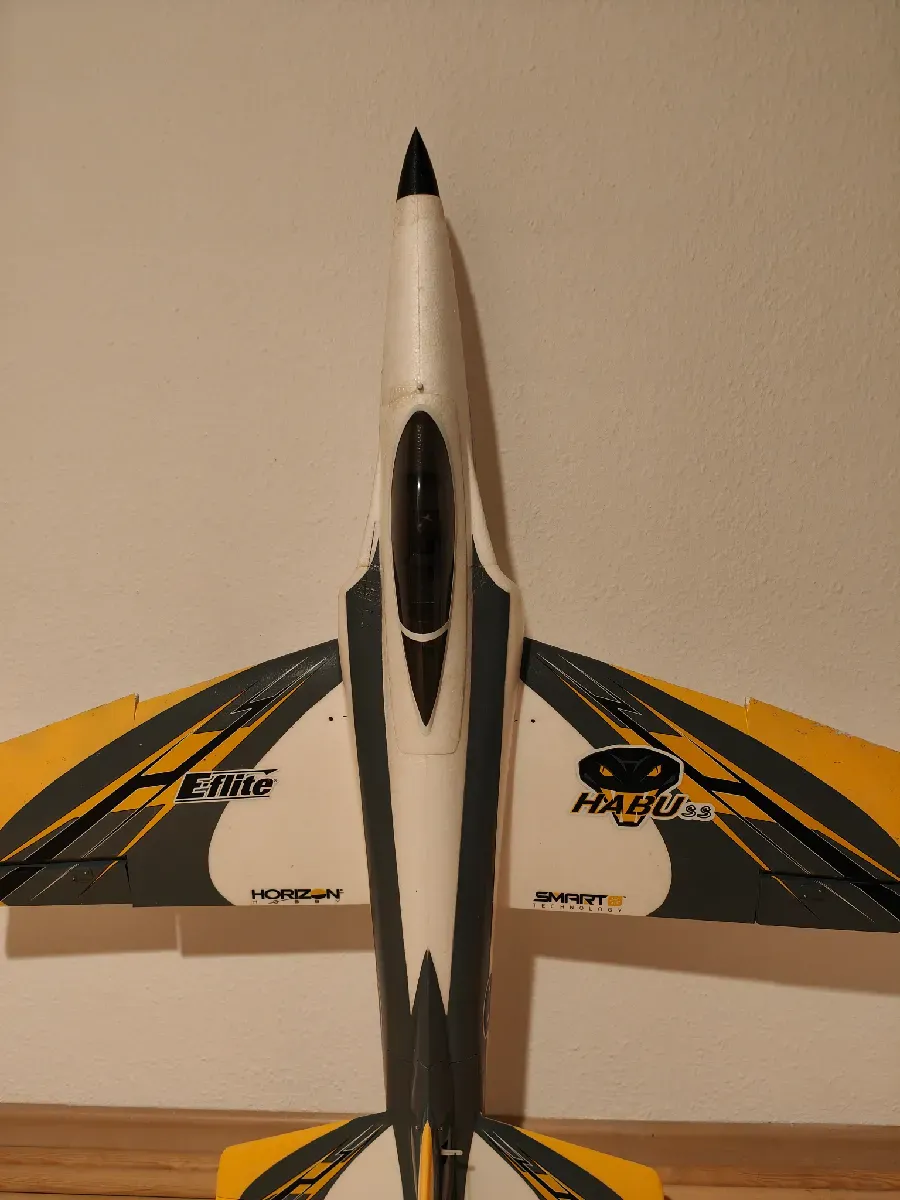

The print only takes about 15 minutes. Afterwards, the tip can simply be attached to the model with UHU Por.
If your landings are not always gentle, it is advisable to print several spare tips in advance and stack them.
Documentation (1)
Assembly Guide (1)
Habu Anleitung.pdf
