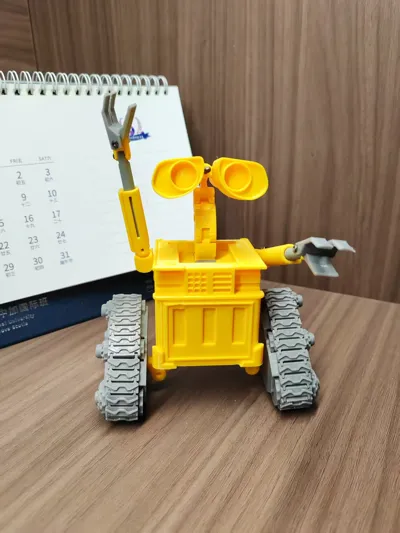

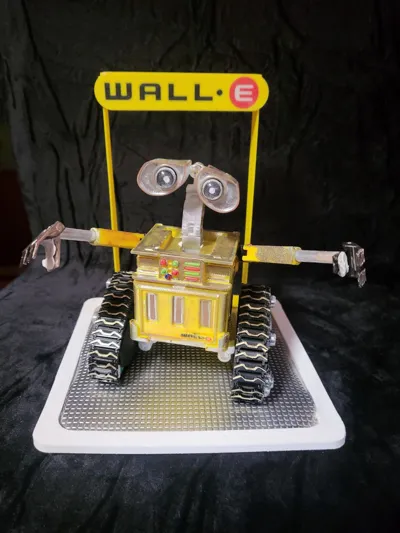

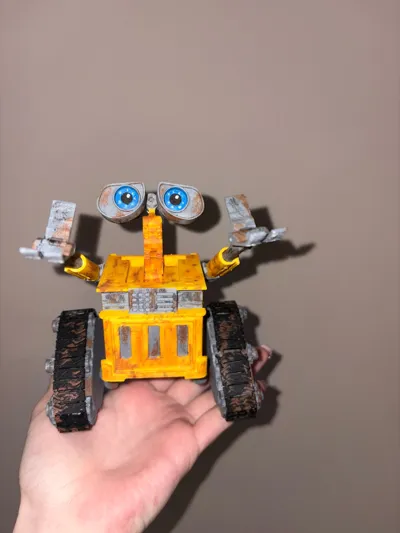

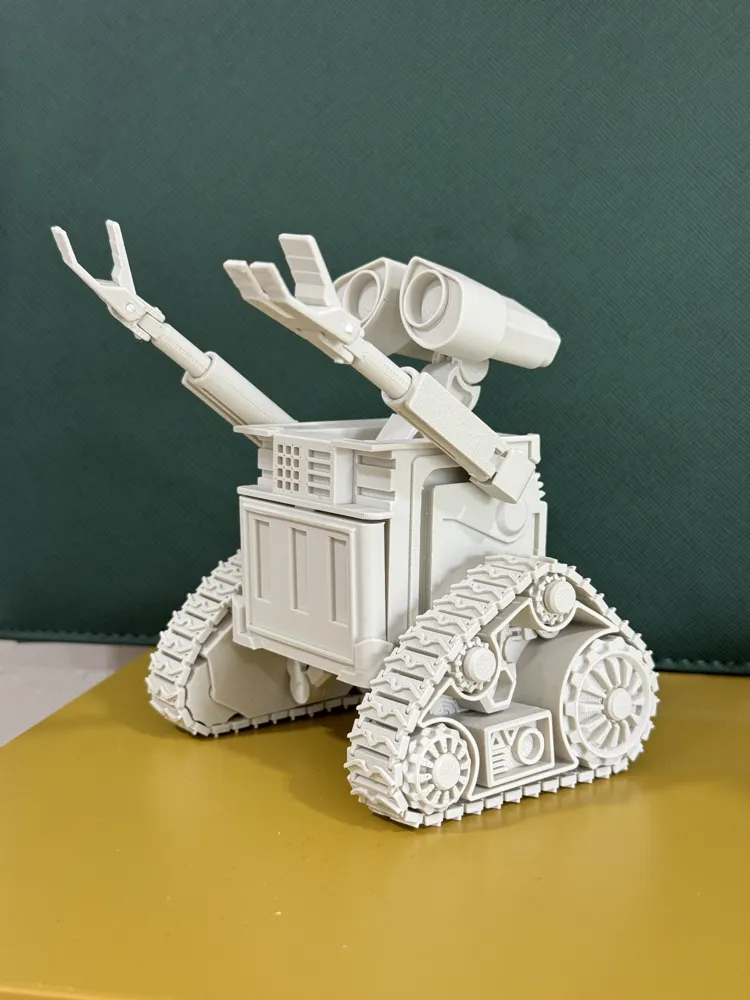

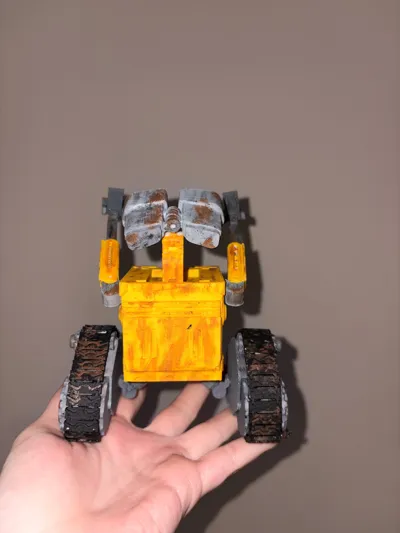

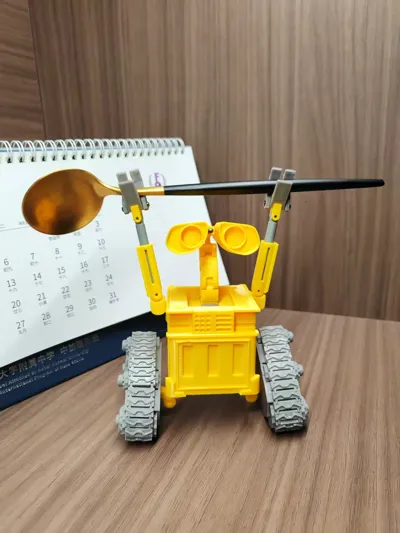

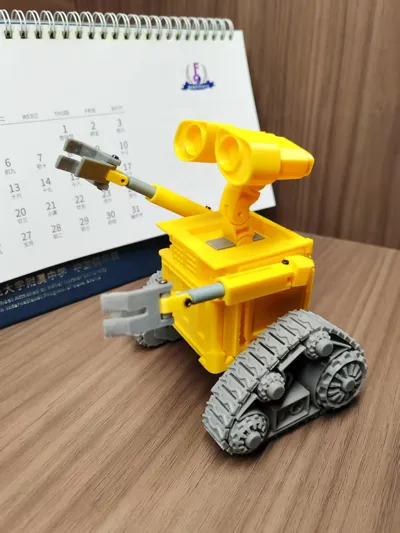

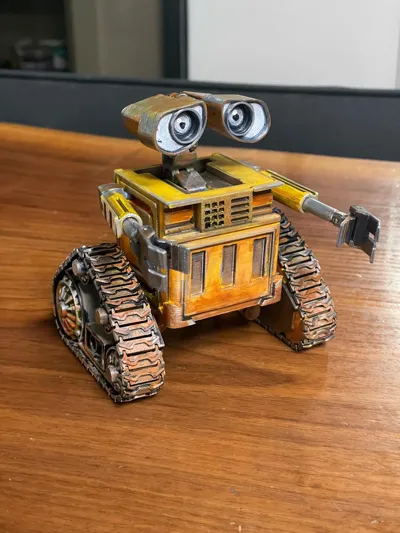

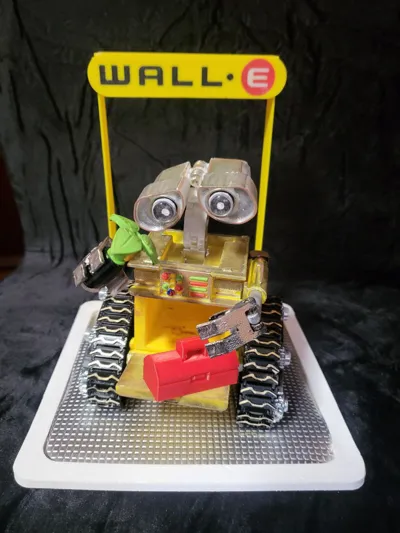

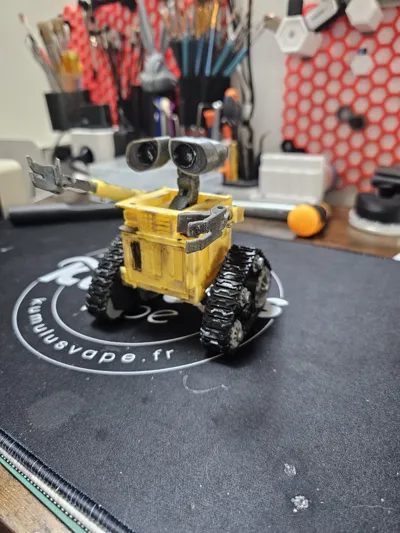

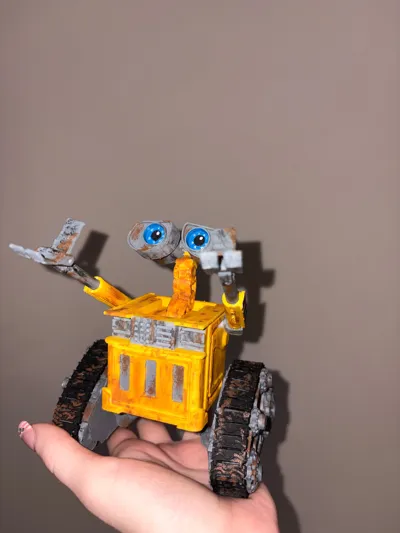

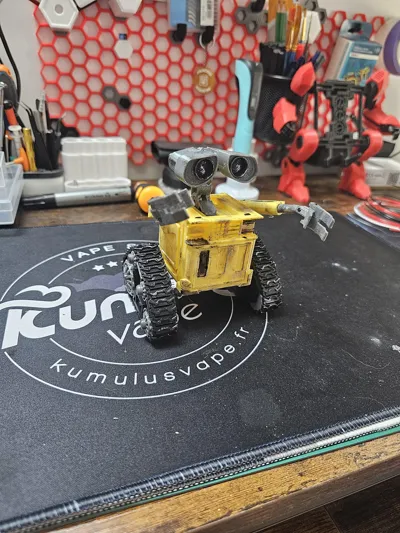

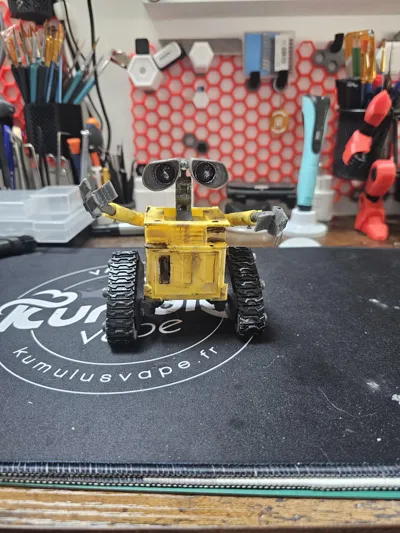

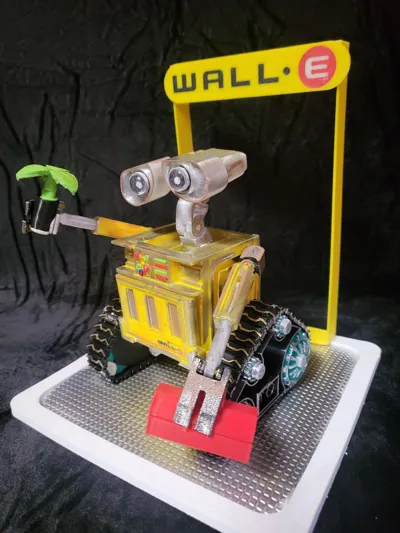

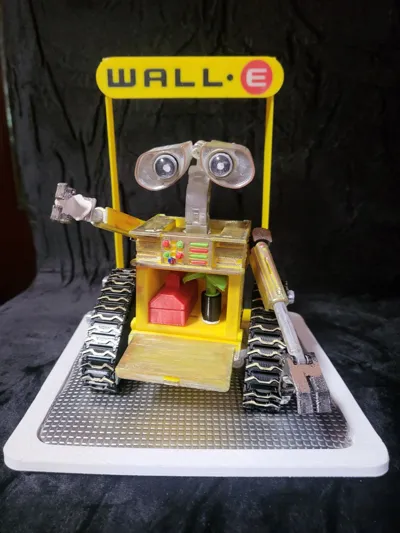

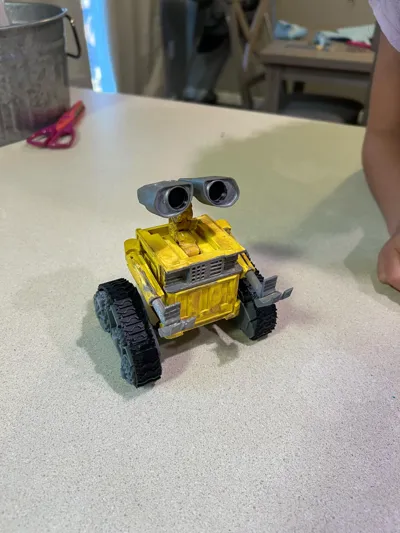

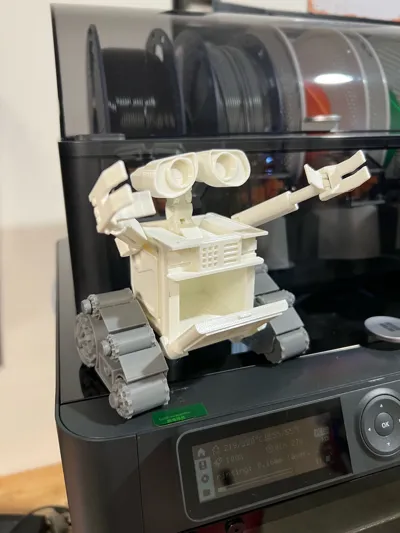

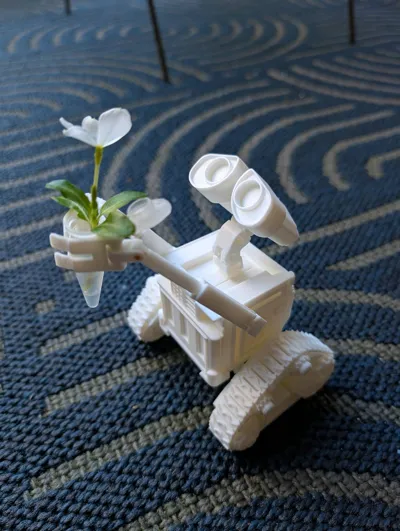

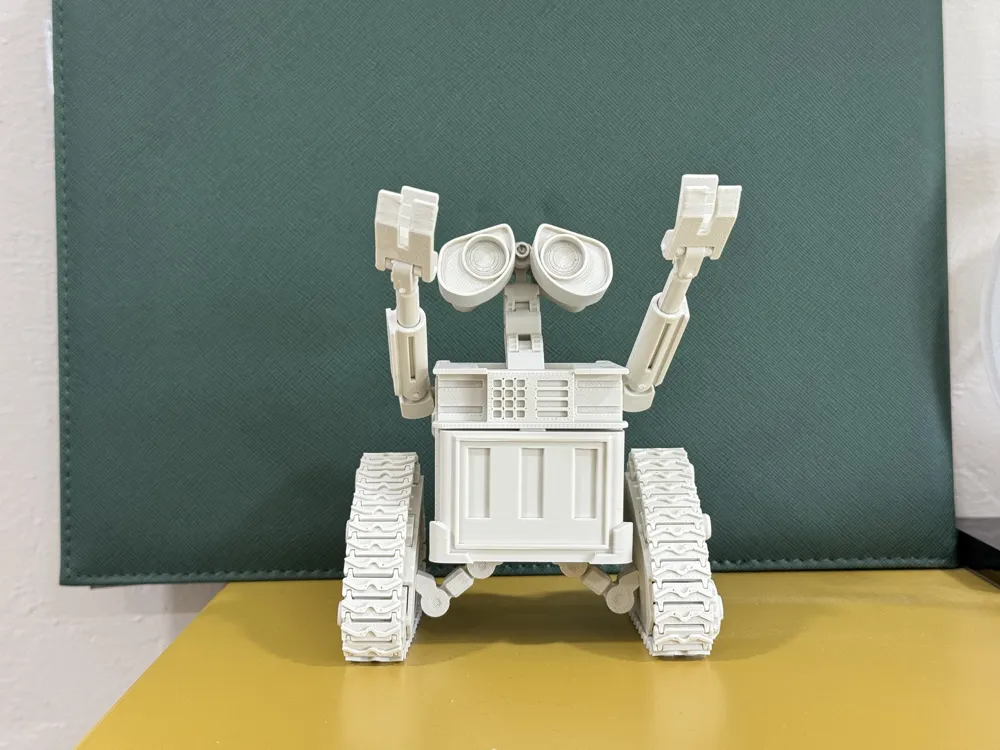

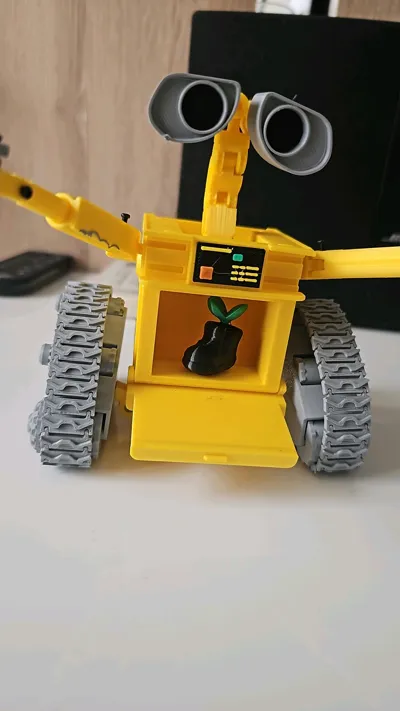

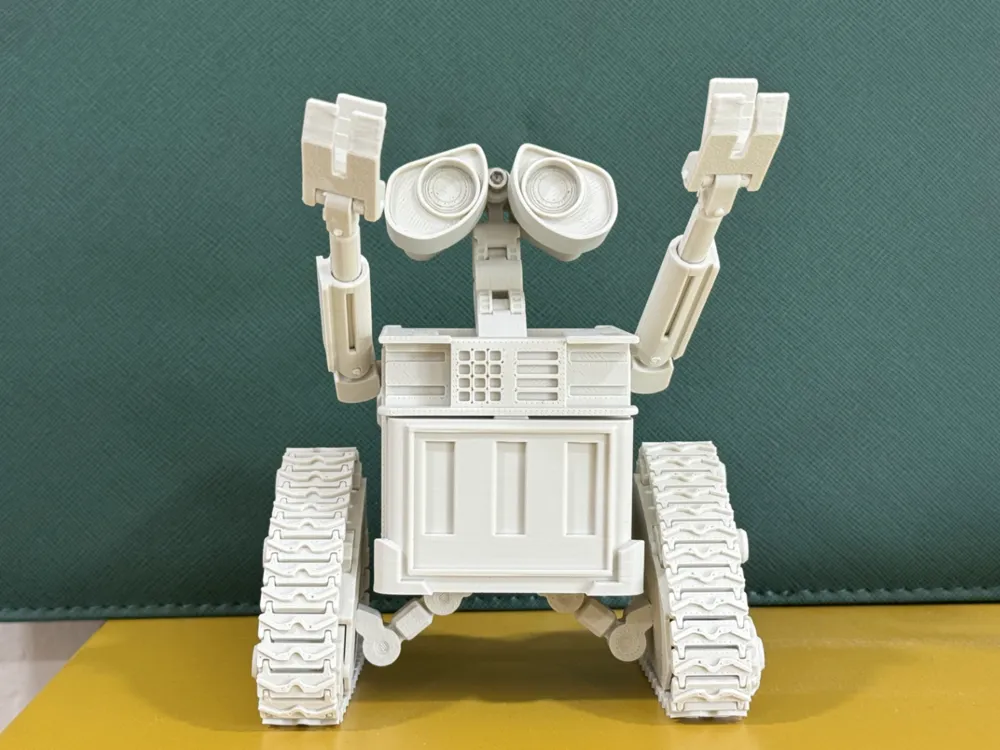

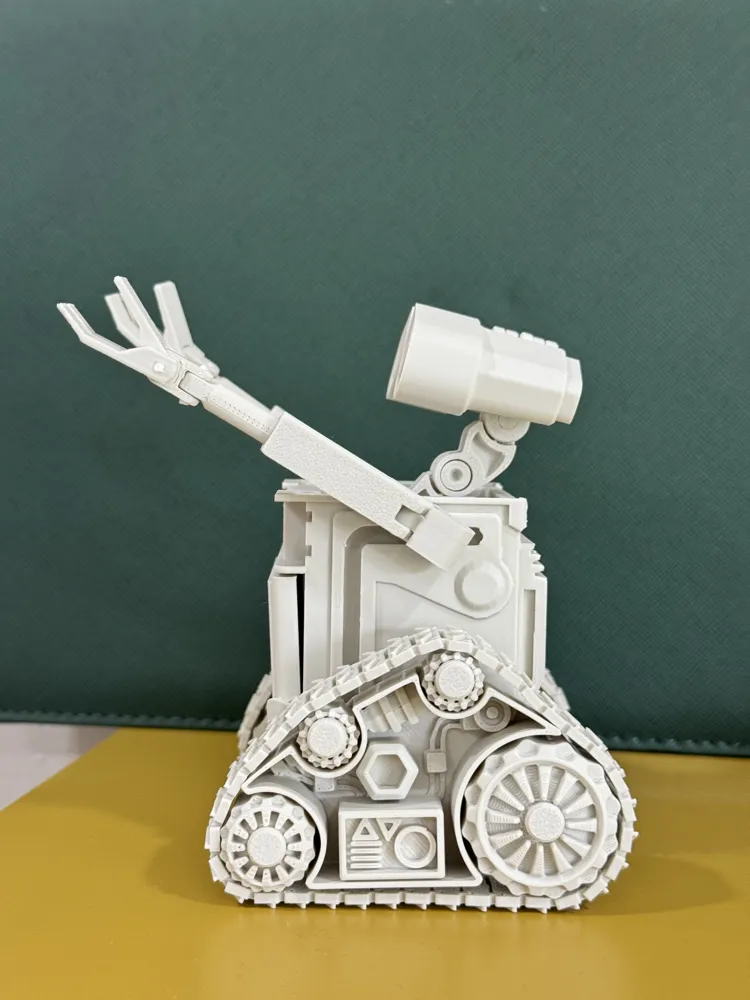

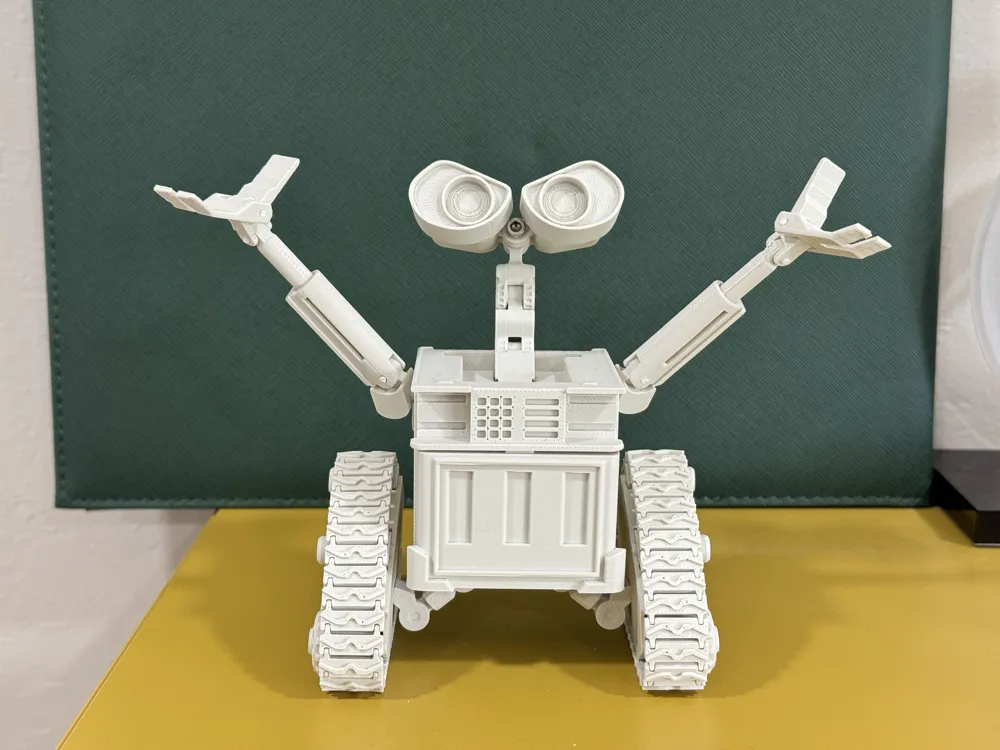

Articulating model of Wall-E Robot.
Has range of motion for - Eyes, Neck, Arms, Legs , tracks etc.
The joints are primarily for posing, and not meant to be functional at this point.
Designed in Blender for now, plan on doing this in Fusion in the future to improve articulation further.

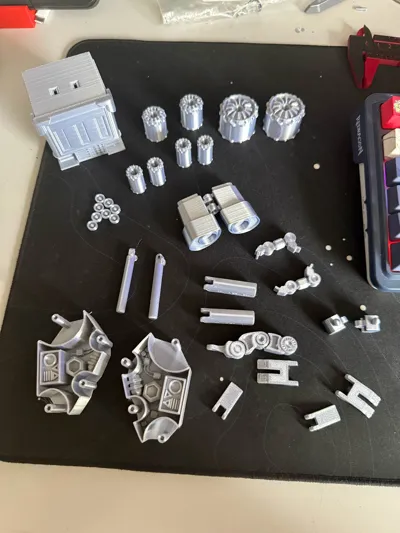

Assembly instructions:
- Requires one 3mm nut to hold the eyes.
- Will need glue to reinforce connectors for Legs/Torso, and also to cap the gears in leg assembly.
- Hands are hinged using extra pieces of filament itself.
- Tracks would need to be looped, connected, and then glued on to the gears.
- Neck should fit into the Torso with a bit of a force
