Benewake TF Mini Plus Mount and Sunshade
Print Profile(1)
Bill of Materials
- M5 SelfTapping Schrauben Metall x 6: Zur Montage
Description

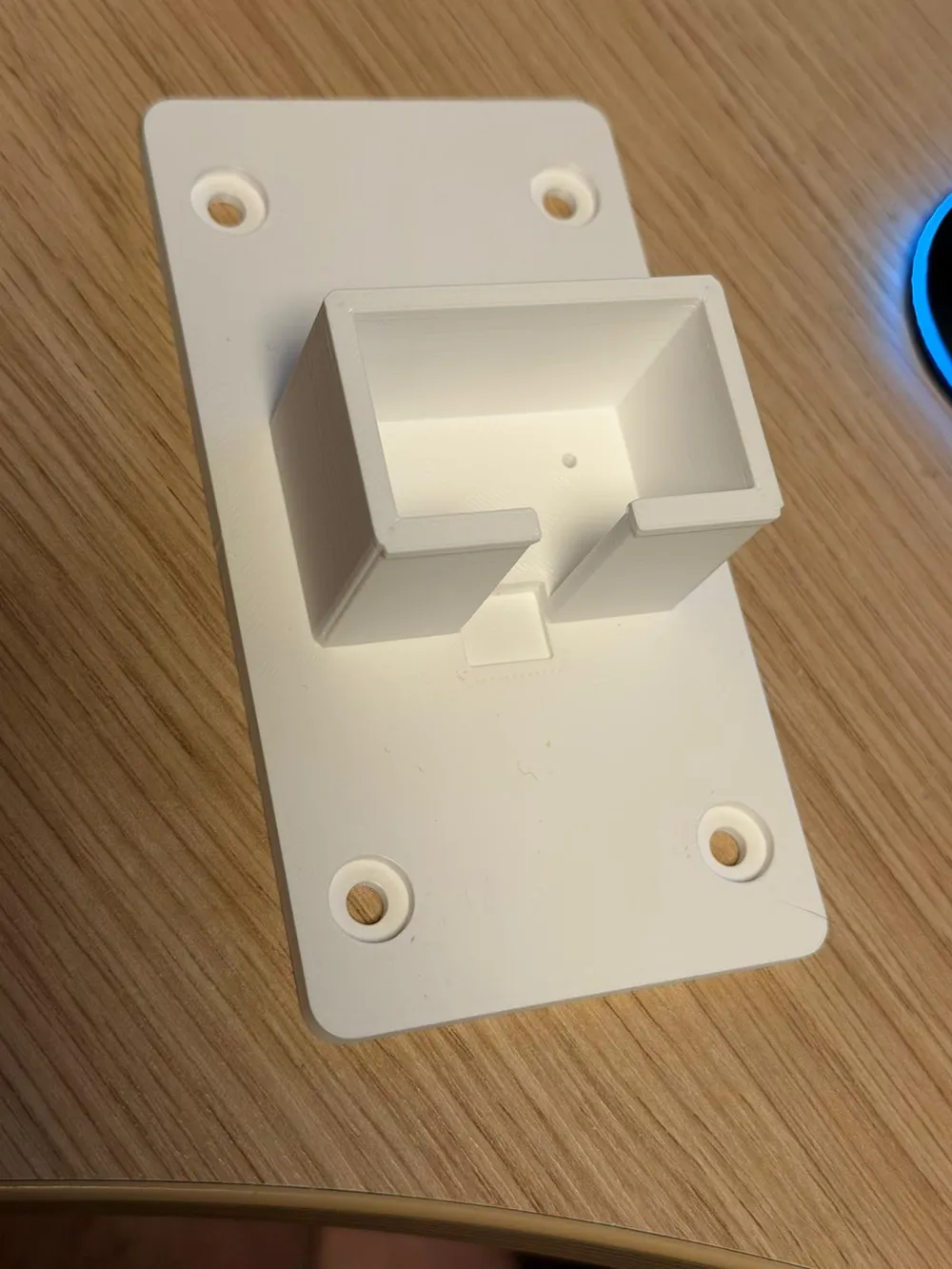

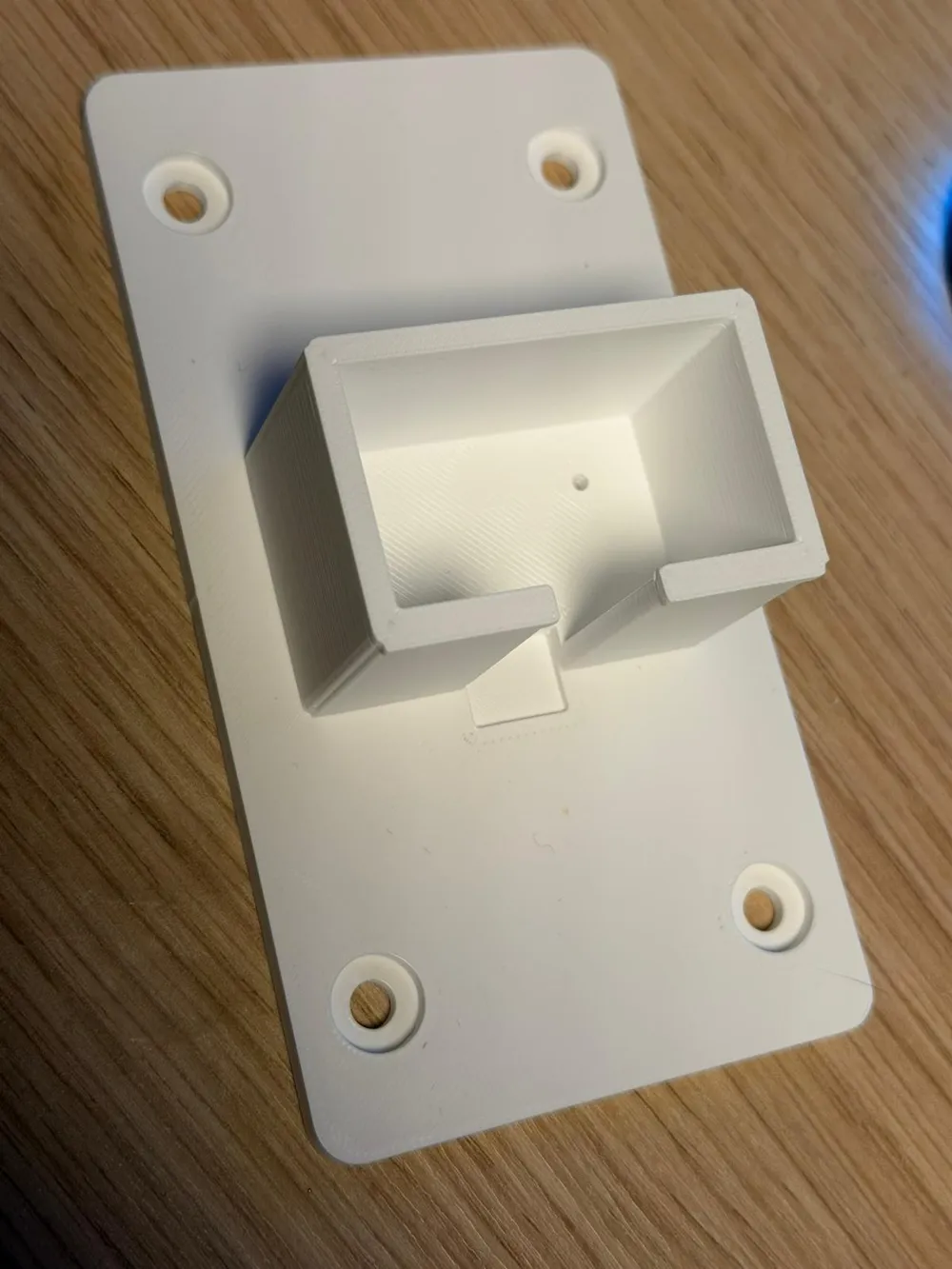

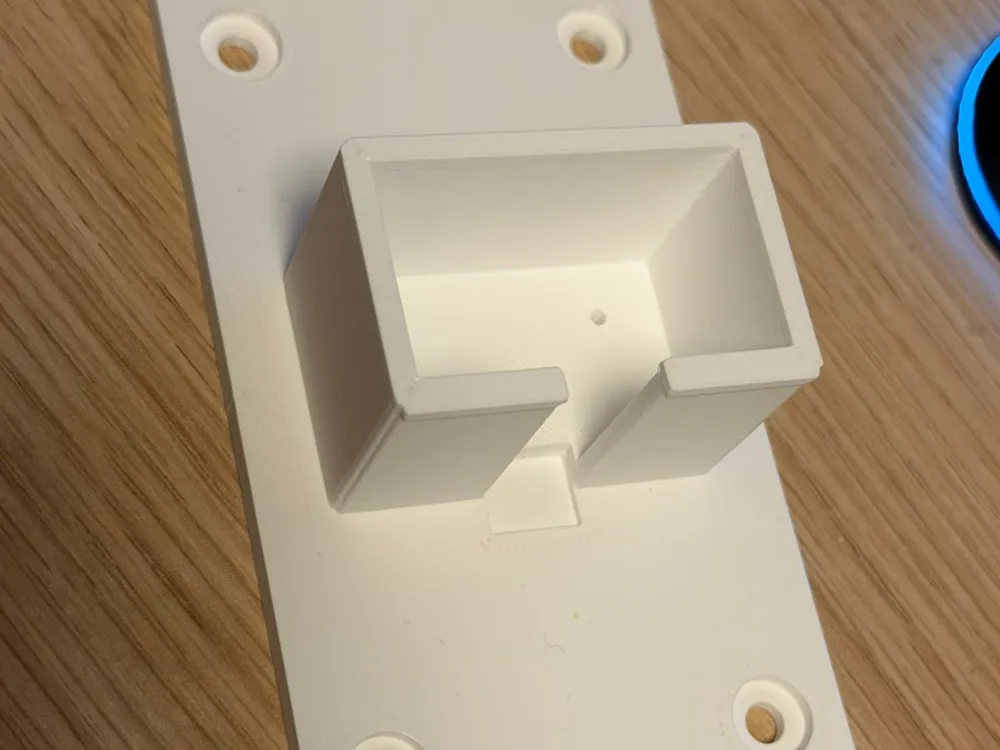

Mount for pole mounting a Benewake TF Mini Plus on a mast.
The project uses Benewake TF Mini Plus as a virtual light barrier, evaluation is done with an Atom Lite M5 Stack via UART.

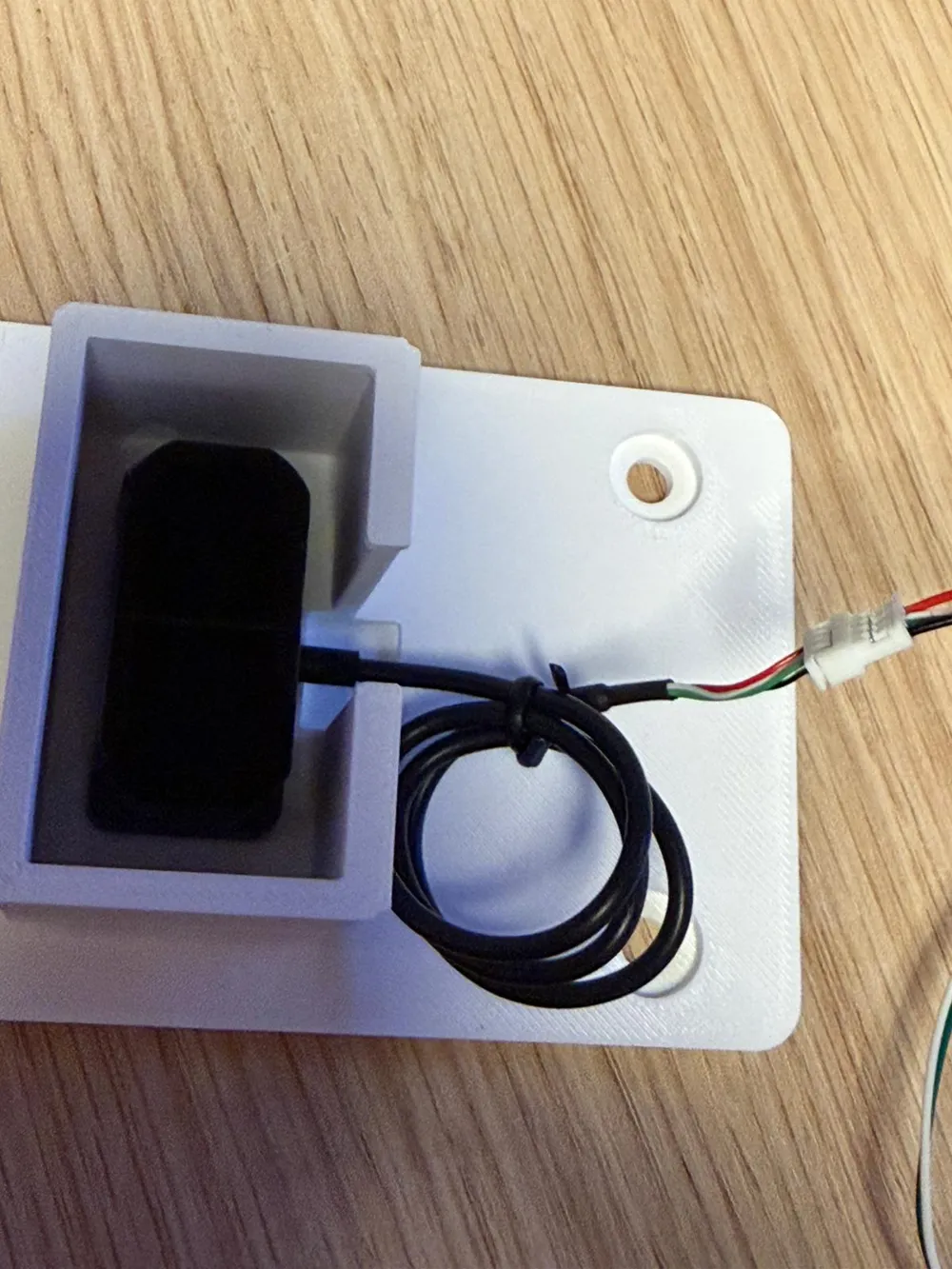

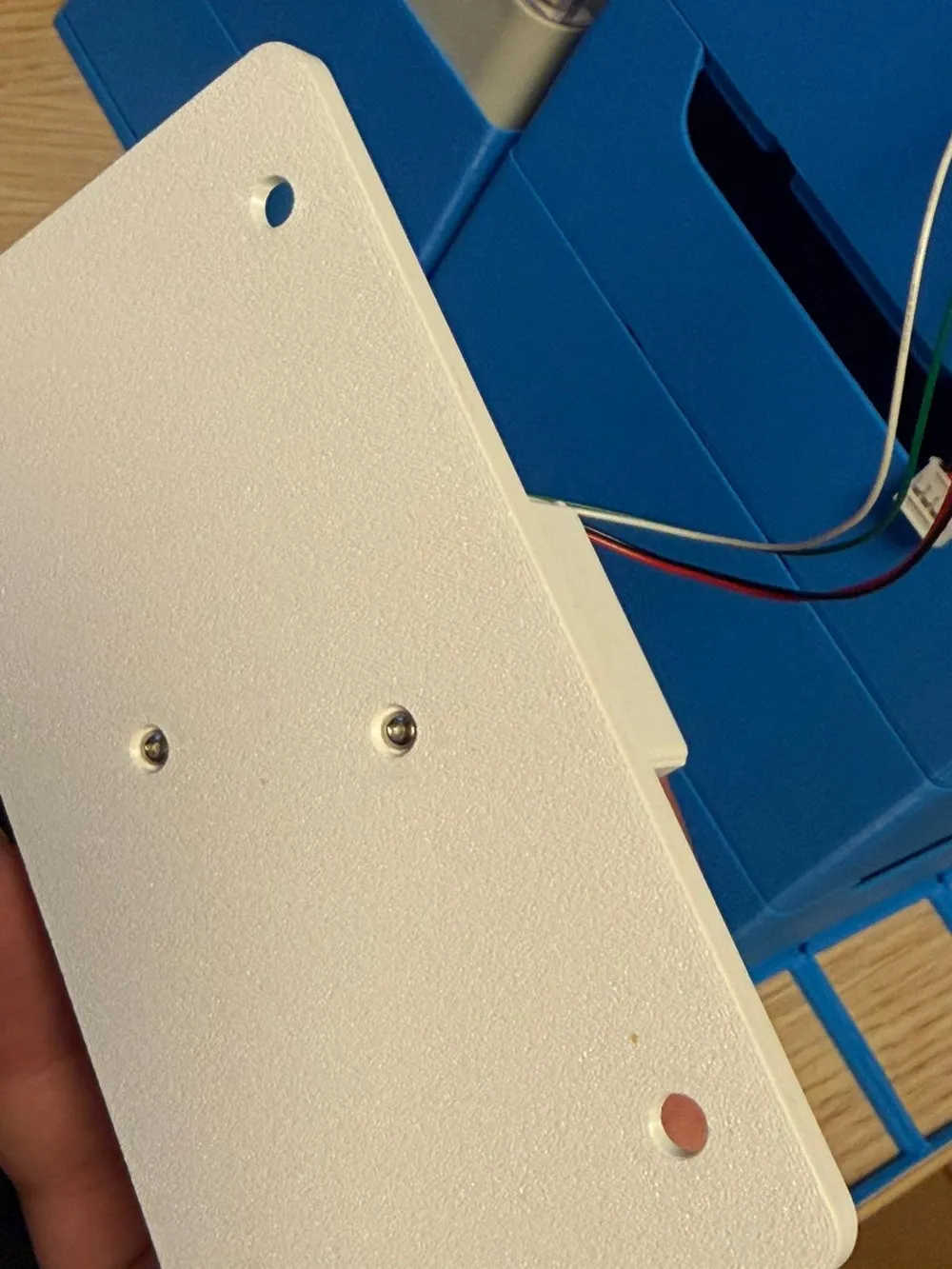

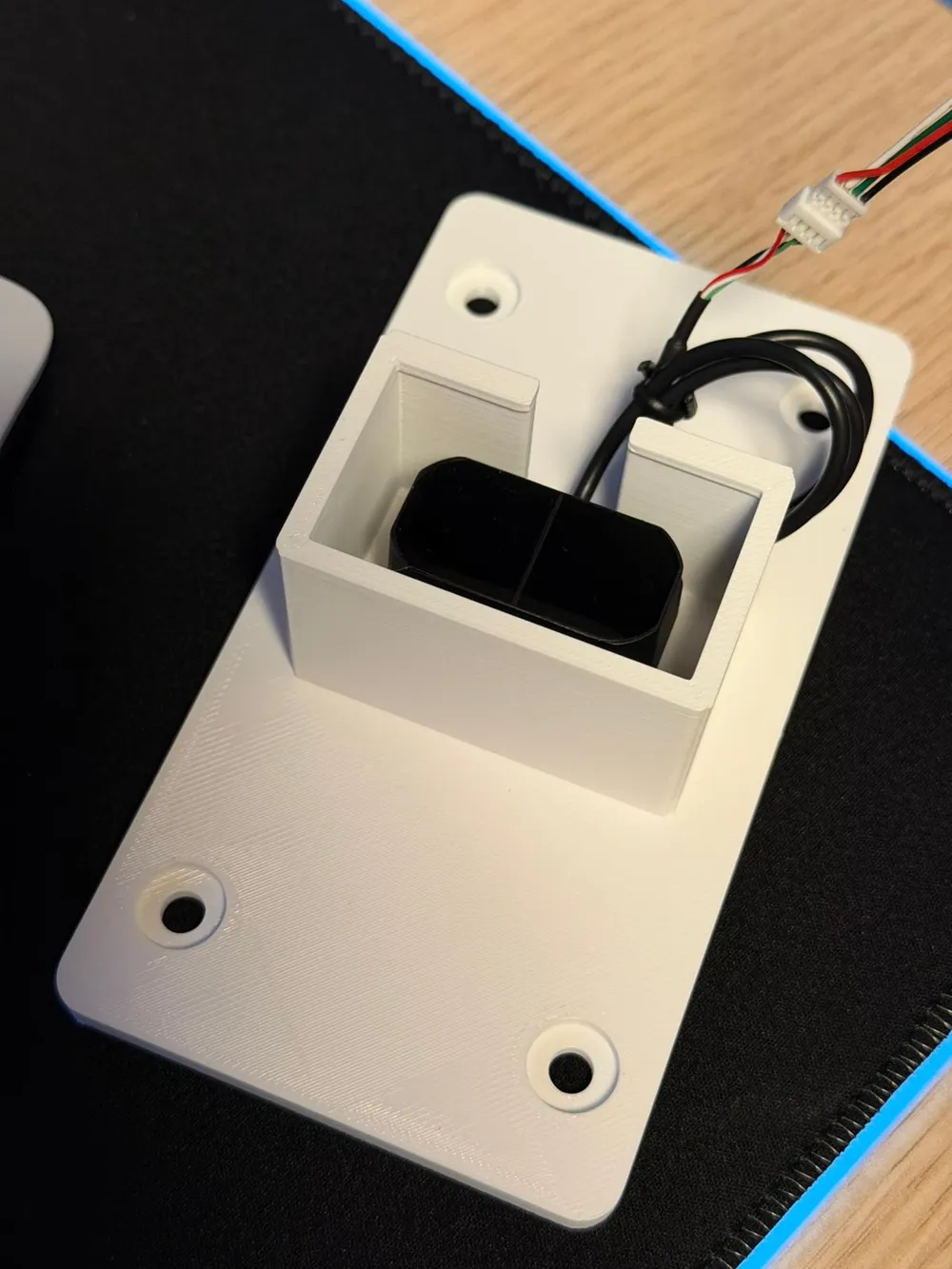

The sensor can be screwed into the mount with M2 screws, and the mounting plate can be attached to the mast using M4 or M5 screws.
Printing with PETG or ABS / ASA recommended for outdoor use.
Printing in white recommended.
The file also optionally includes a sunshade for the TFMini Plus to shield the sensor from excessive sunlight.
Example YAML in the appendix.

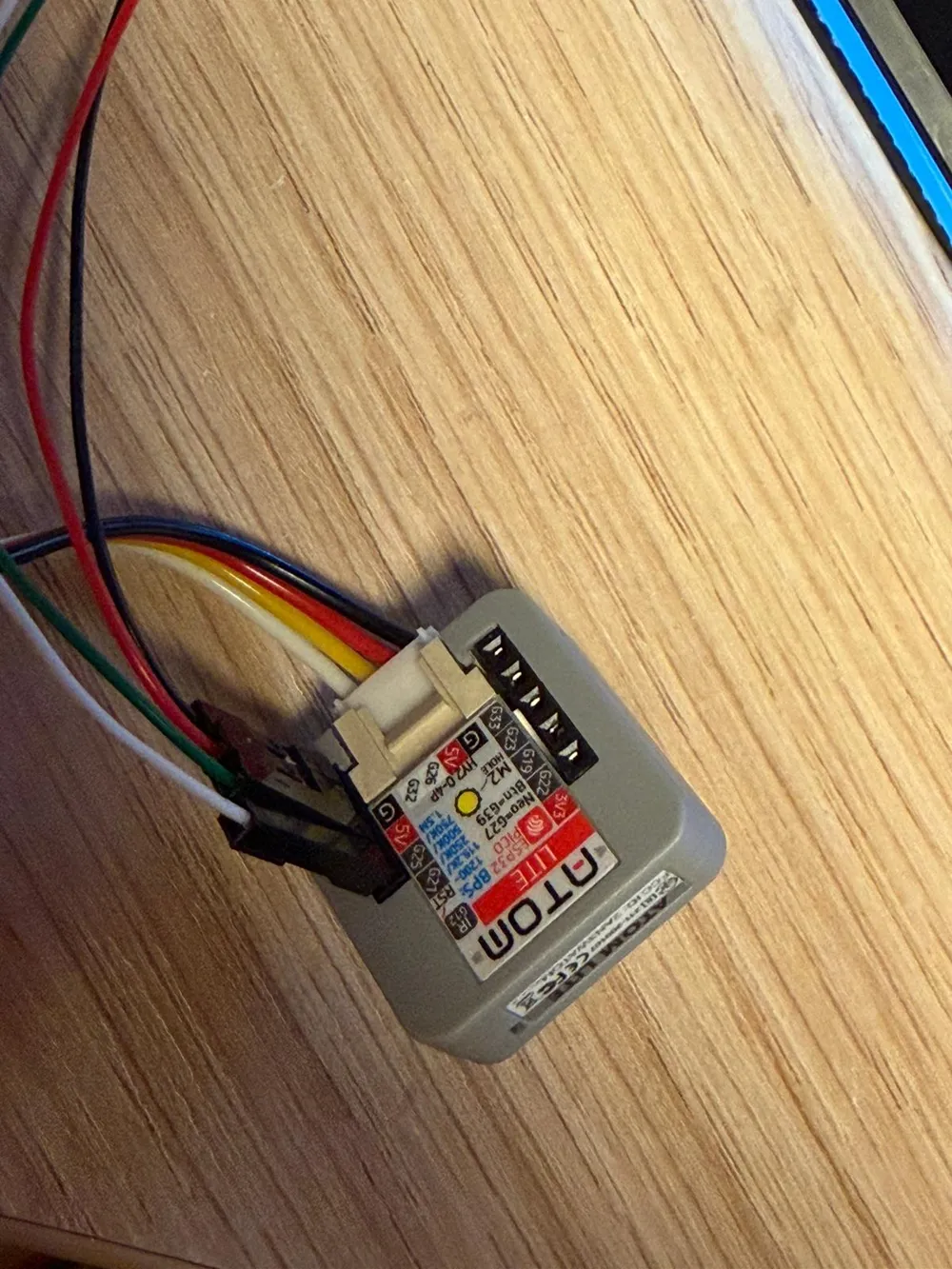

M5Stack ATOM Lite
GPIO21 = ESP TX -> TFmini RX (here white)
GPIO25 = ESP RX <- TFmini TX (here green)
5V = TFmini +5V, red wire
GND = TFmini GND, black wire
Alternatively, change the GPIOs in the configuration, can also be operated via Grove cable.
