DJI RC Plus 2 Tripod Adapter
Print Profile(1)
Description

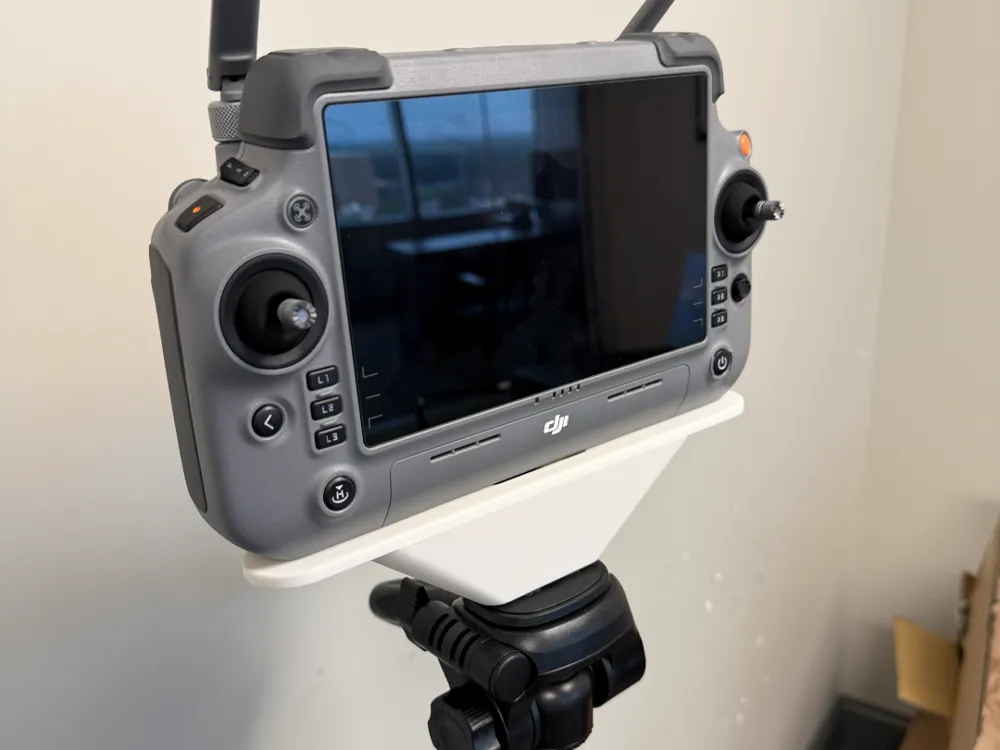

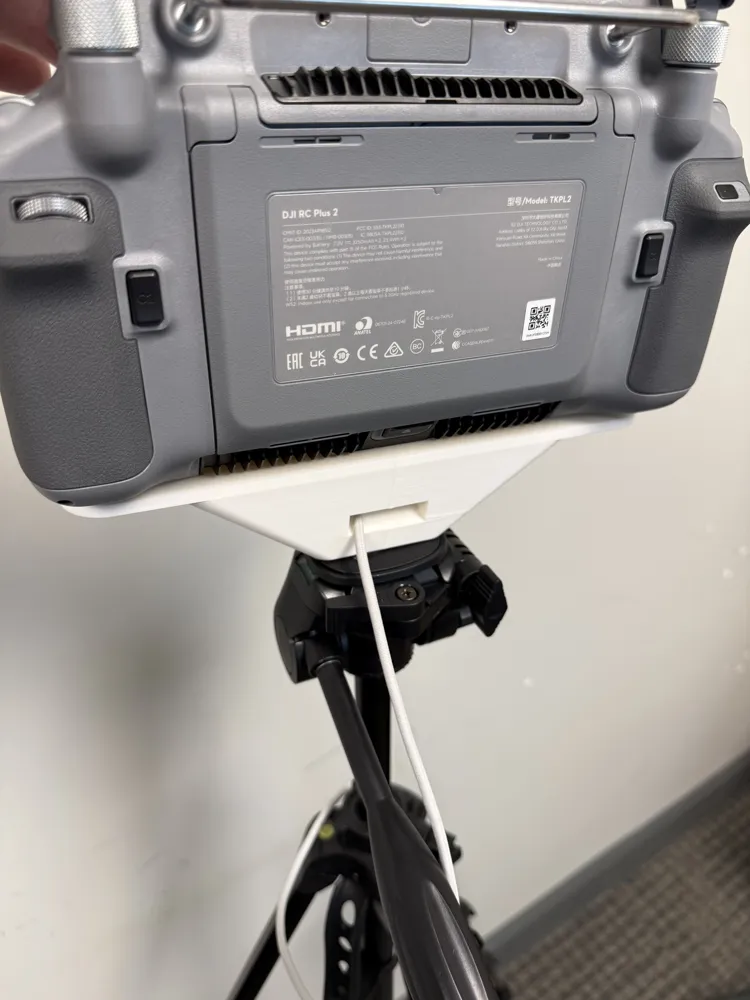

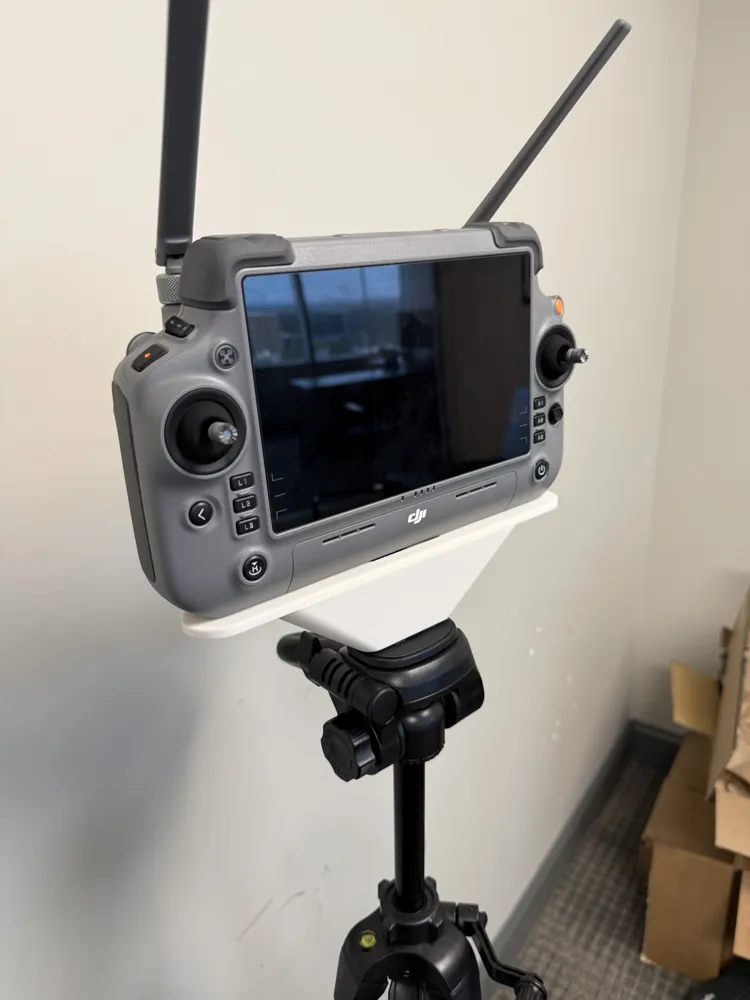

Adapter to mount your DJI RC Plus 2 remote to a tripod. The mount uses the factory screw holes at the bottom of the RC (M4 thread). There is a ¼" and 3/8" version depending on what size stud your tripod has.

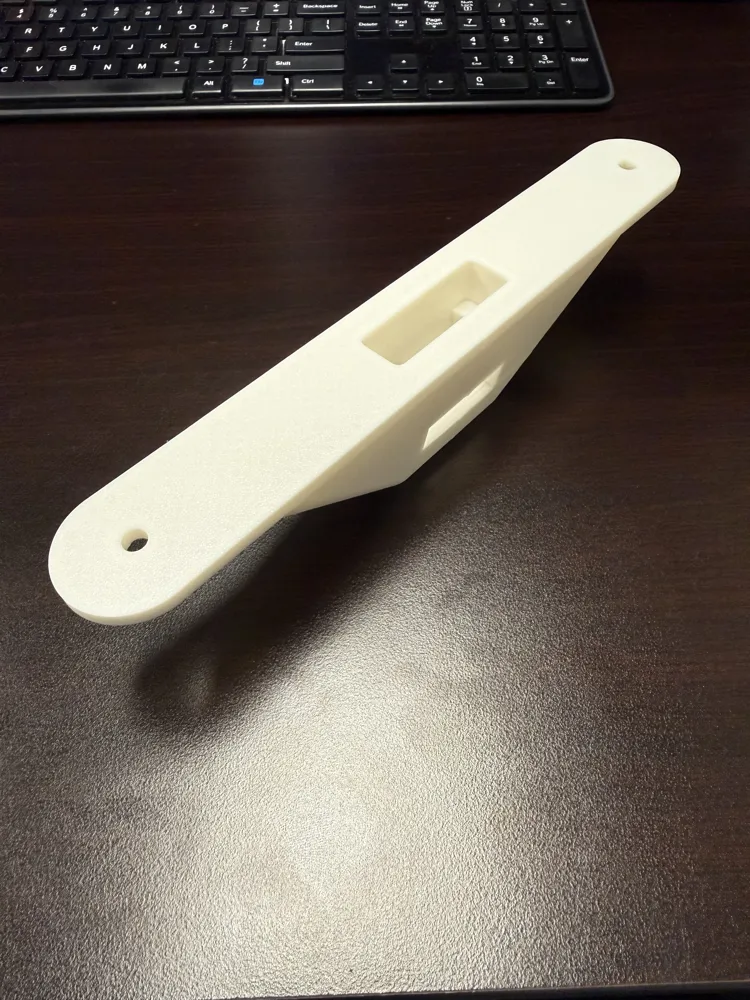

This print is only intended to be used with heat press brass fittings inserted into the base of the model. Basis of design is
¼" Version - ¼" - 20 8L X 8D Heat Press Inserts
3/8" Version - 3/8" - 16 thread x 12.7 Heat Press Inserts
WILL NOT WORK WITHOUT THE BRASS INSERTS
I recommend using heat resistant filament such as ASA or PETG to limit warping.
Files ending with 14 are the ¼" version, files ending with 38 are the 3/8" version
Use at your own risk.
This is a user-manufactured 3D printing file only. The final strength, safety, and performance of the printed part depend on the user’s printer, material, print orientation, slicer settings, layer adhesion, hardware, installation, and use conditions.
This part is not an OEM DJI product and is not certified, tested, or guaranteed to protect any controller, drone, accessory, or other equipment. Use at your own risk. Inspect the printed part before every use and discontinue use immediately if there are cracks, deformation, loose hardware, poor layer adhesion, or any signs of weakness.
Do not rely on this mount as the sole means of securing expensive equipment. The designer/seller is not responsible for damage caused by improper printing, material selection, installation, modification, misuse, or failure of the printed part.
