TCAS halter Throttle Desk Mount5 WINCTRL WINWING
Print Profile(1)
Description

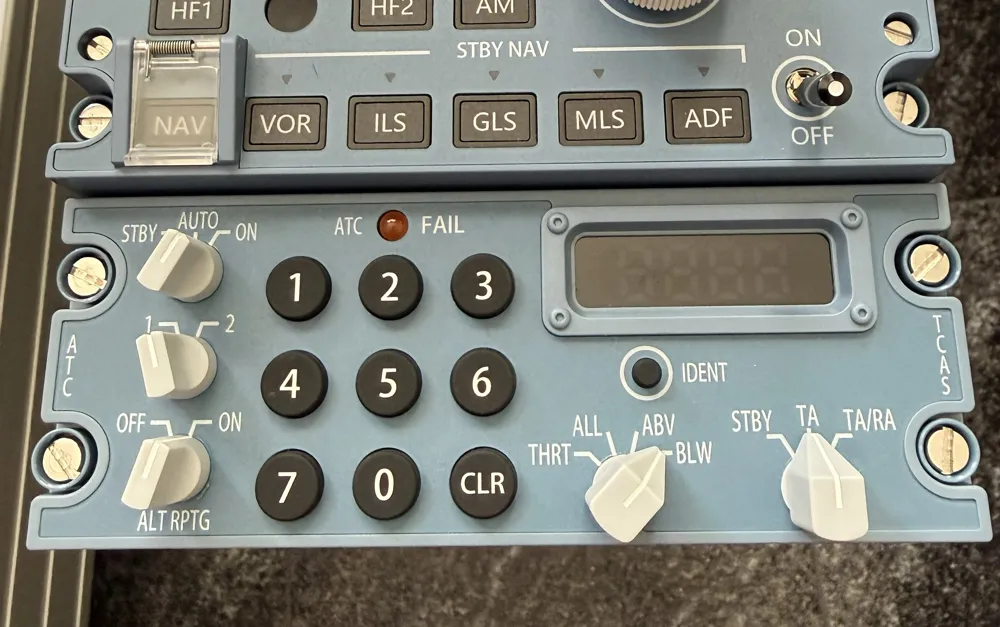

This TCAS mount was specifically designed for the "Throttle Desk Mount 5 with Profile Bar 1" by WINCTRL.
It is part of a series of mounts for the "Throttle Desk Mount 5". Further mounts, including those for the MCDU and RMP, can also be found in my profile.
Required Mounting Hardware

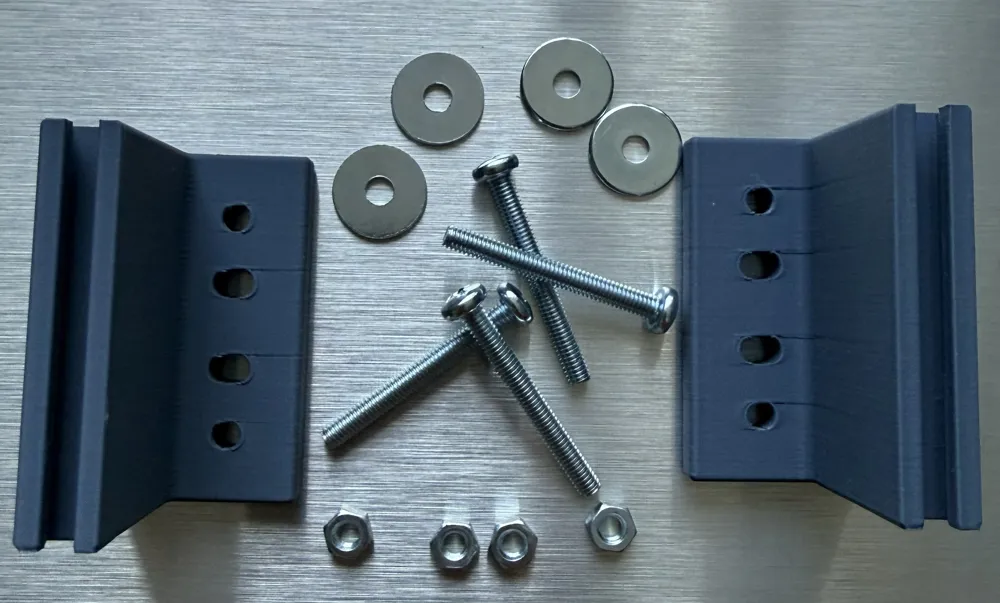

The following parts are required to attach the mount to the Desk Mount 5:
- 4 × M4 × 35 mm screws (e.g., flat head screws DIN 85, A2 stainless steel)
- 4 × M4 hexagon nuts (e.g., DIN 934, A2 stainless steel)
- 4 × washers (inner diameter 4.3 mm, outer diameter 15 mm)
The screws and square nuts supplied by WINCTRL fit perfectly to attach the MCDU to the mount.
Assembly Note

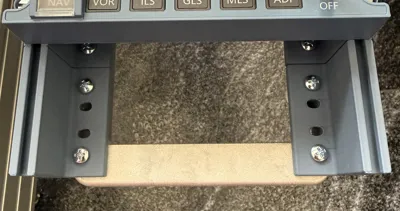

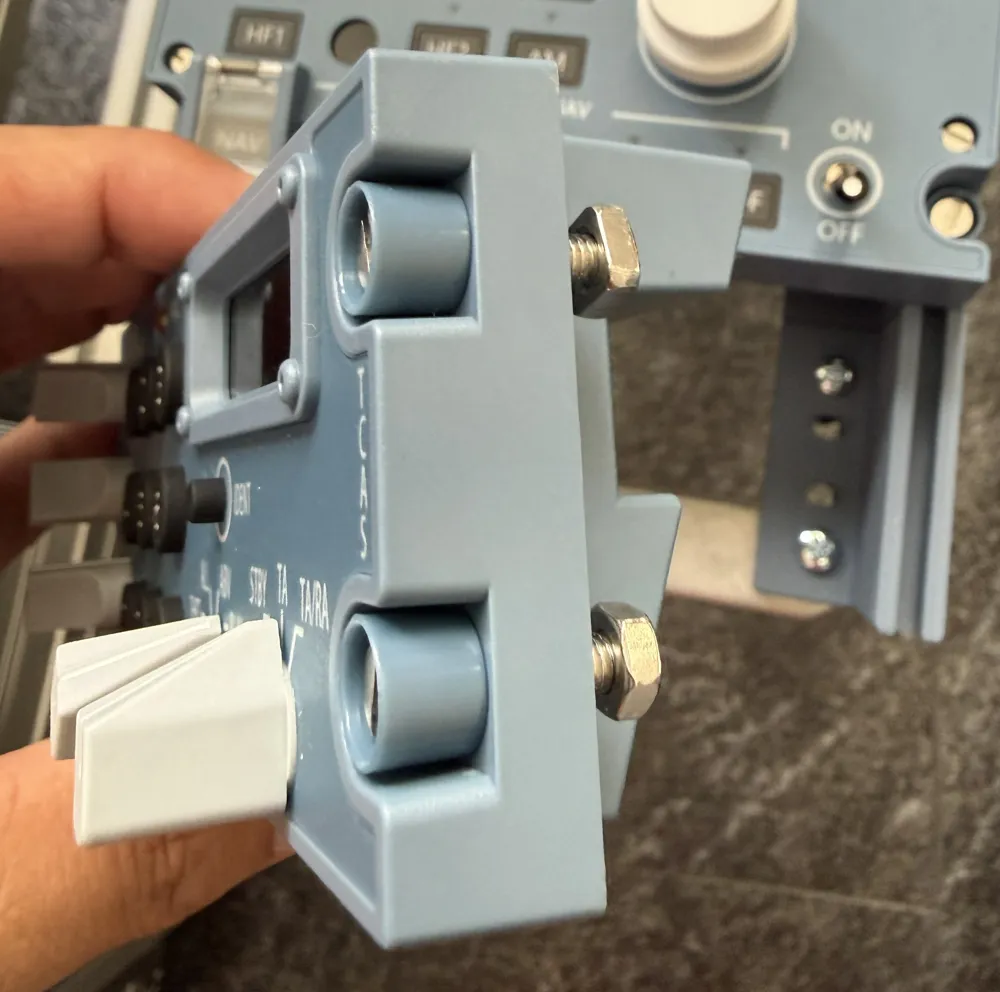

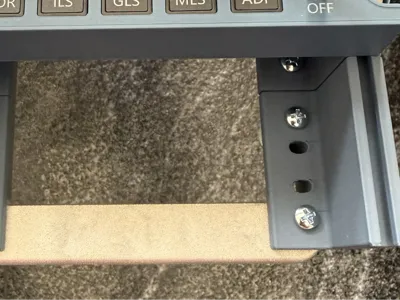

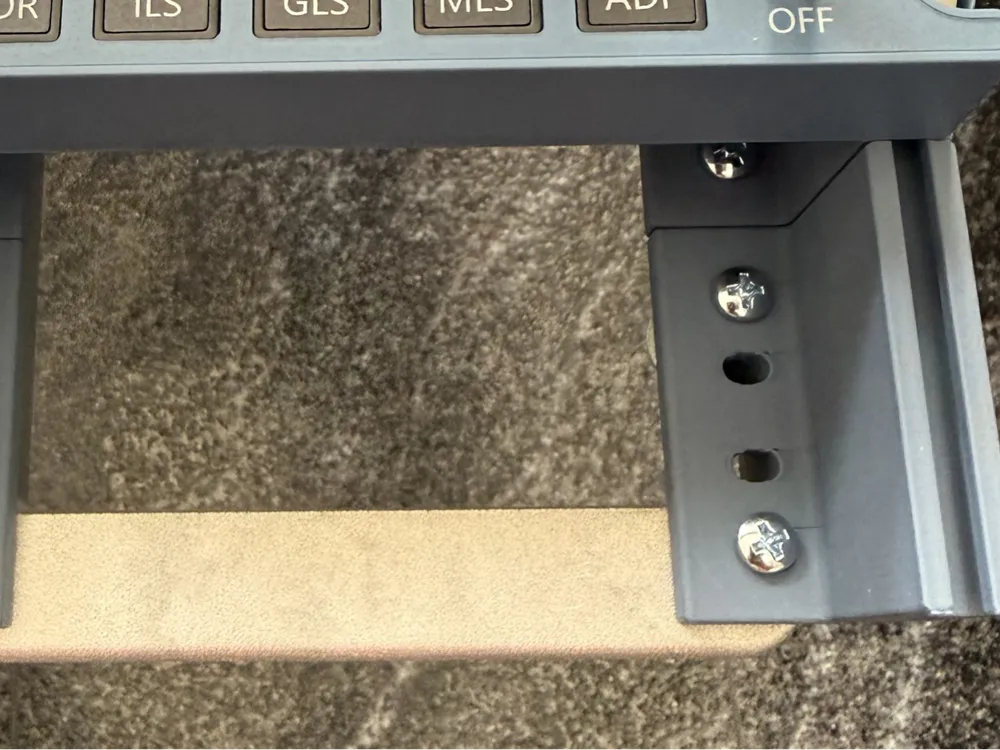

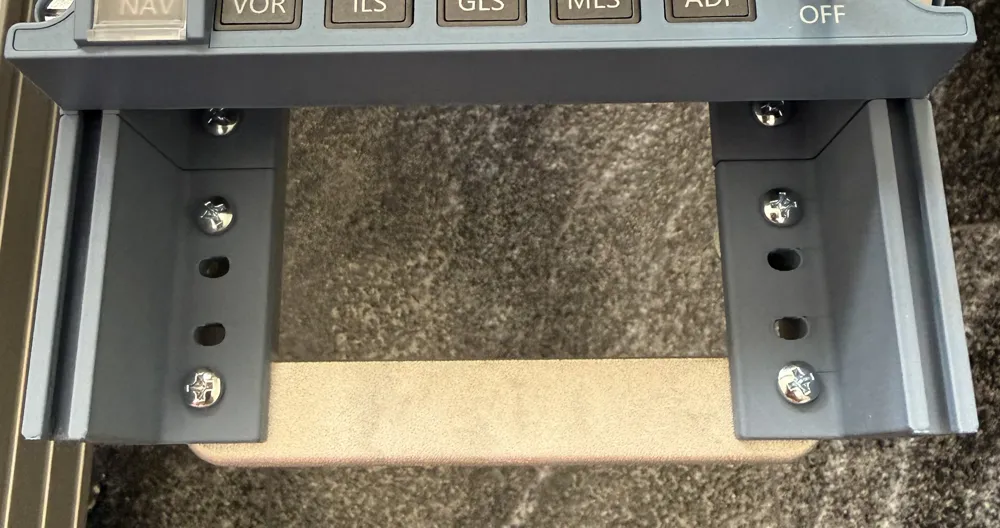

When assembling, ensure that both mounts are aligned exactly parallel to each other. The TCAS can then be carefully slid into the mount. Insertion requires a bit of dexterity but works without problems if correctly aligned.
Print Settings
- Wall thickness: 3 lines (2 lines are also sufficient)
- Infill pattern: Gyroid
- Material: eSUN PLA
- Color: Dark grey (Matte)
Support
If you like or find this model helpful, I would greatly appreciate a Like, a Rating, or even a Boost. This supports my work and helps other users discover the model. Thank you!
I always welcome suggestions, improvement proposals, or new ideas. If my time permits, I am happy to implement desired changes or extensions and incorporate them into the model.
