🌊 Pool Fountain for Pool Filtration (Universal Ball Joint)

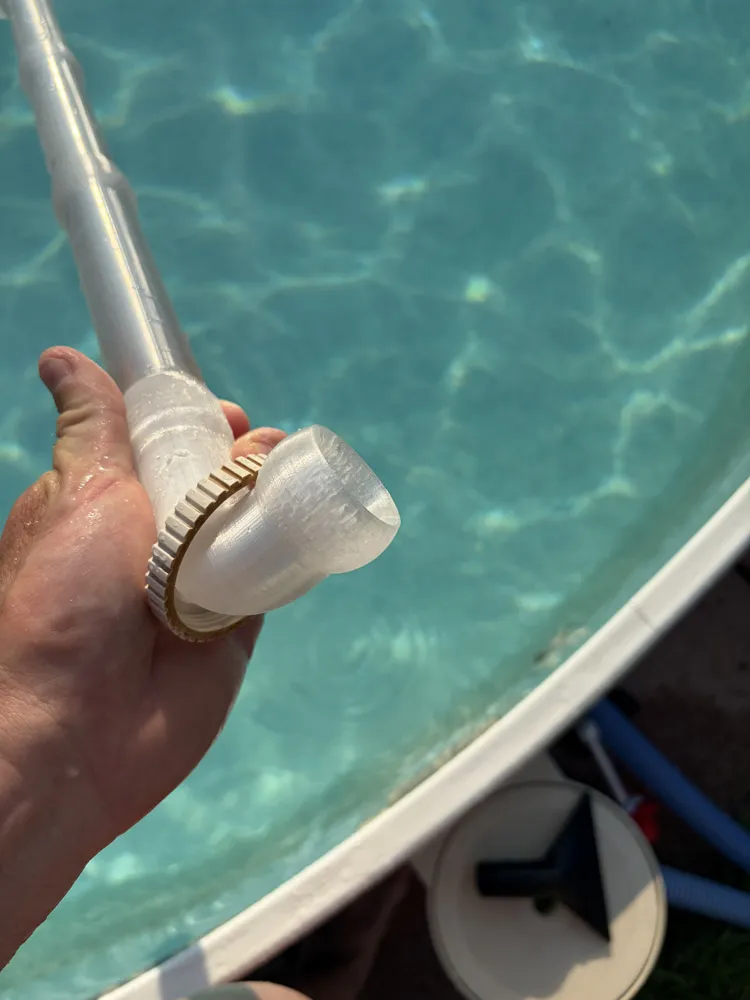

Turn your standard pool return jet into an awesome water fountain! This model is designed to replace the directional eyeball of your existing pool inlet while using your original threaded locking ring to secure it in place. No extra hardware or gluing needed!

📌 Features & Smart Design

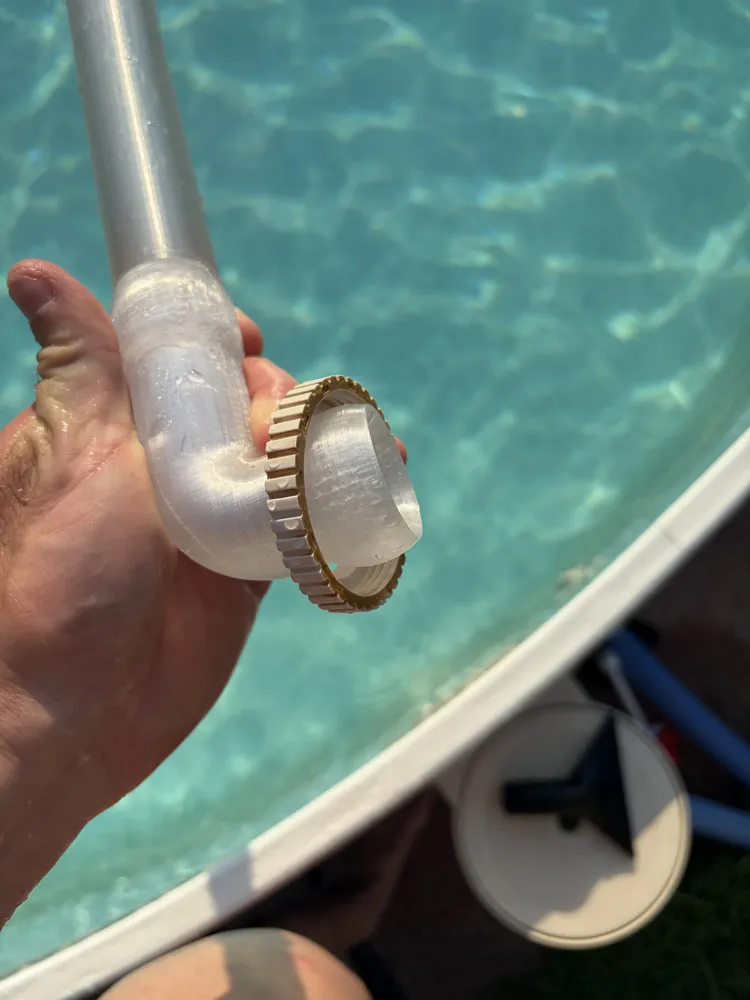

  • Easy Installation: Just unscrew your original pool jet cover, remove the stock eyeball, insert this fountain, and screw the original ring back on.

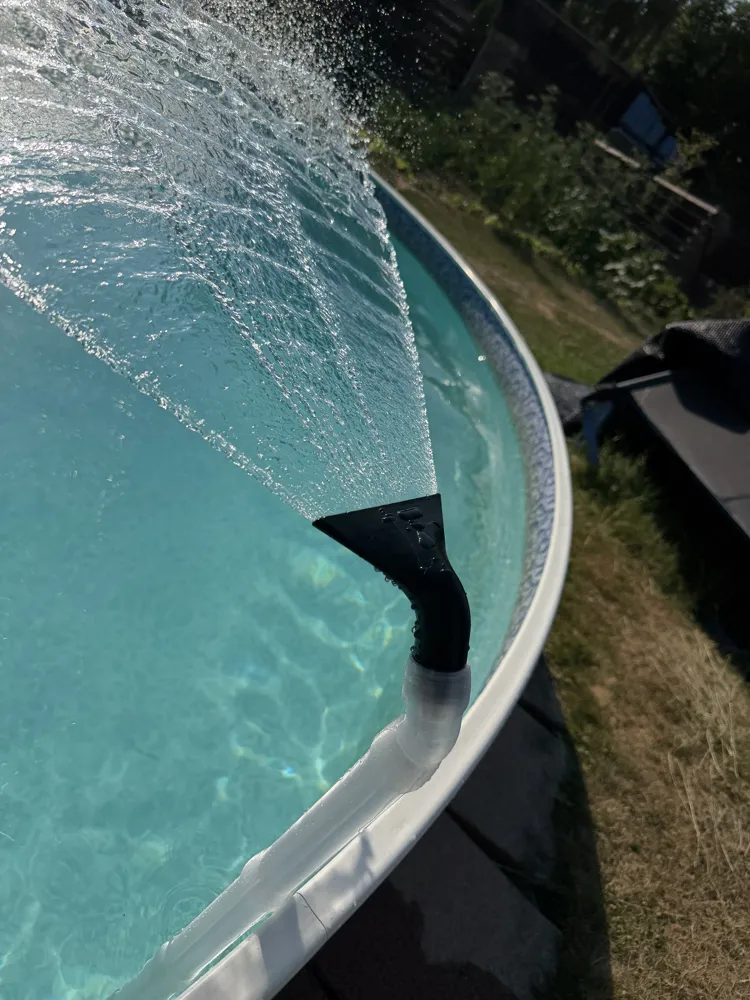

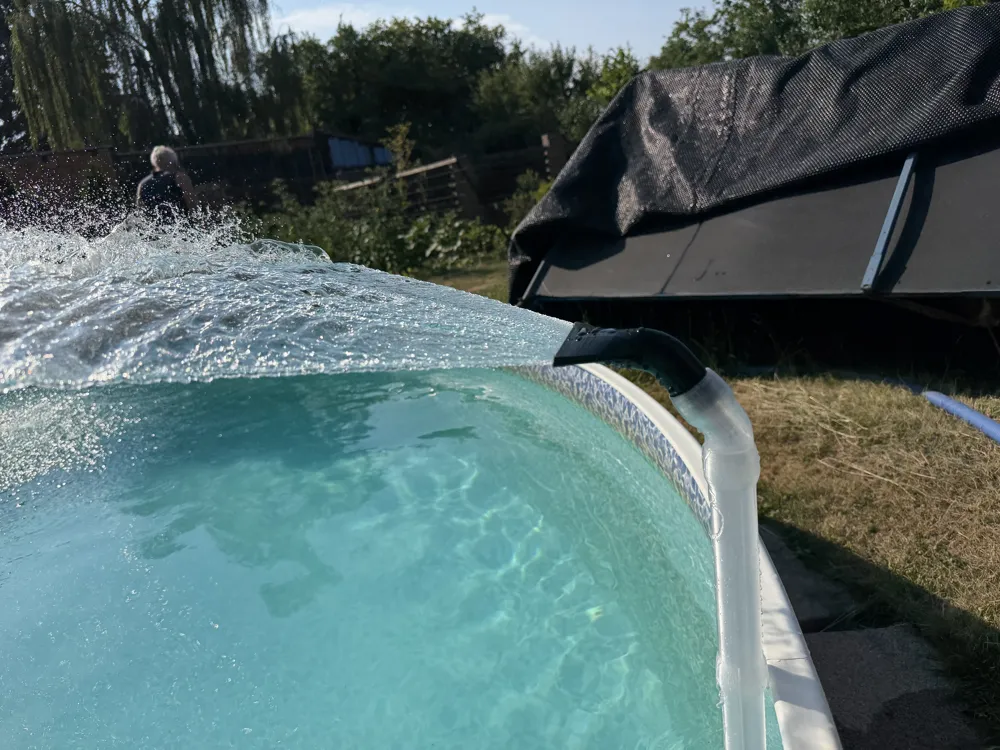

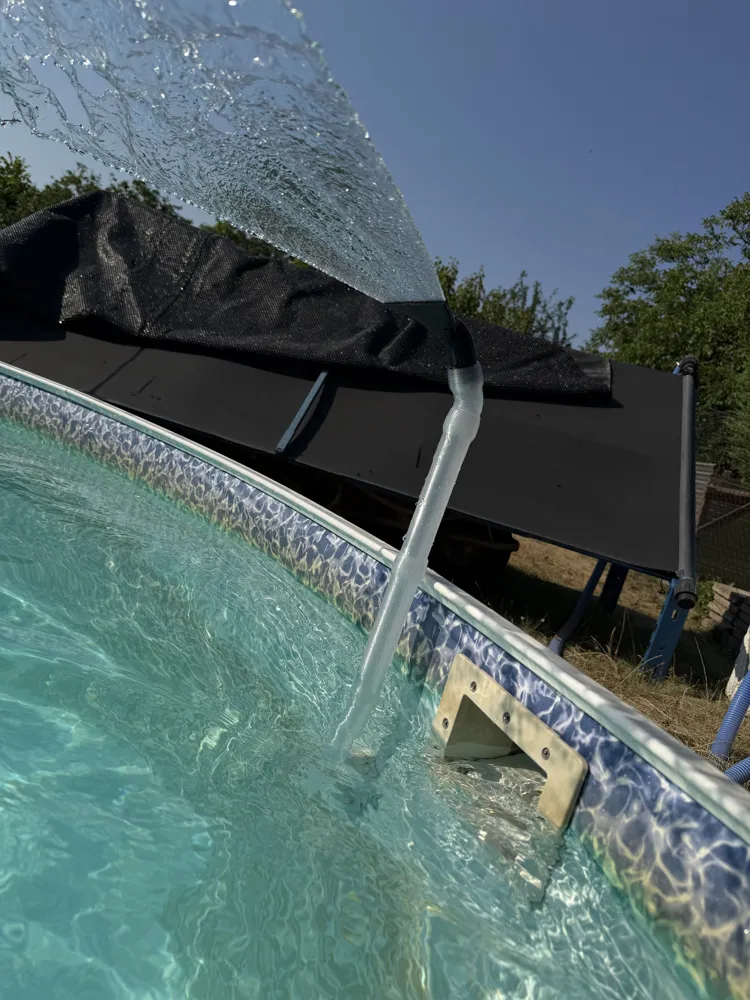

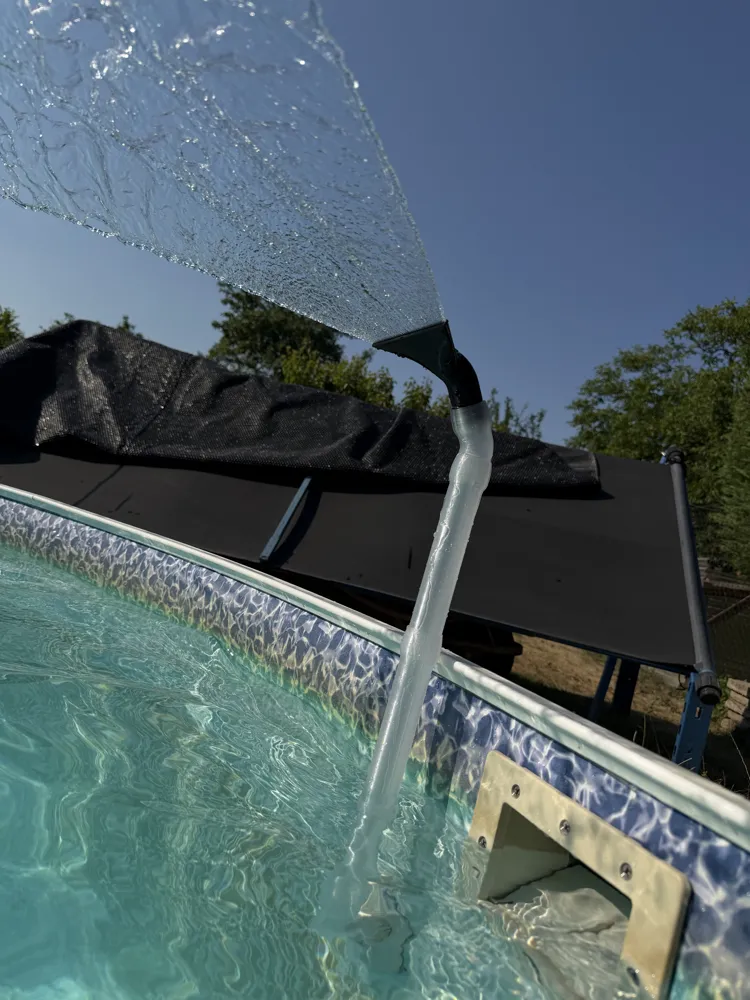

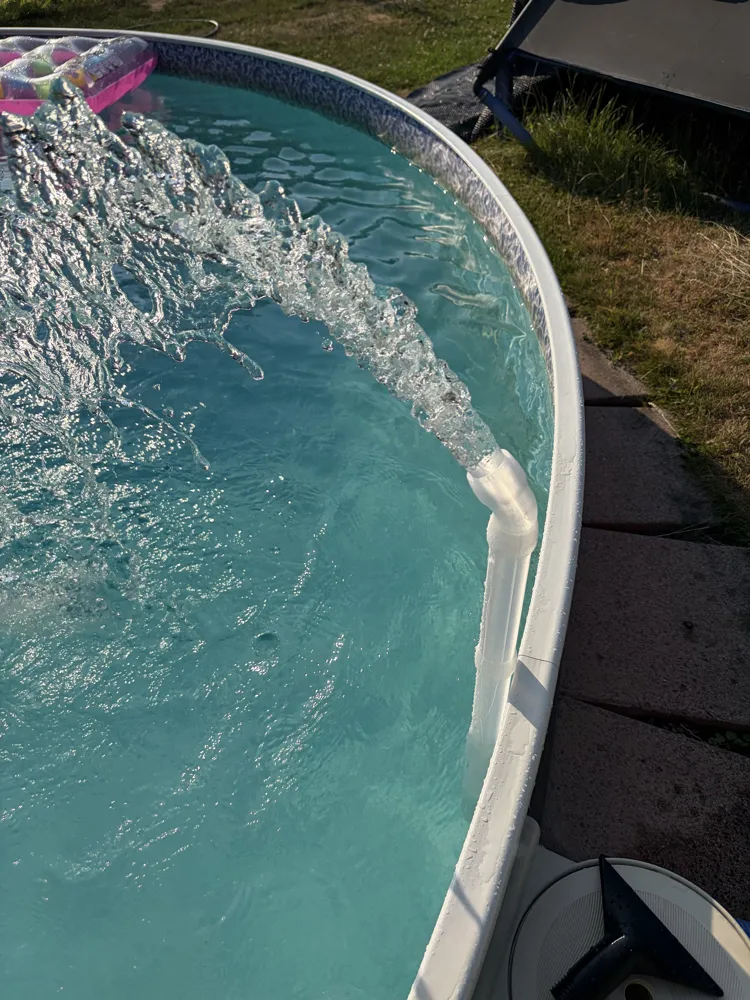

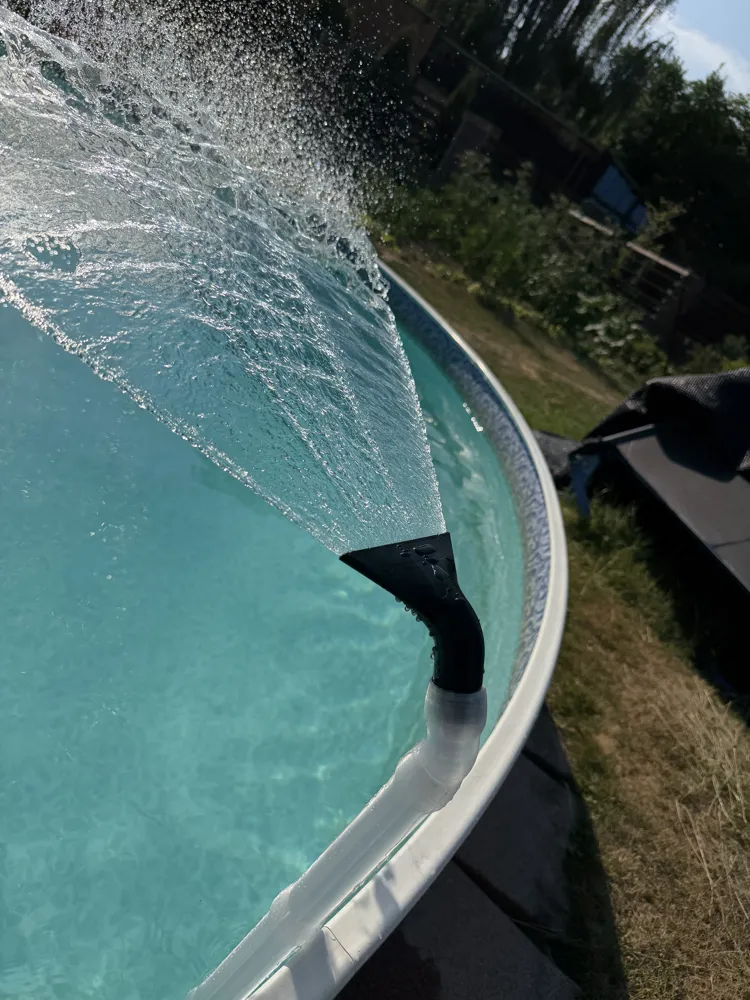

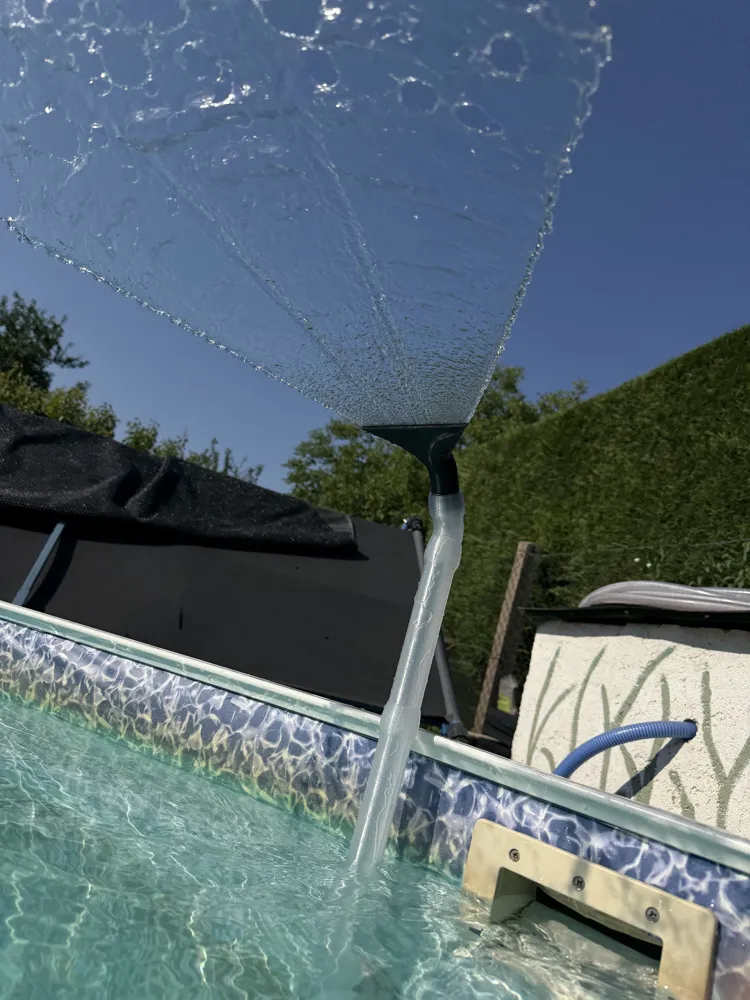

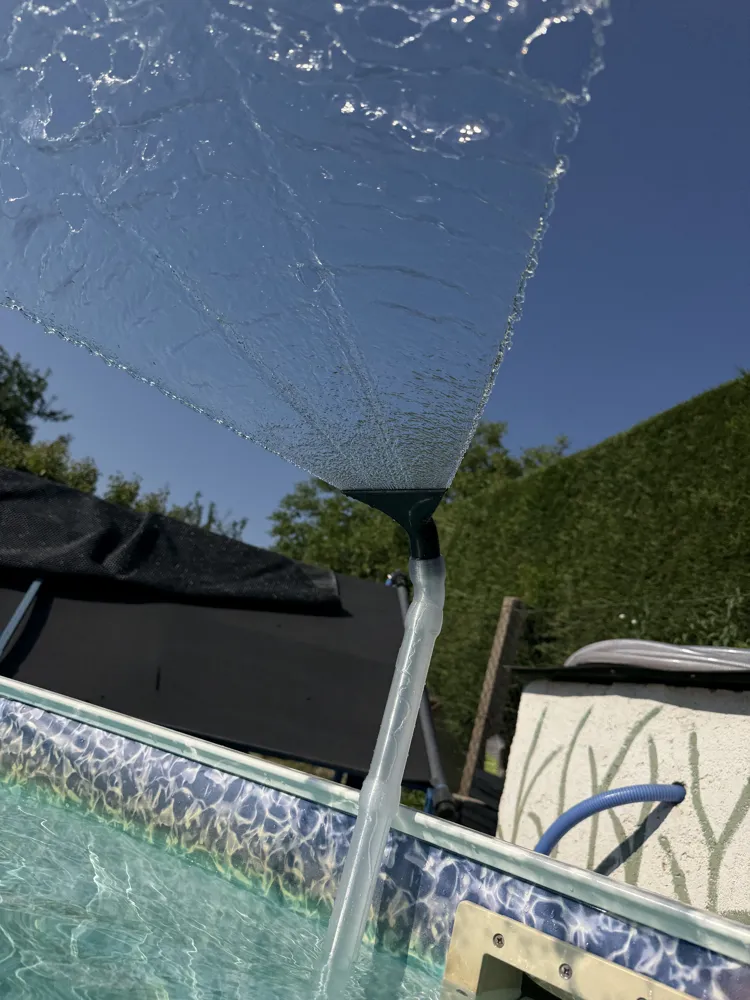

  • Great Visual & Cooling Effect: Creates a beautiful wide water curtain that looks amazing and helps aerate/cool the pool water during hot summer days.
  • Internal Reinforcement & Flow Direction: The internal jet is engineered with internal vertical and horizontal ribs/dividers. This crucial feature serves two purposes:
    1. It reinforces the body against high water pressure, preventing the model from deforming or expandingunder load.
    2. It perfectly directs the water flow to ensure an even, consistent fan spray pattern.
  • 100% 3D Printed: No screws, no bearings, no hassle.

🛠️ Print Settings (Recommended)

  • Material: PETG or ASA/ABS (Highly recommended for UV resistance and chlorine exposure. Do not use PLA, it will deform in the sun/water).
  • Infill: 20%–30% (Gyroid recommended for strength).
  • Walls/Perimeters: 3–4 walls to ensure it's completely watertight and can handle the water pressure.
  • Supports: required
