Description
Centrifugal Fan Impeller 200mm - Forward Curved Vanes

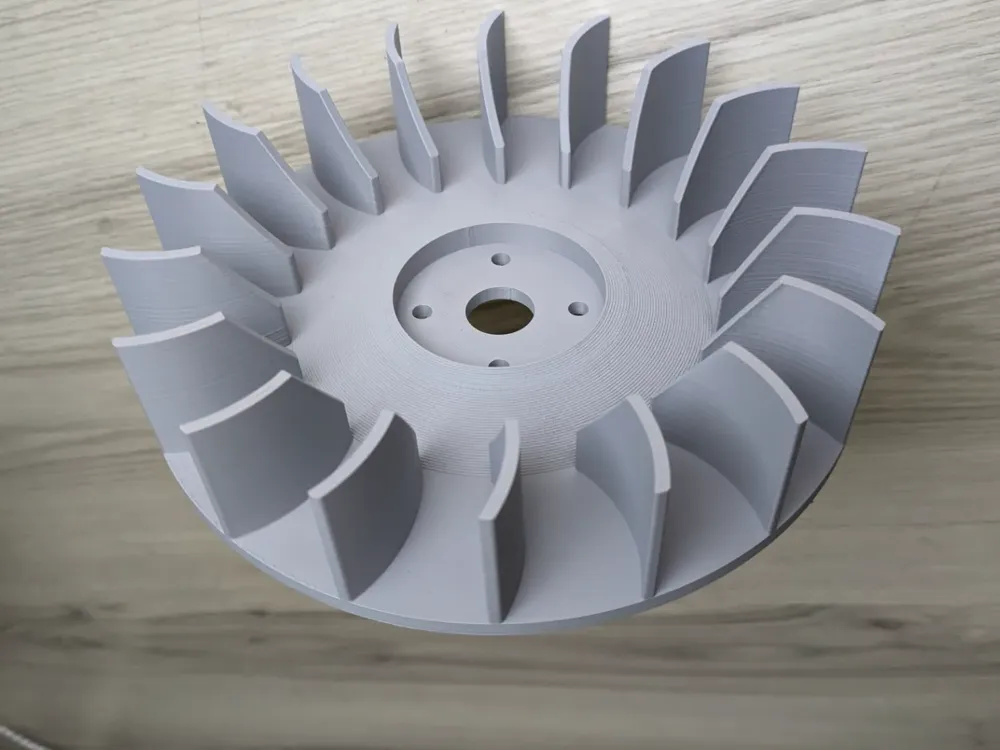

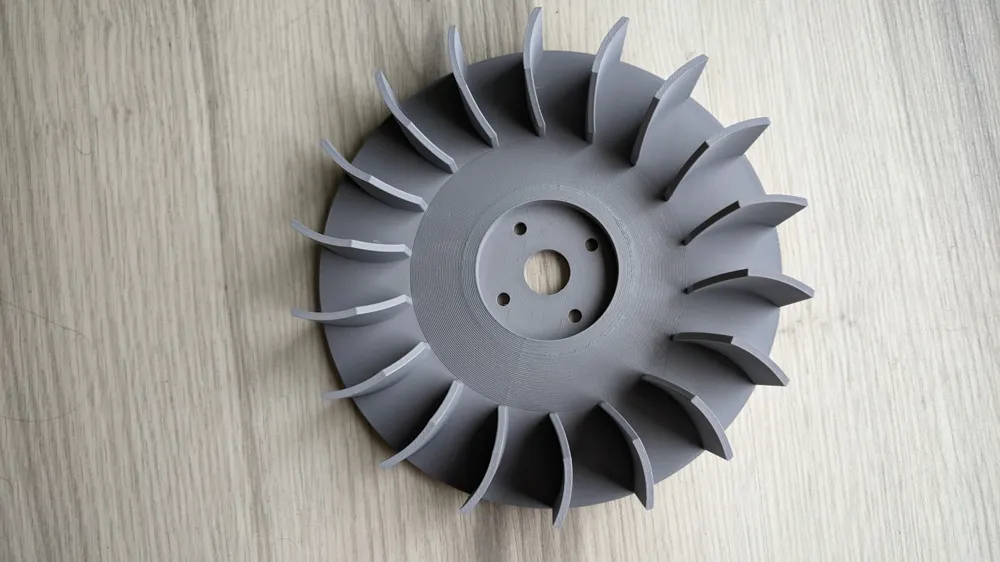

This 3D model is a forward curved vane impeller designed for use in centrifugal fan systems.
It is intended for applications where a forward‑curved blade geometry is preferred, such as compact high‑flow, lower‑noise fan designs.

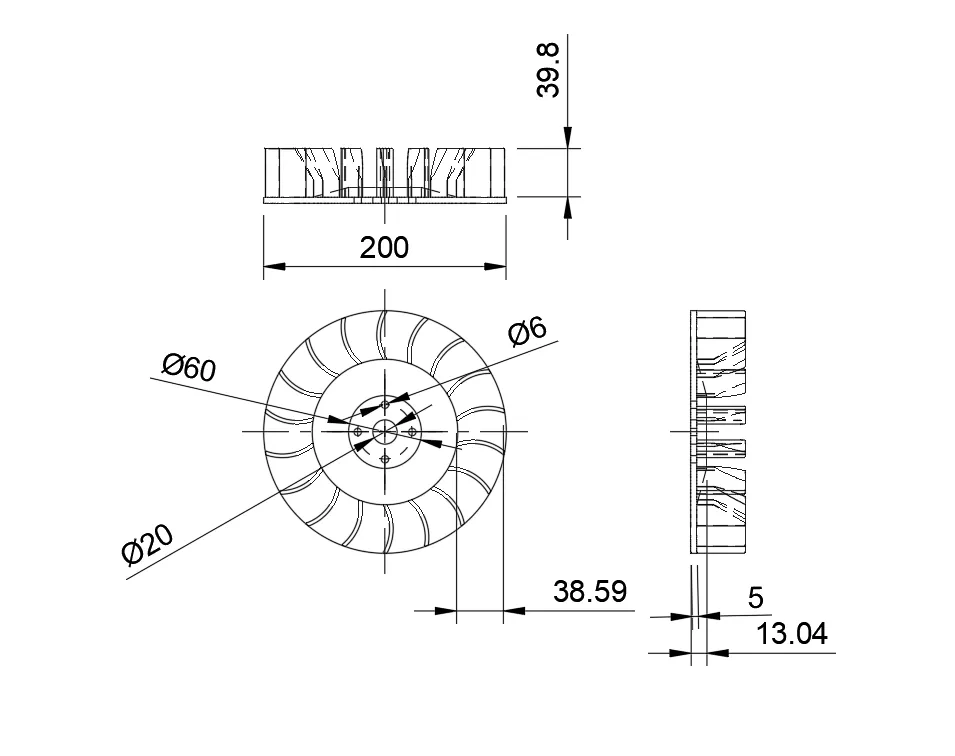

Key Dimensions and Specifications (Based on Drawing):
- Outer Diameter: 200 mm
- Shaft Bore Diameter: 20 mm
- Total Height/Depth: 39.8 mm
Application:
While originally designed as a cooling fan for an electric generator, this impeller is ideal for various DIY projects requiring powerful airflow and useful static pressure.
It can be used in ventilation systems, fume extractors, dust collectors, or as a replacement part for existing equipment that uses a forward curved centrifugal impeller.
Printing Instructions:
- Material Selection: Choose material according to operating conditions – use PETG or ASA/ABS for higher RPM and elevated temperatures, or PLA for lighter‑duty use and prototyping.
- Walls/Shells: Use 3 walls (shells) to ensure the vanes are solid and robust for durability and consistent airflow.
