Customizable cookie cutter [GENERATOR]
Print Profile(1)
Description
🍪 The ultimate customizable parametric cookie cutter and stamp generator!
Stop searching for the perfect holiday cookie shapes or buying expensive single-use molds. This fully parametric OpenSCAD generator allows you to create high-quality, professional-grade cookie cutters with integrated, custom text stamps. Perfect for Christmas baking, birthday parties, customized wedding favors, or playdough crafts with the kids!
Membership
Custom cookie cutters and seasonal baking molds are massive bestsellers on Etsy and at local craft platforms. Want to sell physical prints of these cookie cutters legally? Join my Commercial Membership for only $4.99/mo to get full commercial rights to sell this model and ALL my other generators!
⚙️ Customizer features:

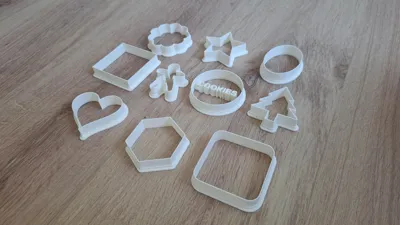

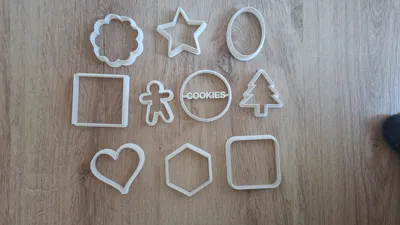

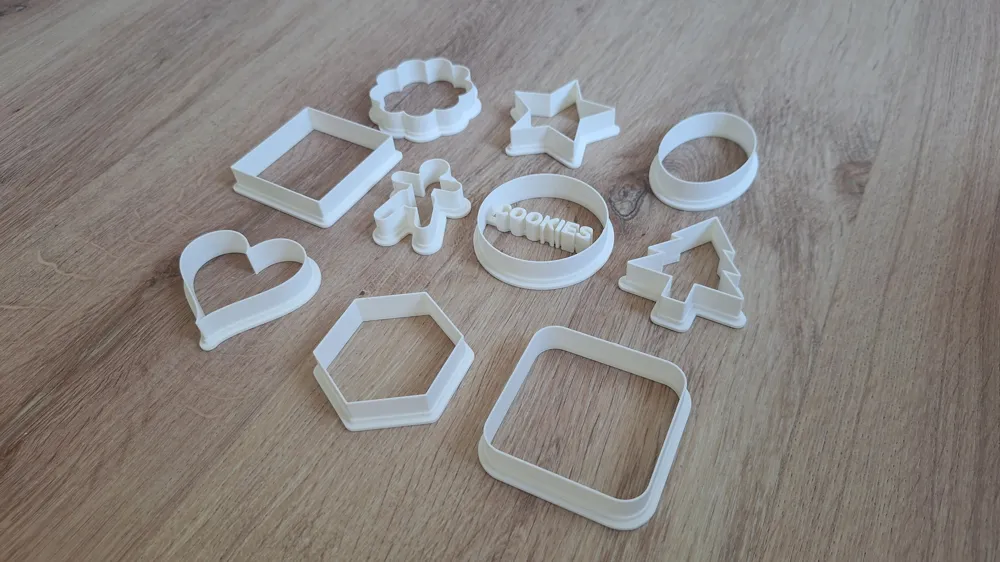

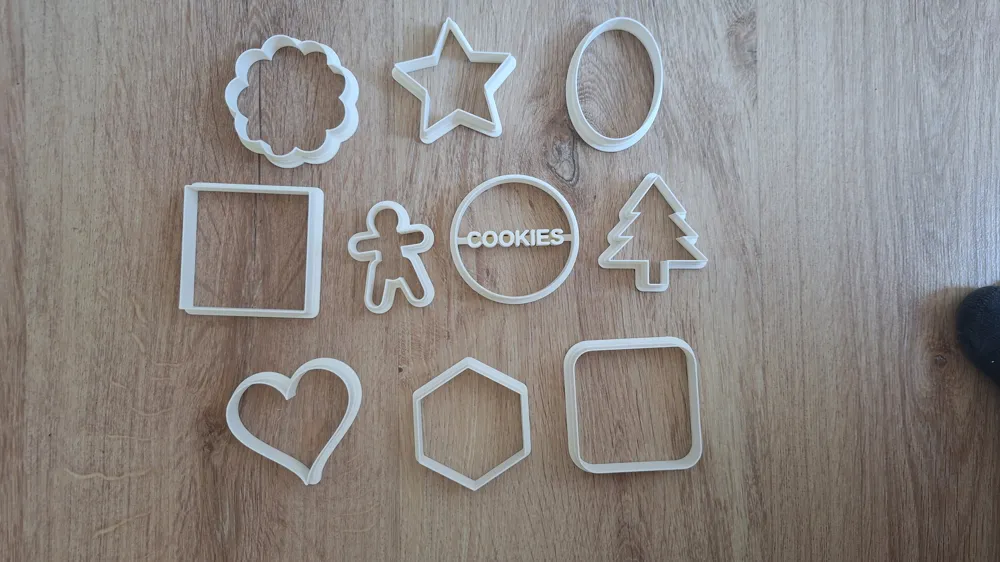

- 10 Classic shapes: Instantly render a circle, square, rounded square, star, heart, flower, hexagon, oval, Christmas tree, or gingerbread man.
- Triple-stepped blade: Features a mathematically tapered cutting wall. A razor-sharp upper blade (blade_thickness) slices through dough effortlessly, while a wider middle support and extra-wide base handle make it comfortable to press on without hurting your hands.

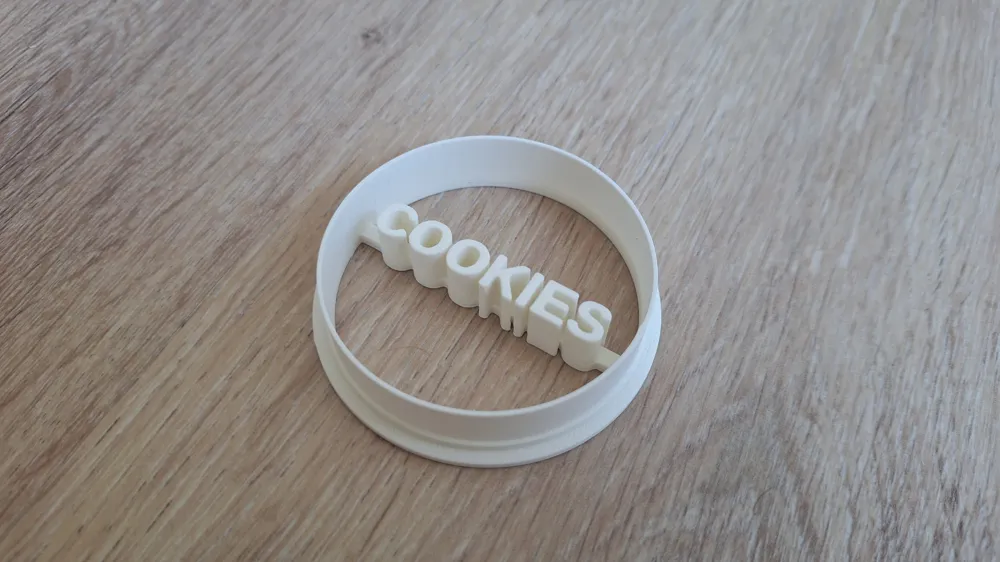

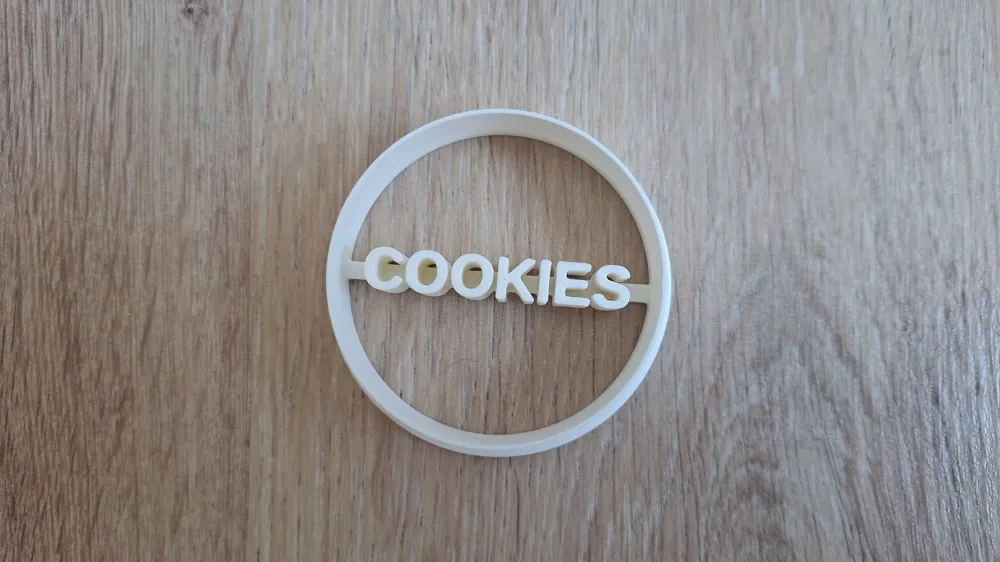

- Integrated custom stamp: Enable enable_stamp to generate custom embossed text directly inside the cutter! Adjust the font, size, and depth to stamp messages like ‘COOKIES’ or custom names onto your baked goods.
- Structural support bars: Automatically generates crossing structural bars (along the X or Y axis) to hold the text stamp firmly in place.
- Dynamic text safety boundary: The text generation uses a smart safety intersection, automatically trimming the letters so they never bleed outside the cutting walls, ensuring a perfect shape every time.
🧠 Behind the design (For makers & moderators)
Designing a clean, tapered wall in CAD usually requires complex 3D lofting. This generator solves it instantly and with minimal render times using a multi-layered 2D-to-3D offset technique.
By utilizing the offset(r = ...) vector command, the script extrudes three distinct 2D profiles: a sharp cutting blade, a structural support collar, and an ergonomic base handle. These three linear extrusions are stacked to form a single, incredibly robust manifold model with zero overlapping mesh errors. The custom text stamp uses a boolean intersection() with the base shape, guaranteeing that letters are always mathematically cropped to fit perfectly inside the cutter's geometry.
🖨️ Print settings:
- Material: PLA or PETG. (Always follow standard safety guidelines for 3D prints coming into contact with food!).
- Layer height: 0.20mm works beautifully.
- Supports: STRICTLY NONE. The stepped walls transition smoothly and require no support.
- Walls: Set wall loops to 3 to ensure the thin cutting blade is completely solid and sharp.
❤️ Share your prints!

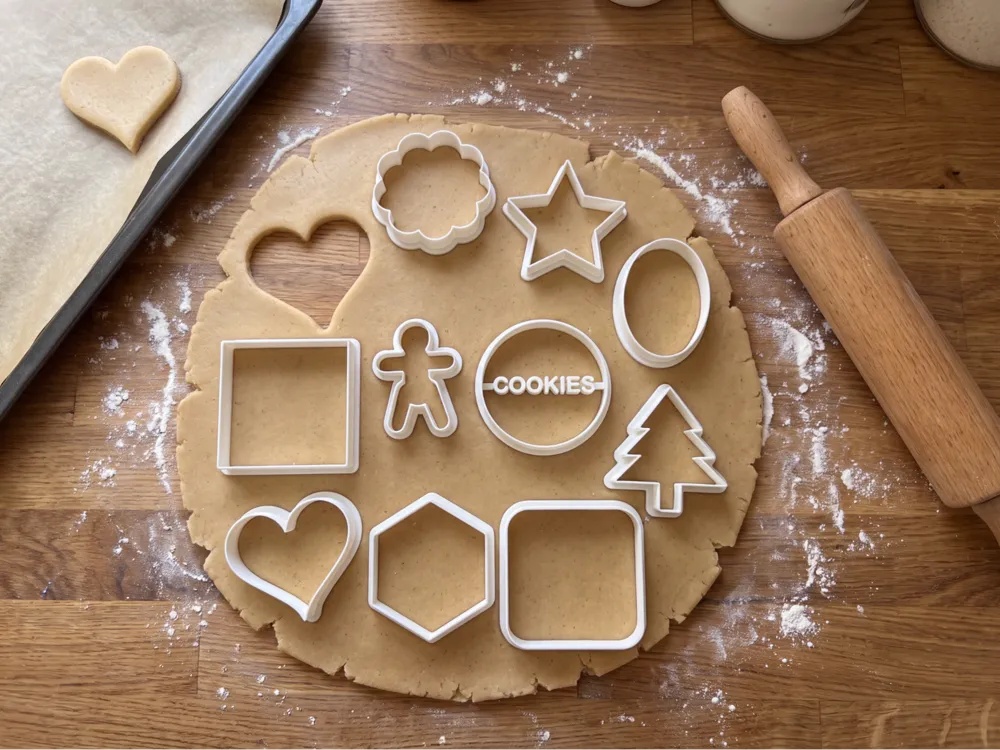

I love seeing your beautiful baked treats and festive holiday cookies. Please upload a photo of your make!
Boost Me (for free)
Happy printing!
