1:100 110 kV Single-Circuit Steel Lattice Tower
Print Profile(1)
Bill of Materials
Description

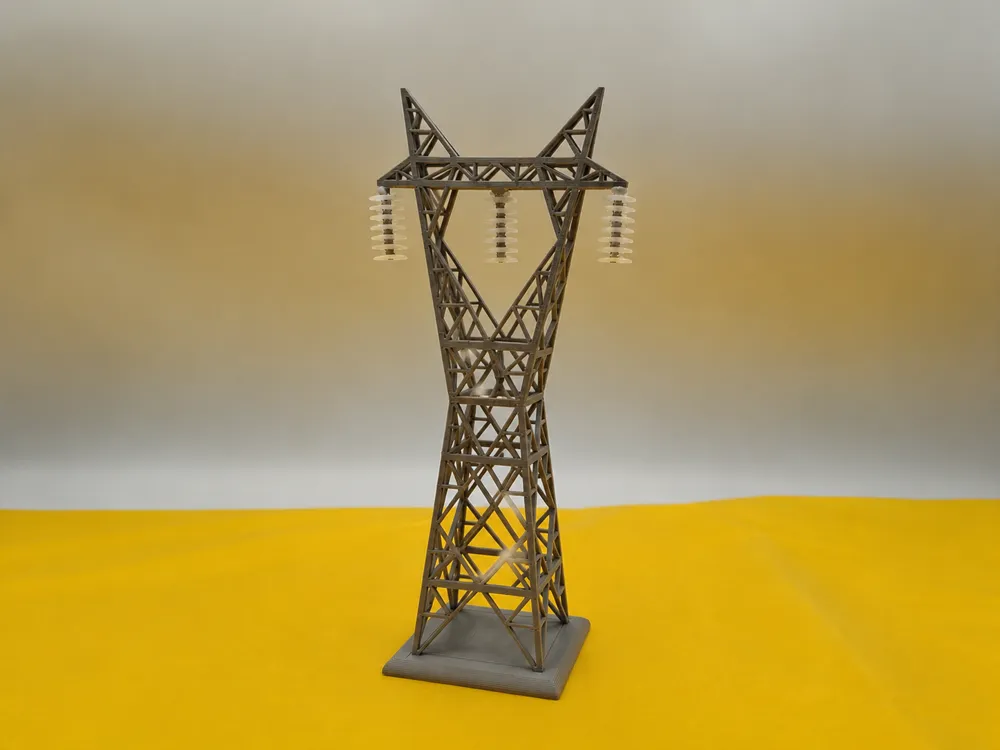

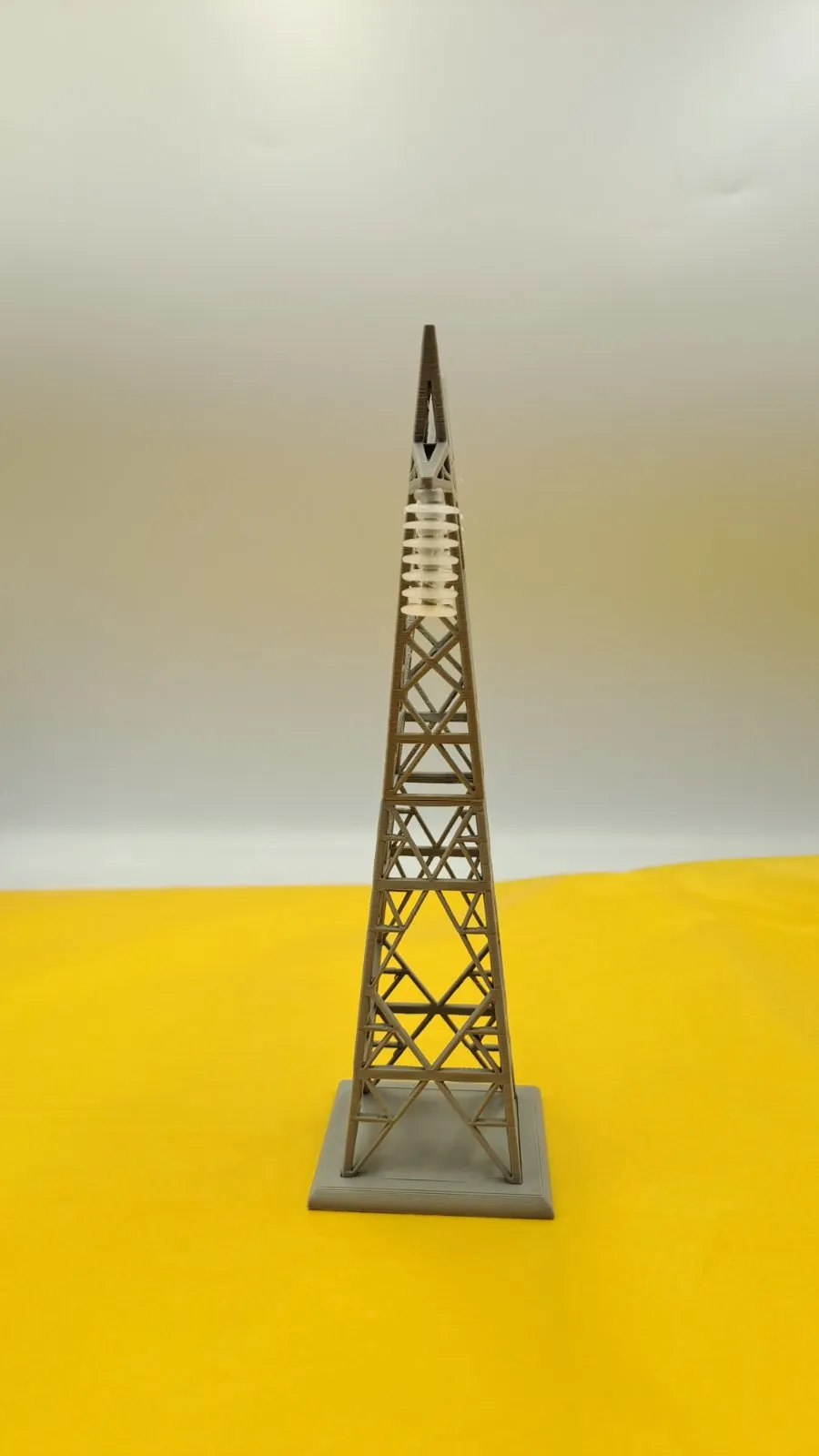

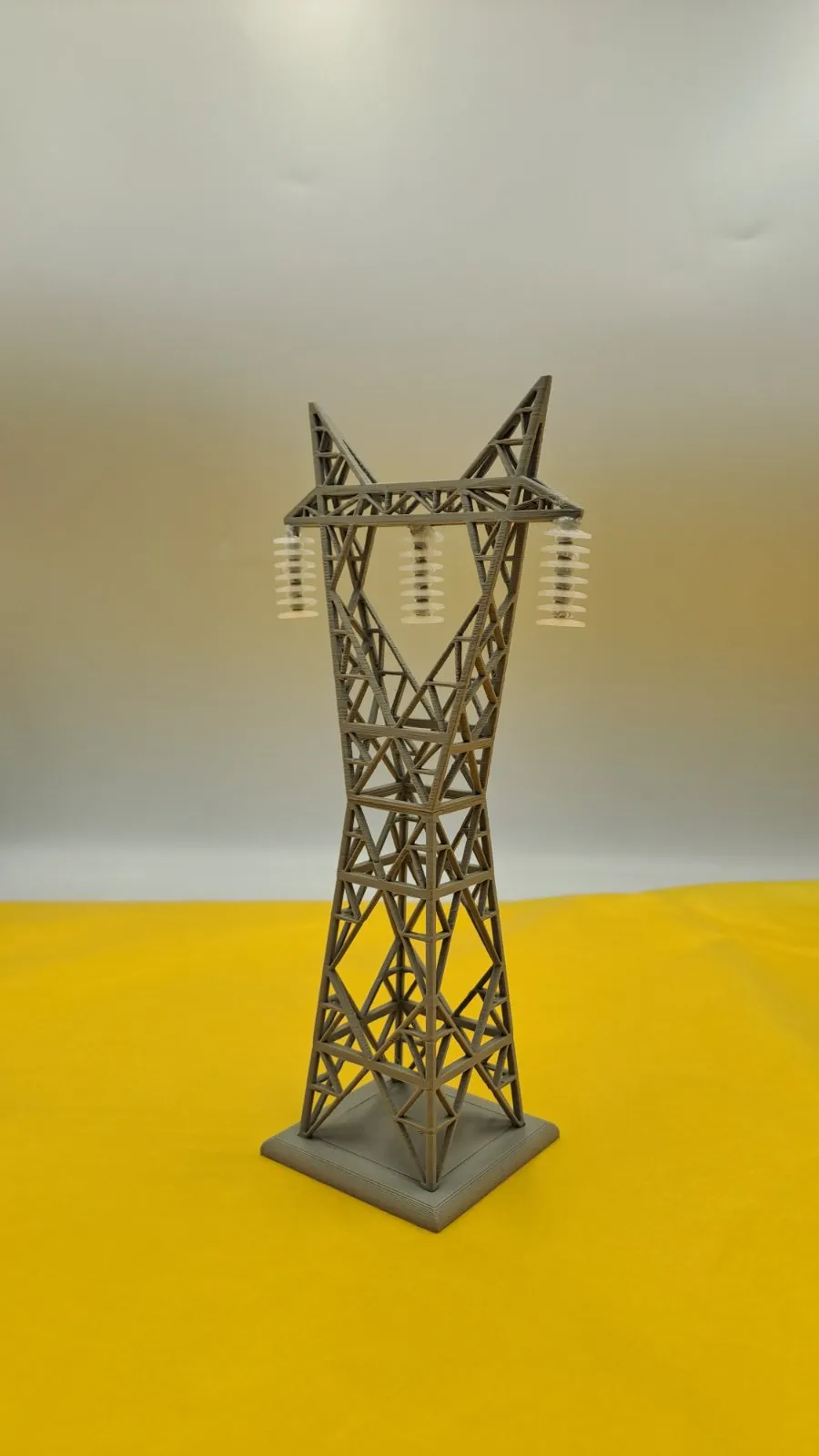

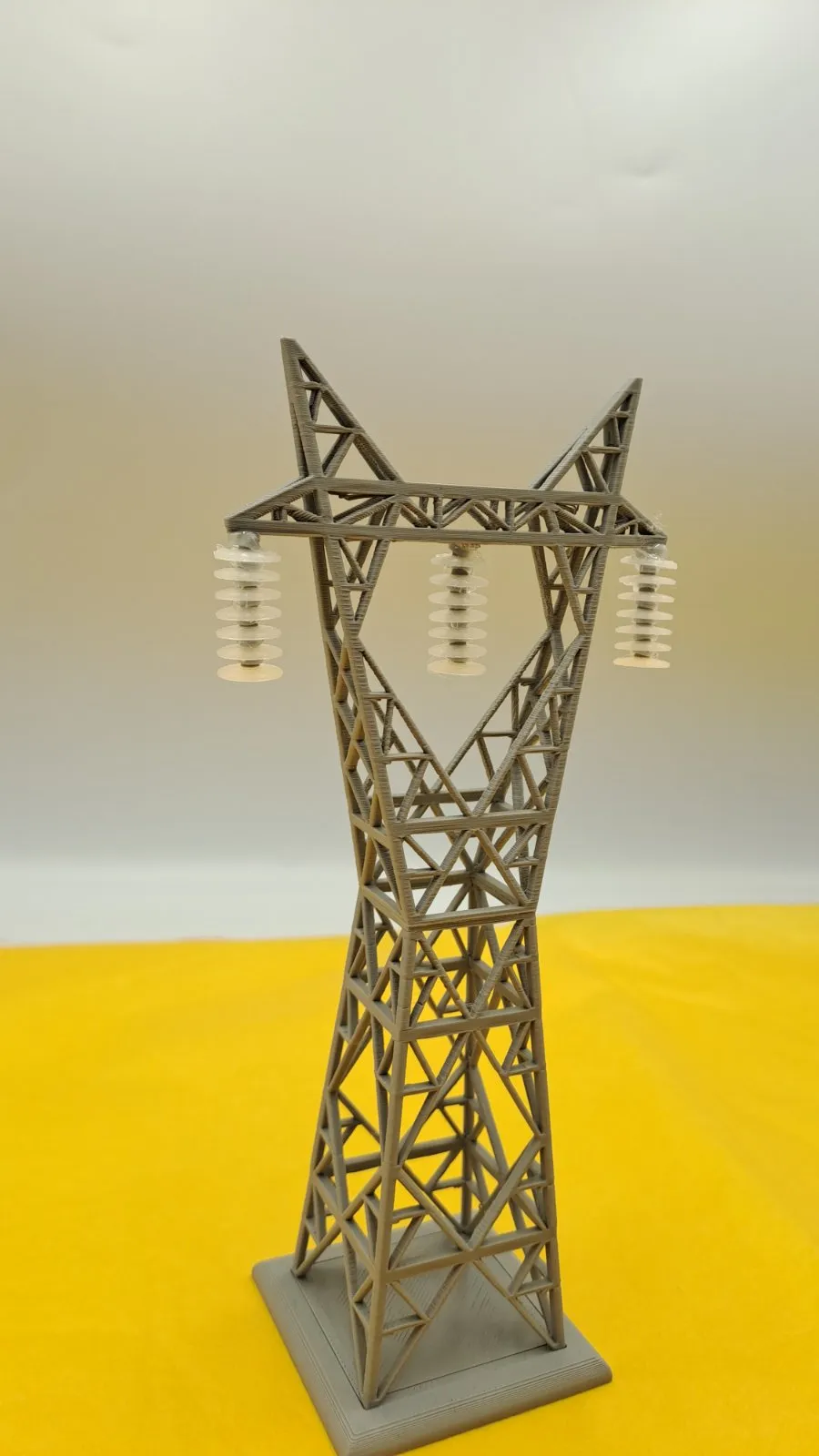

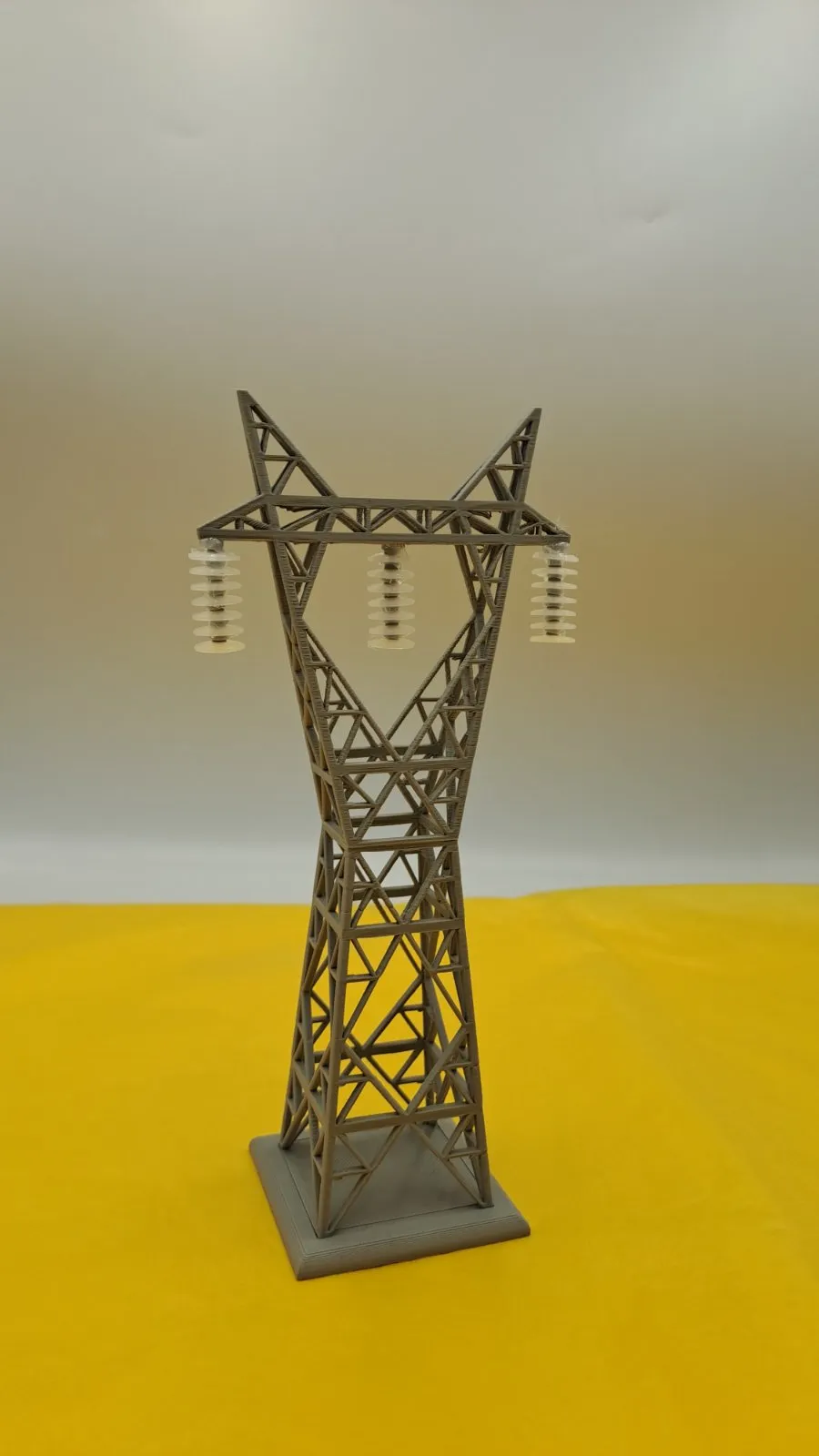

Bring realism to your railway layouts, dioramas, miniature cities, and engineering projects with this highly detailed 1:100 Scale 110 kV Single-Circuit Steel Lattice Overhead Line Tower.
Designed with a realistic lattice structure and detailed insulator strings, this model is optimized for FDM 3D printing and assembly.
Features:
- Accurate 1:100 scale design
- Single-circuit transmission tower configuration
- Detailed steel lattice construction

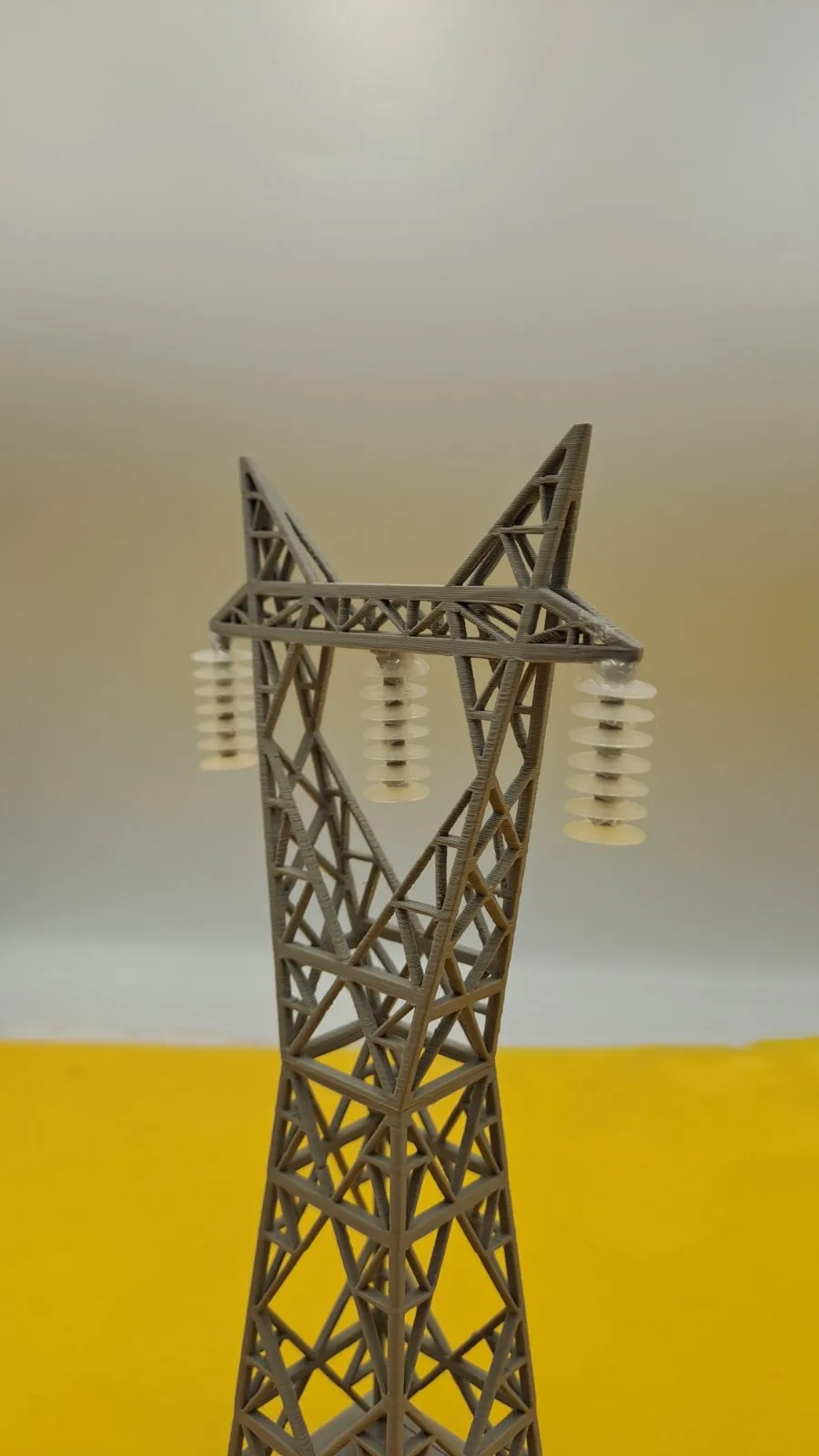

- Realistic insulator assemblies
- Modular design for easier printing
- Suitable for PLA filament
- Perfect for dioramas, model railways, and miniature landscapes
Printing Notes:
- The tower is printed in multiple parts and assembled using glue.
- The insulators are printed separately and glued together one behind another to form the complete insulator strings.
- For the best visual result, it is recommended to print the tower in gray PLA and the insulators in translucent or transparent filament.
- Using a brim is strongly recommended to improve bed adhesion and prevent warping of the smaller parts.
- Layer Height: 0.12–0.20 mm
- Material: PLA
- Nozzle: 0.4 mm
Assembly:
Print all parts separately, remove any brim if used, and assemble the tower using cyanoacrylate (CA) glue or a similar adhesive.
If you enjoy this model, please consider liking, downloading, and sharing your print!
