Parametric Snap-Fit Plug & Cap Generator
Print Profile(1)
Description

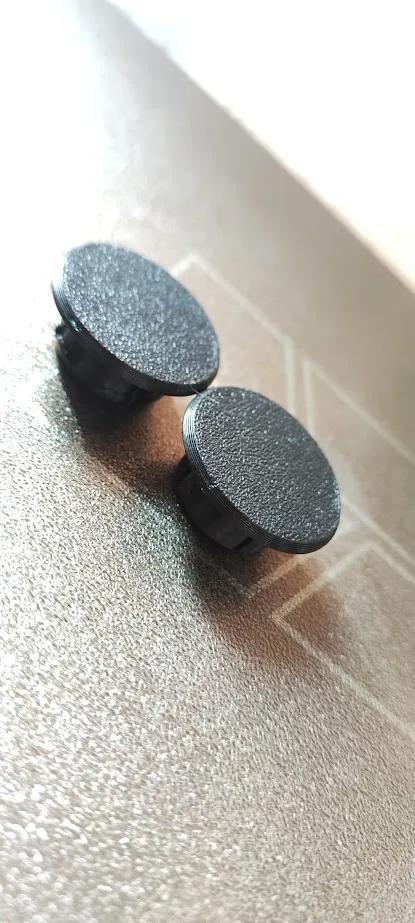

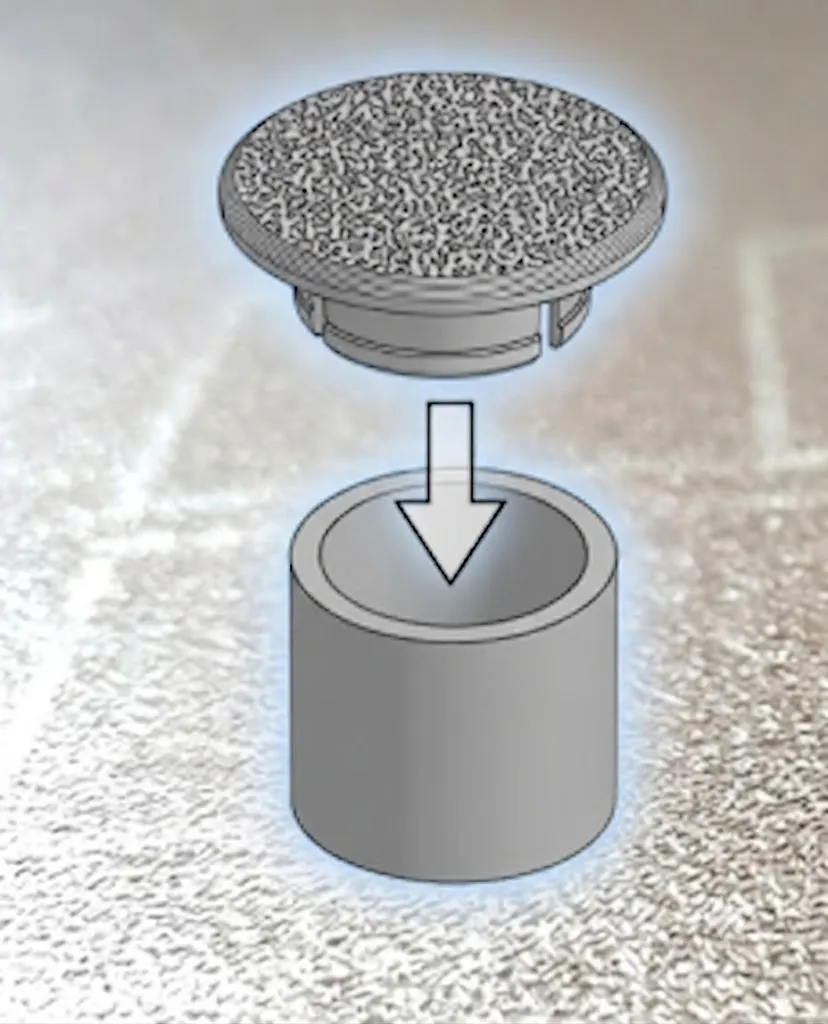

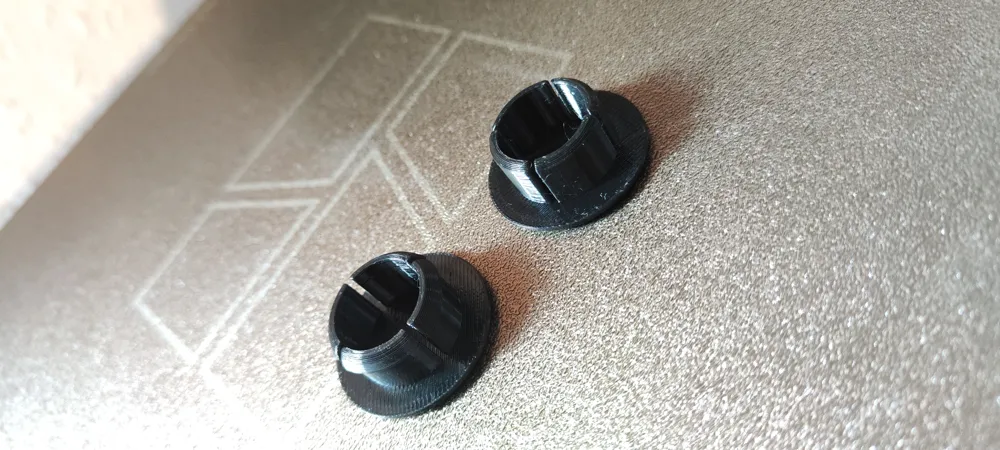

Need a perfectly fitting plug for a tube, pipe, or custom hole? This fully parametric generator lets you create custom snap-fit end caps in seconds. Adjust the dimensions, tweak the snap-fit clips, and print exactly what you need. Perfect for DIY projects, furniture, and custom enclosures.
⚙️ Customizable Parameters
You can adjust the following settings to get a perfect fit for your specific use case:
Cap Options (The top cover):
- cap_rad: The outer radius of the cap.
- cap_hight: The height/thickness of the cap itself.
- cap_fillet: Rounds the top edges of the cap for a smooth finish.
Tube Options (The inserted part):
- tube_rad: The outer radius of the inserted tube section (match this to your hole).
- tube_hight: How deep the plug goes into the hole.
- tube_thickness: The wall thickness of the plug's stem.

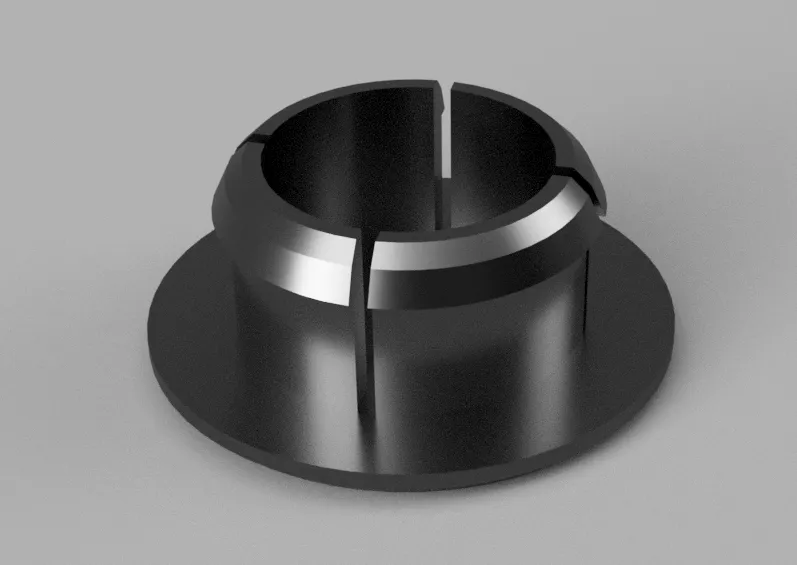

- tube_fillet: Chamfers/rounds the bottom edge to make insertion easier.
Snap-Fit & Flexibility Options:
- clip_size: The length of the retaining clips to lock the plug in place. (set do 0.001 for no clip)
- clip_angle: The angle of the clips (adjusts how easily it pushes in vs. pulls out).
- slit_width: The width of the relief slits. Wider slits make the plug more flexible for easier insertion.
💡 Printing Recommendations
- Material: PETG, ABS, or ASA are recommended for better flexibility and durability of the snap-fit clips. PLA works well for light-duty applications.
- Infill: 15-20% is usually sufficient.
- Supports: Not required if oriented flat on the cap.
