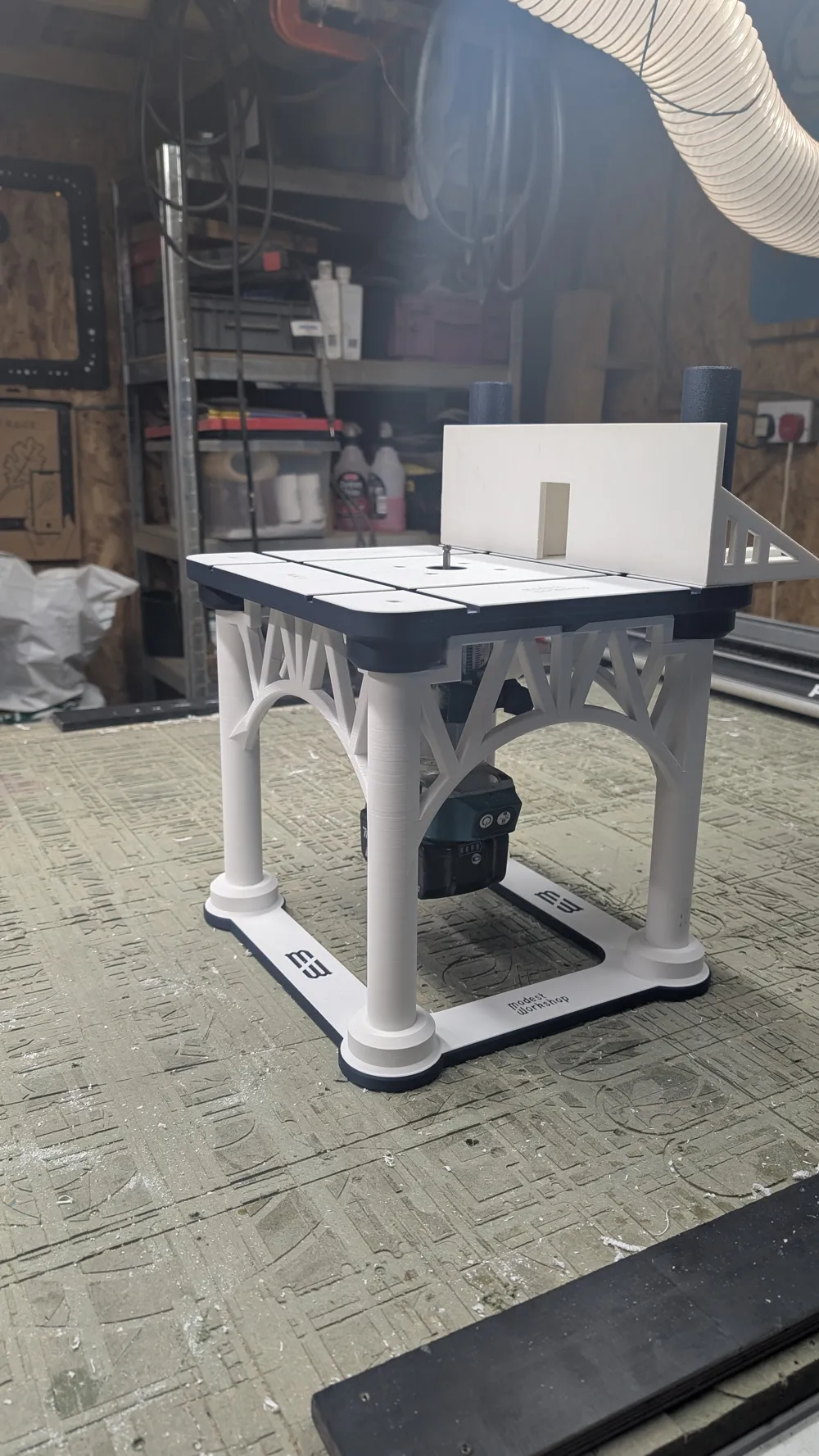

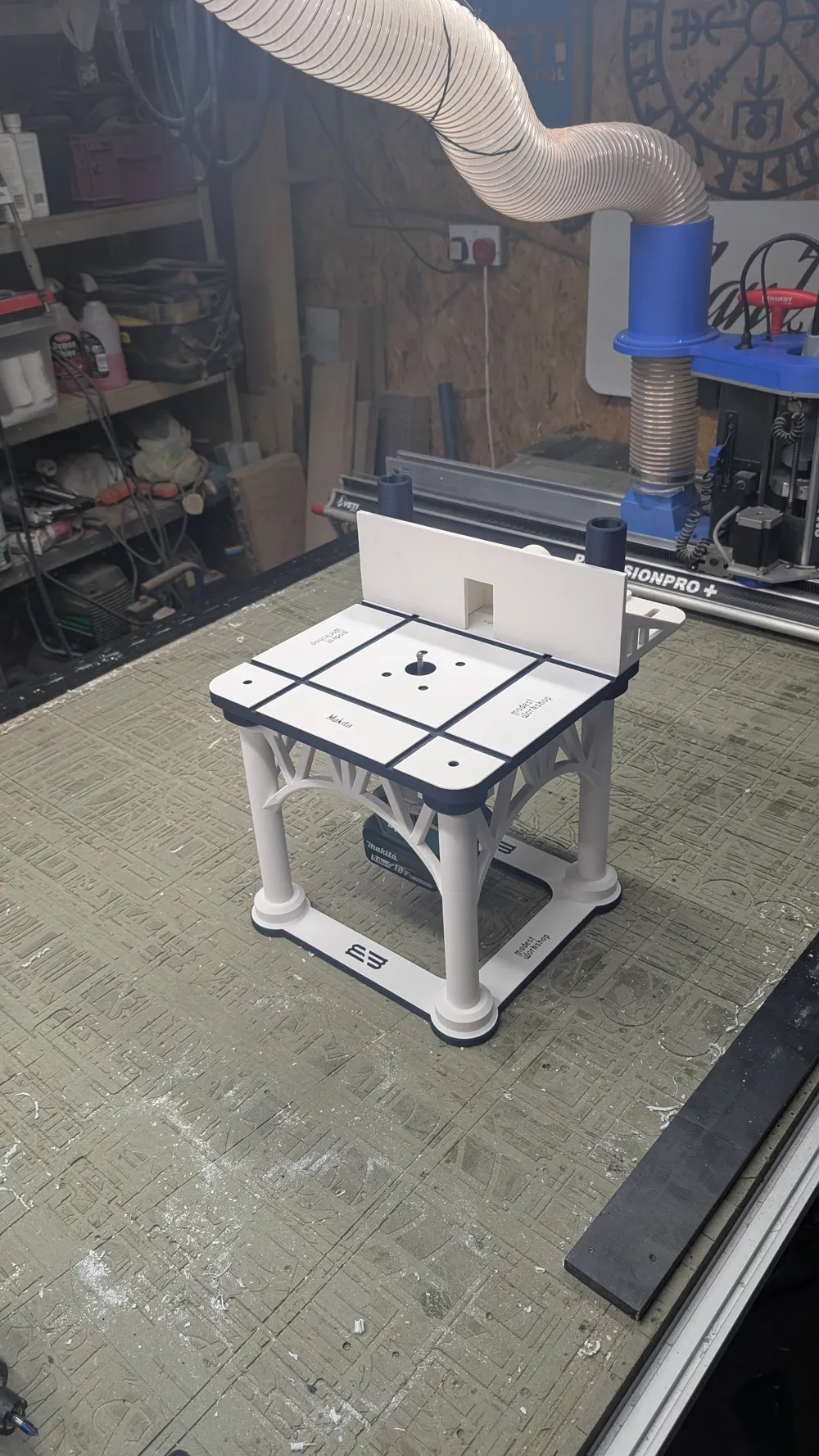

Router table for H series printers.

Larger router table designed specifically for the H series printer.

Table size of 310x290mm so this will print on the H2C & H2D printers. Now I know H2S owners like myself can print up to 340x320mm but I didn't want the legends that have the higher calibre machines feeling like they were left out. If there is enough demand I can at some point make a mega setup just for the larger print area folk too.

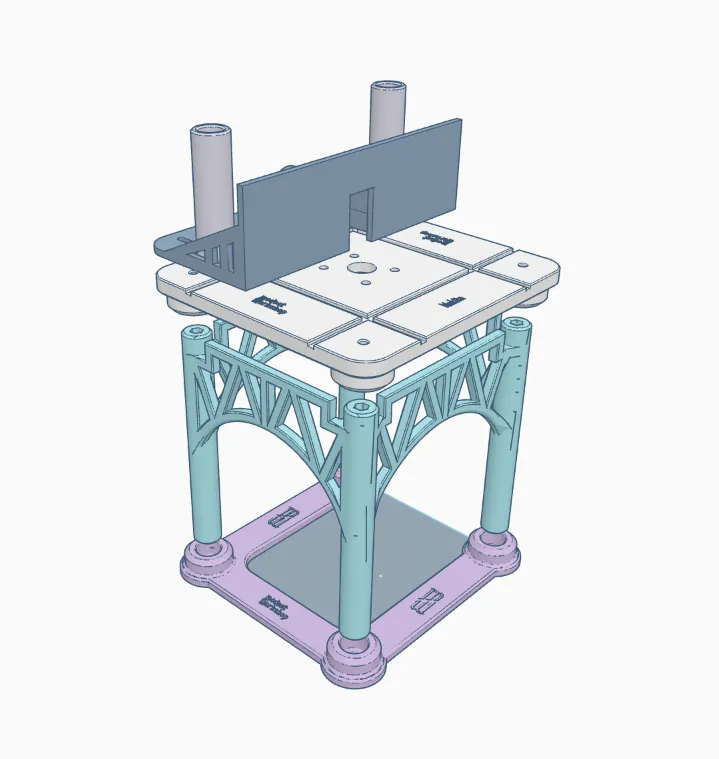

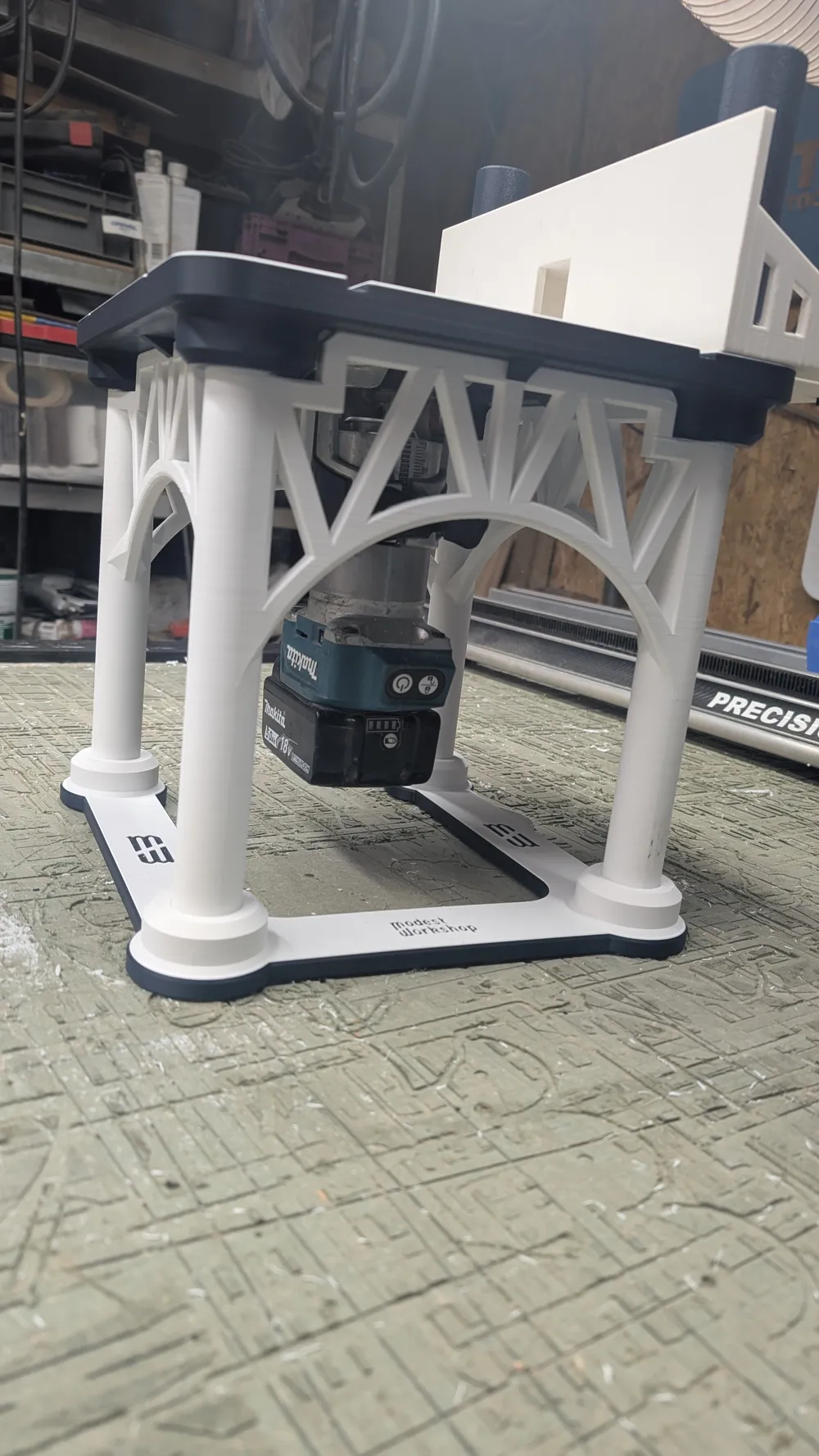

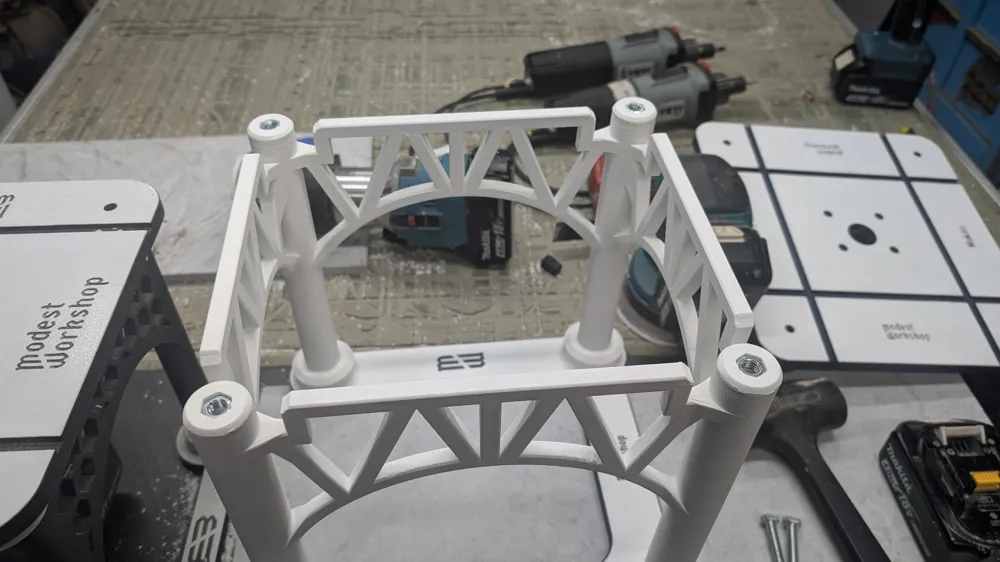

Compared to the previous router table I designed in mind of the P,S&X series printers this design is heavier duty as well as bigger. The webbed section at the top of the leg set has been designed to use far less support too. Fully assembled this print is absolutely solid.

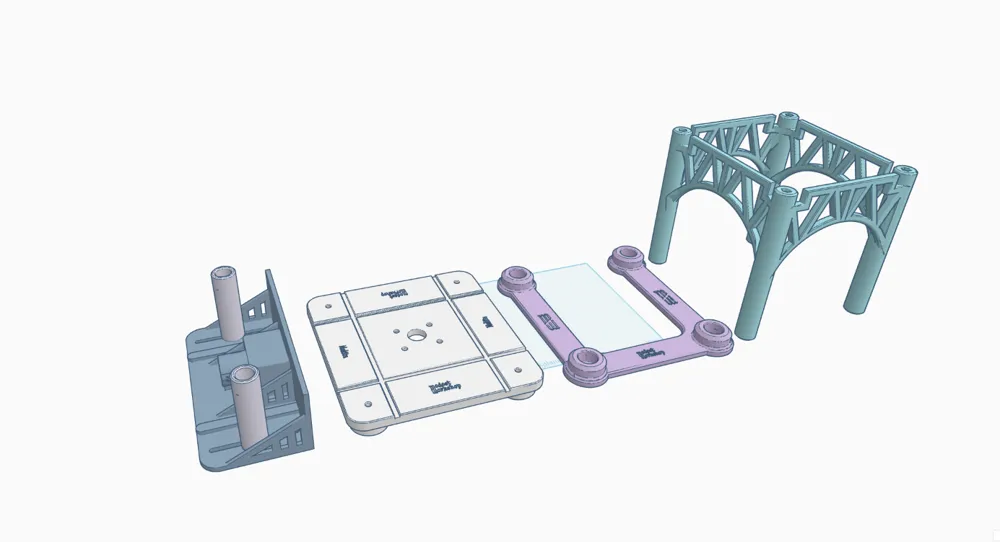

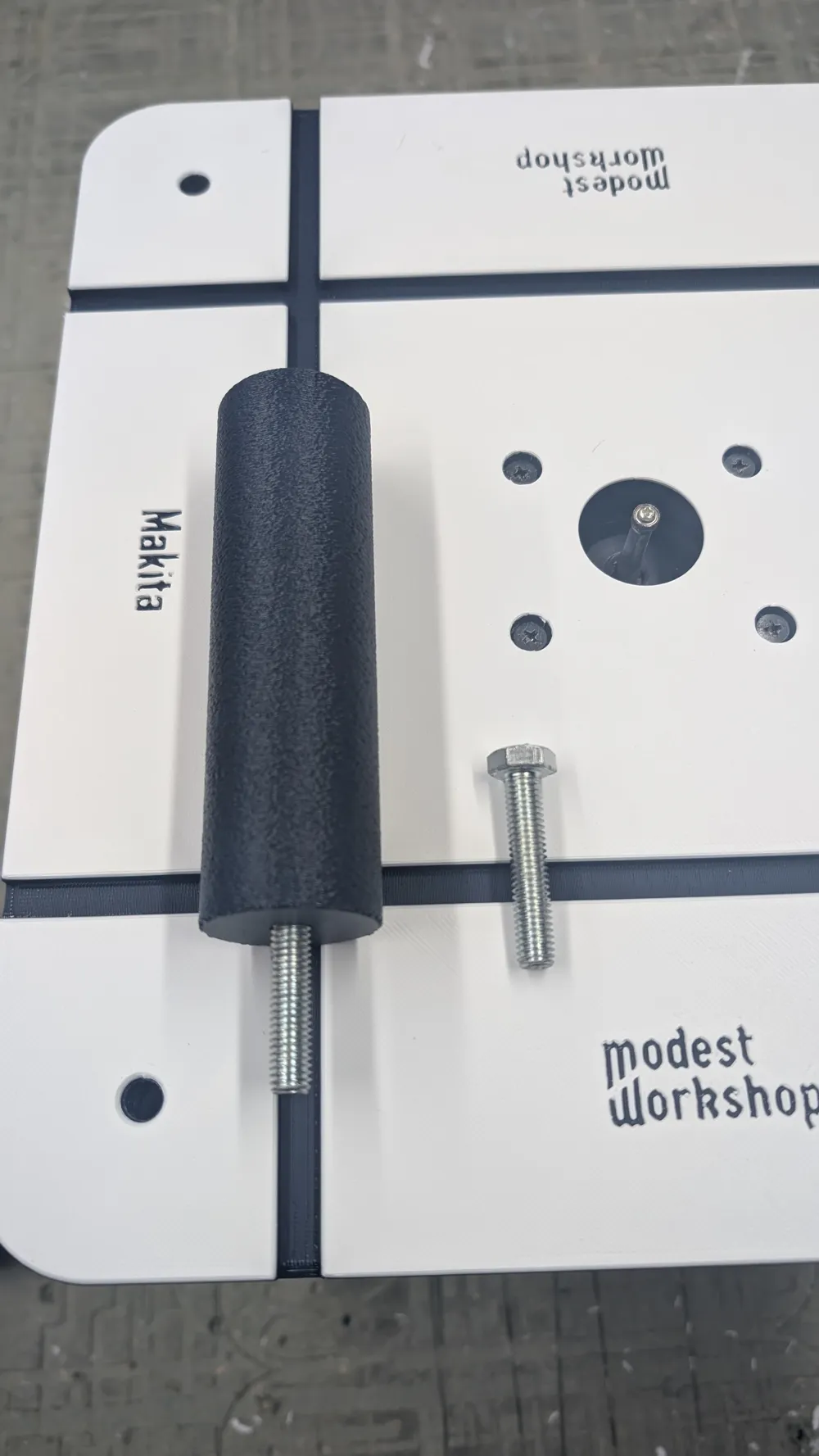

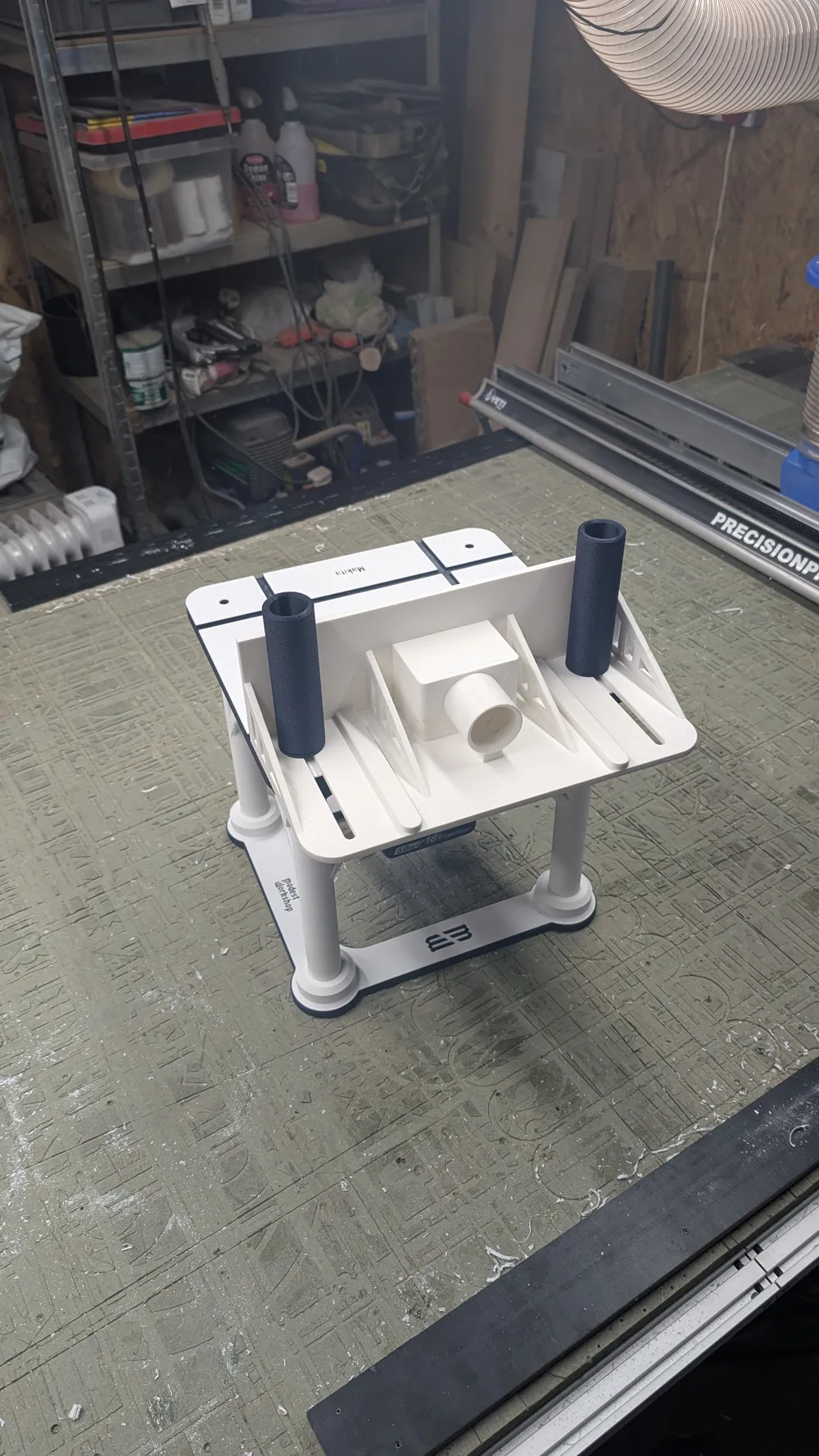

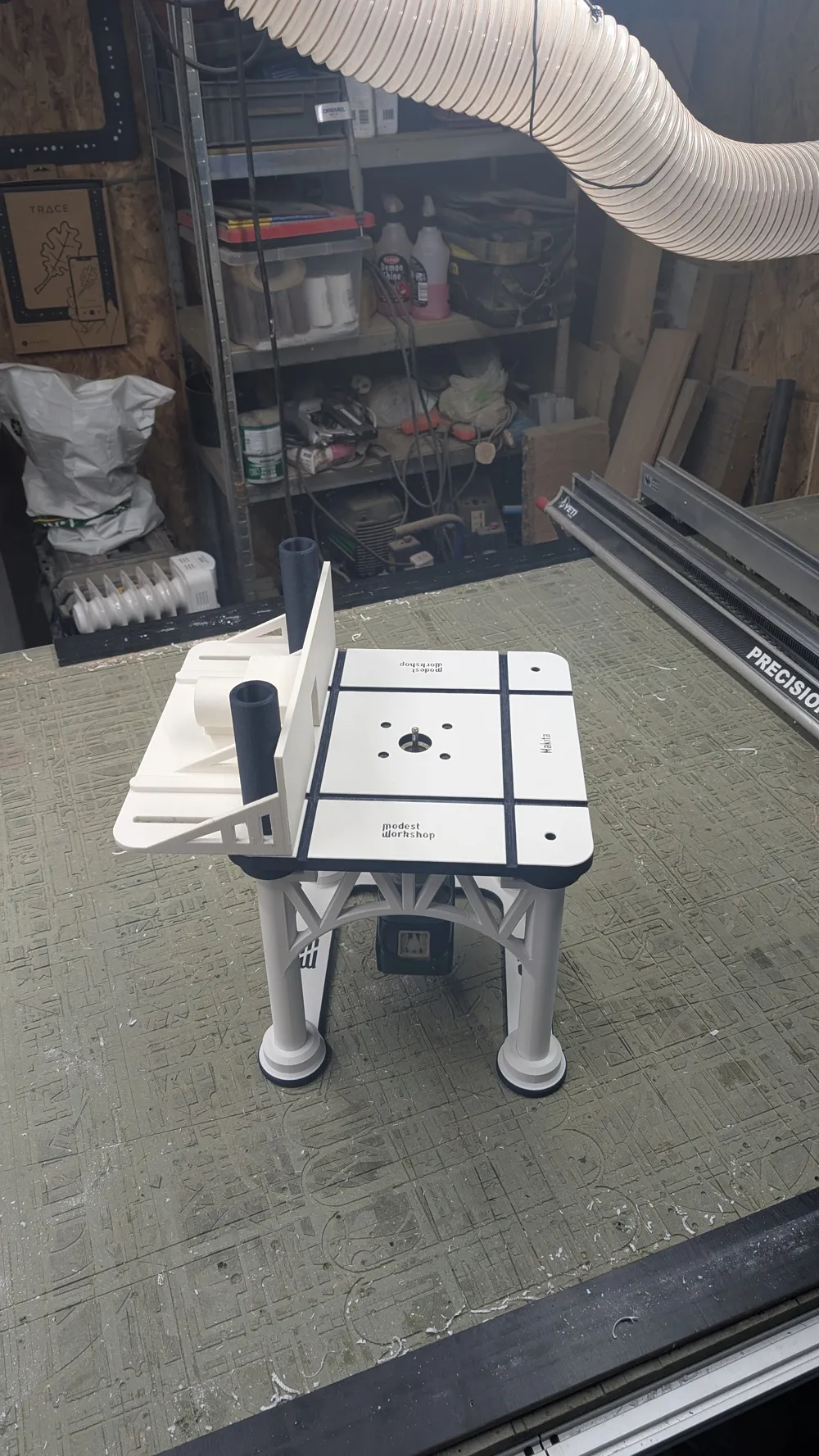

Same design principal as the smaller router table. M8 nuts need to be set into the top of the legs before the table goes on and seeing as the table is rectangular the adjustable fence will work on both axis so you can choose between a deeper top surface or deeper fence aperture depending on your project.  M8 bolts need to be pressed into the screw handles to finish the set. I have used 40mm bolts as that's all I have but 25-30mm will probably work better.

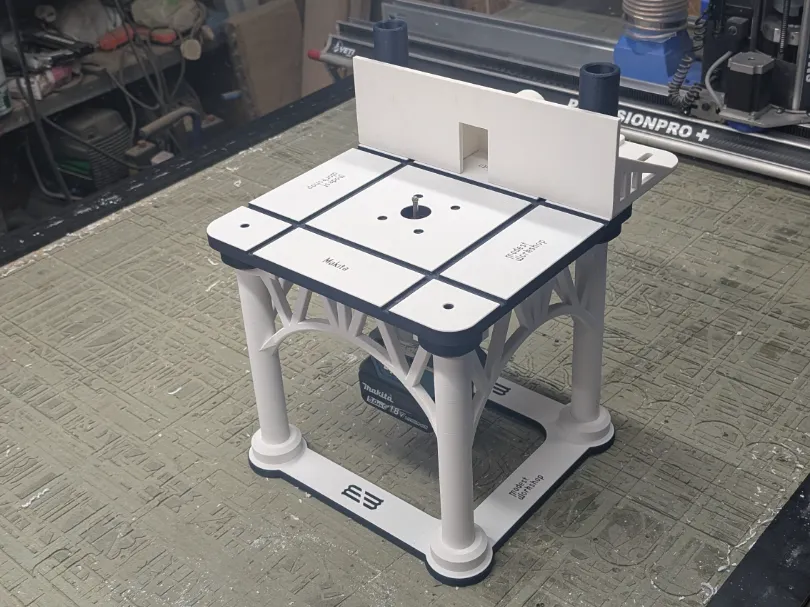

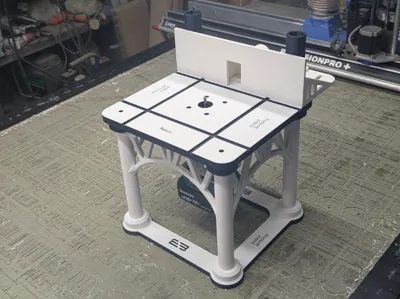

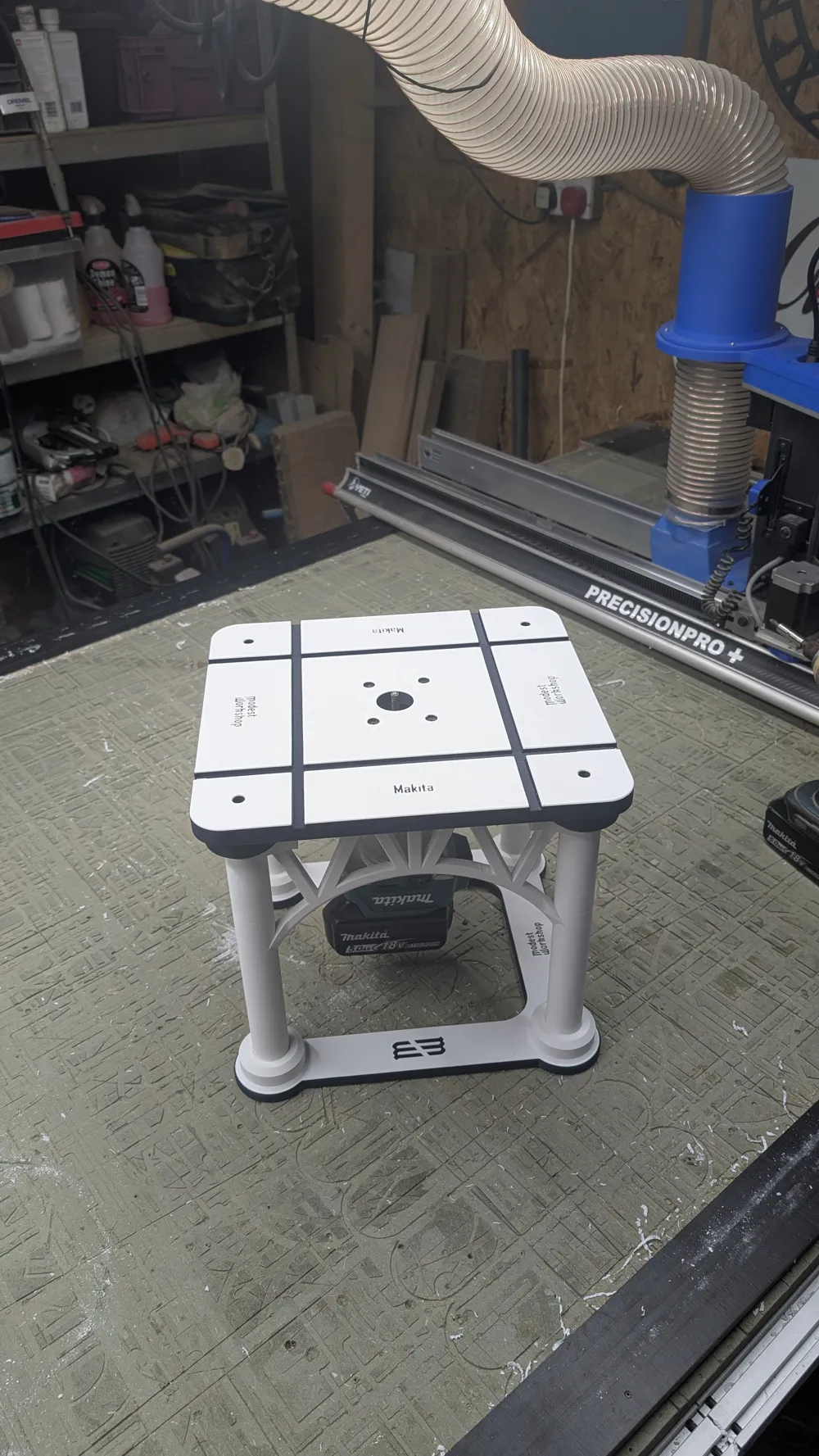

The main file listed here has the Makita table top which is suitable with the Makita DRT50, RT0702, and RT0700

Other table tops can be designed upon request like the previous model which so far supports 11 different routers.

Any questions please just fire away, I am more than happy to help where I can.
