Volvo V70I Tailgate Panel Clip Replacement Insert

Print Profile(1)

All
X1 Carbon
X2D
H2D Pro
P1S
H2D
X1
A1
H2S
H2C
X1E
A1 mini
A2L
P2S
P1P

0.12mm layer, solid
0.12mm layer, solid
Designer
1 h
1 plate

Open in Bambu Studio
Boost
1
3
0
0
0
1
Released

Description

Content has been automatically translated.
Show original

One of the few weaknesses in the Volvo V70I is the attachment of the tailgate's interior trim

Here is the first attempt to bypass the usual repair kits, which only temporarily alleviate the problem and even worsen it in the medium term

Required:

  • Assembly adhesive (SikaFlex - other adhesives will certainly work too)

Steps:

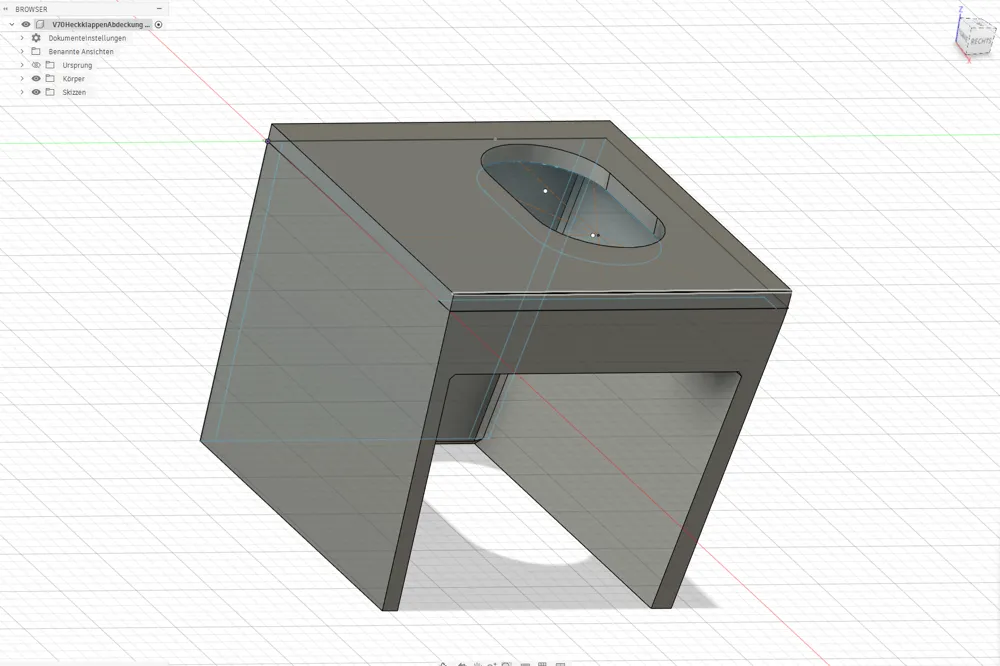

  1. Print the part (at least PETG)

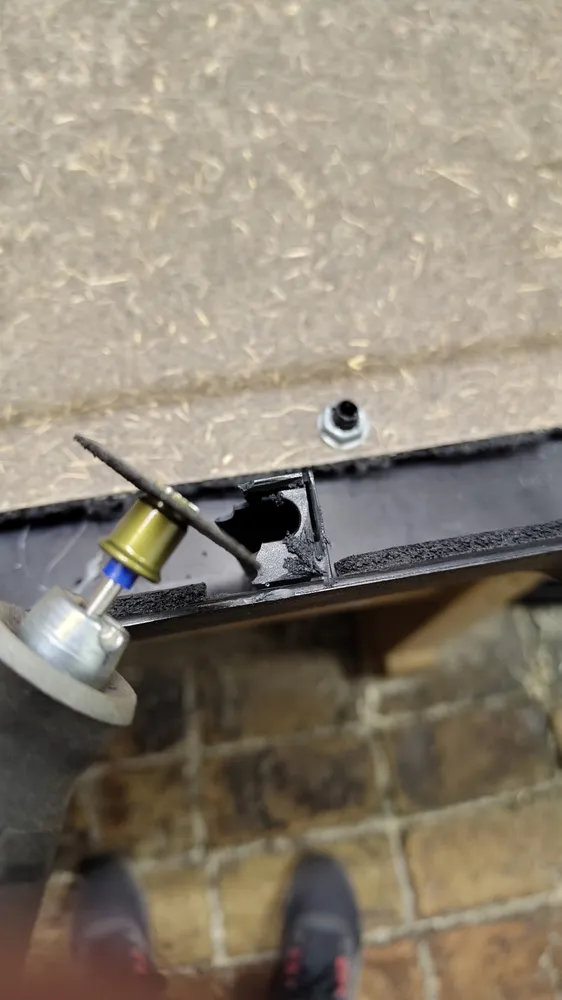

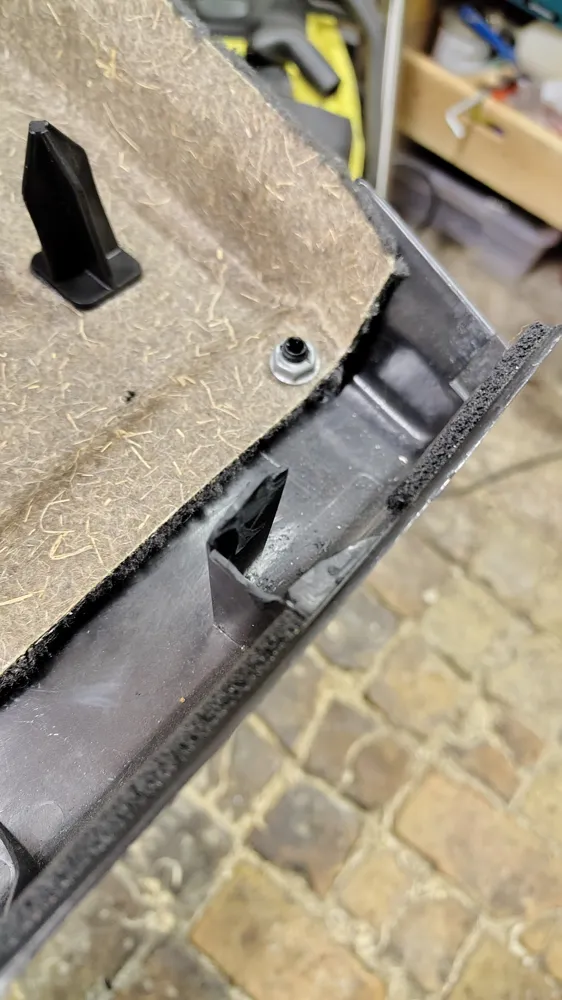

  2. cut out the broken plastic (I used a Dremel - see pictures)
  3. check if the insert goes in easily (a little space for assembly adhesive is needed)
  4. Apply assembly adhesive

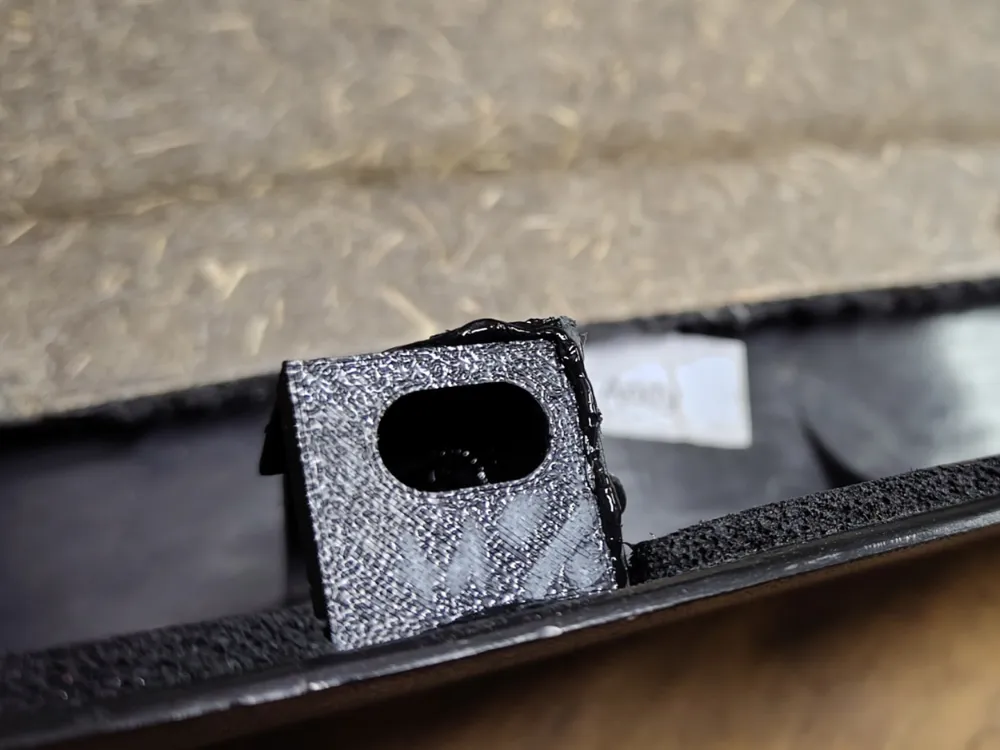

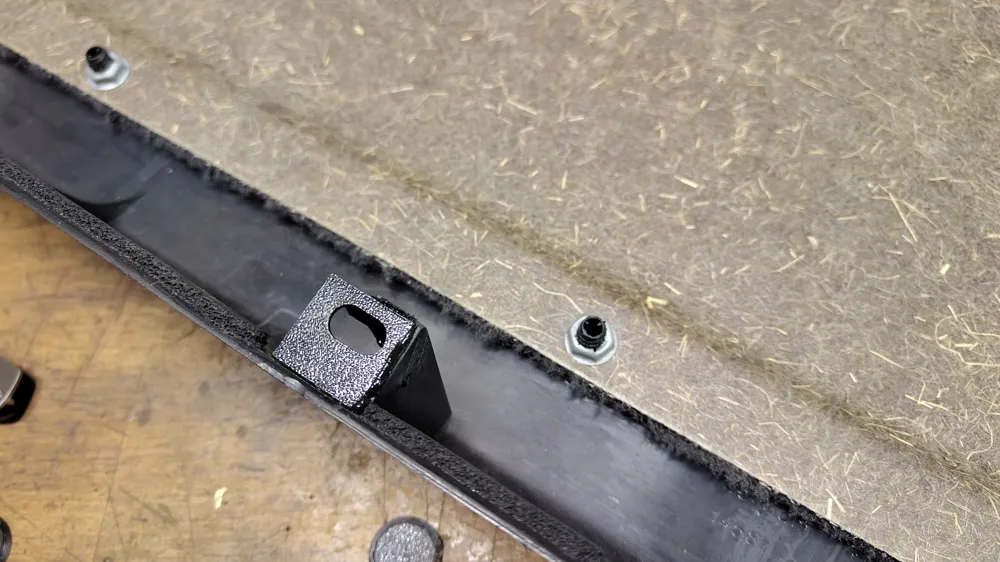

  5. Insert the part
  6. Reassemble the panel

I have just reinstalled the part and unfortunately cannot yet comment on its long-term performance. I therefore ask for your understanding and feedback
