Spray oil lubricator (Z-axis) 10mm rods — Bambu H2

Z-AXIS IN-RAIL SPRAY OIL INJECTOR — Bambu Lab H2 Simple 2-Step Guide Maintenance System

🛠️ HOW TO USE (2 STEPS)

📌 Step 1 – Surface Cleaning

• Object: Soft anti-static cloth and isopropyl alcohol.
• Important: Do not apply harsh solvents directly to the rail during this step (may cause long-term corrosion).

📌 Step 2 – Lubrication

• Object: Lubricant for linear rails (Your preferred choice)
  • Silicone spray
  • Specific metal guide oil

  • Any compatible lubricant



• Actions:
  1. Clip the injector onto the Z-axis rail.
  2. Insert the standard tube into the top port (outer diameter 2.2 mm).
  3. One light spray at the highest point.
  4. Slide the carriage up and down.
  5. Lubricant distributes automatically along the full rail travel.

✅ KEY BENEFITS

• ✔️ No Printer Disassembly: Easy attachment to rails.
• ✔️ Uniform Application: Distributes product evenly with every pass.
• ✔️ Compact Design: Easy to store and move.
• ✔️ No Cross-Contamination: Clean and lube separately without mixing agents.
• ✔️ Durability: Material resists chemical and physical wear.

🔄 COMPLETE SETUP (OPTIONAL)

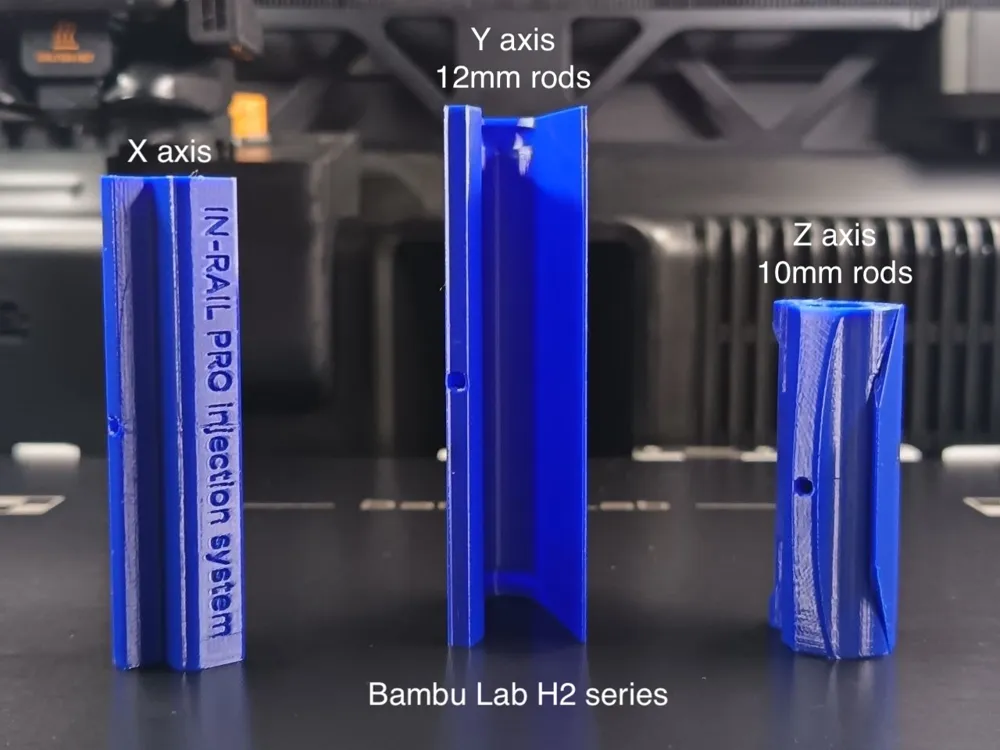

• X-Axis Injector — pro design, different orientation.
• Y-Axis Injector — Completes the trio for full printer coverage.

⚠️ IMPORTANT NOTES

• Material: PETG is highly recommended. It is more resistant to mild solvents than PLA.
• Chemicals: Avoid acetone or strong solvents that can degrade PETG over time.
• Order of Operations: Clean first, then lubricate. Reversing this order reduces effectiveness.
• Rail Compatibility: Works on H2/H2S/H1 series (10 mm rails).

🎯 WHO THIS IS FOR

• Users who don't want to loose time.
• Users who prefer their own specific lubricants.
• Anyone seeking a quick, clean, and consistent maintenance routine.

Download and Print! Maintenance Made Simple.
