0.2mm layer, 6 walls, 25% infill

Designer

12.7 h

1 plate

5.0(1)

SHORT VERSION 0.2mm layer, 6 walls, 26% infill

Designer

9.2 h

1 plate

Open in Bambu Studio

Boost

Released

Description

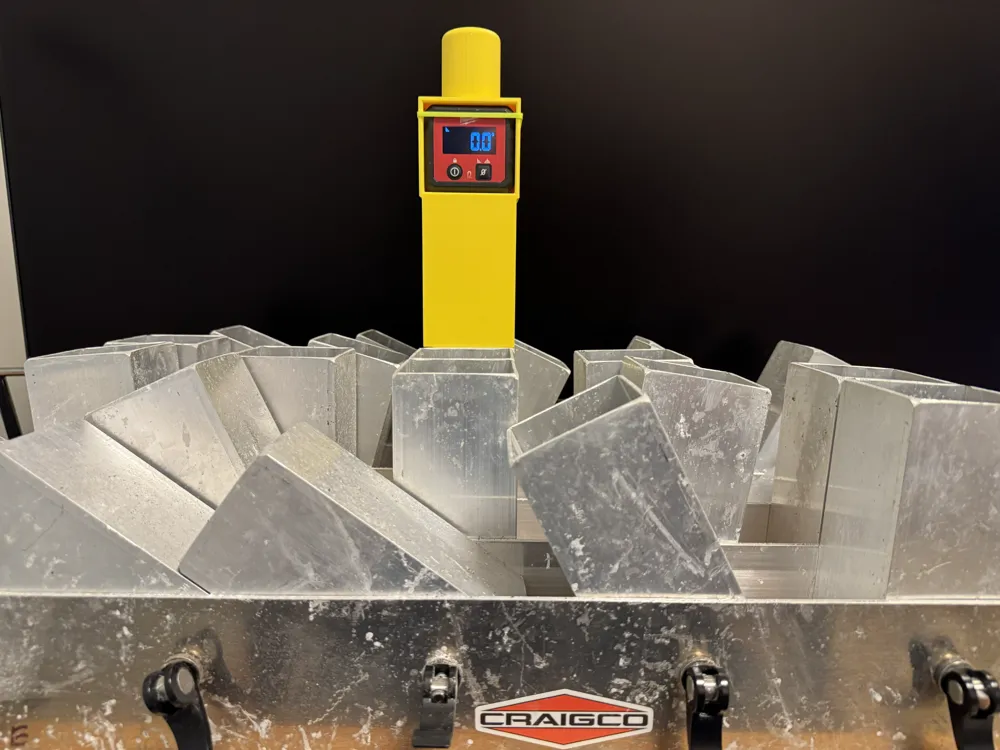

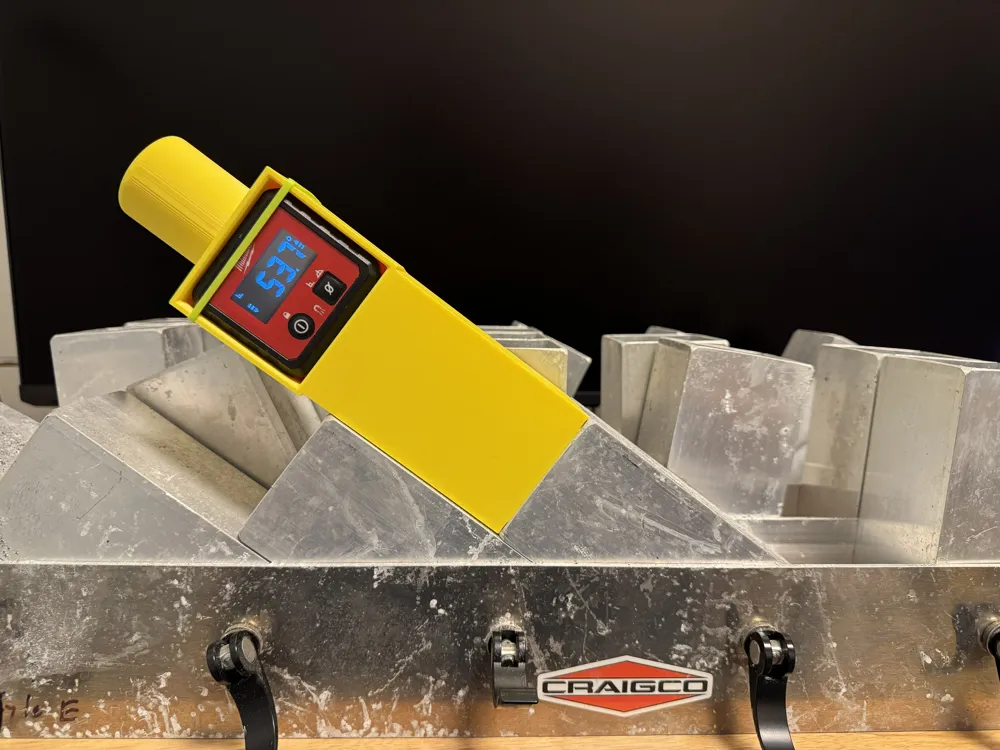

This tool helps with setting angles on the CraigCo MiniCom racks using a Milwaukee digital angle finder part number 48-22-5602 which can be found for about $33 in the electrical tools isle at Home Depot. It also works with the square Klein version from Lowes. The extra leverage really helps when the racks get old and sticky from fallout. Use a rubber band to hold the meter in. I'm working on a latch but it is a long way out. There are other models for different style racks so please do check out my other models. I printed this on the large bed of a H2D. Unfortunately I can't shrink this print down for smaller printers as the extra length is needed to let the meter clear adjacent boxes when measuring extreme angles.
