Fishing Rod Holder

Premium Lock-Ring Fishing Rod Holder (25mm Railing Mount)

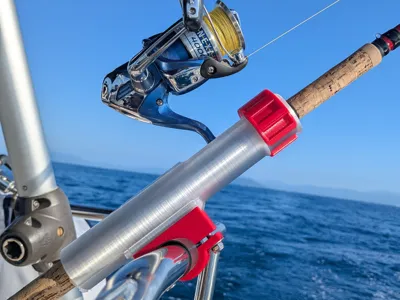

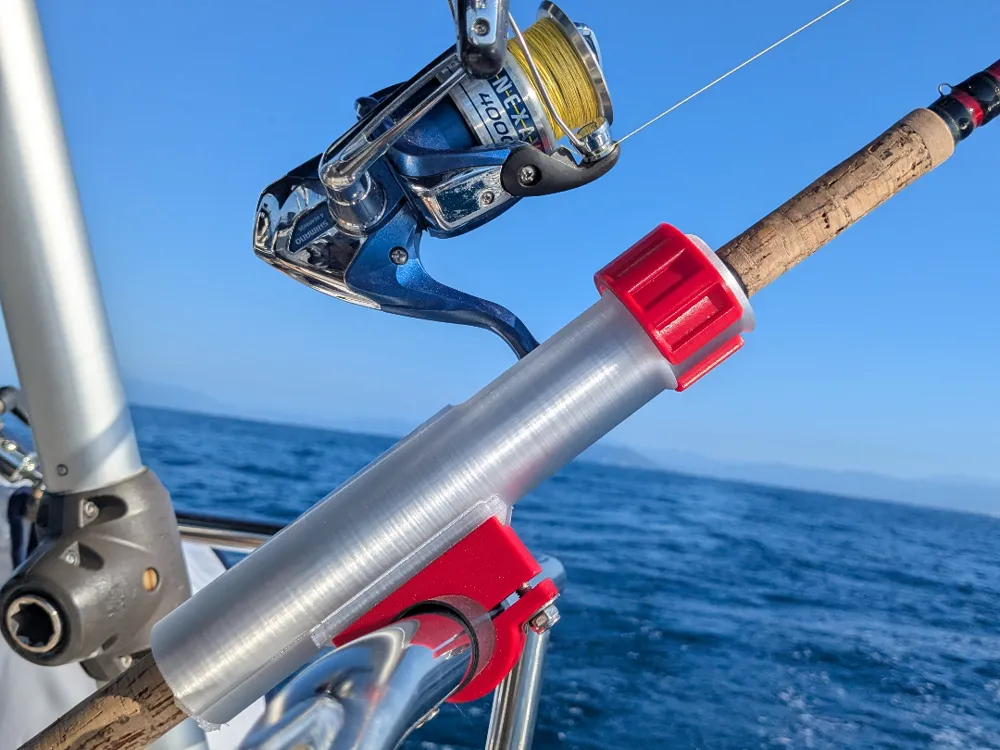

Turn your 3D printer into a custom marine hardware factory! This professional-grade fishing rod holder is designed specifically for 25mm (1 inch) railings, making it the perfect upgrade for sailing boats, yachts, center consoles, and pulpits.

Unlike basic static rod holders that leave your expensive rods vulnerable to rough wakes or sudden aggressive strikes, this model brings high-end commercial features directly to the maker community.

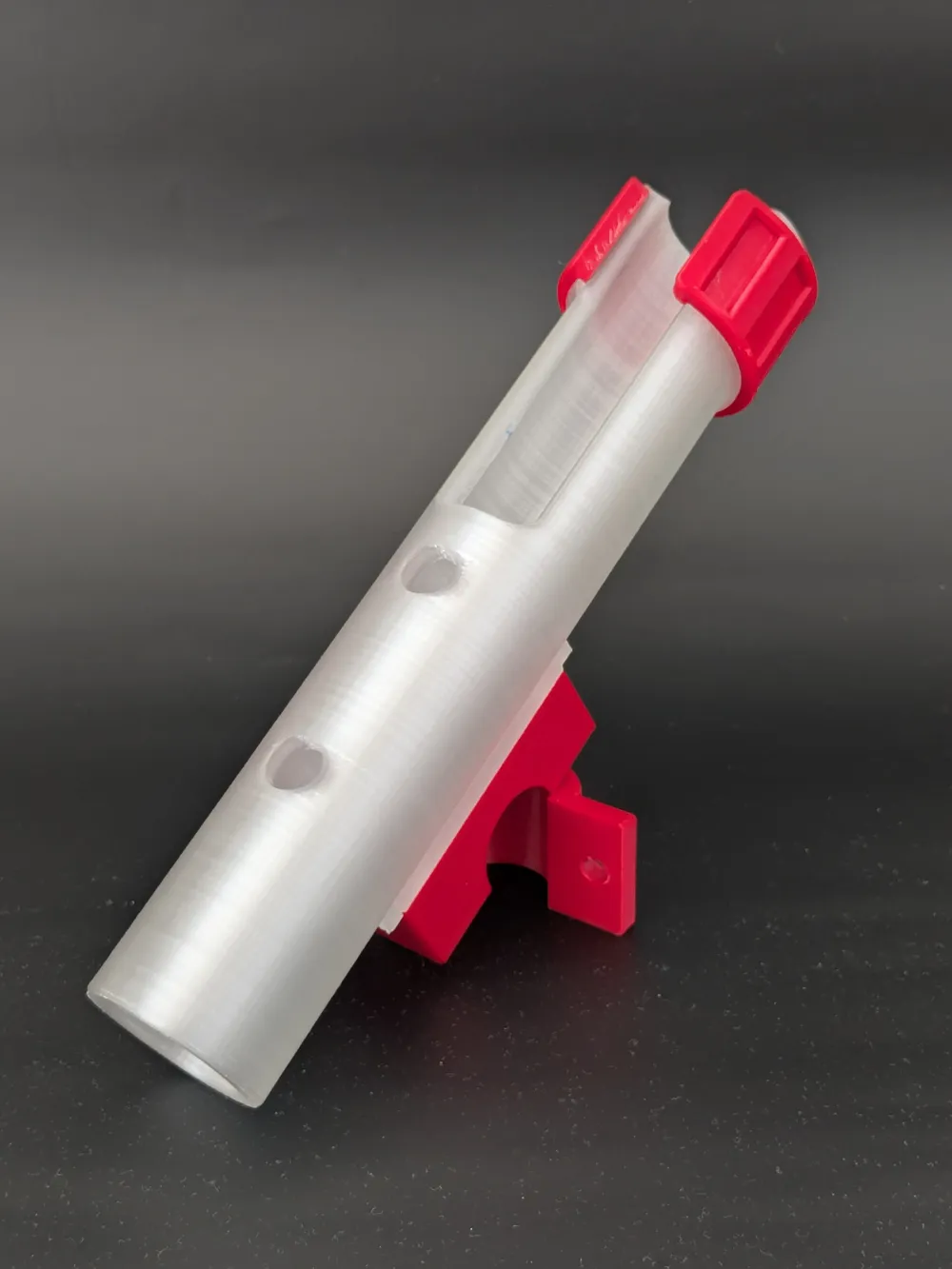

Premium Feature: Rotating Twist-Lock Ring

Inspired by top-tier premium rod holders on the market, this design features an integrated rotating upper lock-collar. Once your rod is seated, a simple twist securely traps the rod handle inside the holder. No more anxiety about losing your high-end setups during high-speed trolling or heavy swells!

Real-World Marine Pain Points Solved:

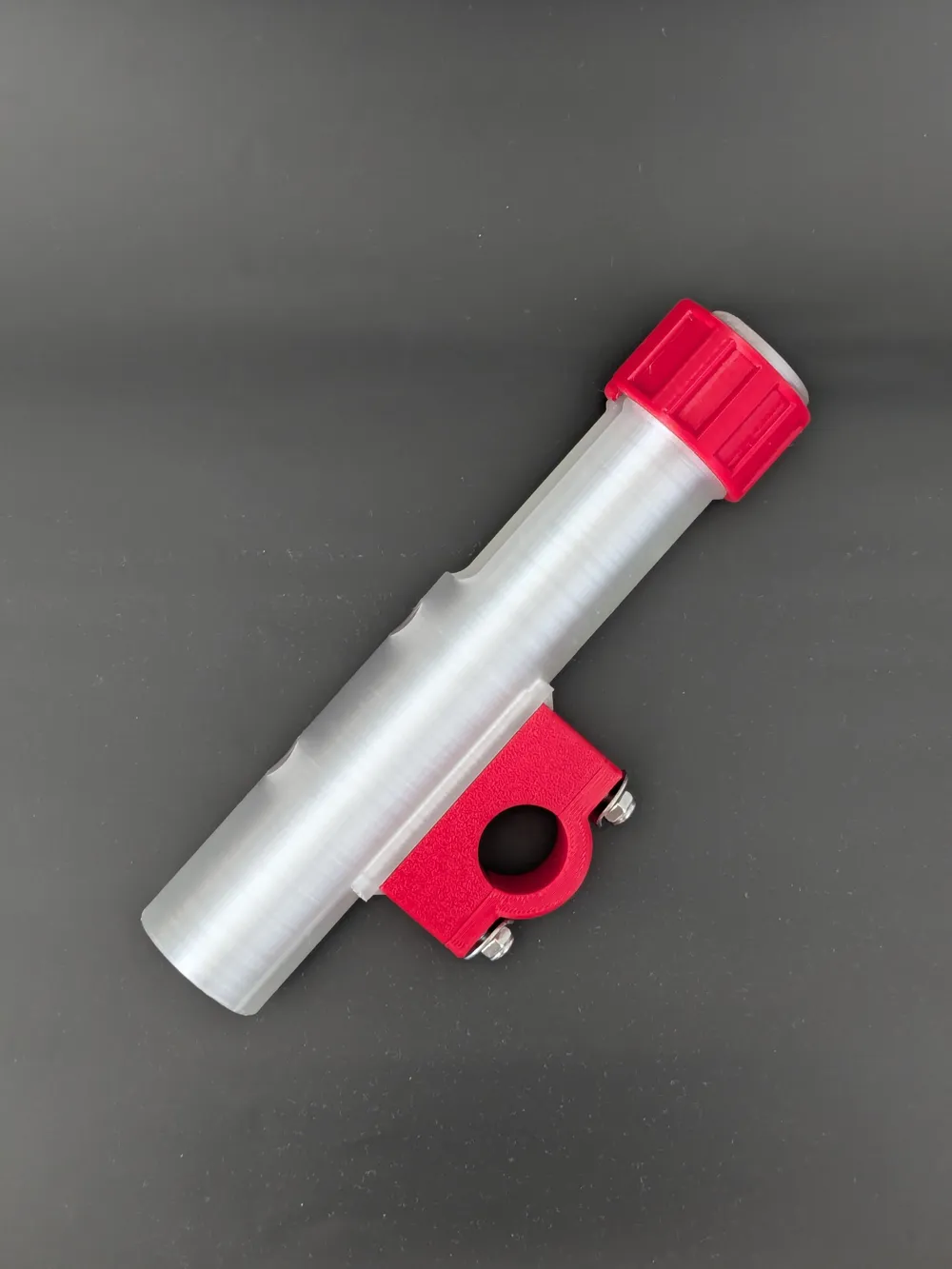

1. Rock-Solid Railing Grip: Standard printed clamps often slip, spin, or crack under torque. This clamp geometry has a reinforced profile designed specifically to bite cleanly into standard 25mm round stainless tubing without flexing out of shape.

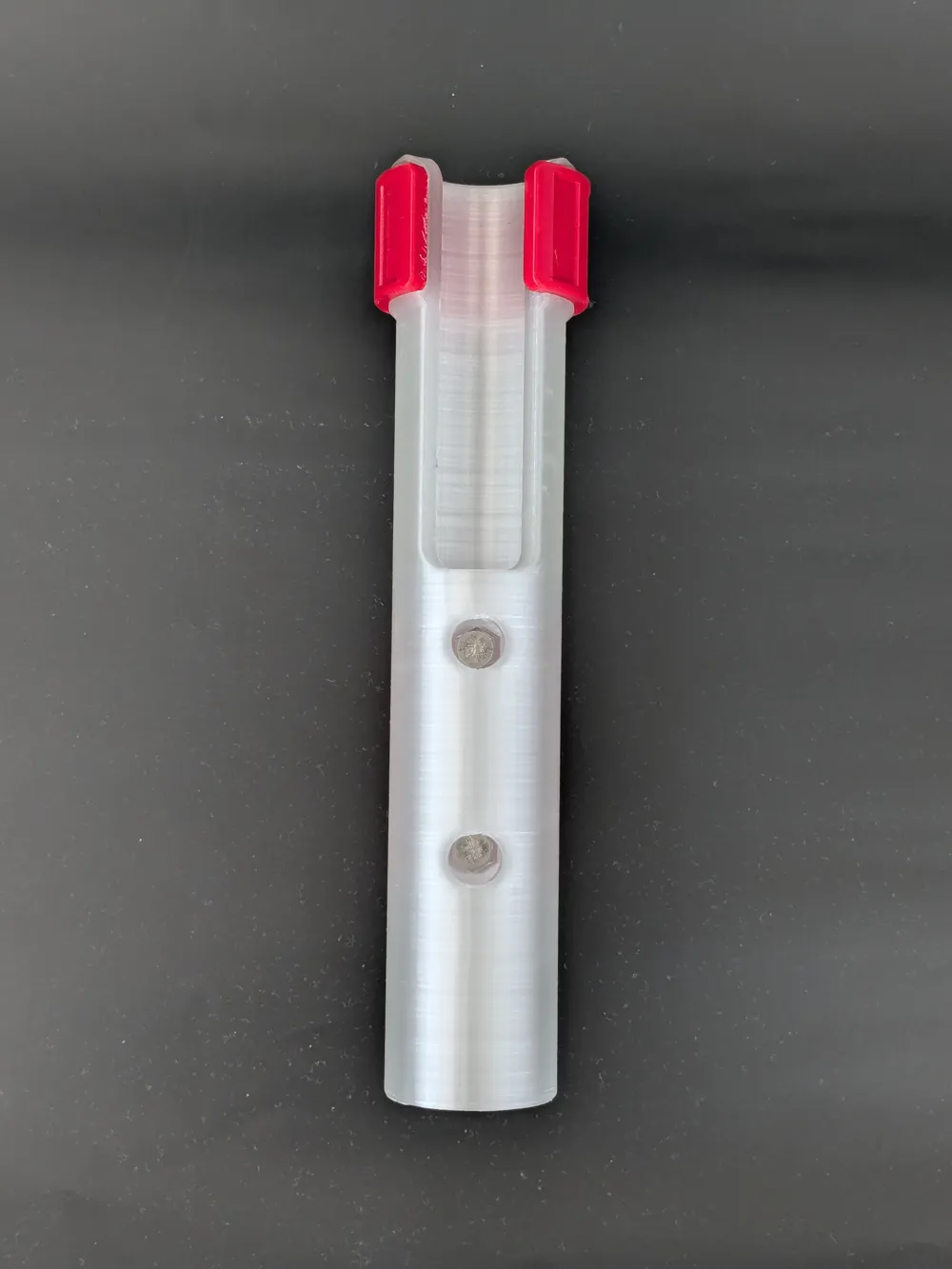

2. Integrated Dual Drainage: Stagnant salt water ruins gear and promotes mold. This holder features clear structural drainage holes on the side and bottom to completely flush out spray and rainwater automatically.
3. Line & Guide Protection: The smooth, chamfered upper profile prevents delicate braided or monofilament lines from catching or snagging during quick rod deployments.

Crucial Printing & Material Guidelines:

To ensure your holder stands up to the punishing marine environment, please follow these guidelines strictly:

• Material: DO NOT USE PLA. PLA will rapidly warp, creep, and degrade under outdoor tension and sun exposure. Print exclusively in PETG (excellent UV and impact resistance) or ASA (ultimate weatherability).
• Color Selection (Pro Tip): Print in light colors (White, Light Grey, Cream, or High-Viz Yellow/Green). Light colors reflect sunlight, whereas dark colors/black absorb heat rapidly, raising the plastic’s internal temperature close to its softening point and causing structural failure under load.

Recommended Slicer Settings (For Maximum Strength):

Don't lose a fish because of a weak print! Use these robust structural settings:

• Wall Loops: 5 (Crucial for clamp strength and bolt torque resistance)
• Infill Density: 50 %
• Infill Pattern: Gyroid (Provides uniform multi-directional strength against twisting forces)
• Layer Height: 0.20mm
• Supports: Minimal supports are needed

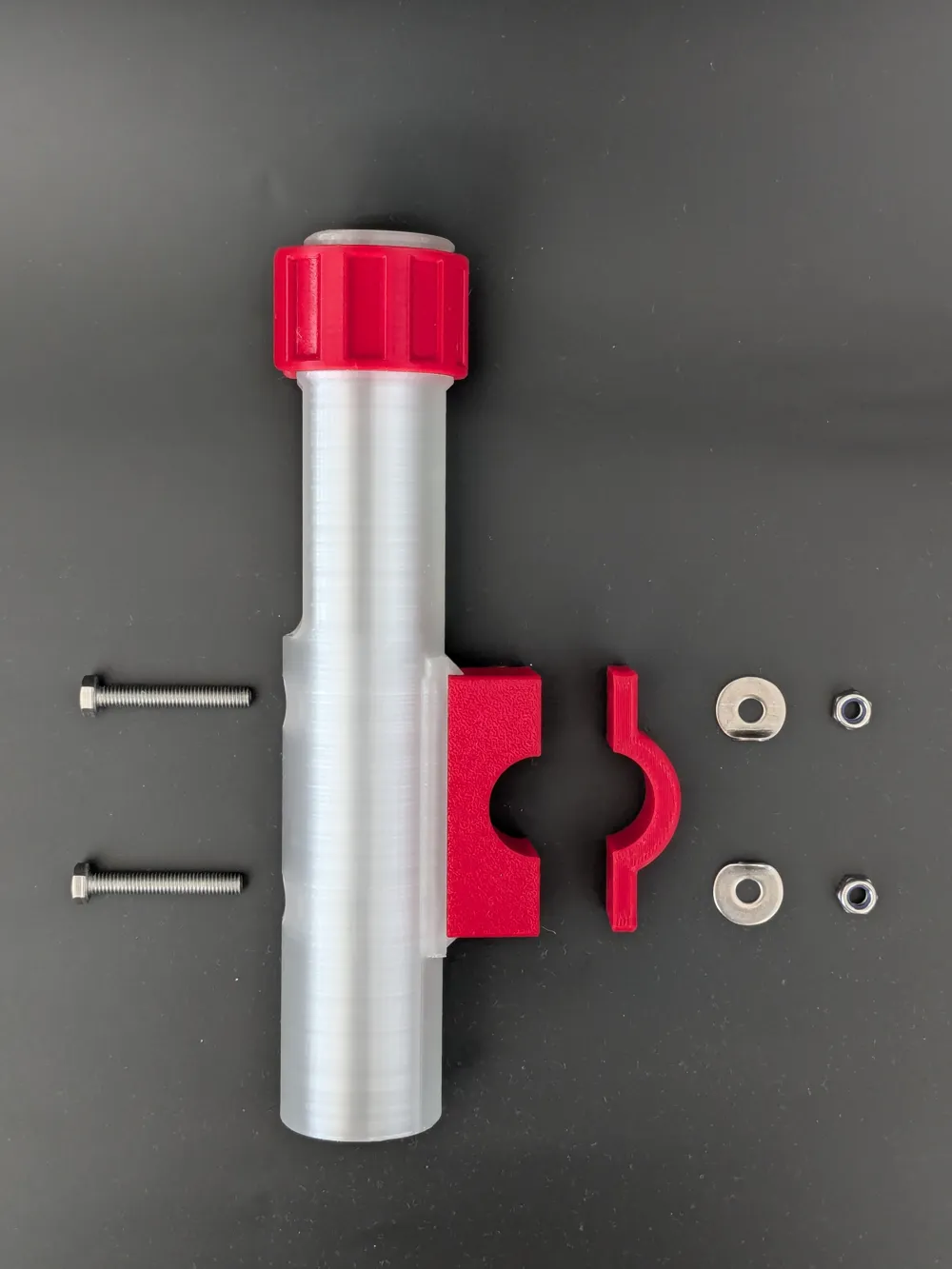

Hardware Needed for Assembly:

• Bolts: 2x Marine Grade Stainless Steel Bolts M6 x 50mm.
• Nuts: Matching Nyloc (Nylon-insert locking) stainless steel nuts to prevent vibrations from loosening the mount while motoring.
• Tip: Wrap a 0.5mm layer of electrical tape or a thin strip of rubber around your 25mm metal railing prior to clamping to maximize grip friction and completely avoid scratching your polished stainless steel.
