Mini Panty Liner Dispenser – DISPBOX

Mini Panty Liner Dispenser – DISPBOX

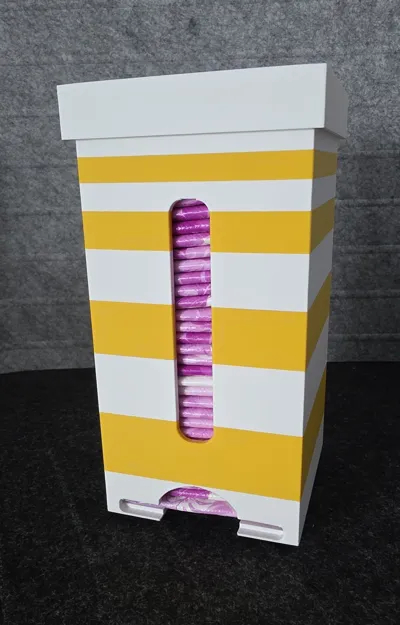

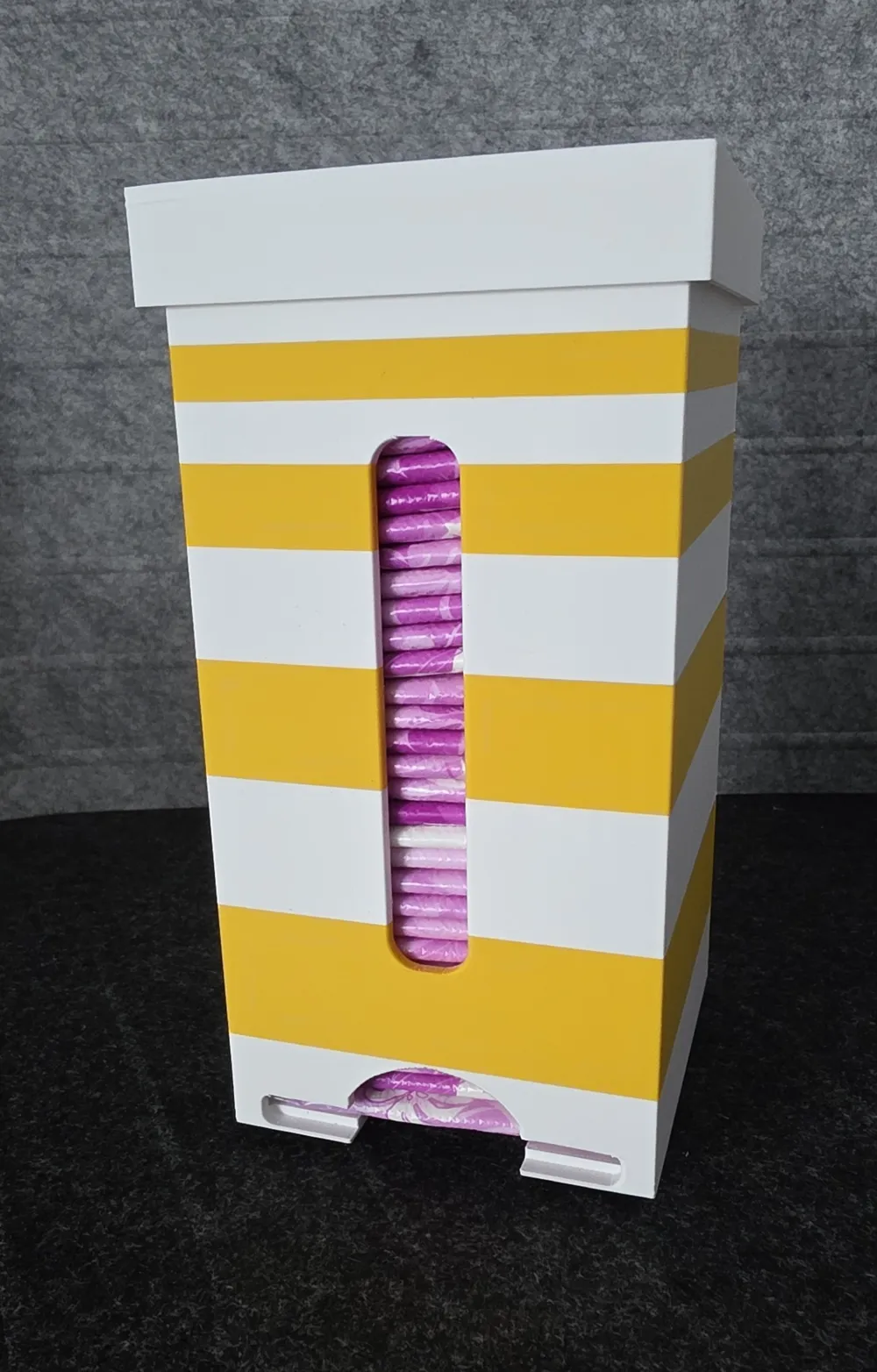

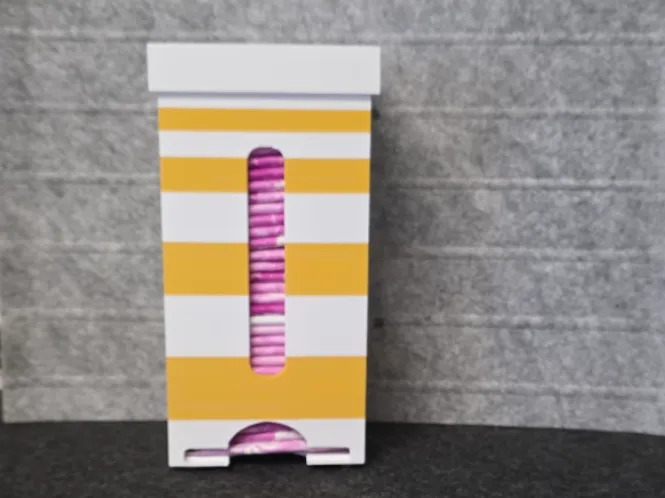

This box is a functional dispenser focusing on

easy use, clean mechanics, and reliable 3D printing

Compared to the panty liner variant, this model is adjusted in size

and optimized for smaller, individually packaged panty liners

👉 Ideal for storing and dispensing mini panty liners in daily life

✨ Features

 • ergonomic finger access through round opening

 • controlled dispensing of individual liners

 • continuous viewing window for fill level control

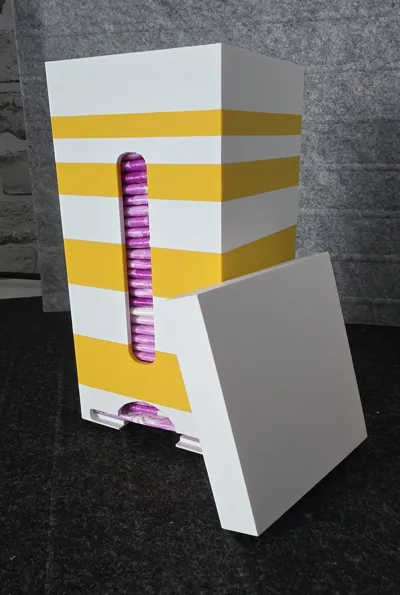

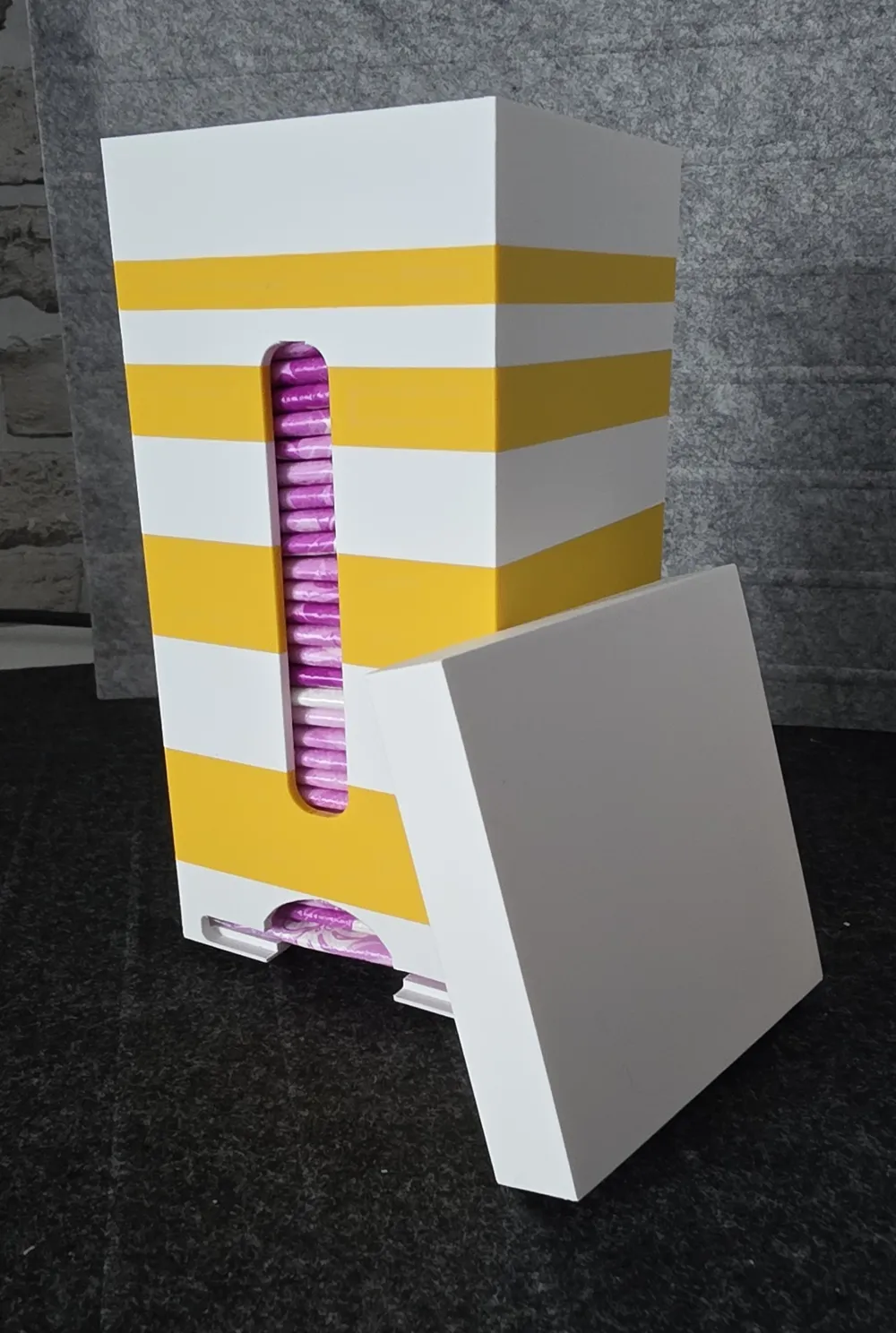

 • removable lid for easy refilling

 • stable construction (3 mm wall thickness)

 • optimized for printing with minimal support

🧠 Design Philosophy

The model functions as a mechanical access system:

 • panty liners are stored stacked in the container

 • they are individually removed through the bottom slot

 • the grip opening supports access when the fill level is low

Design specifics:

 • bottom opening as a spherical cut for a natural grip recess

 • continuous viewing window for real visual control

 • stable construction for daily use

👉 Focus was on:

 • easy operation

 • reliable function

 • stable construction

 • print-optimized geometry

📏 Important Parameters

 • Wall thickness: 3 mm → stable construction

 • Inner width: 72 mm → suitable for liner width (slot width)

 • Dispensing height: 7 mm → controls dispensing (slot height)

 • Compartment height: 171 mm → capacity depends on liners

 • Total height: 171 mm → dispenser volume

 • Total depth: 85 mm → design / space requirement (width also 85 mm)

🖨️ Print Settings (tested)

 • Layer height: 0.20–0.28 mm

 • Infill: 10–15 %

 • Walls: 3–4 lines

 • Top/Bottom: 4–5 layers

 • Seam: Backside

✅ Support

 • minimally necessary

 • only in the area of the bottom slot and the top arch

 • recommended: tree support / slim / only critical areas (draw yourself if necessary)

 👉 The rest of the model is support-free

⏱️ Print Duration

 • Main part: approx 3.5 hours

 • Additional part(s): approx 45 minutes

📦 Print Variants

This model includes several variants:

 1. Plate – box and lid together

 2. Plate – lid only

 3. Plate – box only

👉 Recommendation:

Print box and lid separately for best results

🔧 Customizability

 • The model is optimized for the given size

 • Scaling is possible and has been successfully tested

 • Critical areas are:

  • dispensing slot

  • grip opening

  • top arch

👉 Use original size for best results

✅ Note

The design is engineered to require minimal support

Critical areas:

bottom slot area and top arch

The model is functionally tuned – changes can affect its behavior

👉 More Variants

More sizes and versions of this model are available on my profile:

 • Mini Panty Liner Dispenser – https://makerworld.com/en/models/2936726-mini-slipeinlagen-spender-dispbox

 • Panty Liner Dispenser – https://makerworld.com/en/models/2872002-slipeinlagen-spender-dispbox

🙏 Feedback & Notes

As a new designer, I appreciate all feedback 😊

Comments are always welcome – preferably with pictures of your prints too!

If something doesn't fit,

please don't give a direct negative rating – just drop me a quick message

Together, we almost always find a solution 👍

Please use this model respectfully and credit me as the original designer,

if you publish modifications 🙌
