Magnetic 140mm PC Fan Mount for Mosquito Nets

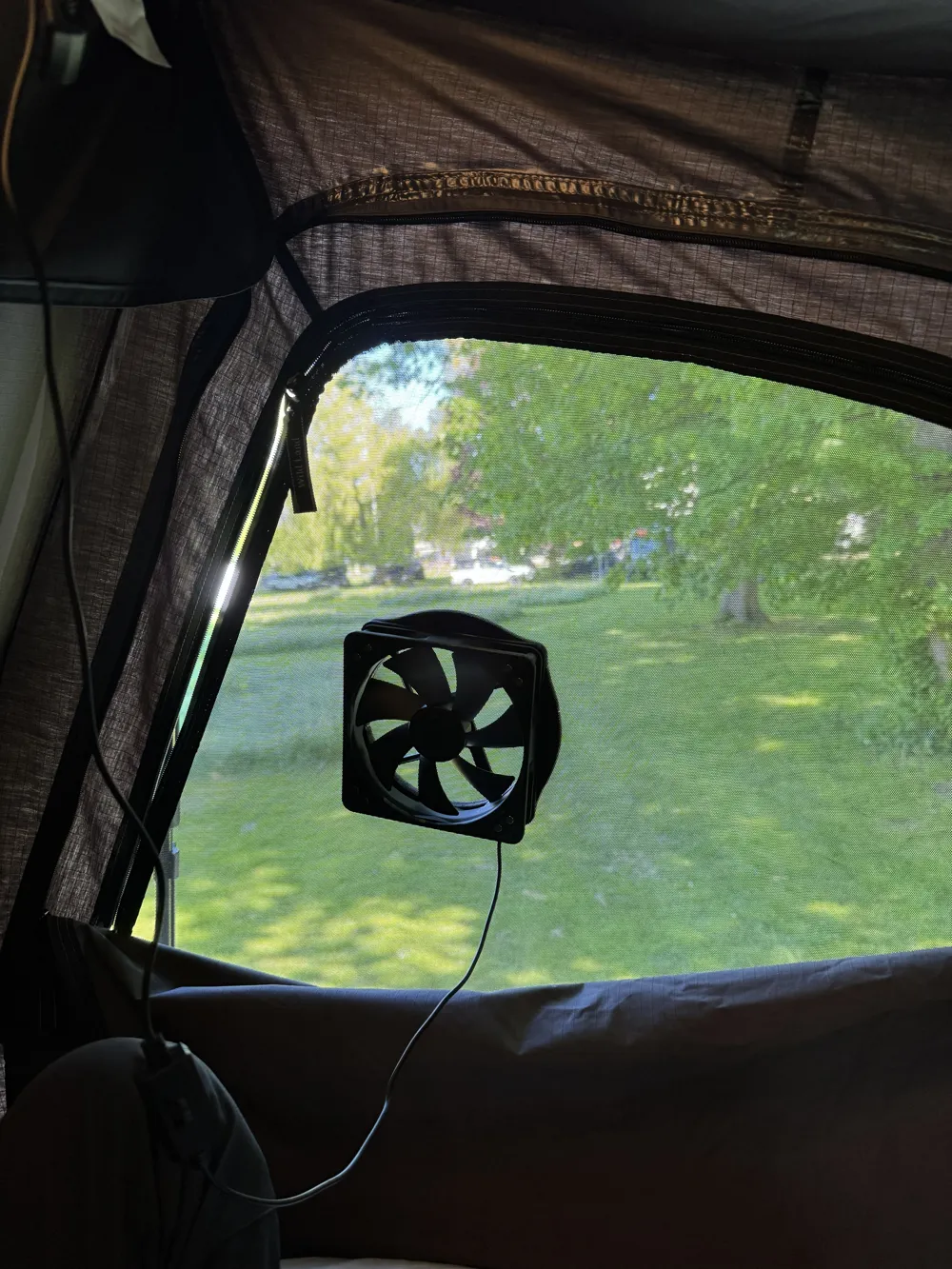

Turn your 140mm USB-powered PC fan into a simple and effective ventilation solution for roof top tents, campers, vans, or any setup with a mosquito net or fly screen.

This design consists of two 3D-printed parts:

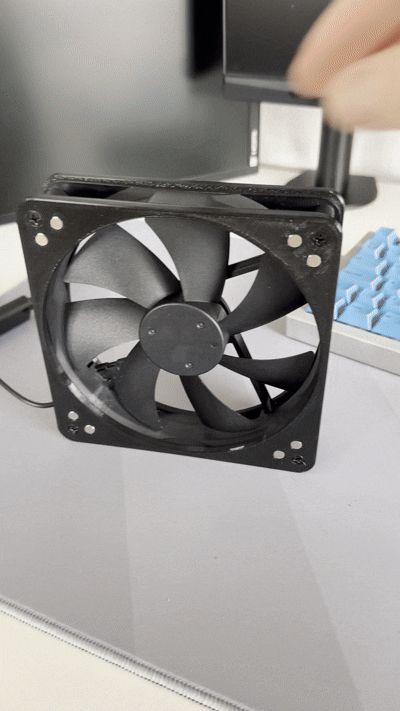

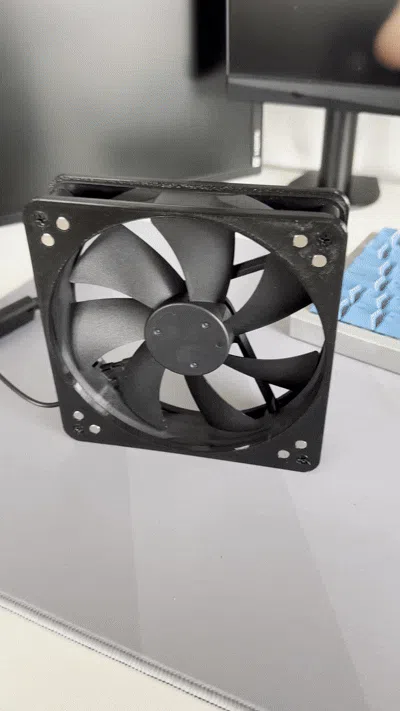

1. Fan Mount Frame – Screws directly onto a standard 140mm PC fan using the fan's original mounting screws.

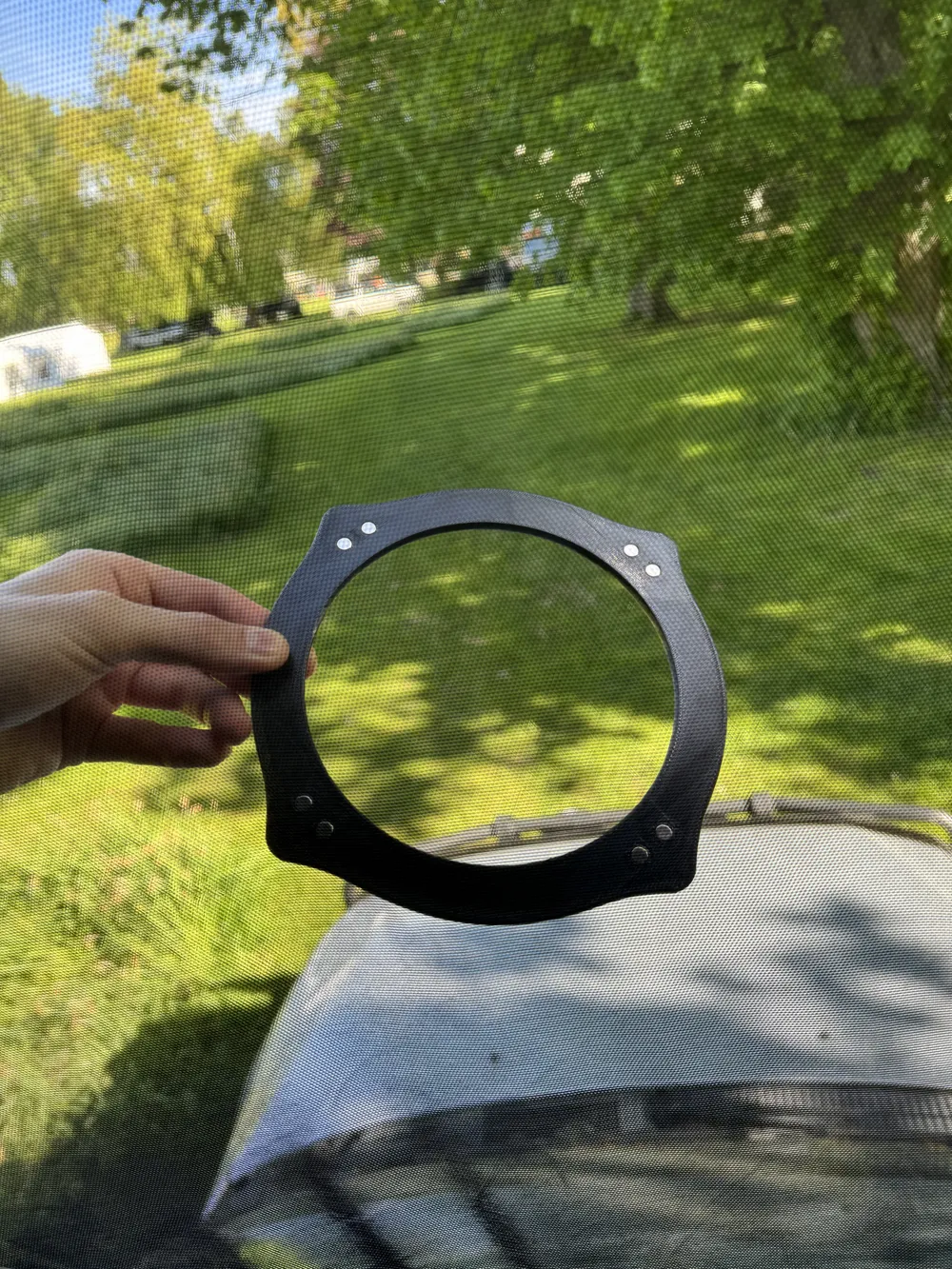

2. Magnetic Backing Frame – Attaches from the opposite side of the mosquito net or fly screen.

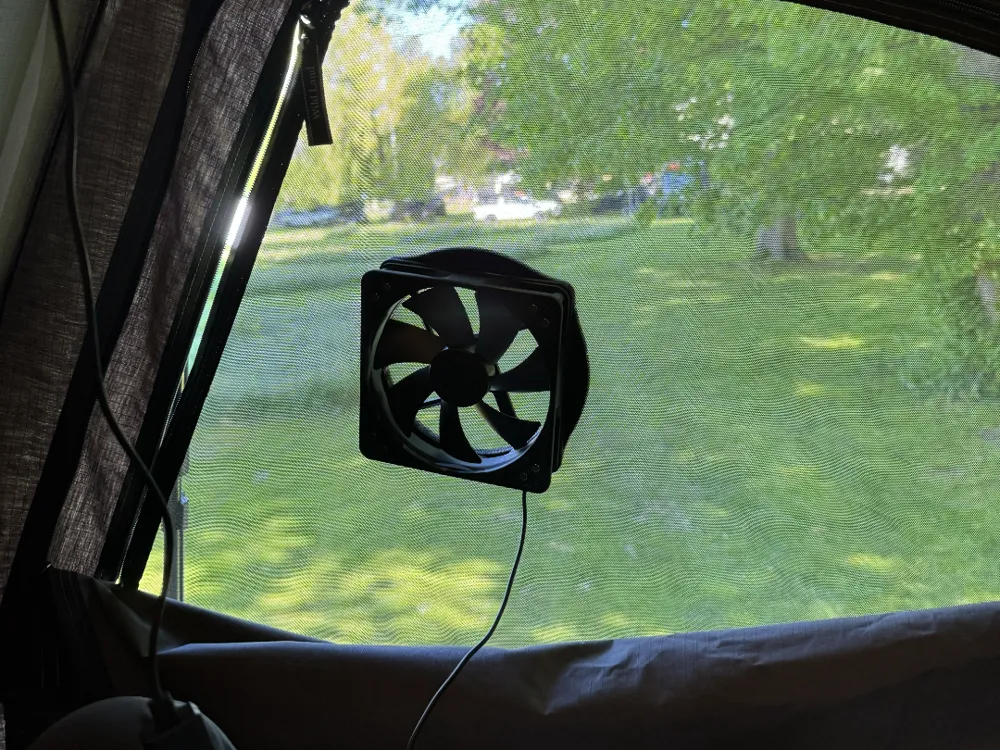

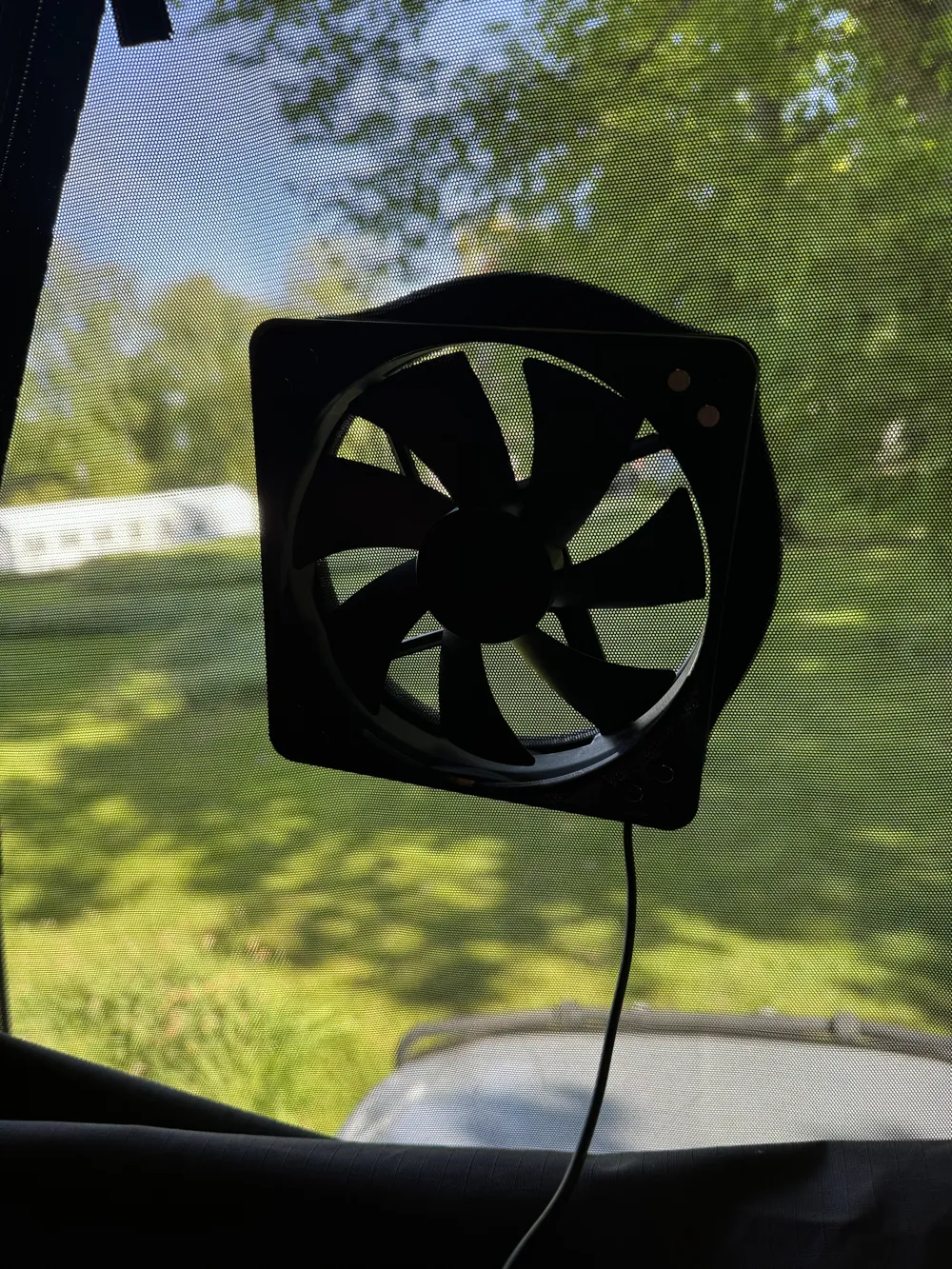

Both parts are designed to accept 6x3mm magnets, creating a strong magnetic clamp that securely sandwiches the mosquito net or fly screen between the two frames. This allows you to quickly install or remove the fan without damaging the mesh.

Perfect for improving airflow during hot summer nights while camping, overlanding, or spending time outdoors.

The fan shown in the photos is a 140mm USB-powered PC fan purchased from Amazon, making it easy to power from a portable power bank, USB battery station, solar setup, or any other 5V USB power source.

Reversible Airflow Option

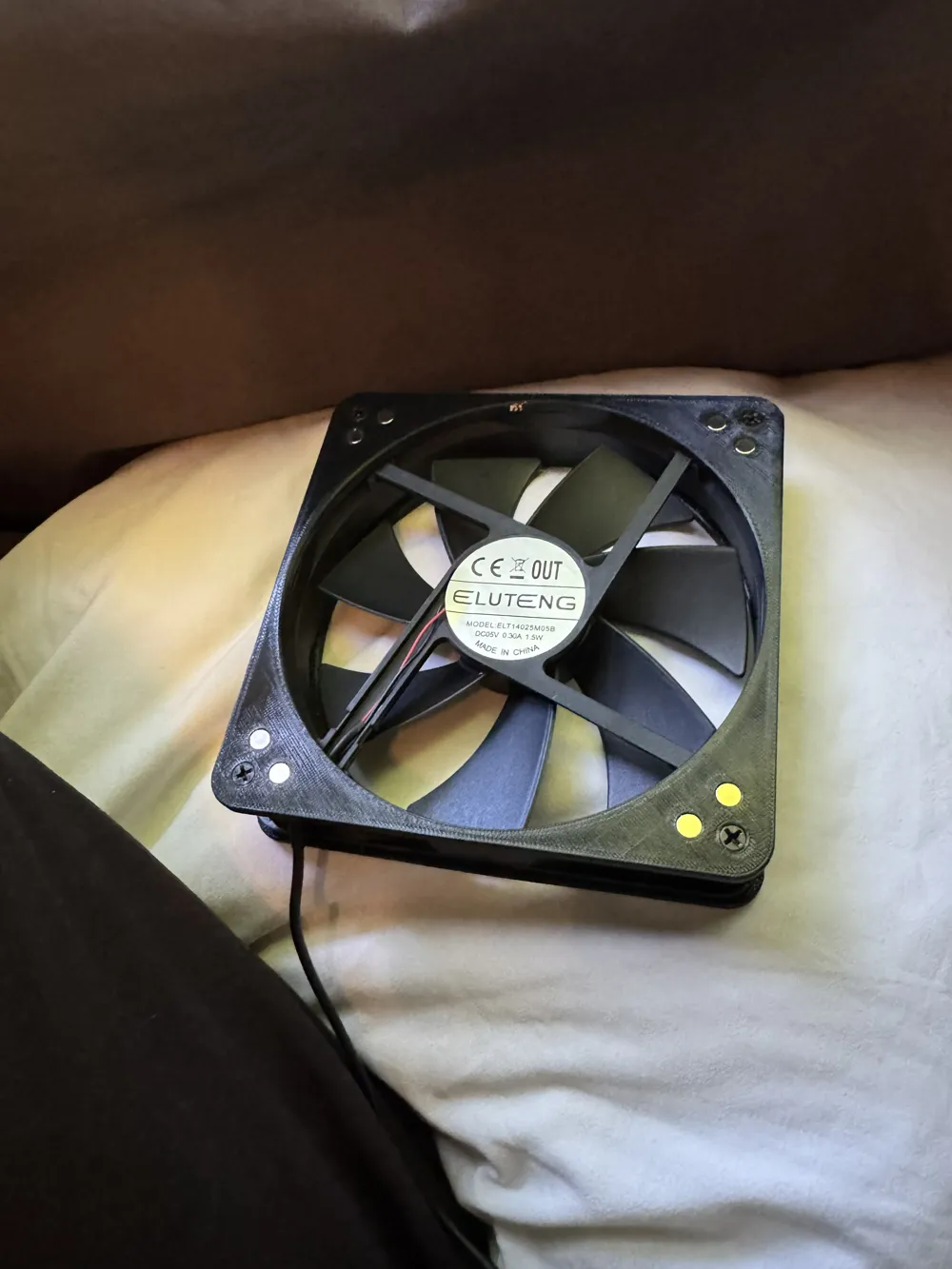

The fan mounting frame can also be printed twice and installed on both sides of the fan. This makes it easy to reverse the fan orientation depending on whether you want to pull fresh air into the tent or exhaust warm air out, providing a versatile ventilation solution for changing weather conditions and camping environments.

• Drawing cool fresh air into the tent
• Exhausting warm air out of the tent

Features

• Fits standard 140mm PC fans
• Two-piece magnetic mounting system
• Uses 6x3mm magnets
• No permanent modifications to the mosquito net or fly screen
• Quick installation and removal
• Lightweight and compact

Ideal for

• Roof Top Tents (RTT)
• Overlanding setups
• Camping tents
• Camper vans
• RVs
• Window fly screens
• Insect screens and mosquito nets

Hardware Required

• 1 × 140mm PC fan
• Fan mounting screws (original fan screws)
• Maximum 24 × 6x3mm magnets (designed for 8 magnets for each part)
• Super glue or CA glue for magnet installation may be required

Notes

• Check magnet polarity before gluing them into place.
• PETG or ASA is recommended if the mount will be exposed to heat and sunlight.
• Designed around a standard 140mm fan format.

Enjoy a cooler and more comfortable camping experience with a simple, removable ventilation solution that can be installed almost anywhere a mosquito net or fly screen is available.
