Polar Verity Sense&Charger Holder for IKEA Skadis

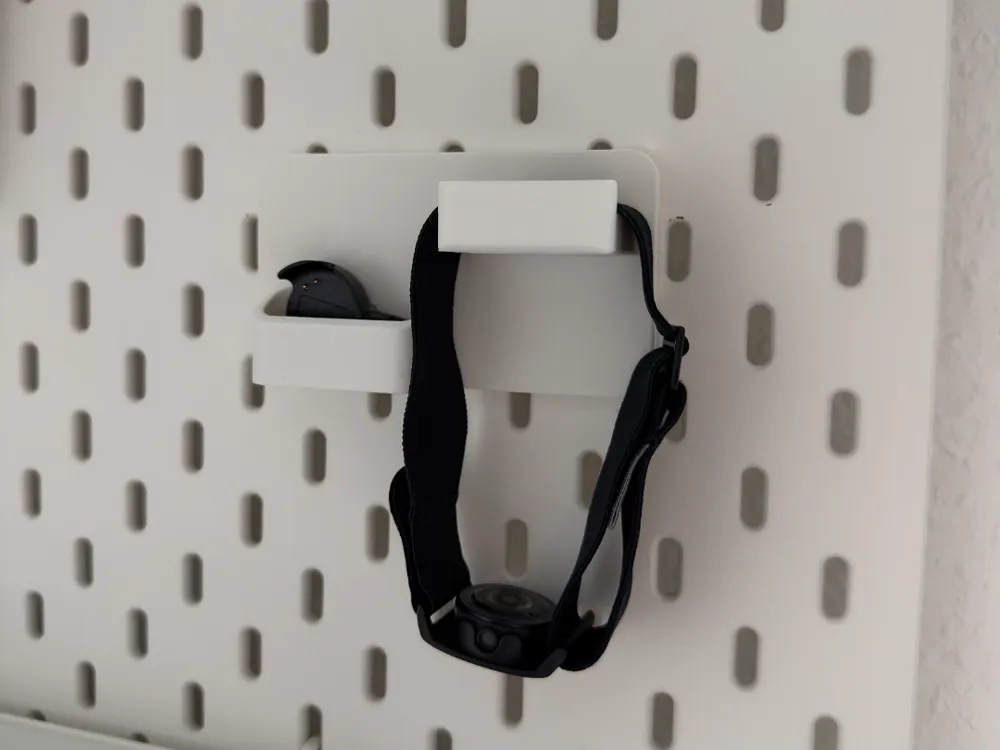

 A holder that keeps the Polar Verity Sense ready to grab on an IKEA SKÅDIS pegboard. The armband drapes over a wide rounded bar and the sensor dangles in the loop, so you take it off the board and put it on in one motion. A small pocket next to the bar stores the original Polar USB charging adapter, the part that otherwise disappears into a drawer.

FEATURES

- The bar is 42 mm wide with an upturned lip, so the elastic armband lies flat and cannot slide off.
- The sensor stays clipped in its armband holder the whole time. No fiddling, no unclipping for storage.
- The charger pocket is sized for the original Polar USB adapter (43.5 x 30 x 11.3 mm) with comfortable clearance. The adapter lies on its long edge and is easy to grab thanks to the low front wall.

- Three standard SKÅDIS hooks on the 40 mm grid plus three alignment pegs one row below keep the holder firmly on the board.
- Footprint on the board: 112 x 62 mm, protruding 37 mm. Plan about 15 cm of free board space below the bar for the hanging armband loop (size M, larger bands hang lower).

PRINTING

- PLA or PETG, 0.2 mm layers, 3 walls, 15 % infill.
- Print in the orientation provided, do not rotate.
- Supports are required: tree (auto), set to "On build plate only". They appear under the hooks, under the pegs and under the bar, and snap off cleanly.

MOUNTING

Tilt the holder slightly, insert the hooks into a slot row, push it flat against the board, then let it drop about 7 mm until it seats. The pegs land in the slot row 40 mm below, so use a board area with both rows free.

Personal use only (CC BY-NC-SA). Not affiliated with Polar or IKEA. SKÅDIS board and sensor not included.
