Slurry mixer for vaport blasting 1-1/2bsp

Print Profile(1)

All
P1S
A1
P1P
H2C
X1 Carbon
X1E
H2D Pro
A2L
P2S
H2S
H2D
X2D
X1

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
4.9 h
1 plate
4.0(1)

Open in Bambu Studio
Boost
2
5
1
0
0
2
Released

Description

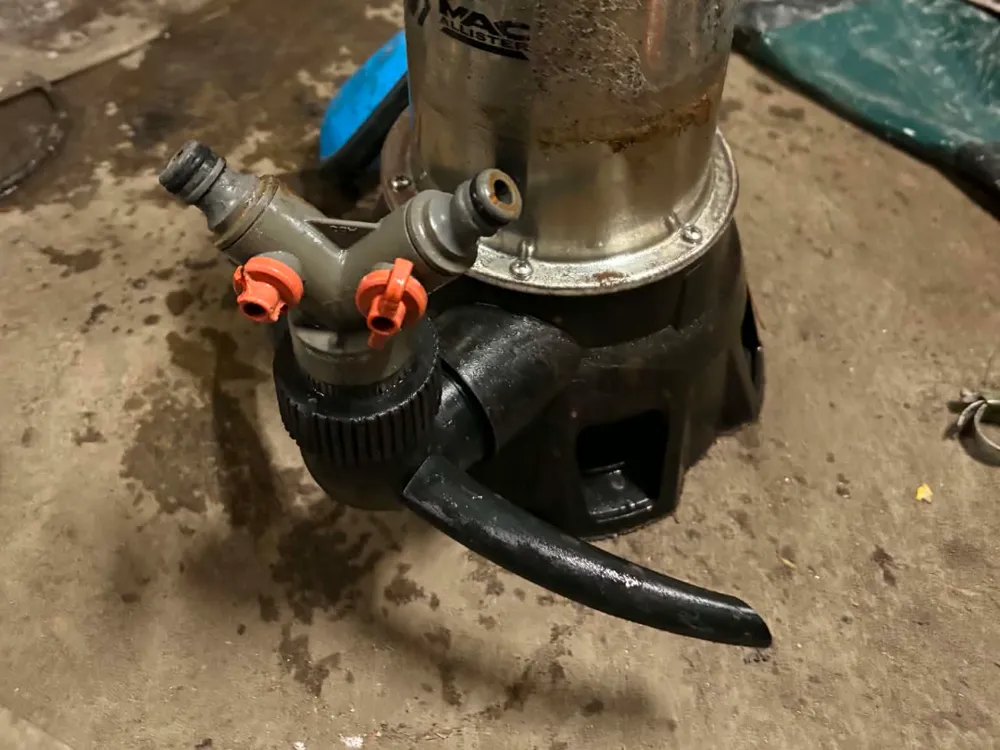

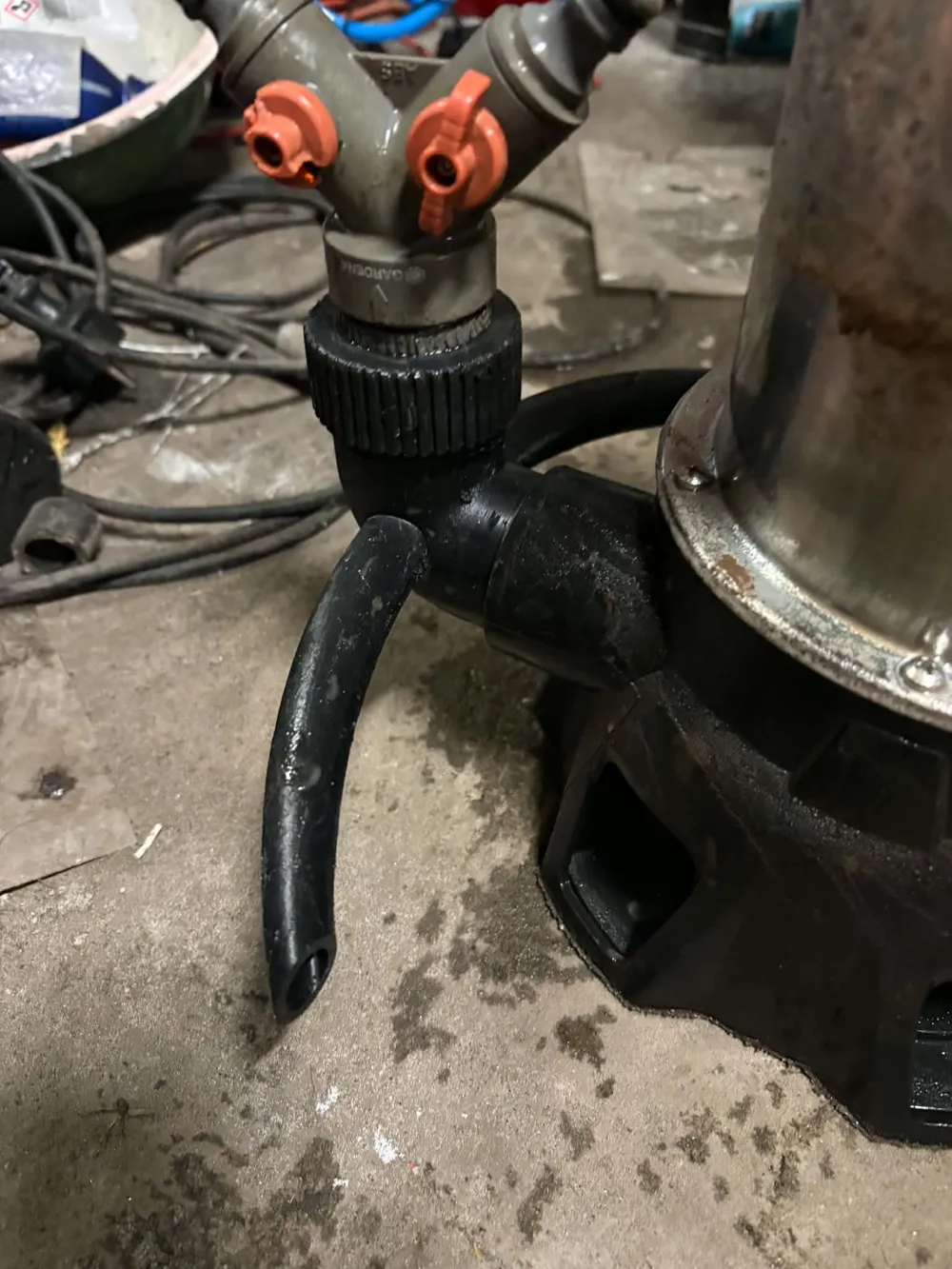

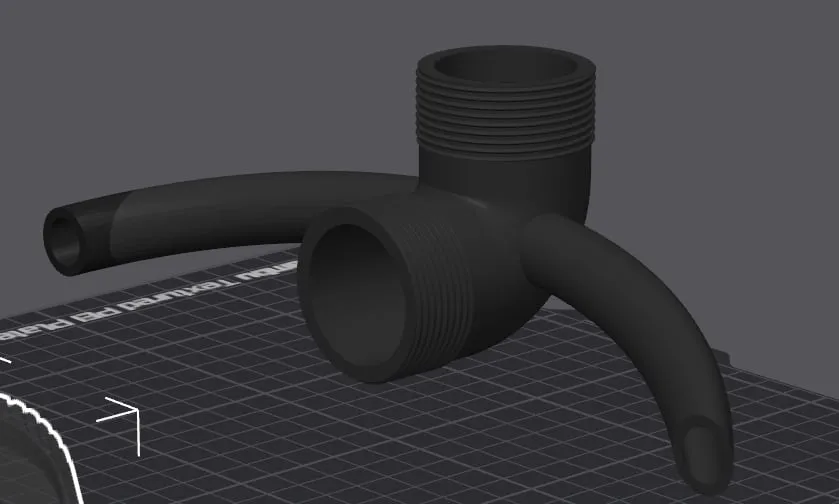

Vapor blasting water pump 90° elbow with 1-1/2 inch thread with additional nozzles
Simple prototype with two 7mm nozzles to help with mixing slurry if you use someting heavier or one bypass is to weak, however im still dialing my setup.

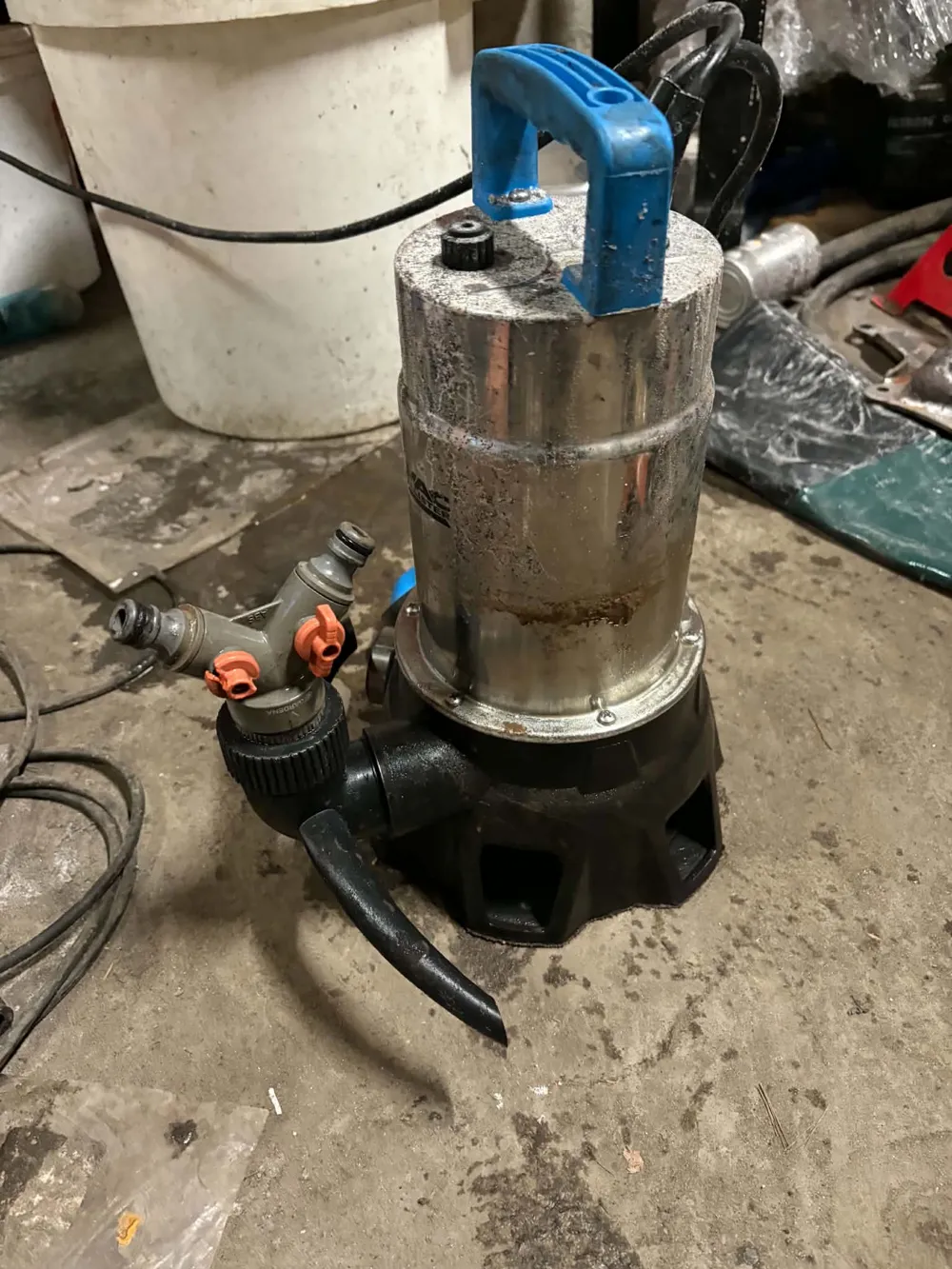

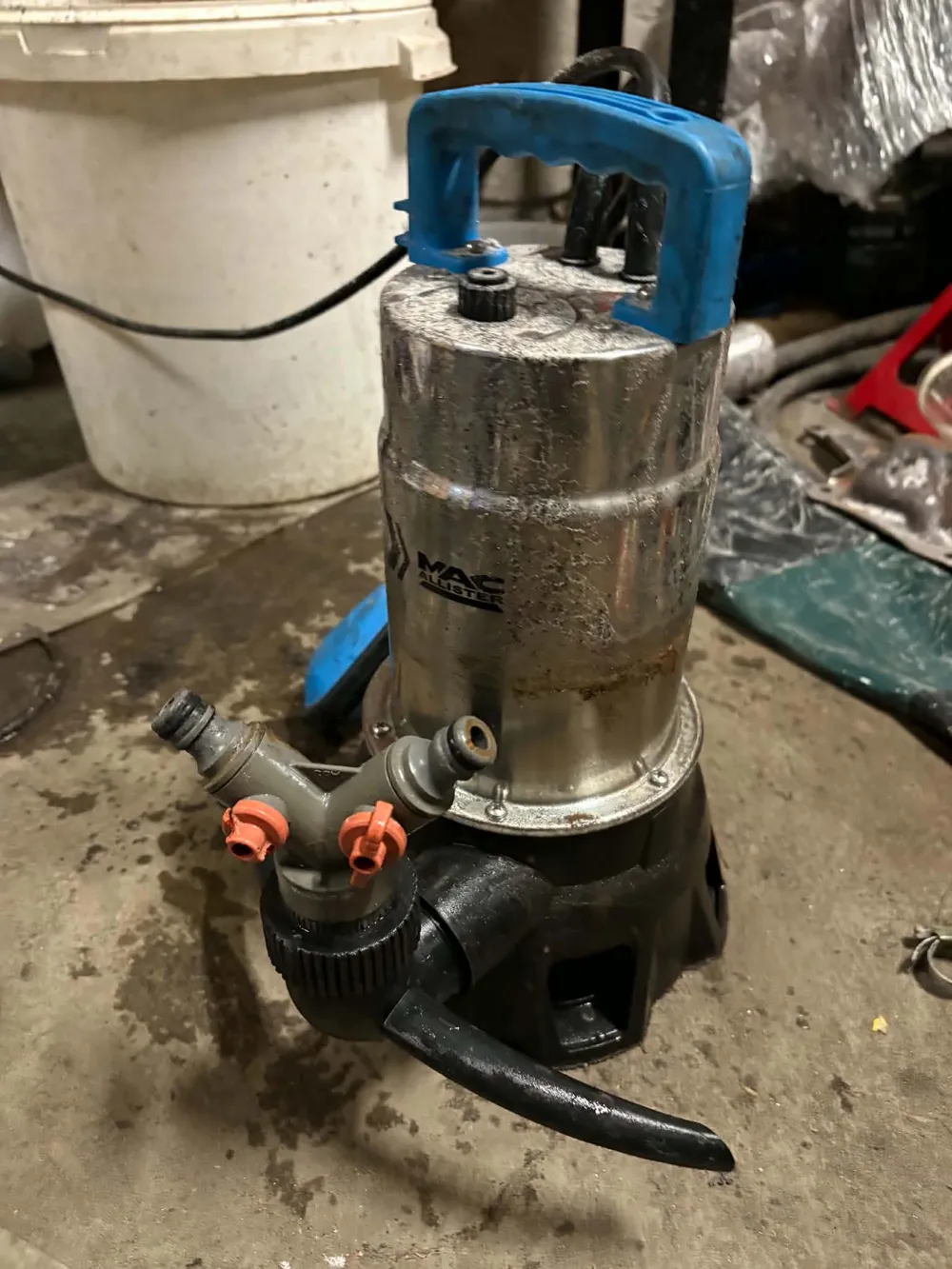

My waterpump is 1000w Macalister 308l/min and there is like 15L of water in bucket.
I still use bypass tho.
1-1/.2 thread might be bit hard to screw in but in my case worked without any addinational treament.
Printed my with ASA
Any feedback is appreciated
