HP Power Supply 10 inch rack - HSTNS-PL18
Print Profile(1)
Bill of Materials
- Barrel Jacks x 1: https://amzn.to/4aq10rd
- 5v Buck Converter x 1: https://amzn.to/4xiEp9L
- 7.5 Amp Fuse x 1: https://amzn.to/4oid1Ve
- Silicone Wire x 1: https://a.co/d/0i9FLh7J
- XT30 x 1: https://amzn.to/4eBB2m7
- JST Connectors x 1: https://amzn.to/3Swt2eo
Description

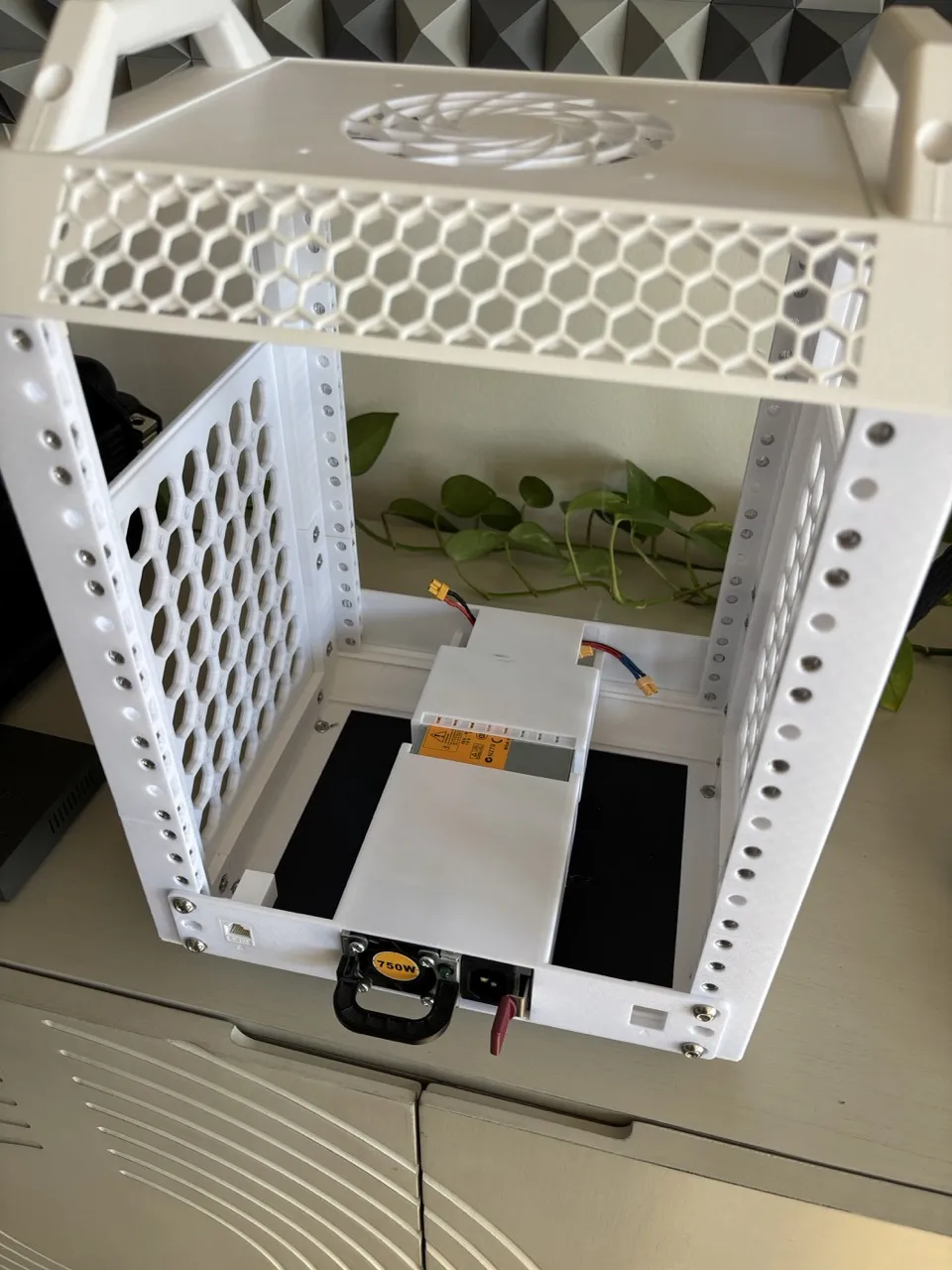

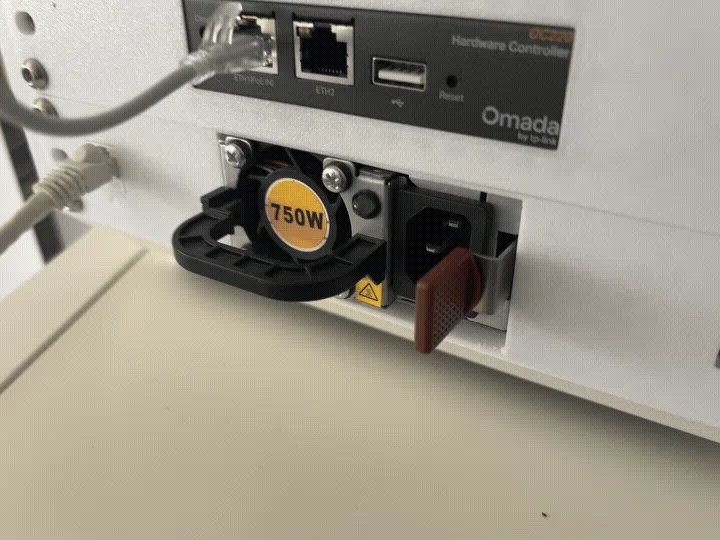

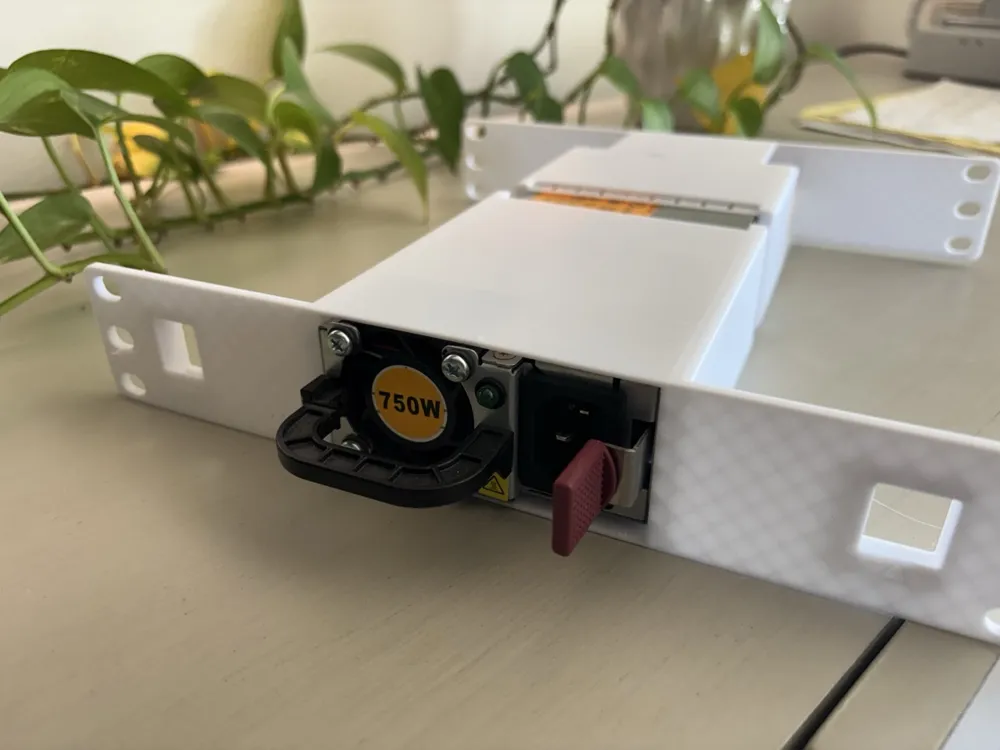

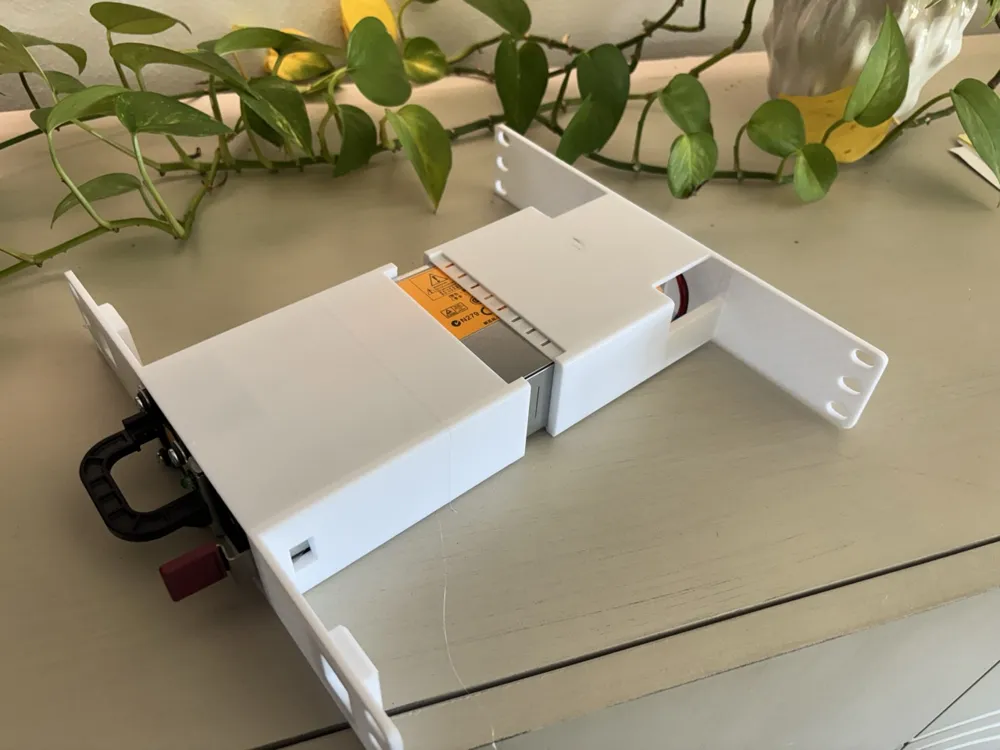

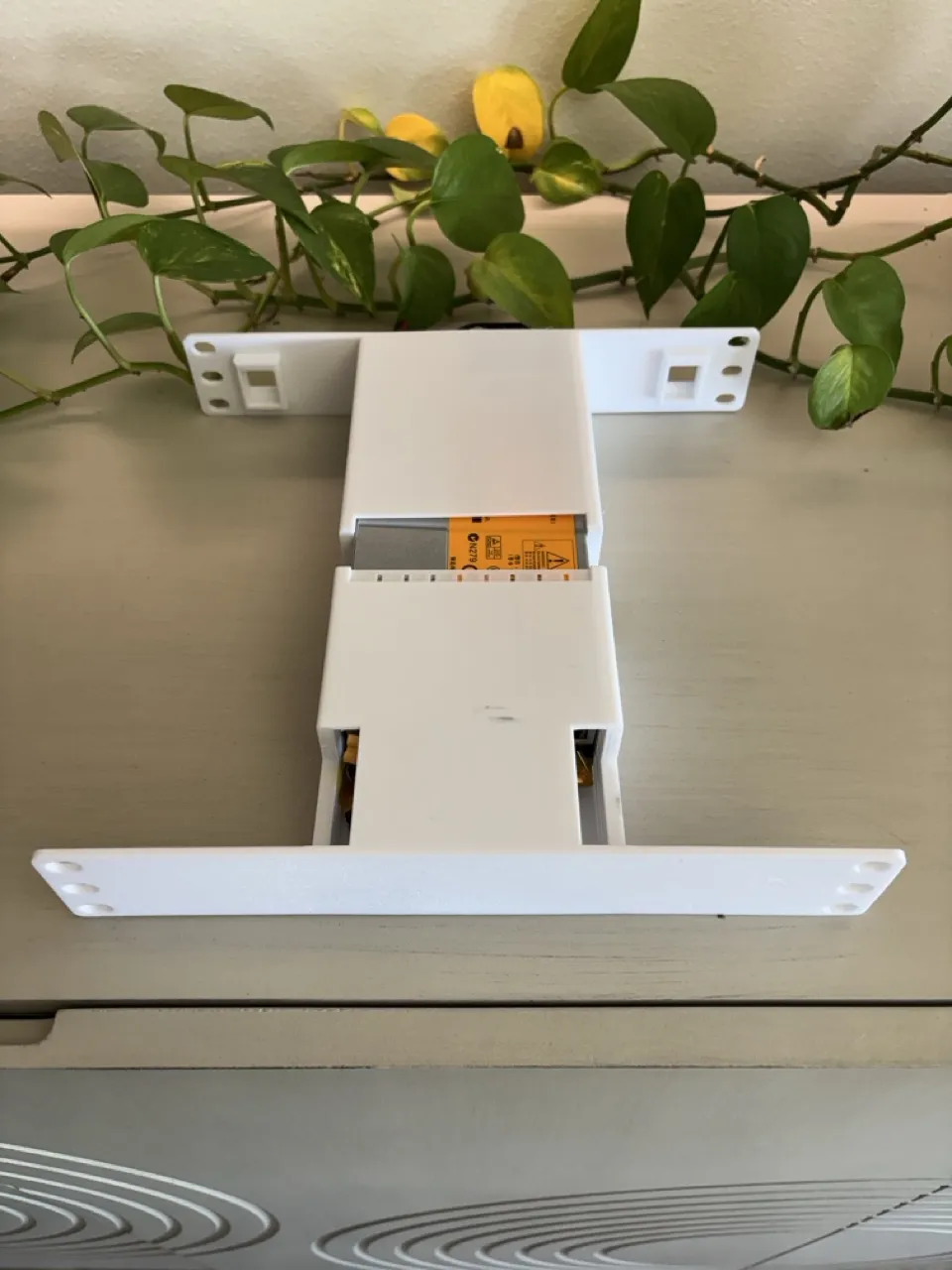

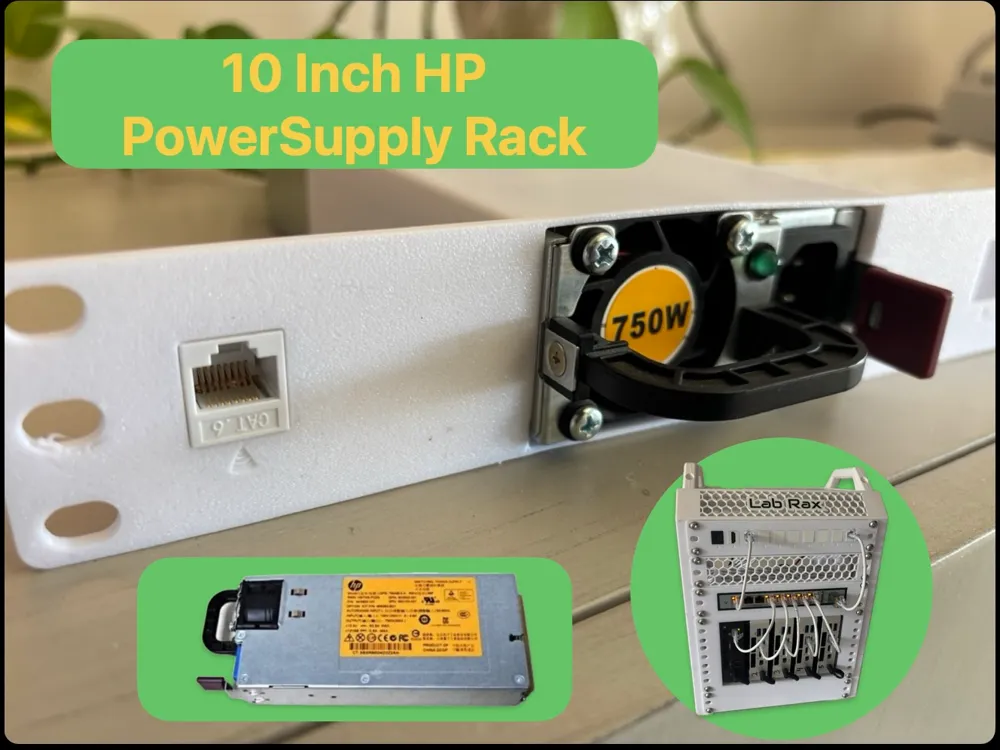

HP Power Supply 10 Inch Rack
10 inch rack model for HP HSTNS-PL18 power supplies.
Designed specifically for the LabRax dimensions. If you want to make changes, you can modify with my 10 inch rack generator.
Note that this particular power supply has a variable speed fan. It is completely silent at low loads (less than a few hundred watts). It only makes noise when heat builds up. I've been running for months and have never heard it.
Config parameters below
Assembly
| Part | Link |
| JST Connectors | https://amzn.to/3Swt2eo |
| XT30 | https://amzn.to/4eBB2m7 |
| Silicone Wire | https://a.co/d/0i9FLh7J |
| 7.5 Amp Fuse | https://amzn.to/4oid1Ve |
| 5v Buck Converter | https://amzn.to/4xiEp9L |
| Barrel Jacks | https://amzn.to/4aq10rd |

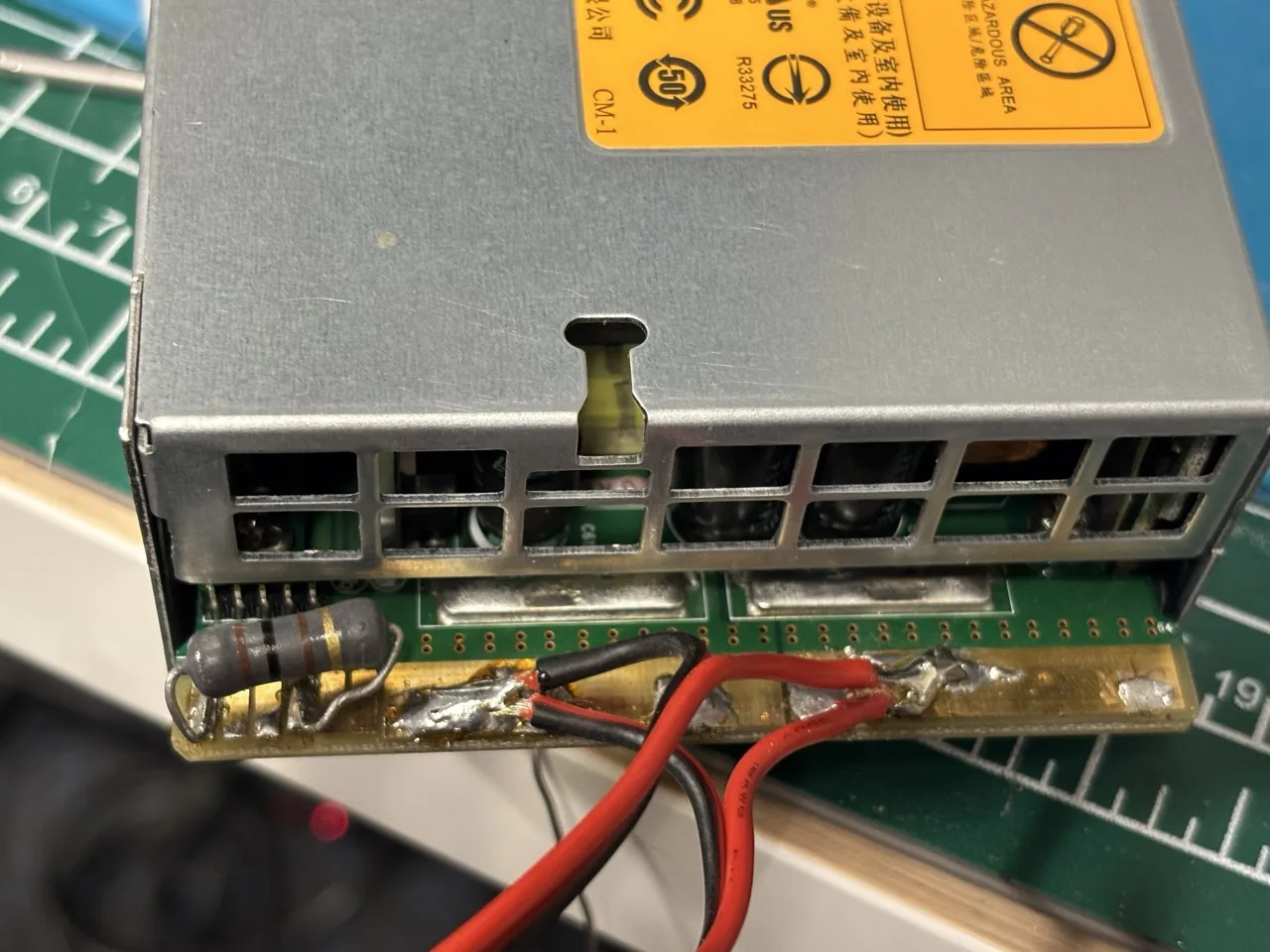

- Connect any sized resistor between pins 1 and 4
- Solder the red and black wires to the exposed PCB (+/Red on right)
- Solder XT30 connectors to Power Supply

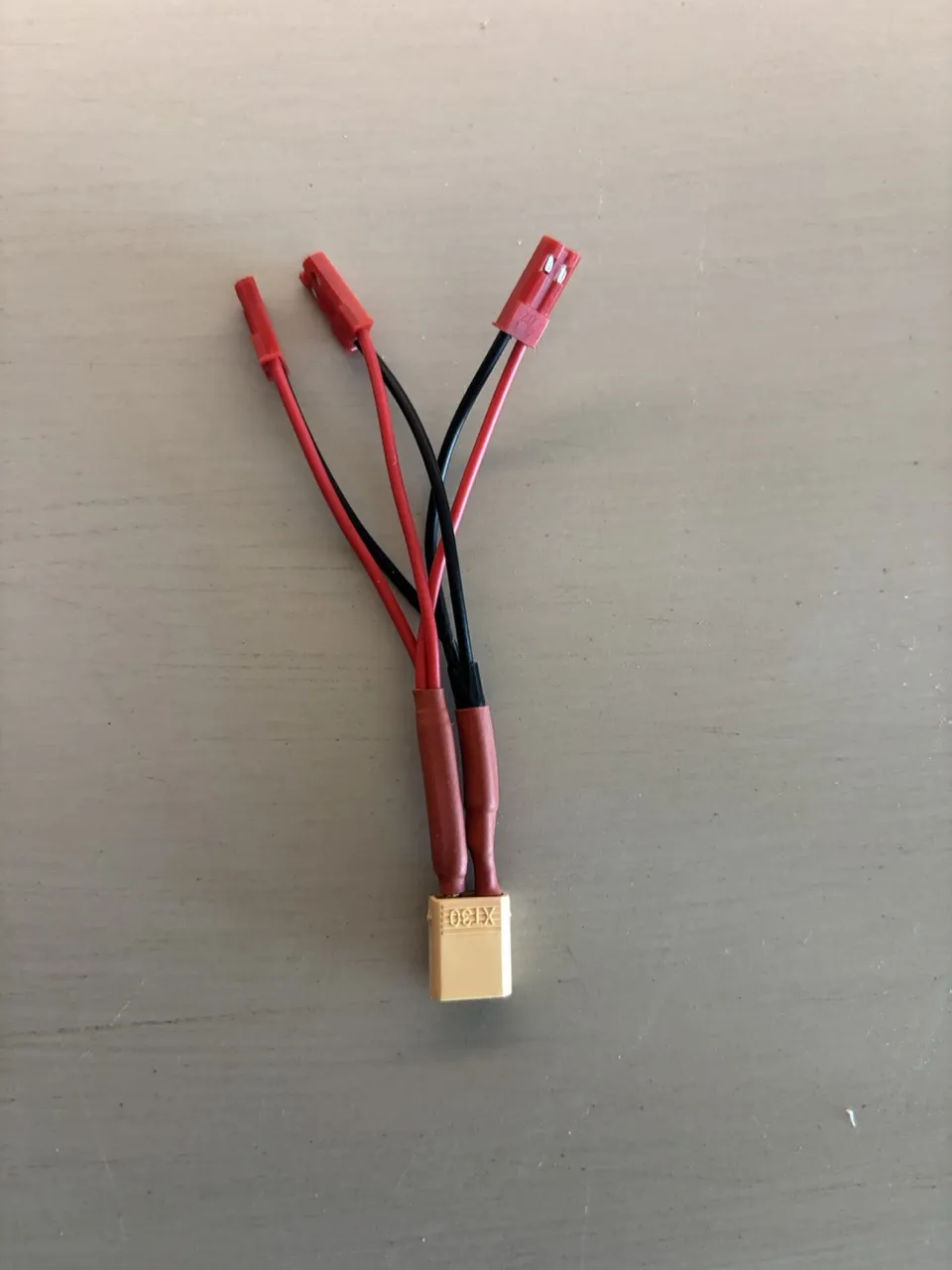

- Solder JST wires connectors to connectors for 12-19v devices

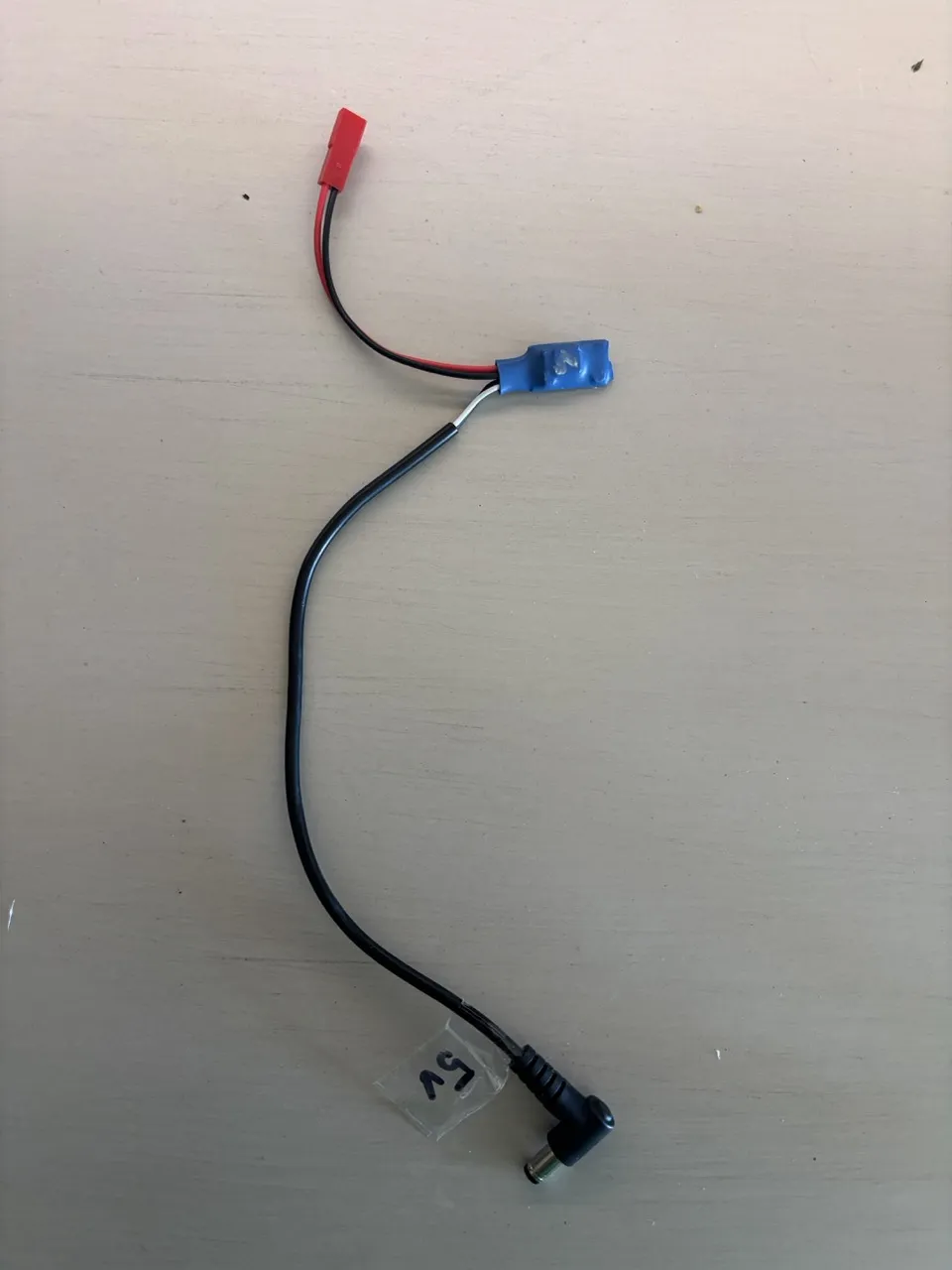

- Solder buck converter for 5v devices
Power
I've successfully tested this on multiple Intel Nuc and TPLink Switches and mini pcs which run at 19v and 12v . My intel Nuc happily run at 12v even though the original power adapters run at 19v.
The 5v buck converts are good for a few amps which is plenty for small switches / fans or other accessories. Please perform your own calculations to not overload the buck converter.
```
"HP Powersupply Rear": {
"air_holes": "false",
"case_thickness": "6",
"component_depth": "110",
"component_height": "40.8",
"component_width": "86.45",
"front_lip": "false",
"front_plate_hole": "true",
"front_plate_thickness": "3",
"front_wire_holes": "false",
"half_height_holes": "true",
"keystones": "true",
"rack_height": "1",
"rack_width": "254",
"tolerance": "0.42",
"wire_diameter": "7"
},
"HP Powersupply Front": {
"air_holes": "false",
"case_thickness": "6",
"component_depth": "100",
"component_height": "38.7",
"component_width": "86.45",
"front_lip": "false",
"front_plate_hole": "false",
"front_plate_thickness": "3",
"front_wire_holes": "false",
"half_height_holes": "true",
"keystones": "false",
"rack_height": "1",
"rack_width": "254",
"tolerance": "0.42",
"wire_diameter": "7"
},
```
