KWS Rack 92mm Top Panel Fan
IP Report
Print Profile(1)
0.6mm nozzle, 0.3mm layer, 4 walls, 28% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
5
12
3
0
7
2
Released
Description

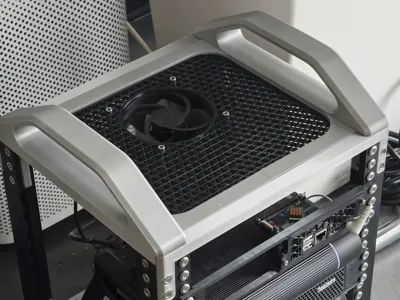

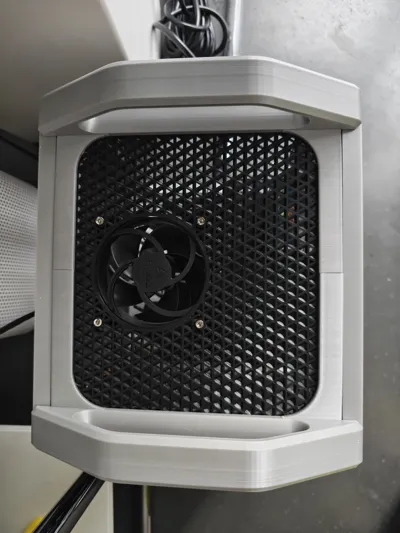

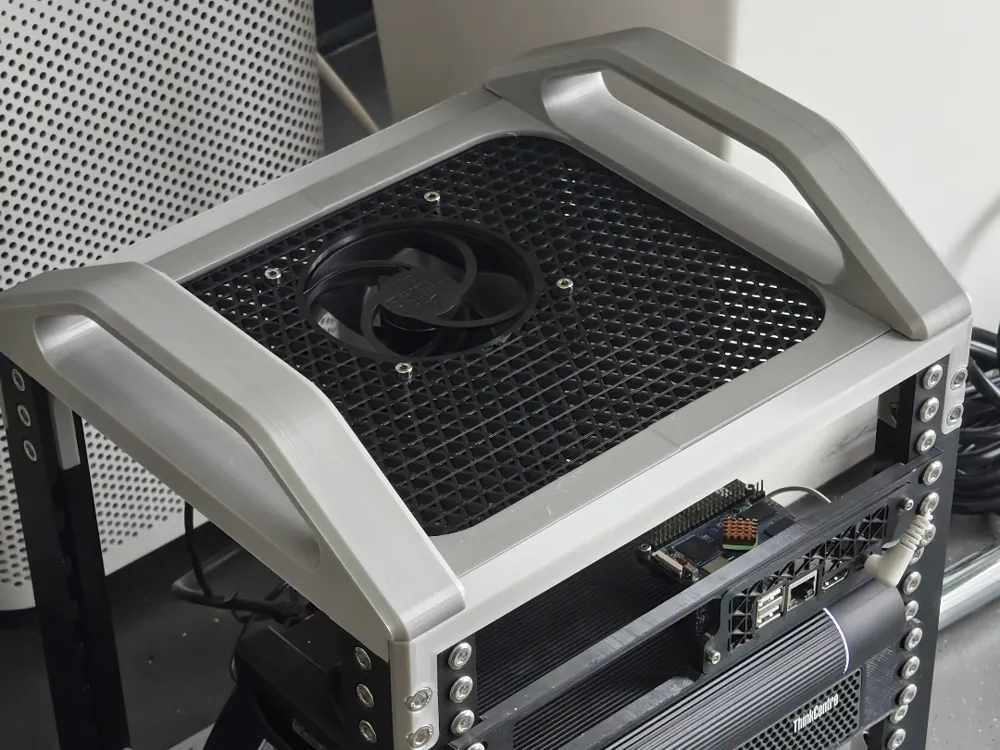

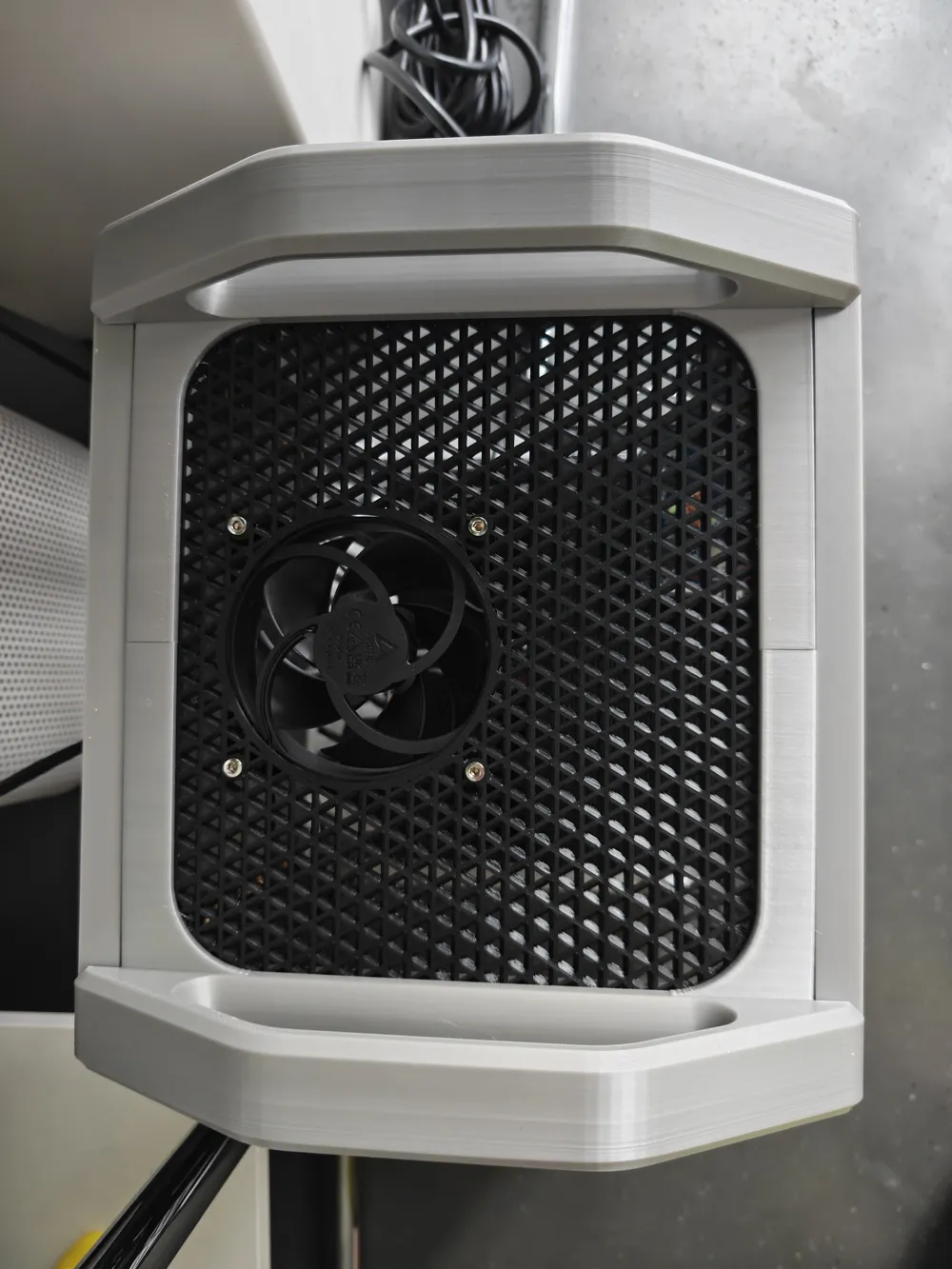

Ventilated top panel for the KWS Rack V2, featuring an optional 92 mm fan without a cover for silent operation.

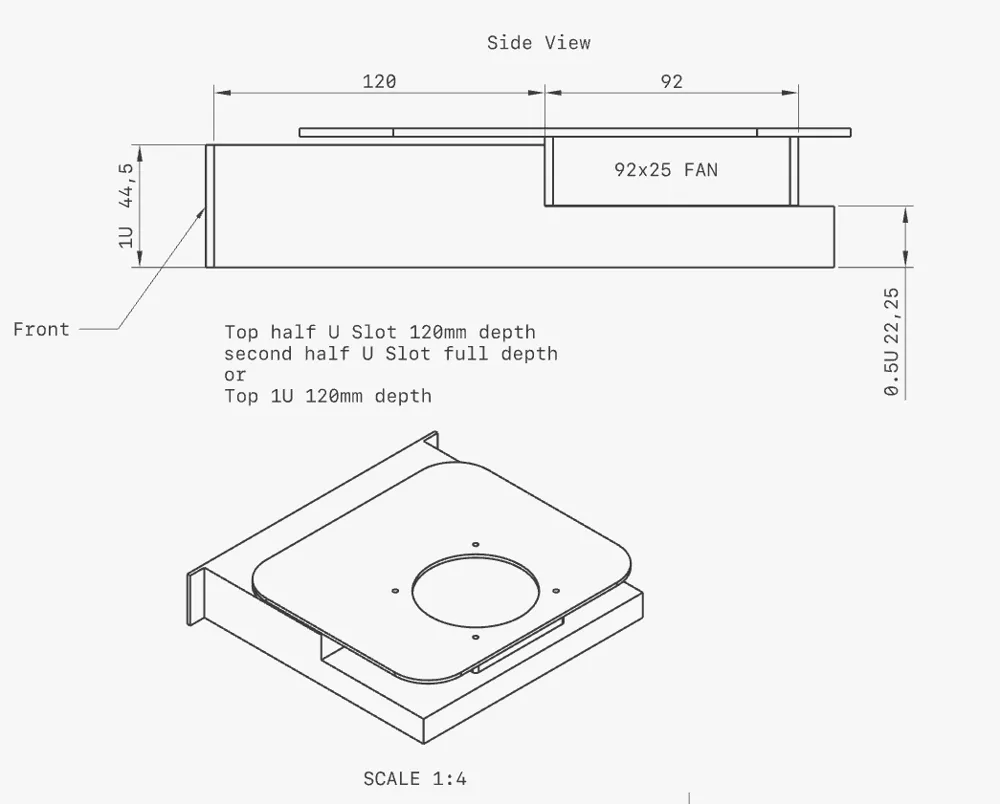

When a 25 mm fan is used, the top half U slot is restricted to a depth of 120 mm. The second half U slot remains available at full depth, provided the fan can draw in fresh air.
If a full 1U device is installed in the top slot, the depth is limited to 120 mm.
This configuration represents the optimal compromise for achieving a large, quiet fan while maximizing usable depth in the top slot.
