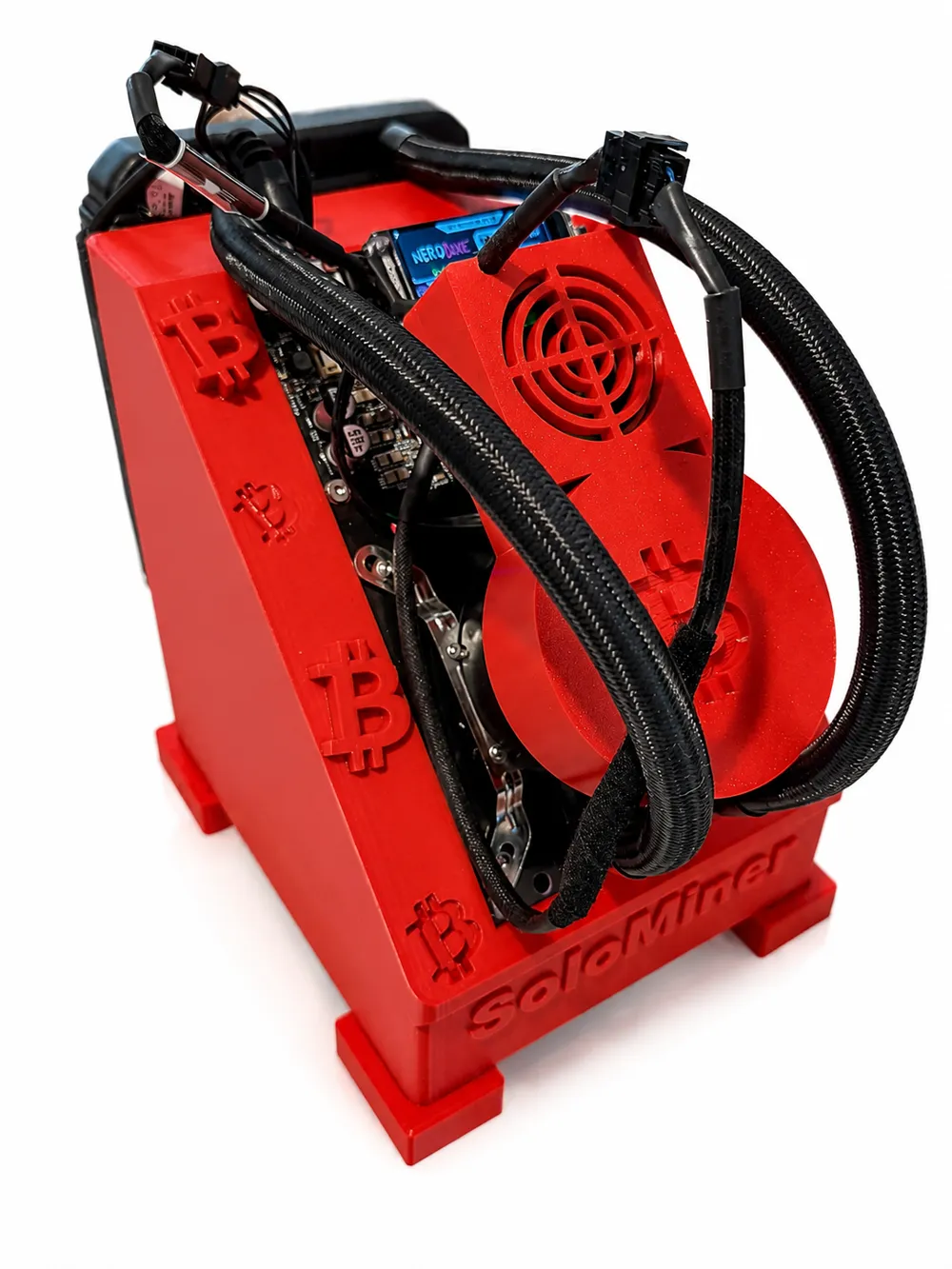

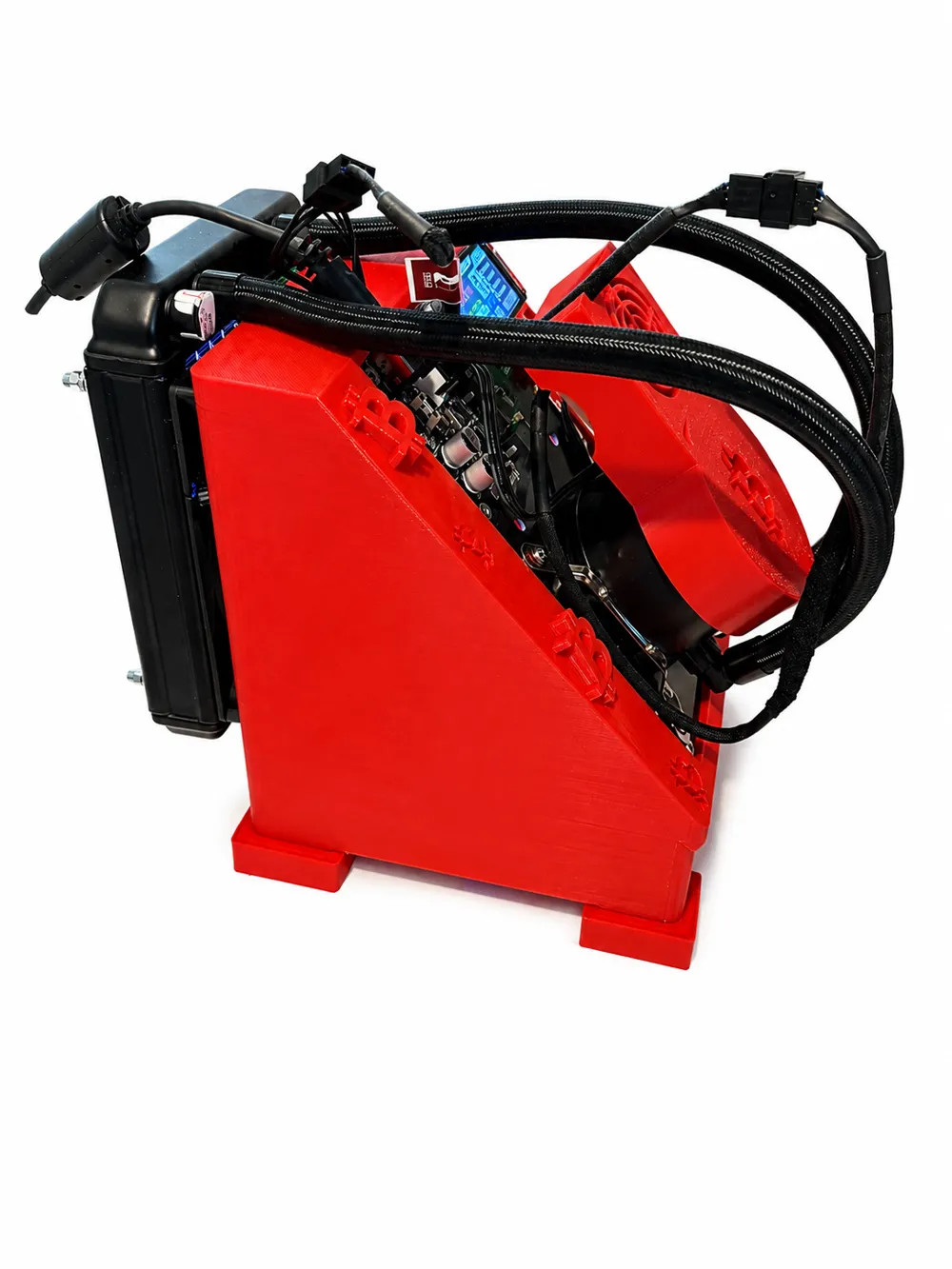

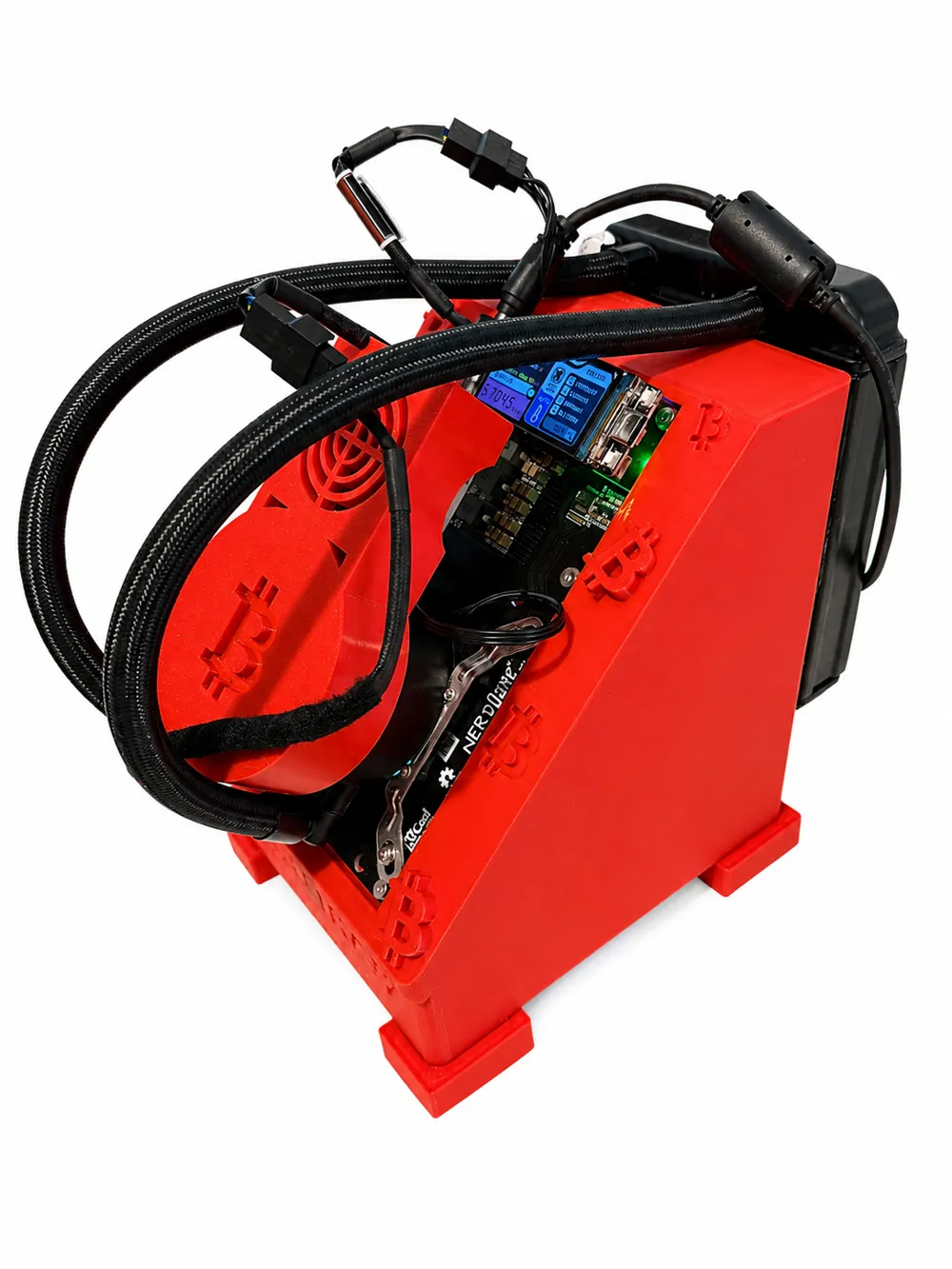

NerdQaxe++ Hydro Dual Fan Cooling Stand
Custom cooling stand designed specifically for the NerdQaxe++ Hydro PCB (89x165mm).
After extensive testing and multiple design revisions, I created a cooling solution focused on improving airflow across the entire board, reducing VRM temperatures and supporting higher-performance water-cooled setups.
Features
✅ Dual 120mm fan support
✅ 66mm water-cooling radiator mount
✅ Two VRM cooling options:
- 40x40mm fan mount
- 60x60mm fan mount
✅ Raised feet for improved airflow
✅ Designed specifically for NerdQaxe++ Hydro (89x165mm PCB)
Airflow Concept
The airflow is designed to create a slight negative pressure inside the stand.

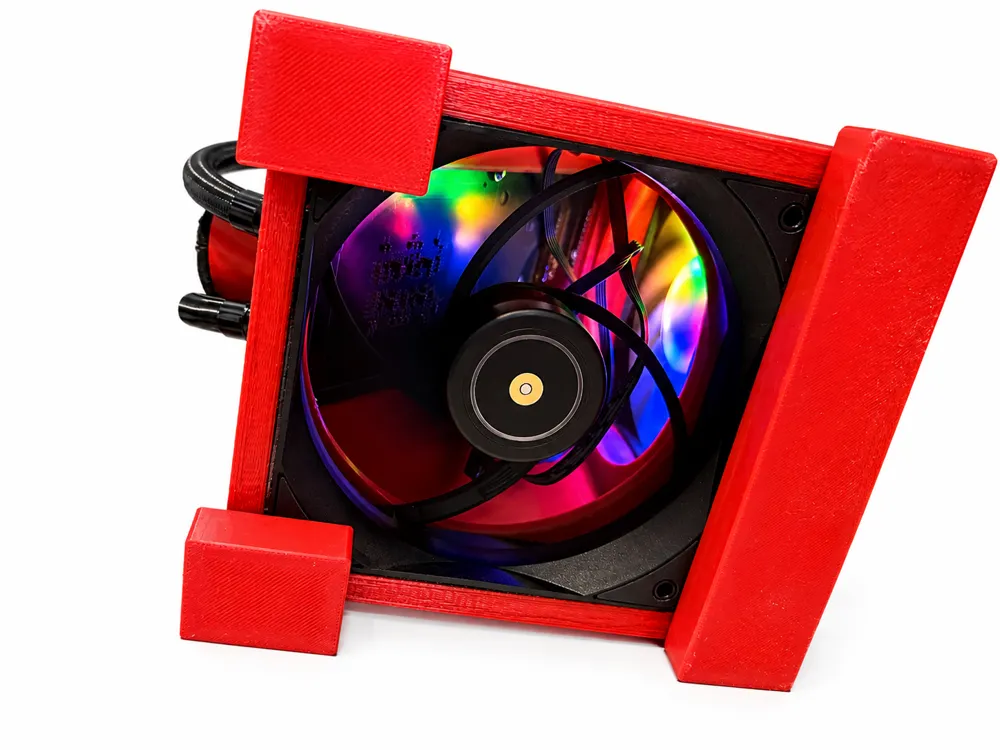

- Bottom 120mm fan pulls fresh air into the enclosure

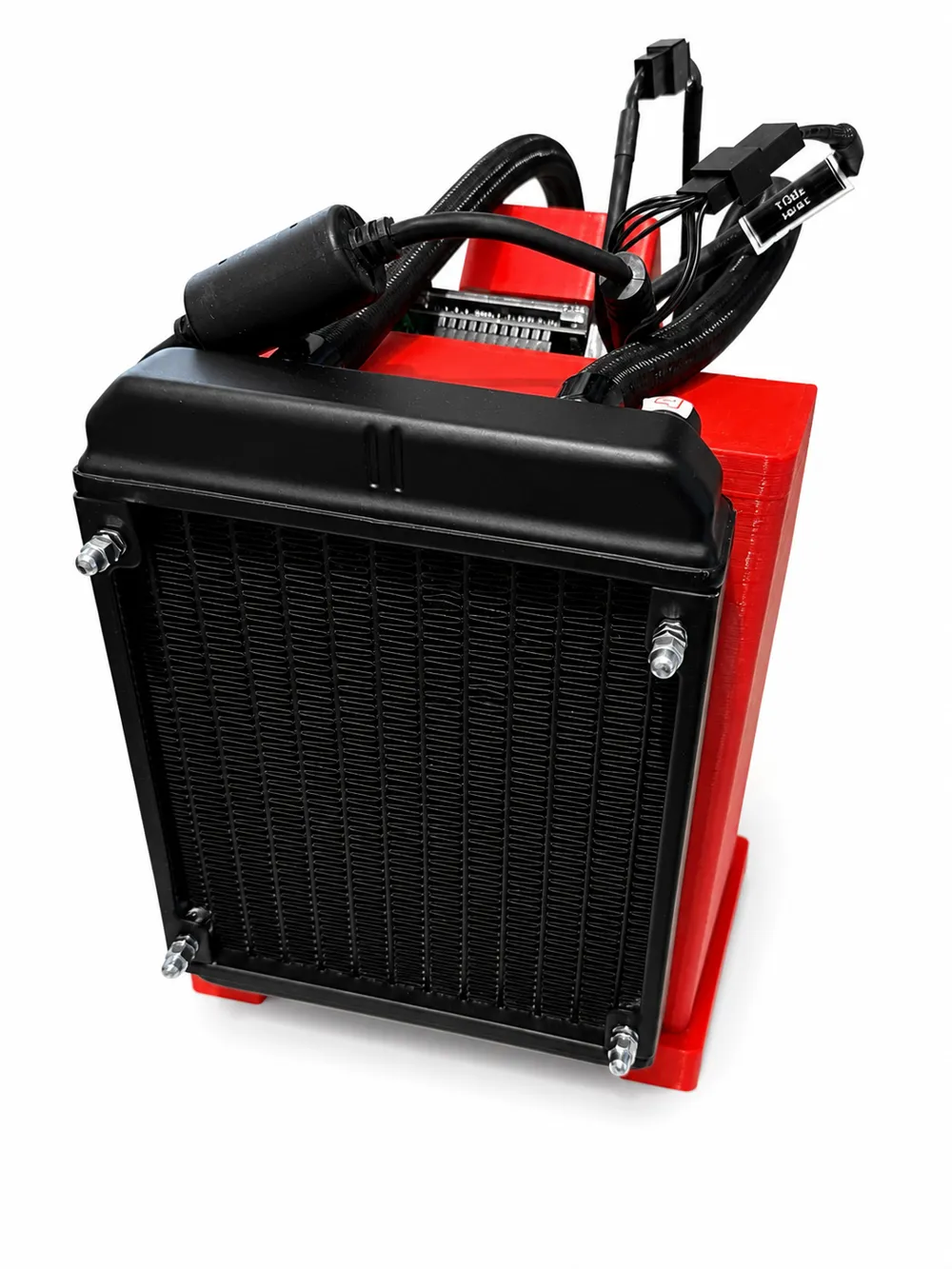

- Rear 120mm fan exhausts air through the radiator
- Additional VRM fan cools the front heatsink area directly
Airflow path:
Fresh Air → PCB / ASIC → Radiator → Exhaust
This design helps cool not only the ASIC, but also the voltage regulators and surrounding PCB components.

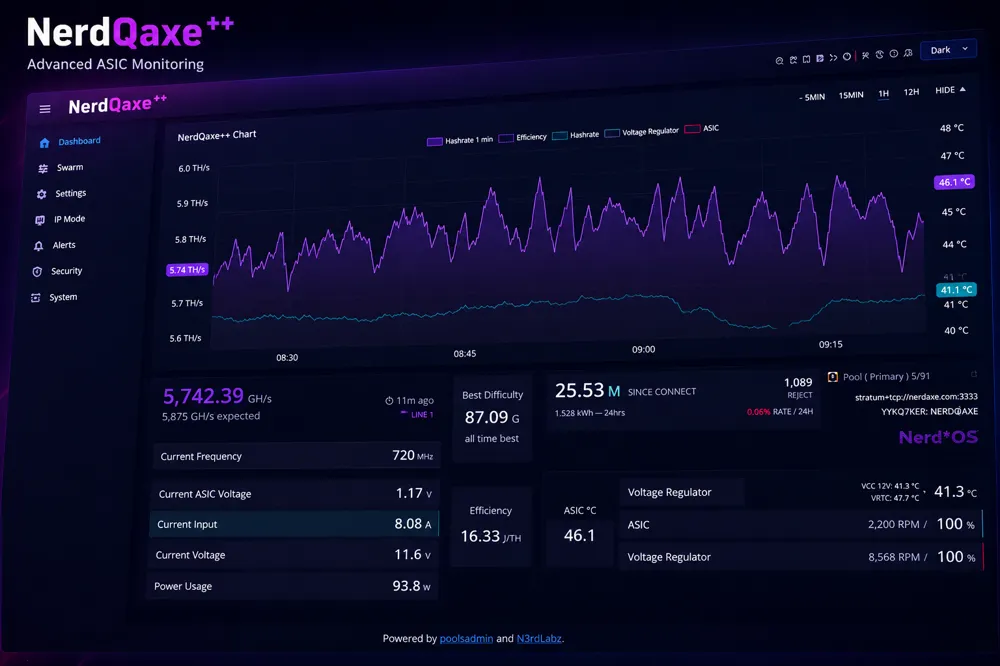

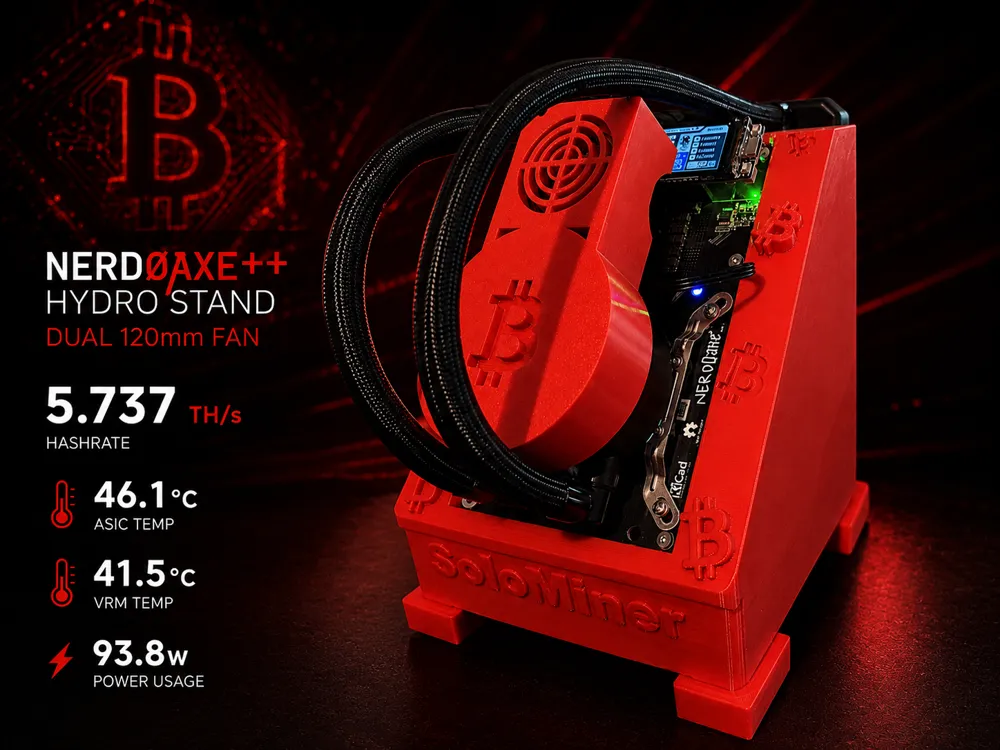

Current Test Results
Environment temperature: approximately 28°C
⚡ Hashrate: ~5.74 TH/s
🌡 ASIC: ~46.1°C
🌡 VRM: ~41.3°C
🔋 Power: ~93.8W
⚙ Efficiency: ~16.3 J/TH
Included Files
- Main stand
- Raised feet
- 40x40mm VRM fan mount
- 60x60mm VRM fan mount
Notes
This project was designed around my personal NerdQaxe++ Hydro setup and may be further improved over time.
Feedback, remixes and improvements are always welcome.
Happy mining! 🚀₿
