Infinity Collection: Modular Wall Panel ASANOHA

Please read the instructions before printing

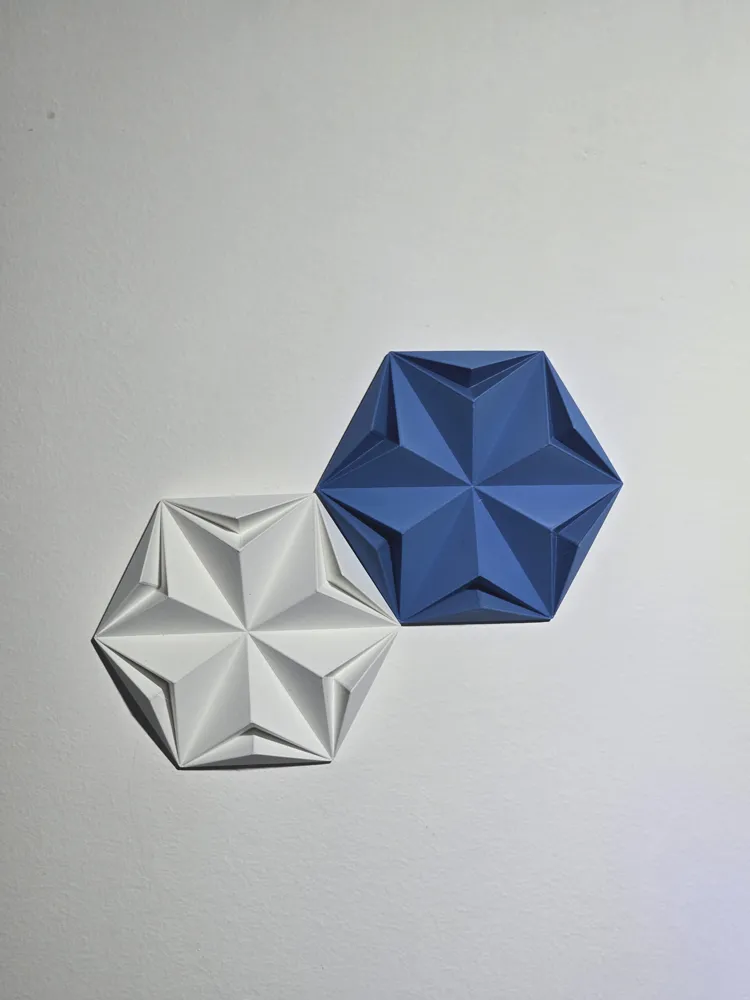

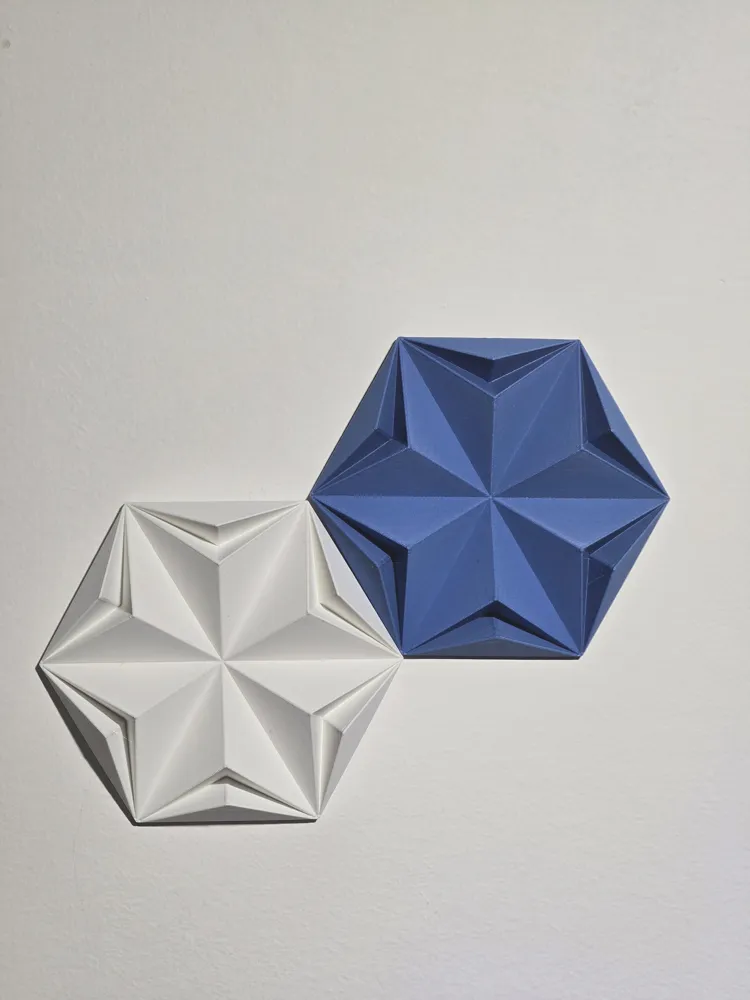

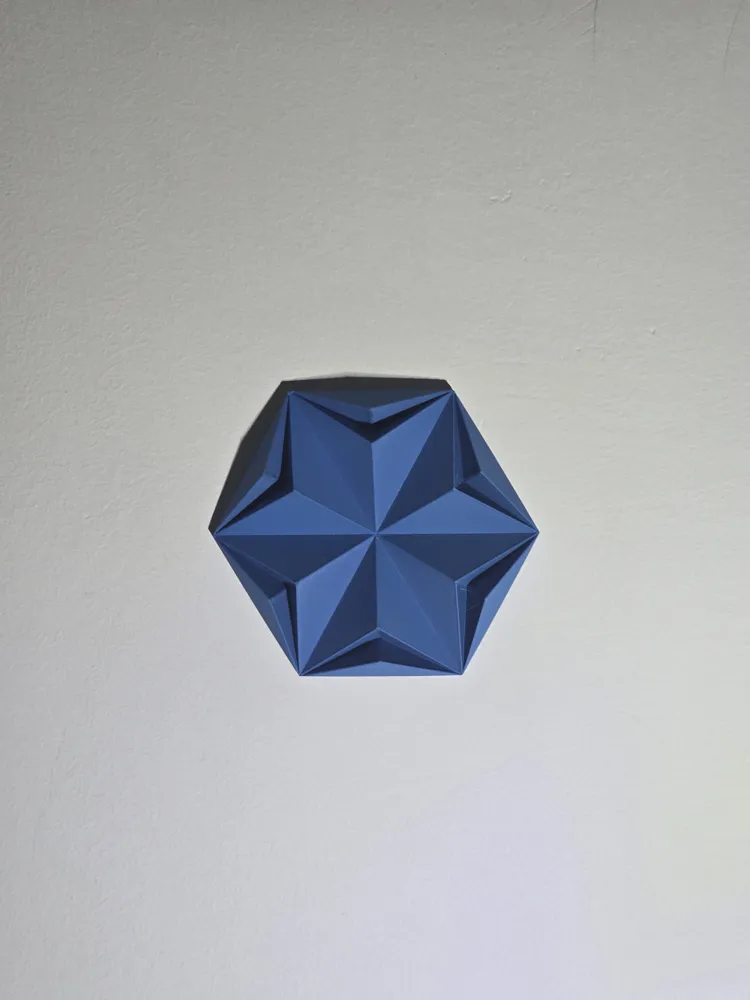

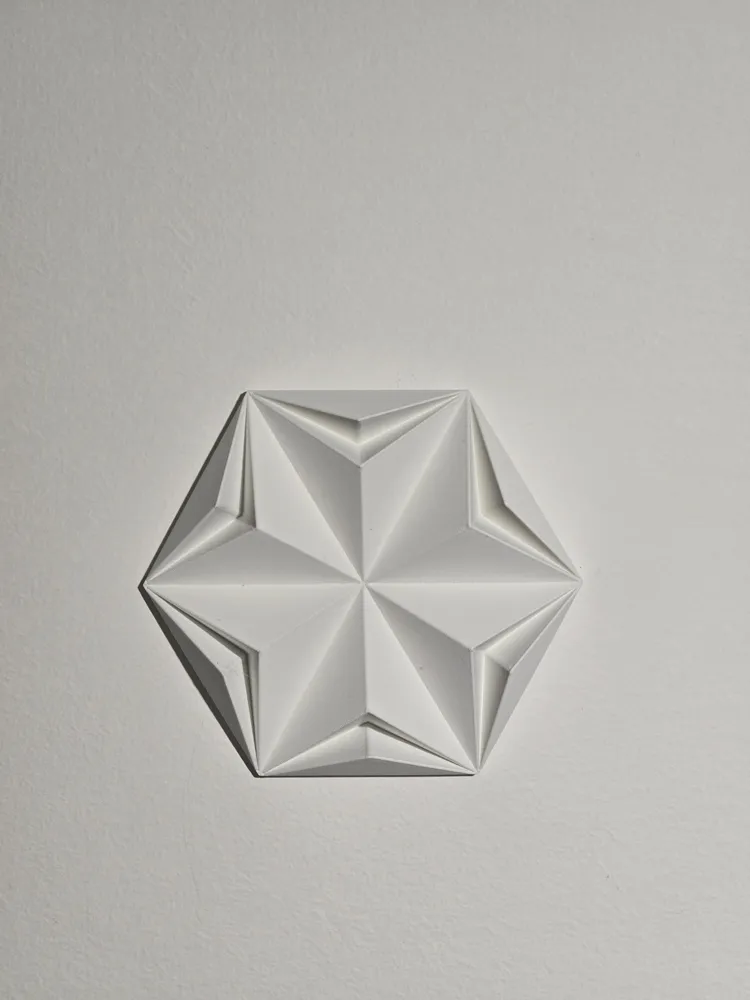

Here is the second model from the Infinity Collection: ASANOHA

You can find the first model here:

https://makerworld.com/en/models/2900325-infinity-collection-modular-wall-panel-hexagon#profileId-3242023

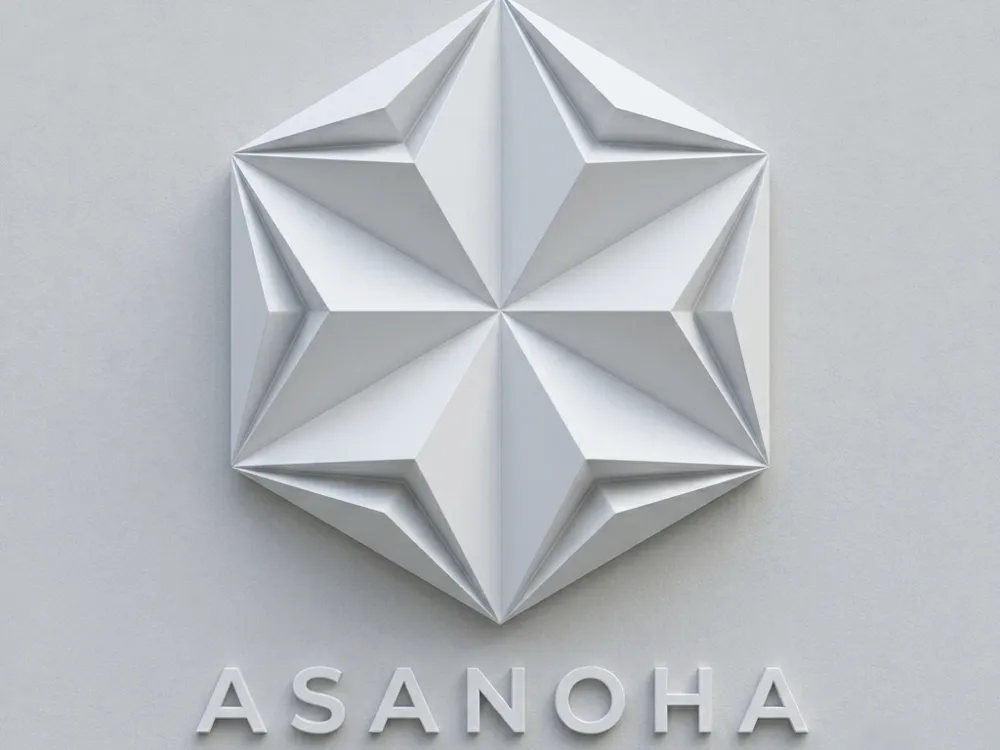

This design is inspired by Asanoha (麻の葉), one of the most famous and significant geometric patterns in Japanese tradition.

Here are the key details about this pattern:

Meaning and Origin

• Hemp leaf: The term literally means "hemp leaf," a plant known for its rapid growth and resilience.

• Symbol of protection: Traditionally used on baby clothes to wish for strong, healthy growth and to ward off evil spirits.

• Sacred geometry: A six-pointed structure that combines triangles and rhombuses, creating a regular geometric star.

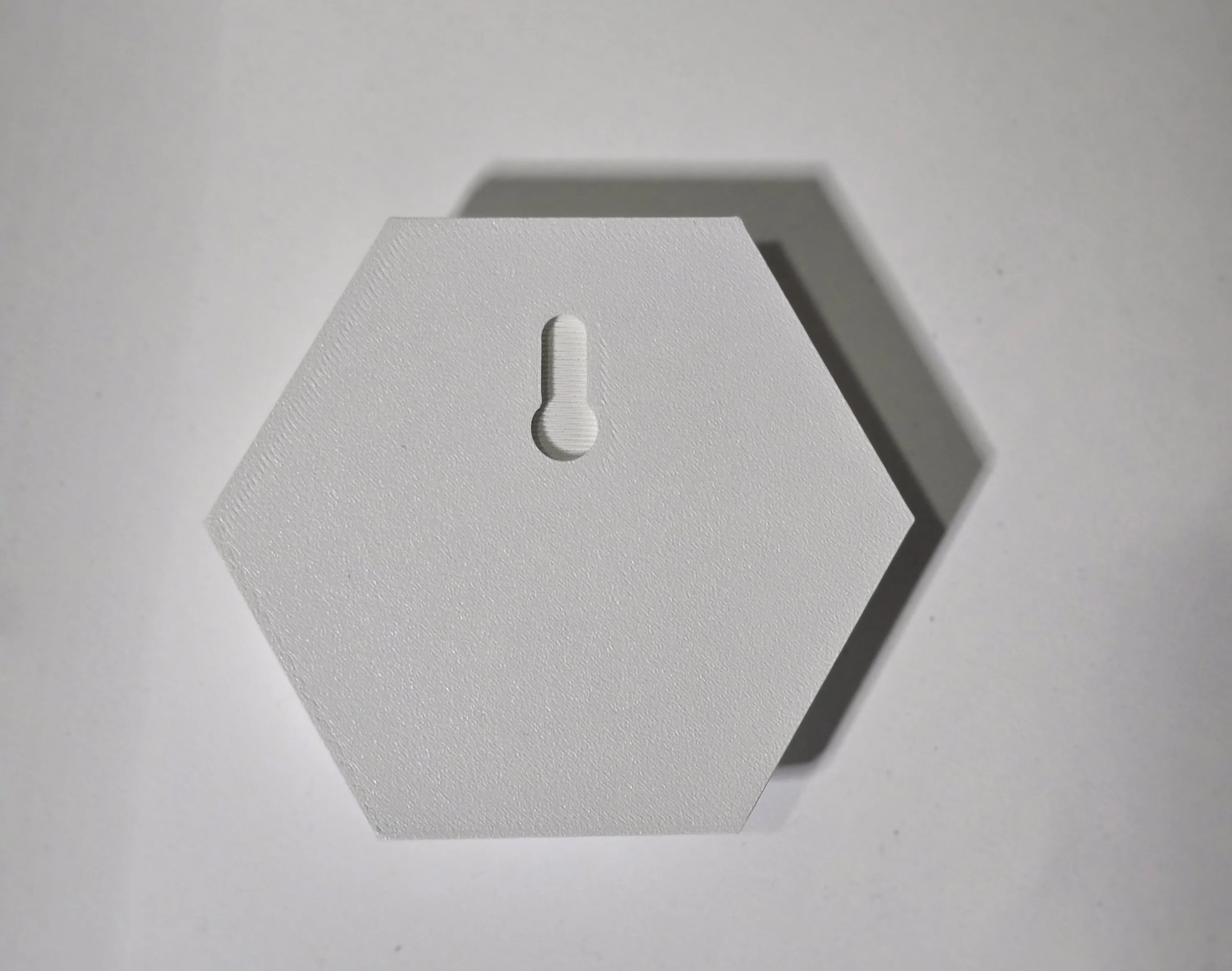

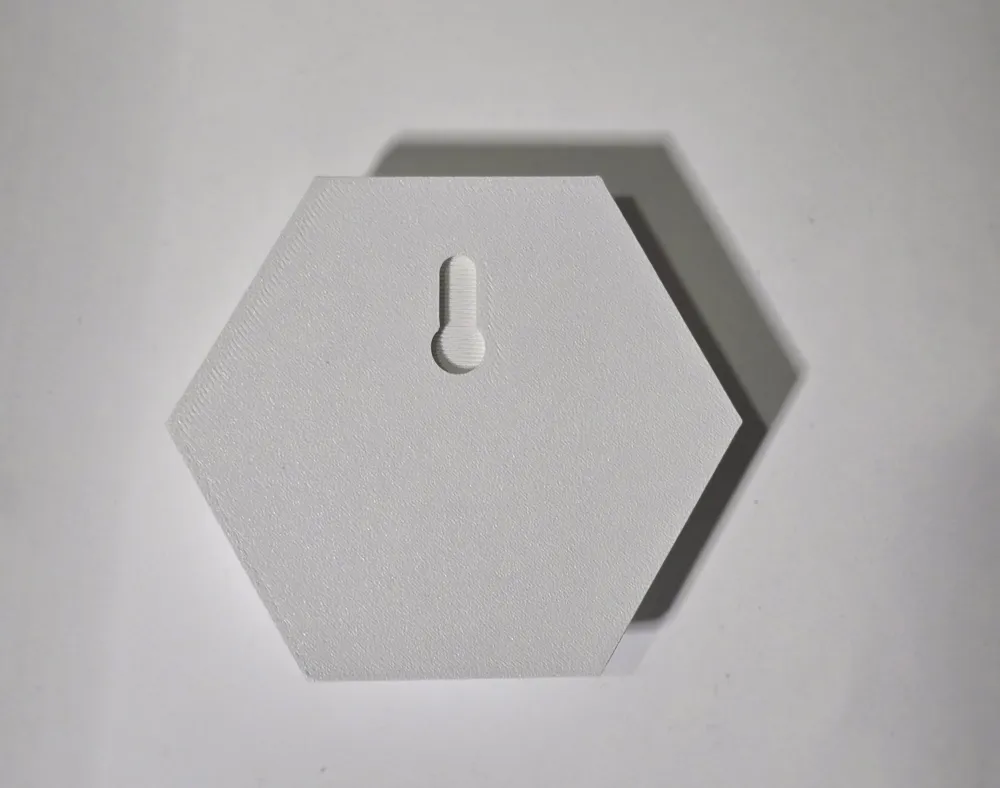

Equipped with a rear hole for hanging.

Printing instructions:

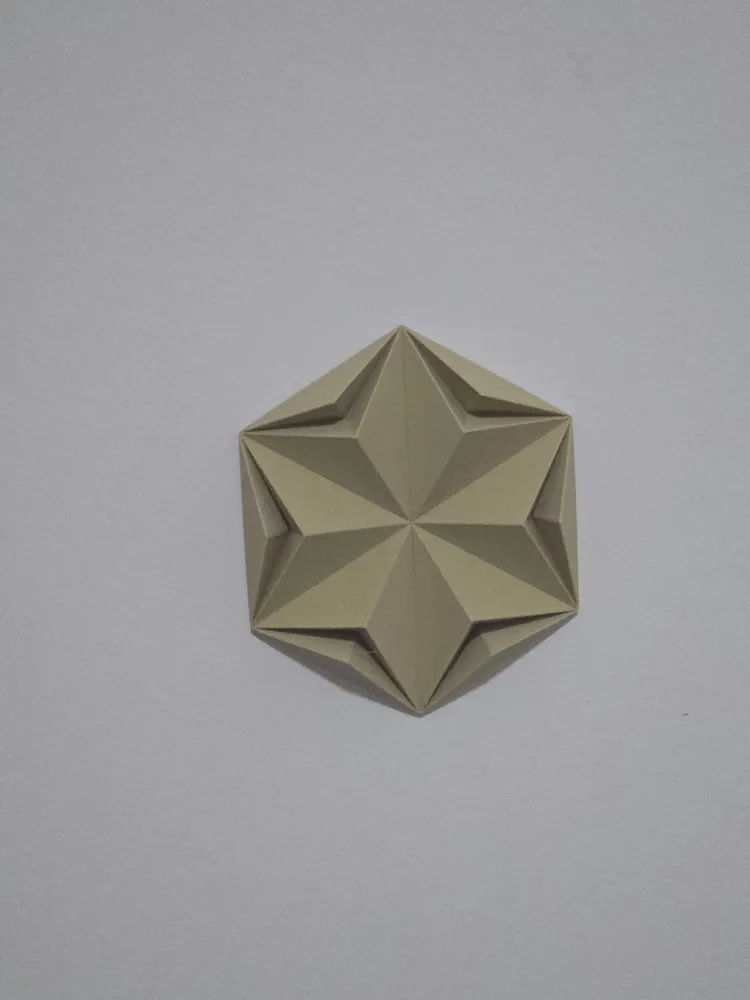

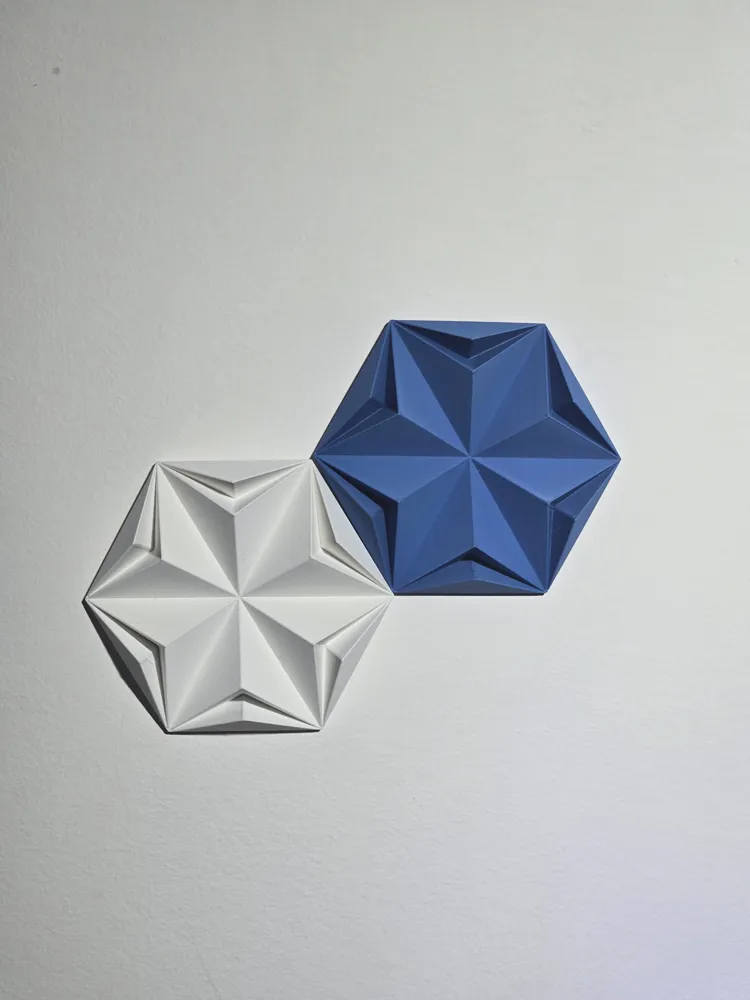

Printed in PLA Matte White, Navy Blue and Sand.

The print is very easy and consumes about 32 grams of filament.

The colors can be changed from the slicer at the time of printing; the model can be enlarged or reduced as desired. If you want more copies of the same model, right-click on it and select “clone” from the dropdown menu.

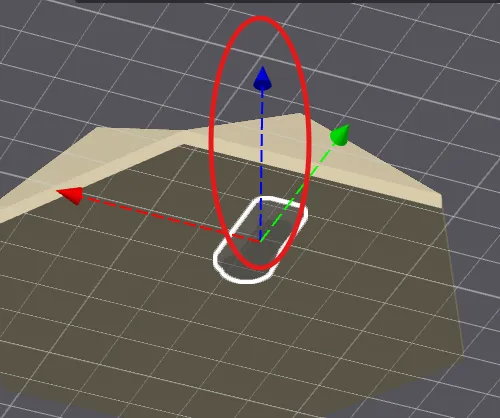

If you enlarge or reduce the panel, be aware that the negative object Kayhole (the rear hole) will enlarge/reduce accordingly, so you need to select the object named Kayhole and restore its original size (x 9.50 mm, y 21.86 mm, z 3.00 mm), then move it so that it pierces the panel as shown in the photo by acting on the z-axis (blue arrow) as shown in the photo.

GENERAL TIPS

A tip I always give is to first clean the build plate with dish soap and a sponge, rinsing with hot water, then drying it with compressed air, avoiding touching the surface with your hands. I also recommend performing the dynamic flow and flow rate calibrations provided in Bambu Studio. Personally, before printing, I dry the PLA with AMS 2 PRO for about 1 hour. These small measures, along with many others, are what determine the success of a good print.

Before leaving negative reviews, please adjust these parameters. If you have difficulties or continue to encounter problems, do not hesitate to contact me; we will find solutions together in a perfect collaborative atmosphere. I have made several prints of this object, and they all turned out perfect as shown in the photos: if you have incorrect parameters, dirty or clogged nozzles, poorly calibrated machines, or humid or poor-quality filaments, do not blame me.

PRINTING INSTRUCTIONS:

• Layer height 0.2 mm

• Initial layer height 0.2 mm

• Seam position aligned

• Wall loops 2

• Top shell layers 5

• Bottom shell layers 3

• NO supports

• Infill 15 %

• Grid pattern

• Outer wall speed 200 mm/s

• Inner wall speed 300 mm/s

• Normal print acceleration speed 10,000 mm/s

• Outer wall acceleration speed 10,000 mm/s
