Microlab Mikrotik HAP ax2 1U panel

Remixed by

Print Profile(0)


Add the first print profile to earn points

Boost
1
2
0
0
0
0
Released

Description

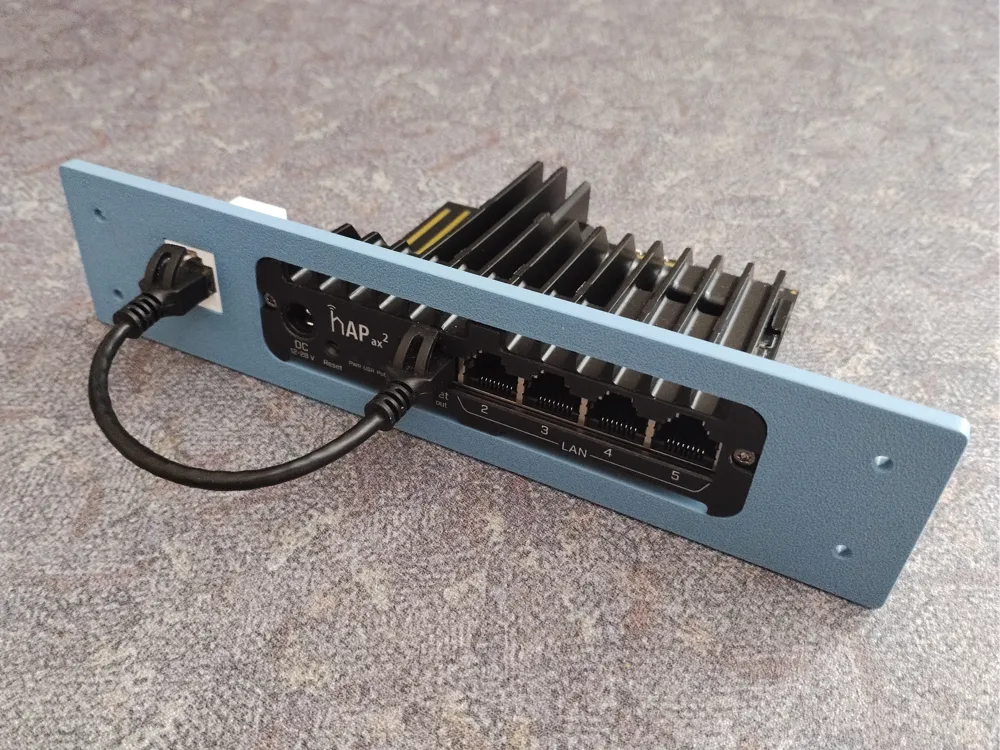

Here's a 1U panel for the Microlab miniature homelab rack system that holds a Mikrotik HAP ax2 router, and a single keystone port.



You need to remove the router from its original case to mount it in this panel, simply remove the 2 torx screws on the front, and it slides out.
It seems that Mikrotik expected people to remove the router from its case since they applied a second normally hidden label to the PCB which lists the serial number, MAC address, and other information similar to the one on the outside of the case.

The original torx screws are re-used to mount the router to this panel.

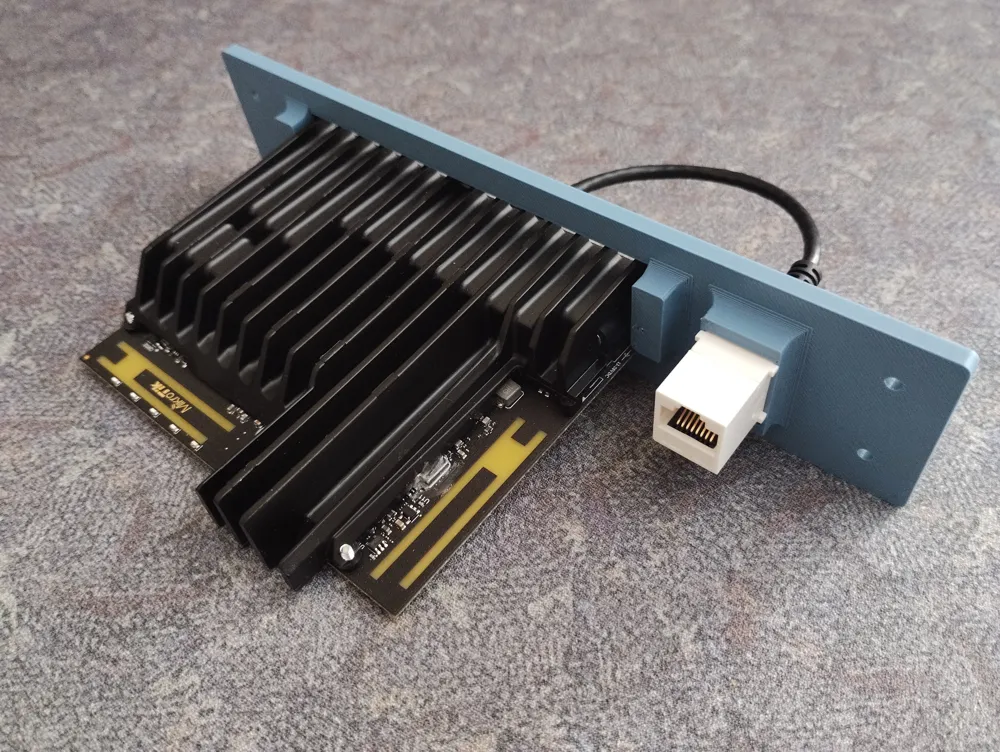

The single keystone can be used as a LAN in, and keeps everything exceptionally clean if you also power the router with PoE.
