DIN Rail PLC Training Panel for Siemens LOGO!

The model is designed slightly shorter than the original, making it easier to fit, and installing it only requires removing two elbow pad covers and unscrewing a few screws, which is simple even for a hobbyist. It’s printed in PETG, but can also be made from other materials that withstand car temperatures, and depending on the printer plate used, different surface textures can be achieved, such as carbon, diamond, or smooth.

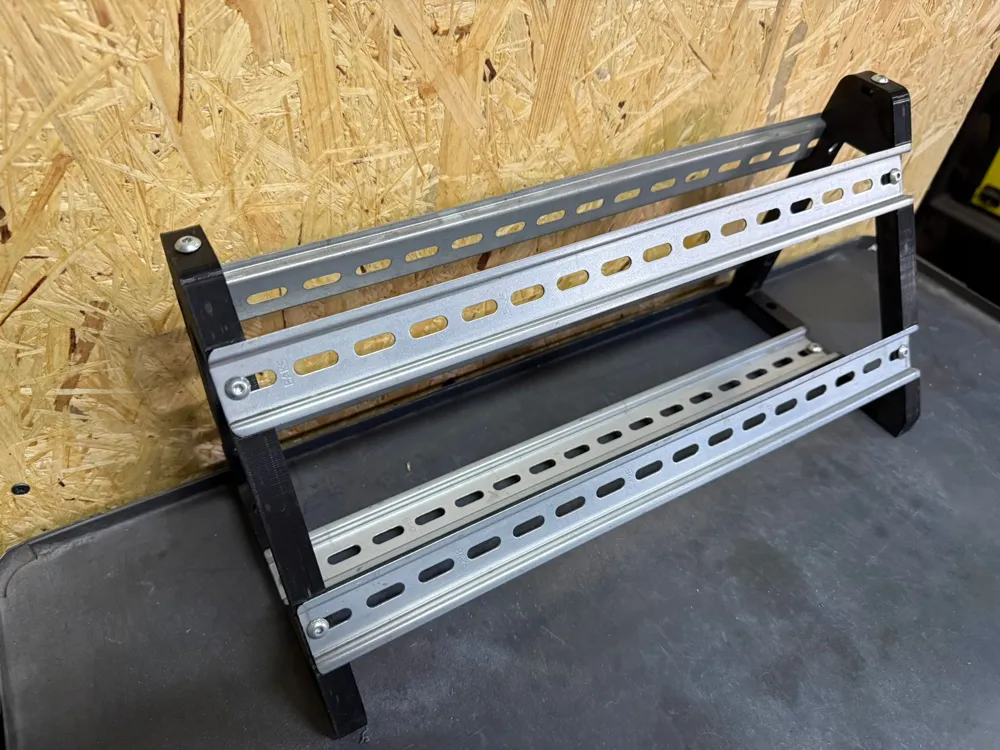

Portable DIN rail training panel designed for PLC programming, industrial automation education and electrical control system testing.

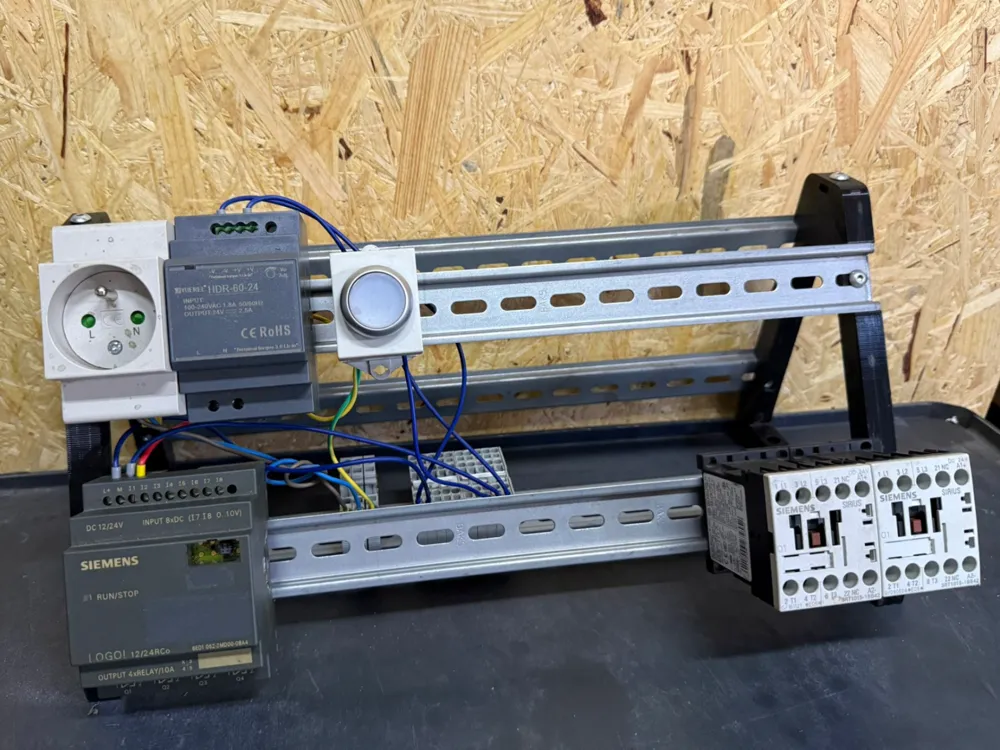

The frame supports standard 35 mm DIN rails and can be used with PLCs, power supplies, relays, contactors, terminal blocks and other DIN rail mounted components.

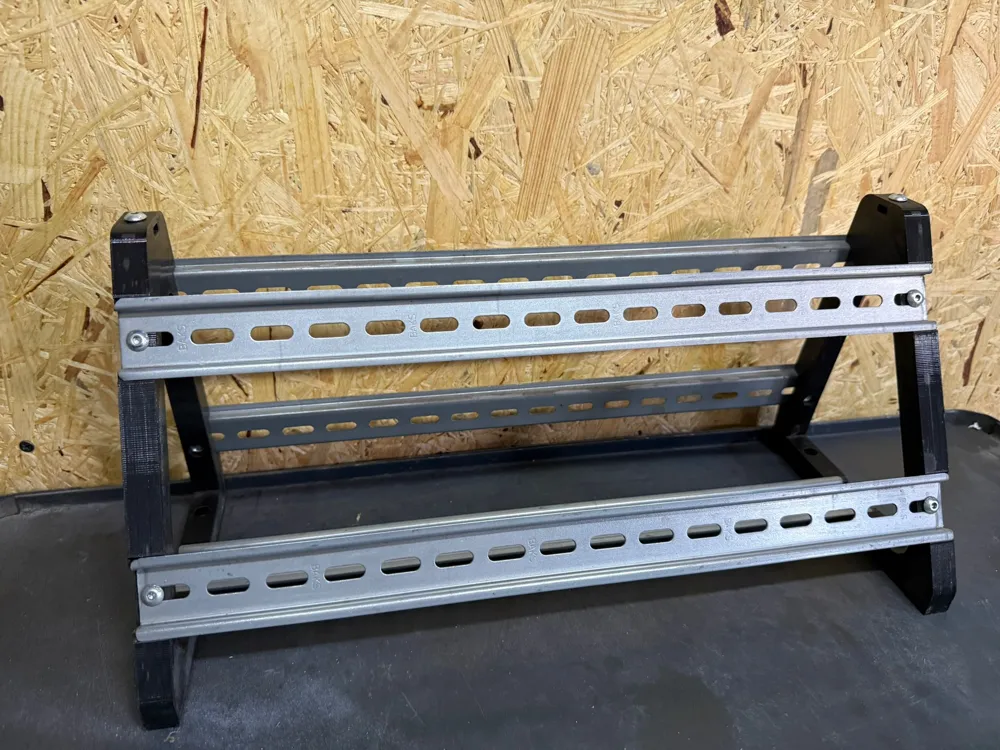

The dual-level DIN rail layout allows components to be mounted on both upper and lower rails, improving organization, accessibility and cable management. This also makes it easier to separate PLCs, power supplies and control devices.

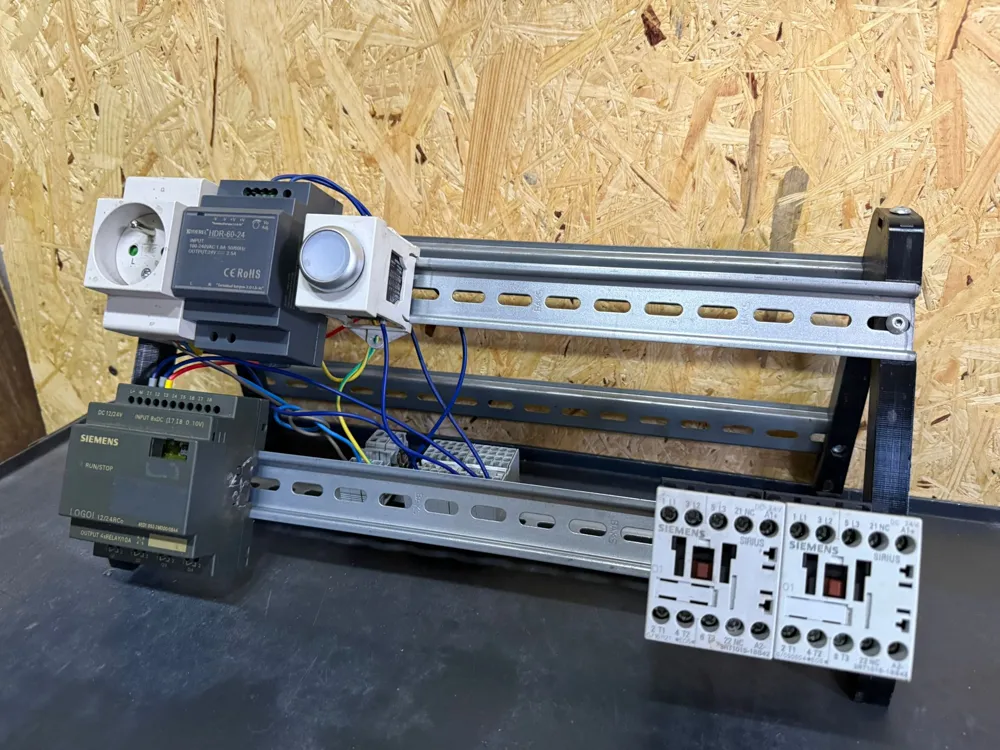

The overall width depends on the DIN rail length used. The example shown in the photos uses two 400 mm DIN rails.

Features

• Compatible with standard 35 mm DIN rails

• Supports Siemens LOGO! and similar DIN rail devices

• Dual-level DIN rail arrangement

• Freestanding design

• Optional bench or floor mounting

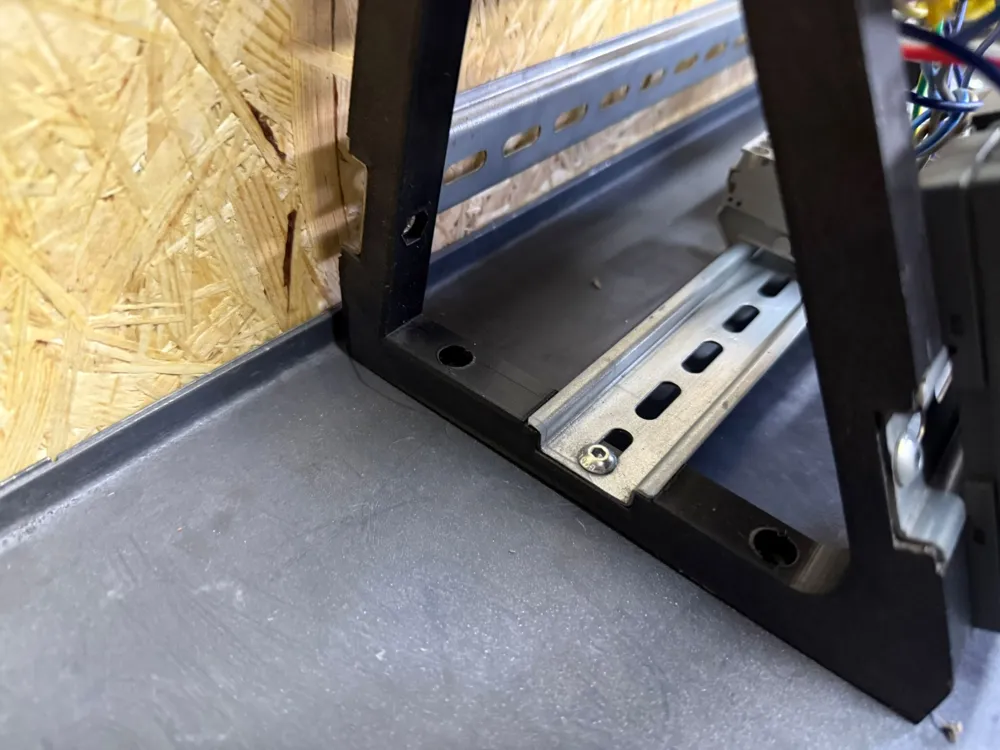

• Mounting points for a carrying handle

• Easy access for wiring and modifications

• Modular design adaptable to different DIN rail lengths

Hardware

• 5 × 35 mm DIN rails (400 mm used in example)

• 12 × M5×8 mm button head hex socket screws

• 12 × M5 nuts

• 4 × M5×15 mm socket head screws (optional)

• 4 × M5 nuts (optional)

Included Files

• STL files

• Bambu Studio 3MF project files

The project is split into mirrored frame sections for efficient printing and assembly.

If you build one, feel free to share your setup and improvements.
