Modular Spice Rack & Dispenser System Organizer

FULLY FUNCTIONAL SEALED SLIDE-TOP SPICE ORGANIZER

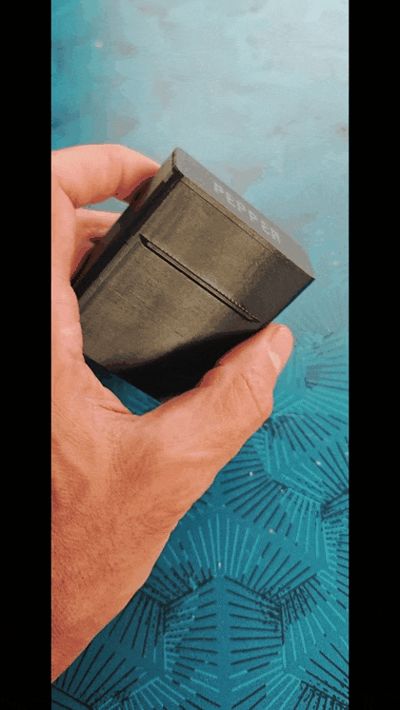

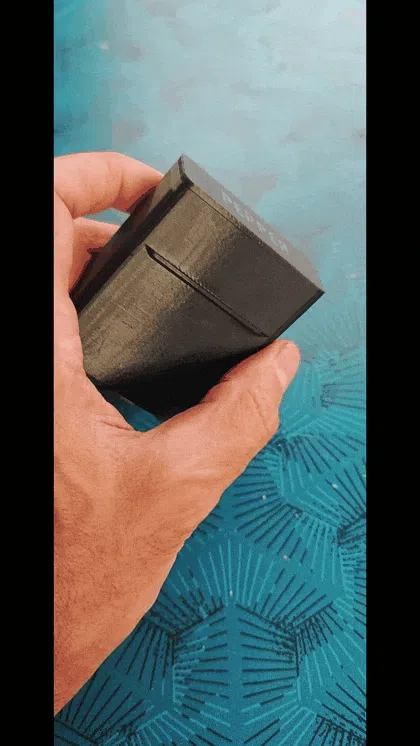

Organize your kitchen with this fully customizable, modular spice storage system! This design features slide-top spice jars that allow for precise, easy dispensing, paired with interlocking wall-mounted holders that can be chained together indefinitely. Use the built-in configurator to generate the exact sizes and labels you need.

📦 Printable Parts & Material Modes

This system consists of 3 primary objects, which can be printed in various colors and materials to match your kitchen decor:

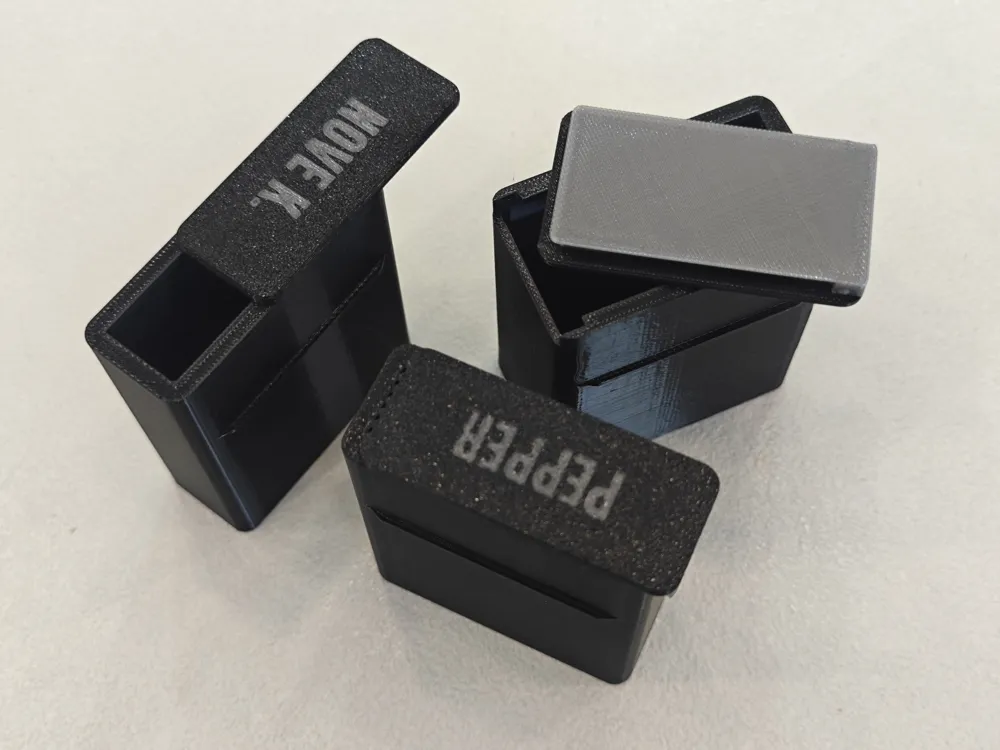

• The Box (Spice Jar): Prints flawlessly in rigid materials like PETG or PLA.

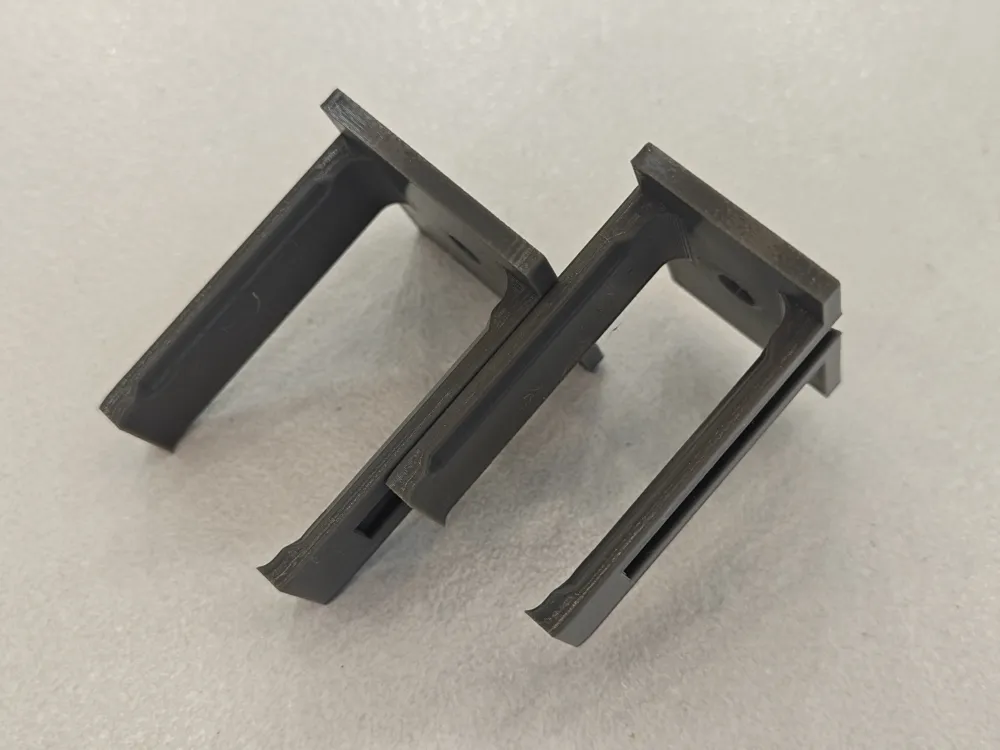

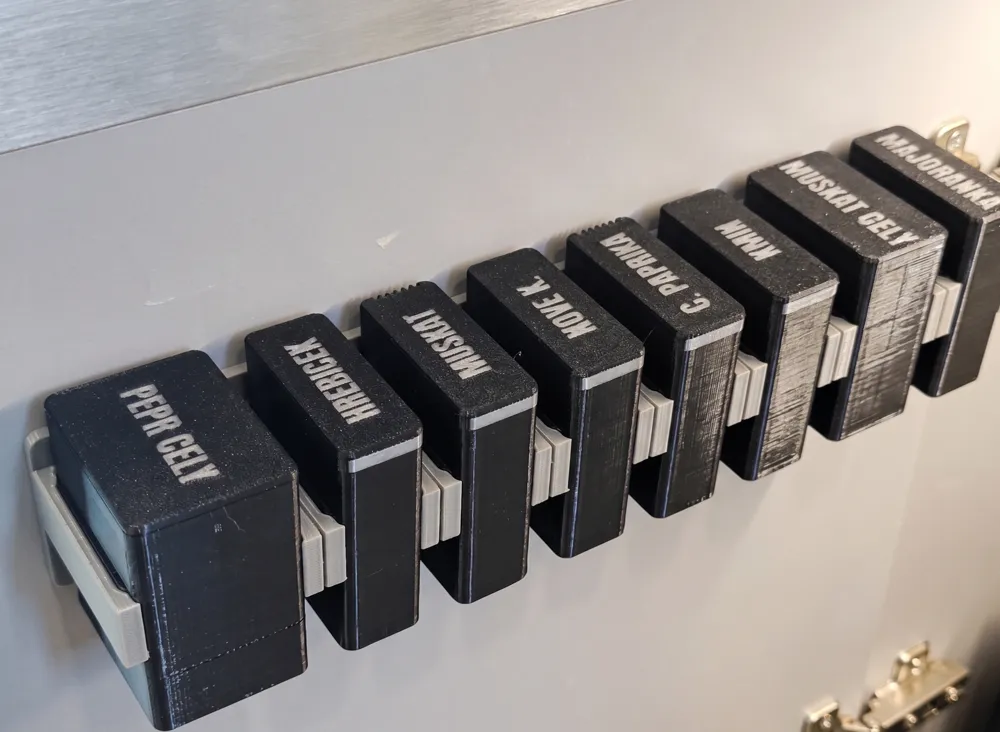

• The Holder (Wall Mount): Prints in rigid materials. Features interlocking dovetail joints to snap multiple holders side-by-side.
• The Lid: Can be printed in two ways using the configurator:
  • Single-Material: Prints as one solid piece (PLA/PETG).
  • Multi-Material: Splits the lid into a rigid top cover (PLA/PETG) and a flexible inner seal (TPU) for an airtight snap-fit.

I strongly recommend to print version with TPU which makes sure spices will remain fresh even over longer time.

⚙️ Customization via Configurator

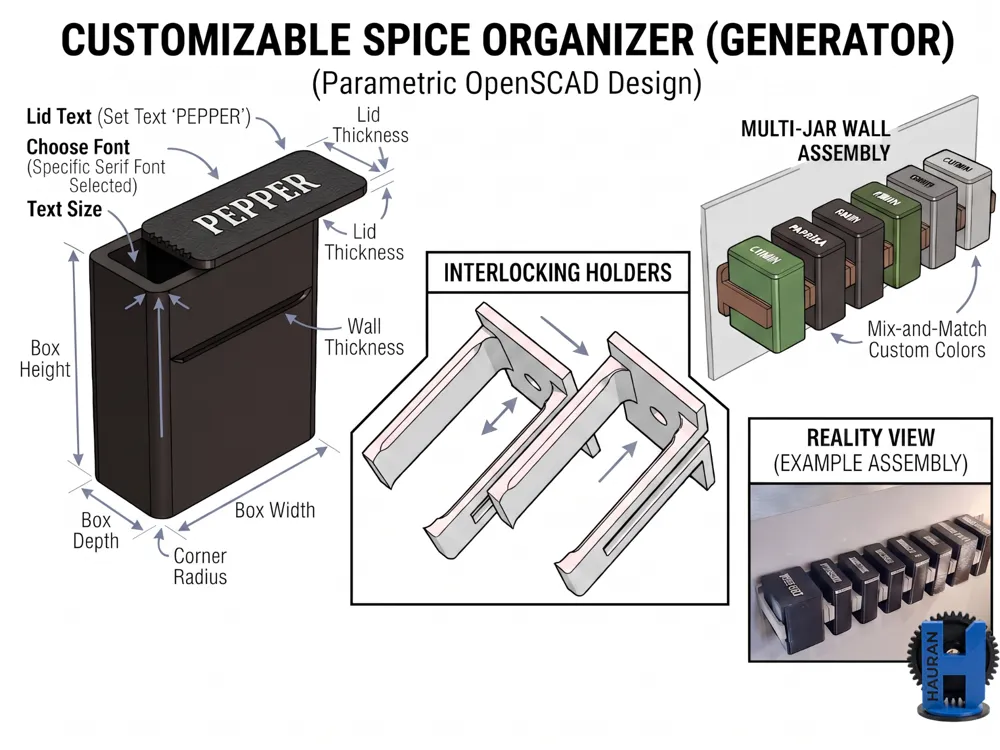

You don't need any 3D modeling skills to alter this design. Using the built-in configurator, you can quickly modify the parametric appearance:

• Dimensions: Freely adjust the width, depth, and height of the boxes to fit your exact cabinet or wall space.
• Custom Labels: Type in your own spice names (e.g., "PEPPER", "OREGANO").
• Typography: Choose from a wide variety of built-in fonts, and adjust the text size and depth. If you want to preview all fonts, you can quickly jump to my nametag generator which has preview mode and same set of fonts: Name Tag Keychains - Instant Font Preview!
• Dispensing Options: Toggle integrated shaker holes on or off at the front edge of the lid.
• Modularity: Change the left and right mount styles of the wall holder (Dovetail Rail, Dovetail Slot, or flat/rounded for end pieces).
• Clearances: Fine-tune wall thicknesses and print tolerances to ensure a perfect sliding fit on your specific printer.

🖨️ Recommended Print Settings

• Material: PETG is highly recommended for the box and rigid lid parts due to its durability and food/liquid-safe properties. Use TPU for the optional multi-material lid seal. You can print in PLA as well, its just not the perfect choice.
• USE Others>Advanced>Use Beam Interlocking if you print with TPU, this will make sure lid layers stay well bound together
