Bed organizer for cup and smartphone

Tired of knocking over your morning coffee or misplacing your phone in bed because you don't have a nightstand? Say hello to the S-Line Bed Organizer – the cleanest, most functional bedside companion for your 3D printer.

Designed with a modern, minimalist Scandinavian aesthetic, this model features smooth 45° design chamfers and flush-fitting lines that look like premium molded furniture rather than a typical chunky 3D print.

✨ Key Features

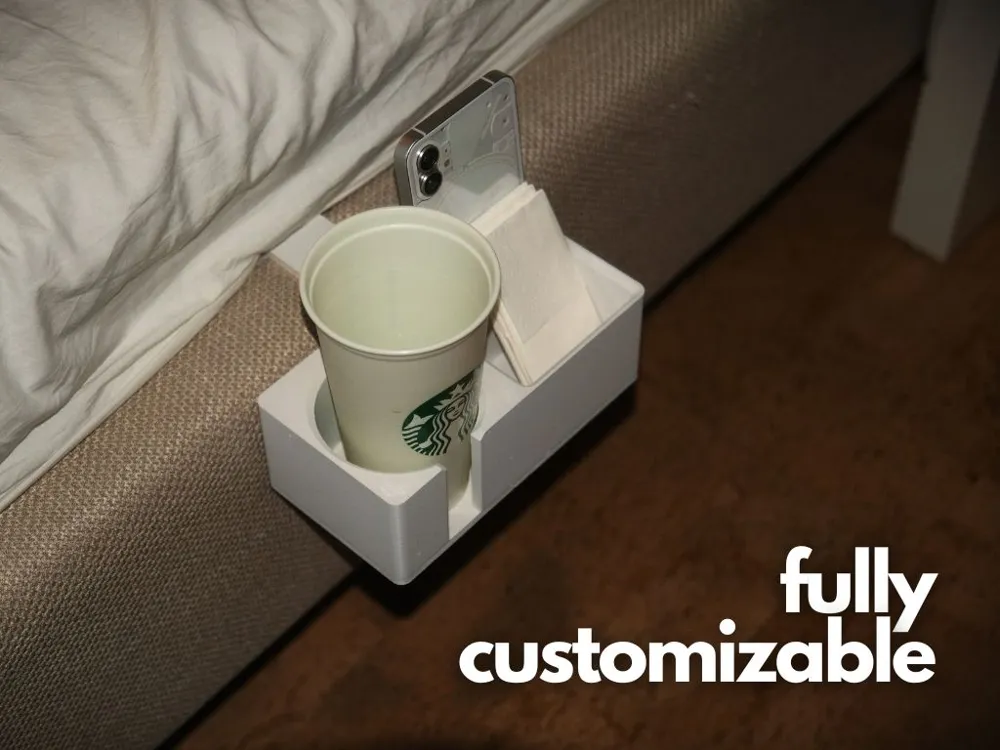

• 100% Fully Parametric (MakerLab Customizer): Adjust your bed frame thickness (up to 80mm), change the dropping height, or scale the compartment sizes directly in the browser!

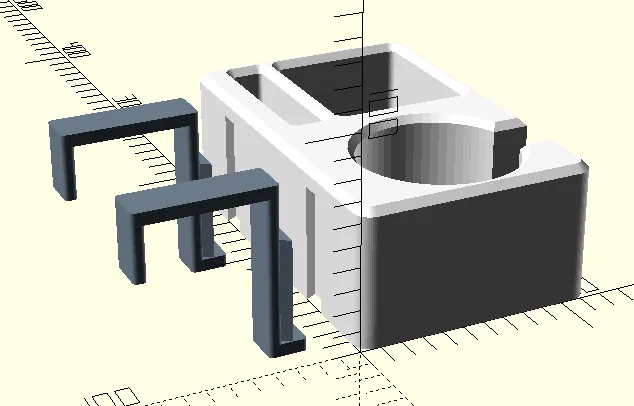

• Blind Dovetail Gravity-Lock: The heavy-duty locking mechanism is completely hidden inside the rear wall. From the top, the organizer looks entirely seamless – no visible rails or ugly mechanics.
• Smart Stability System: The algorithm automatically detects the width of your configuration. If you choose a wider 2 or 3-slot setup, it automatically generates two perfectly spaced clamps to distribute the weight and prevent any side-tilting or twisting.
• Anti-Breakthrough Protection: No matter how large you scale your cup holder diameter, the model dynamically expands forward so the wall never cuts into the locking mechanism.
• Ergonomic 45° Chamfers: Every single pocket, slot, and outer edge features an integrated bevel. It protects your phone from scratches, feels incredibly smooth to the touch, and slices flawlessly.

📦 4 Interchangeable Smart Modules

Configure up to 3 Slots simultaneously. Choose your perfect mix:

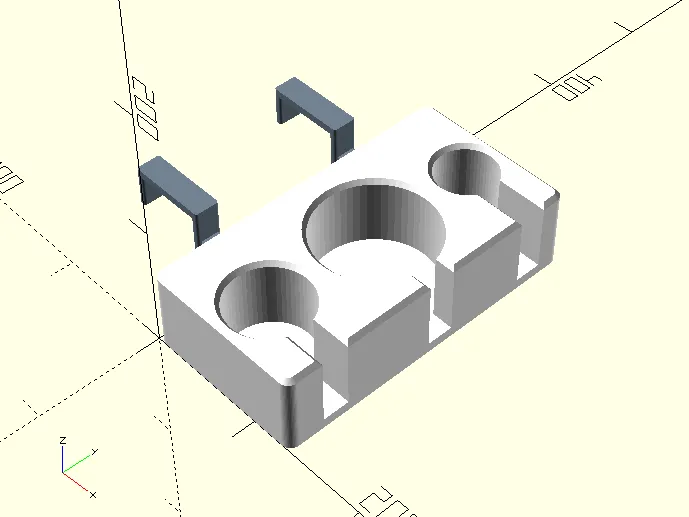

1. ☕ Cup / Bottle Holder: Features a deep structural pocket for bottles and a clean, bevelled cutout for mug handles.
2. 📱 Phone Tray Combo: A tight, protective slot to keep your smartphone upright and safe, paired with a spacious front tray for AirPods, rings, or charging cables.
3. 📺 Remote Tray Combo: A wider rear pocket designed for AppleTV, FireTV, or thick standard TV remotes, with an integrated front tray for daily clutter.

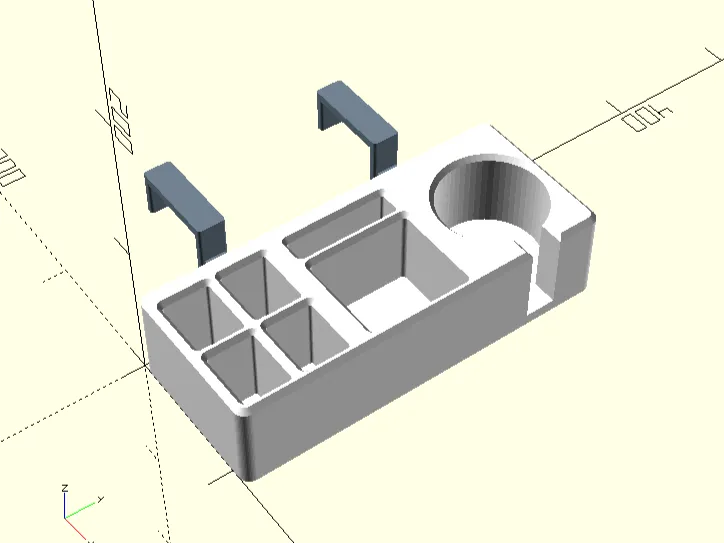

4. 🎲 4x Small Parts Organizer Grid: Divides a slot into four mathematically perfect, identical mini-boxes. Perfect for earplugs, lip balm, and small bedside essentials.

🖨️ Print Settings (100% Support-Free!)

This model was engineered from the ground up to be printed with zero supports, saving you filament and post-processing frustration.

• Orientation: * Tray: Print flat on its bottom surface.
  • Clamp: The export option automatically lays the clamp flat on its clean side. The dovetail rail grows vertically from the build plate for maximum structural layer strength!
• Material: PLA for maximum color choice, PETG if your bed gets hit by direct sunlight.
• Layer Height: 0.2mm (Standard) or 0.16mm for ultra-smooth chamfers.
• Wall Loops: 3 to 4 walls recommended for maximum stiffness of the clamp.
• Infill: 15% - 20% (Gyroid or Grid).

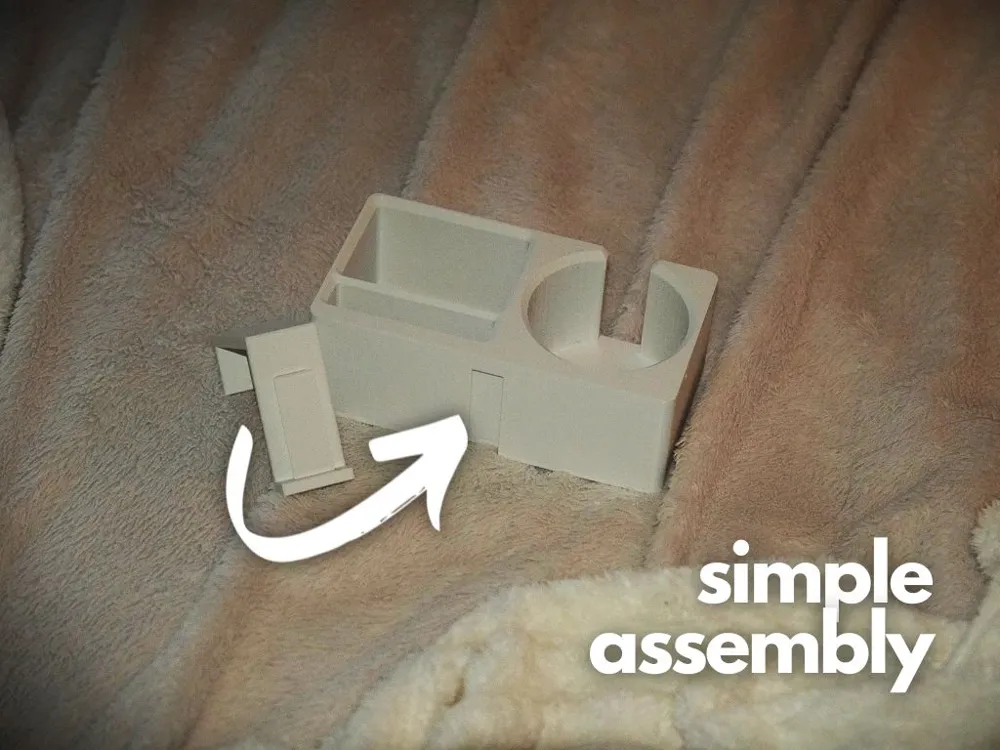

🛠️ Easy Assembly Instructions

1. Slide the Modular Tray from top to bottom onto the Bed Clamps.
2. The precision-engineered tapered dovetail wedge will self-tighten under gravity.
3. Hook the assembly over your bed frame.
4. Drop your drinks, phone, and remotes inside – you're done!

💬 Community & Support

⚠️ Tolerances: The model comes with a standard clearance of 0.2mm, which works perfectly on tuned Bambu Lab printers (A1, P1P, P1S, X1C). If your fit is too tight or too loose, simply adjust the Dovetail_Tolerance slider in the MakerLab Customizer!

Do you like this design? If this model solved your bedside clutter, please leave a ⭐⭐⭐⭐⭐ rating, upload a photo of your print, or throw a Boost my way! Your feedback keeps the parametric updates coming! Happy printing!
