Hovercraft LDH

Tiny Whoop RC Hovercraft

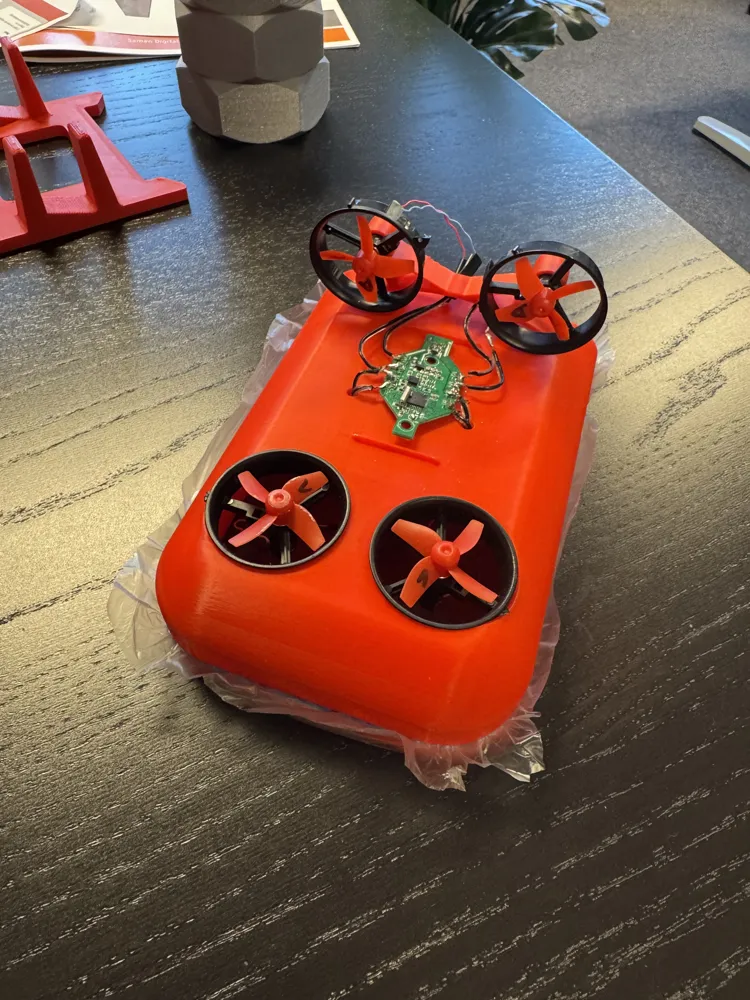

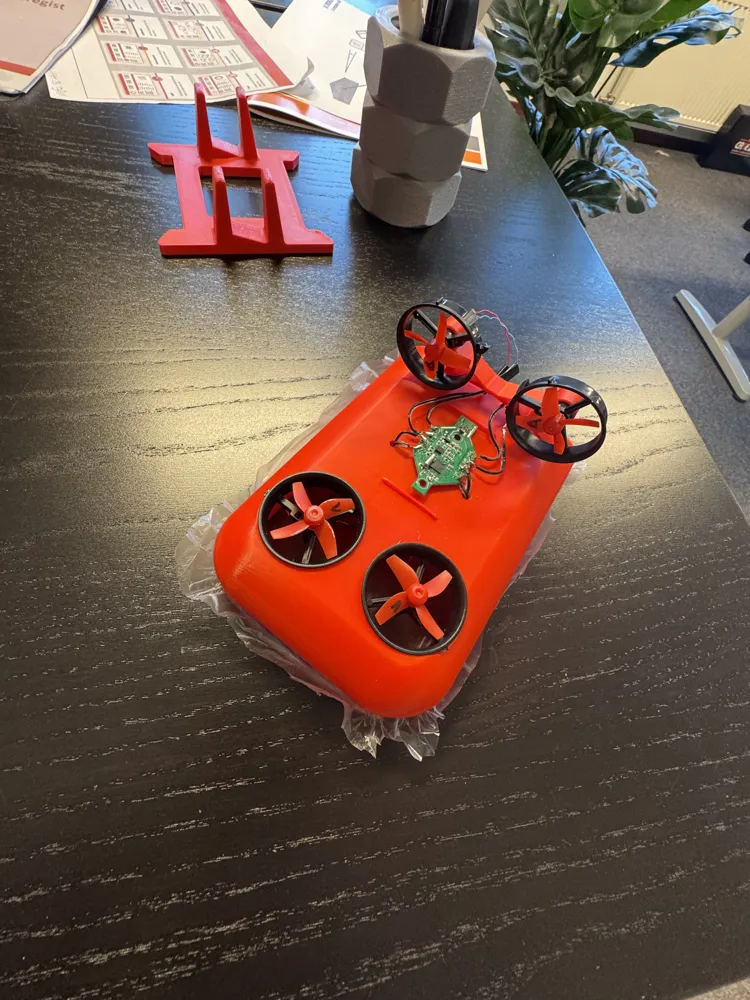

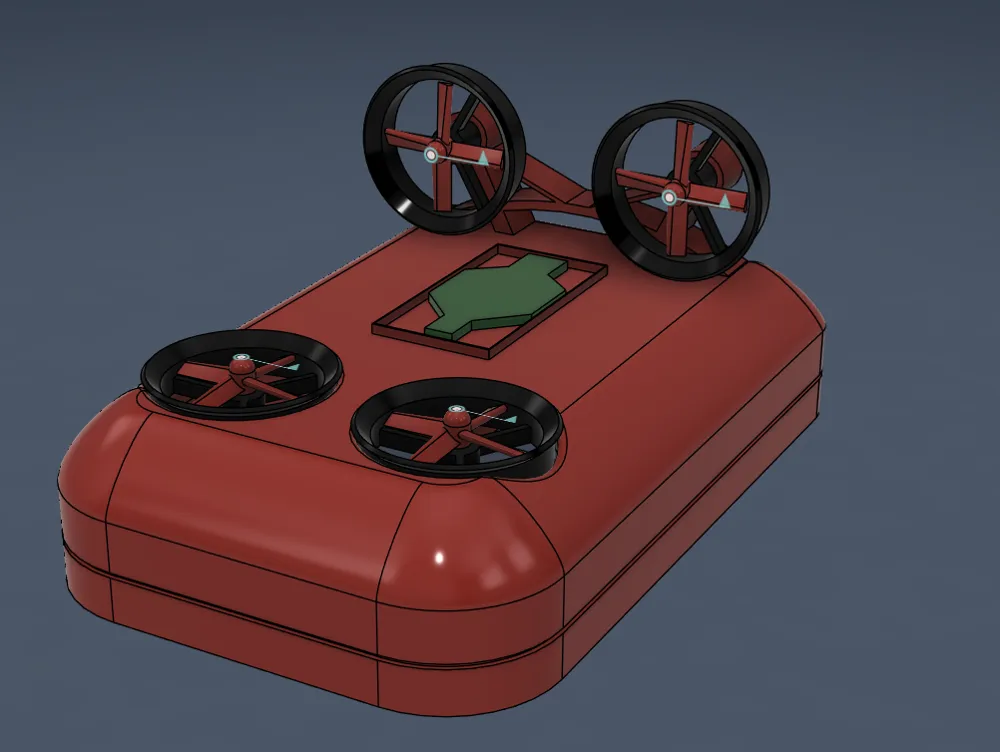

A compact RC hovercraft designed around the electronics of a Tiny Whoop drone. The model is fully 3D printable and was created as part of a CAD for Production (CAD4P) project.

Features

• Uses Tiny Whoop electronics
• Lightweight 3D printed body
• Four ducted propellers
• Easy to print with minimal supports
• Designed for indoor racing and experimentation

Required Parts

• Tiny Whoop drone electronics
• 4 brushed motors
• 4 propellers
• 1S LiPo battery
• Original Tiny Whoop transmitter

Print Settings

• Layer height: 0.2 mm
• Infill: 15–20%
• Material: PLA
• Supports: Tree, 30

Notes

This project was developed for a school assignment focused on Design for Additive Manufacturing (DfAM). Several design improvements were implemented to reduce print time, material usage, and support requirements while maintaining structural strength.

Feel free to remix and improve the design!
