MECHANIC R16 Solder Tip Holder Cover v1

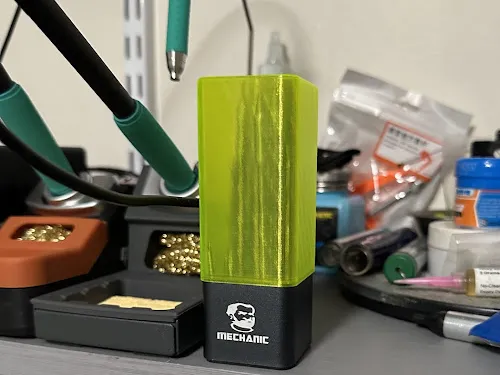

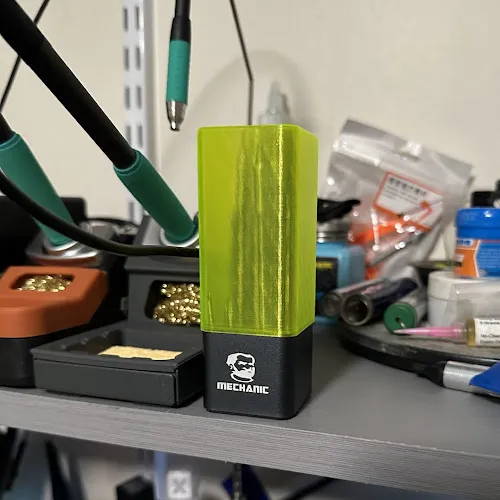

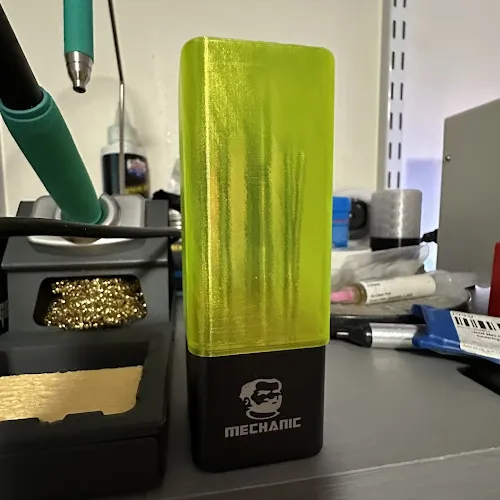

Simple protective cover designed for the MECHANIC R16 solder tip storage holder.

This cover was made to help keep stored soldering tips protected from moisture, dust, debris, and accidental contact while the holder sits on the bench or in storage. The design is lightweight and intentionally material-efficient for its purpose.

A fit-check sample is included so you can quickly verify compatibility before committing to a full print.

Print Settings:
• Layer Height: 0.20mm
• Supports: None needed
• Infill Used: 0%

Print Orientation:
- Opening facing upward
- Top surface placed on the print bed

Designed as a thin protective shell to minimize filament usage

Notes

• Designed around the MECHANIC R16 16-Hole Classified Storage Box
• Use, sell, modify, remix, or adapt it however works best for your setup

If this model helps your workspace, consider sharing your make or remix.
