3D modular geometric decorative wall panels
Print Profile(1)
Description
Boost Me (for free)
If you want to support my projects, I would be grateful. Thank you
Please read the instructions before printing
Item Description:

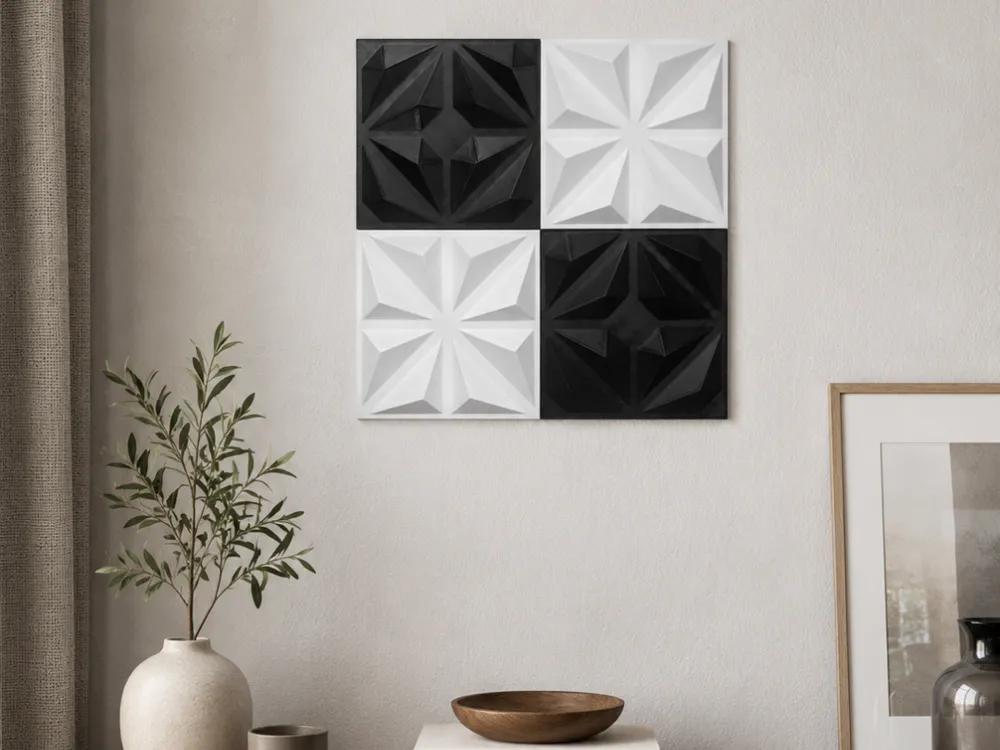

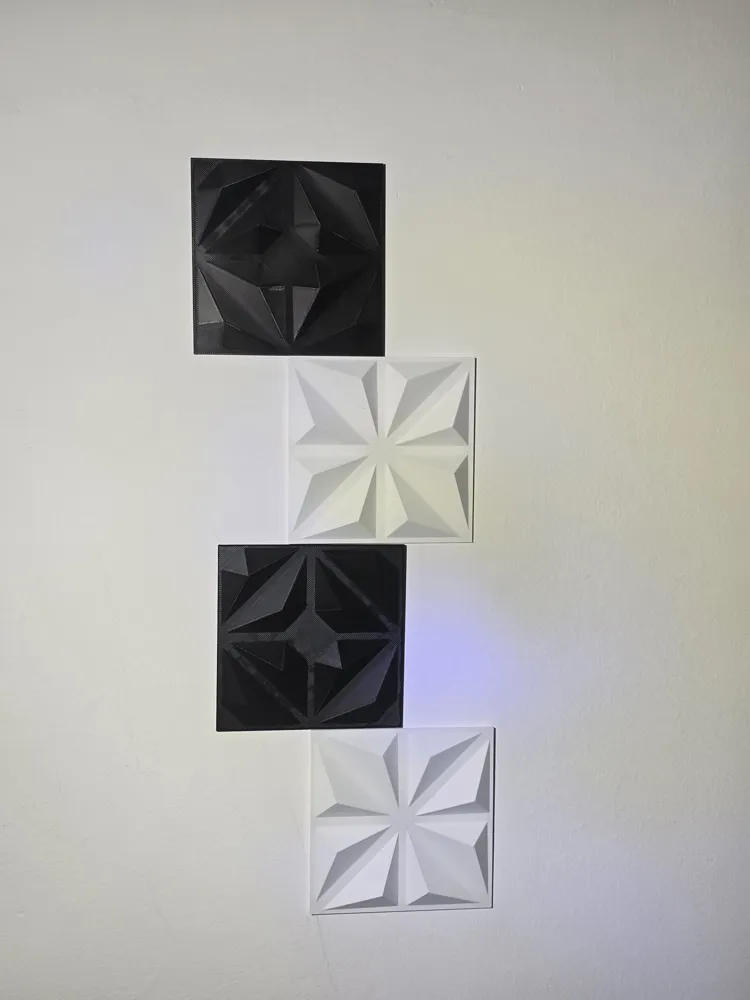

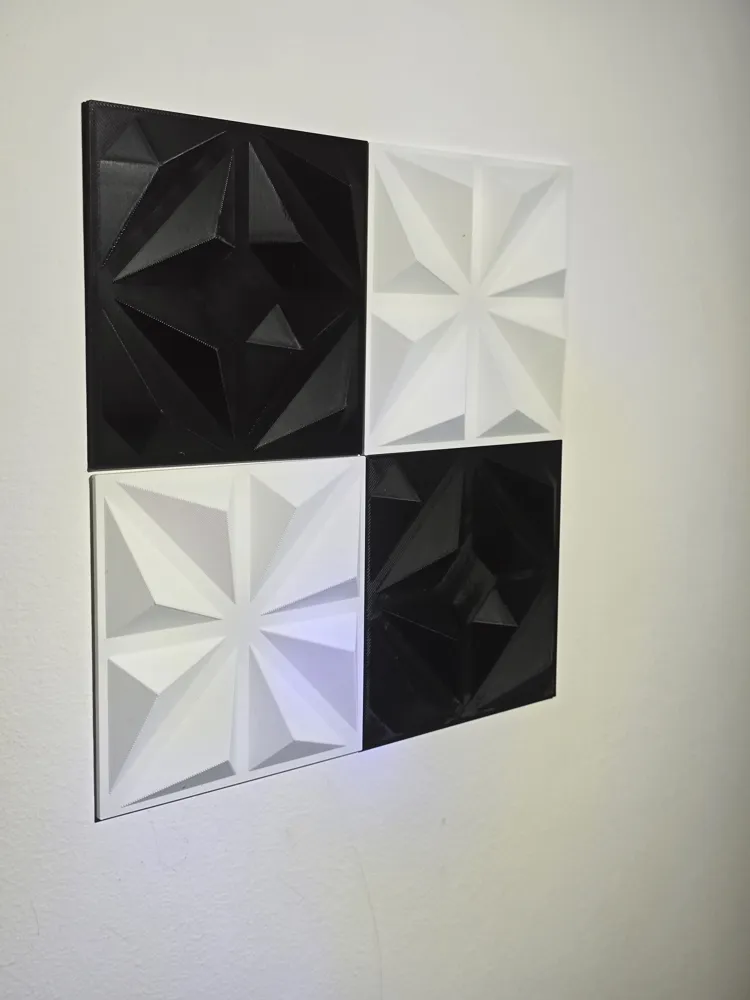

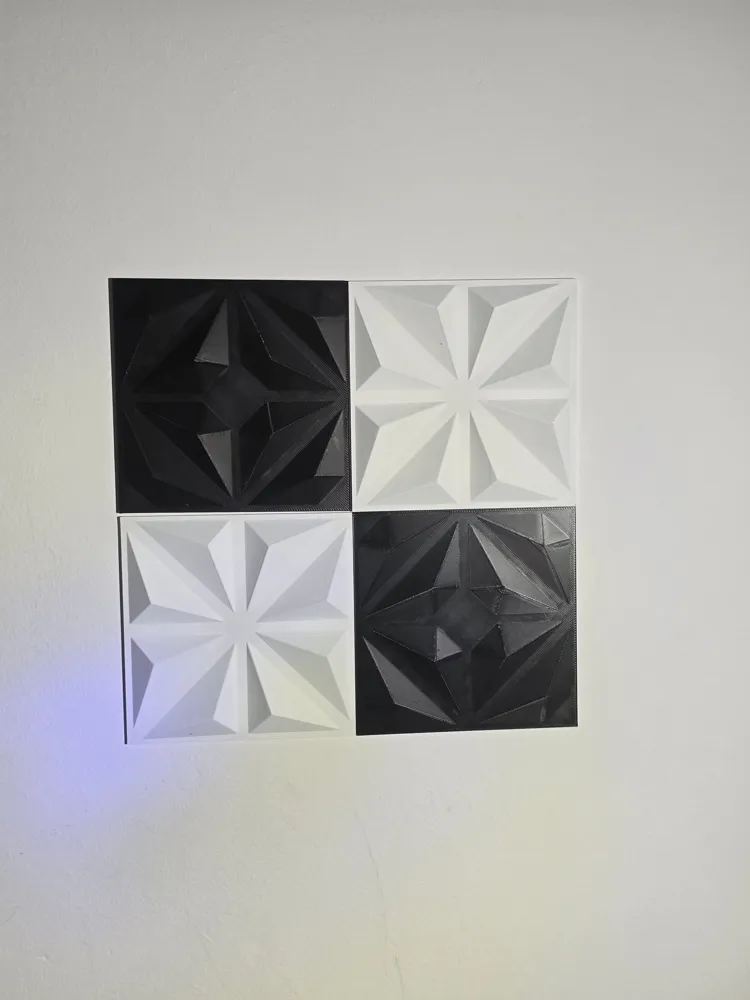

I propose these 3D decorative panels for use as geometric cladding elements with embossed textures (often called "Origami" or "Star" models). They are used to create modern and dynamic accent walls in homes, offices, or recording studios.
Gluing the Panels
Choose the right adhesive: Use a mounting adhesive with strong initial tack (such as acrylic silicone or specific adhesives).
Placement: Apply the glue to the back of the panel along the edges and at the center points, then press it onto the wall.
Printing Instructions:
Printed in white and black Bambulab PLA.
Printing is very easy
Colors can be changed from the slicer at the time of printing.
To make other copies, right-click on the model and select CLONE
GENERAL TIPS
A tip I always give is to first clean the print bed with dish soap and a sponge, rinsing with hot water, then dry it with compressed air, avoiding touching the surface with your hands. I also recommend performing the dynamic flow and flow rate calibrations provided in Bambu Studio. Personally, before printing, I dry the PLA with AMS 2 PRO for about 1 hour. These small measures, along with many others, determine the success of a good print.
Before making negative judgments, please adjust these parameters. If you have difficulties or continue to encounter problems, do not hesitate to contact me; we will find solutions together in a perfect collaborative atmosphere. I have made several prints of this object, and they all came out perfect as in the photos: if you have incorrect parameters, dirty or clogged nozzles, poorly calibrated machines, damp or poor quality filaments, do not blame me.
PRINTING INSTRUCTIONS:
0.2 mm layer height
0.2 mm initial layer height
Aligned seam position
2 wall loops
5 top shell layers
3 bottom shell layers
NO supports
8 % infill
Grid pattern
200 mm/s outer wall speed
300 mm/s inner wall speed
10,000 mm/s normal print acceleration speed
10,000 mm/s outer wall acceleration speed
