Holder for Rule-A-Matic Float Switch (Series 35A)

Description

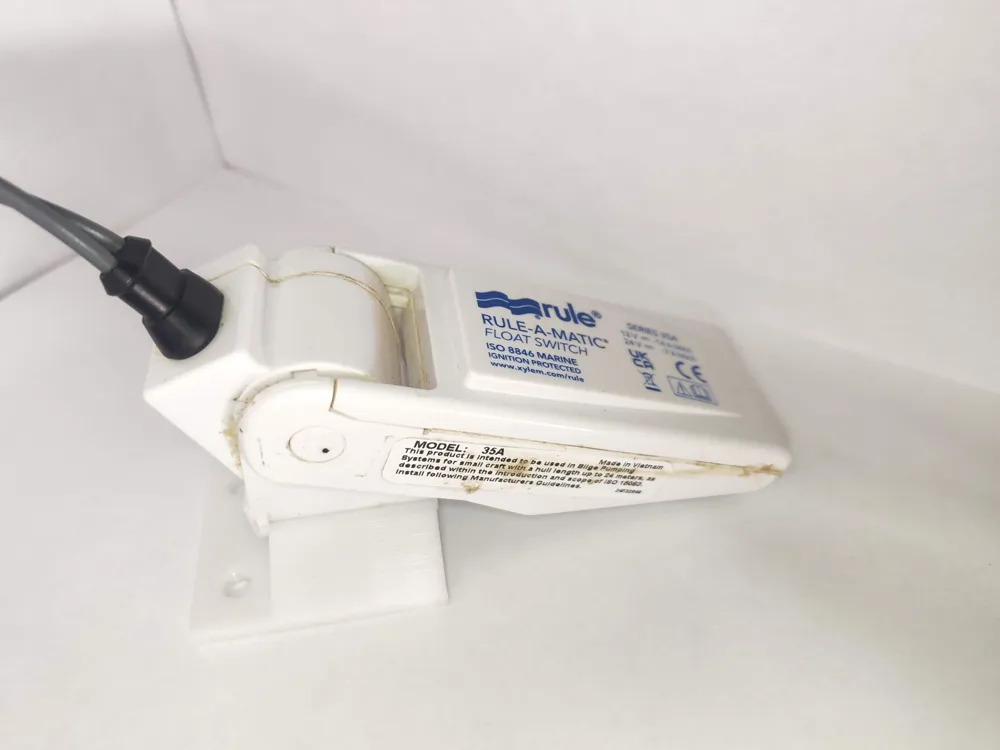

🛠️ Float Switch Holder for Rule-A-Matic 35A

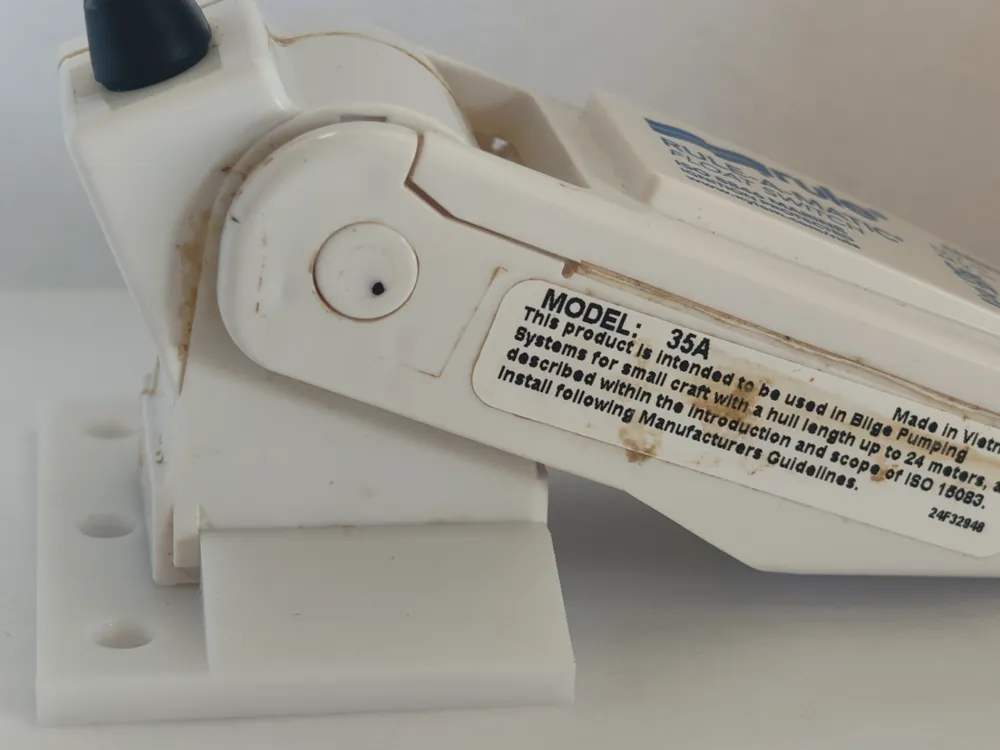

This holder is specifically designed for the Rule-A-Matic 35A float switch. The sensor easily clicks right into place. The holder is securely mounted using 5 flat head screws and one or two washers . It is a very straightforward and simple print. A float switch is one of the most important parts to prevent the boat from sinking on route or in the shore. Therefore it is important that the switch is working 100% at any time. The original holder of this switch is not correctly described as a piece of crap. Therefore the solution to this problem is to create the most simple and efficient and solid solution possible. A reinforced design of the orignial holder would not solve that problem. The base needs to be glued in properly to seal the screws to prevent water intruding in the keel or glass fiber. That is next to impossible with the original holder. the surface below the holder needs to be maximsed and not only a flimsy stripe that is degrading quickly by glue (Sikaflex). The blocking of slipping out of the holder needs to be solid too. That means a screw with a washer would block the switch from slipping out of the holder. The original holder has two small klick in holders. Not only flimsy but also good for exactly nothing. How often do you detach the switch ? Exactly! NEVER. The switch needs to be attached solidly and firm. on as much contact surface as possible with the holder. Exactly that is delivered by this holder. We will re design the holder in a bit by rounding the corners and to re calculate the material thickness after the Testrun under heavy conditions along the Portogese coast line up north against the wind and waves. Enjoy the safe design. The simple and solid solution !

📐 Technical Details

• Compatibility: Rule-A-Matic 35A Float Switch

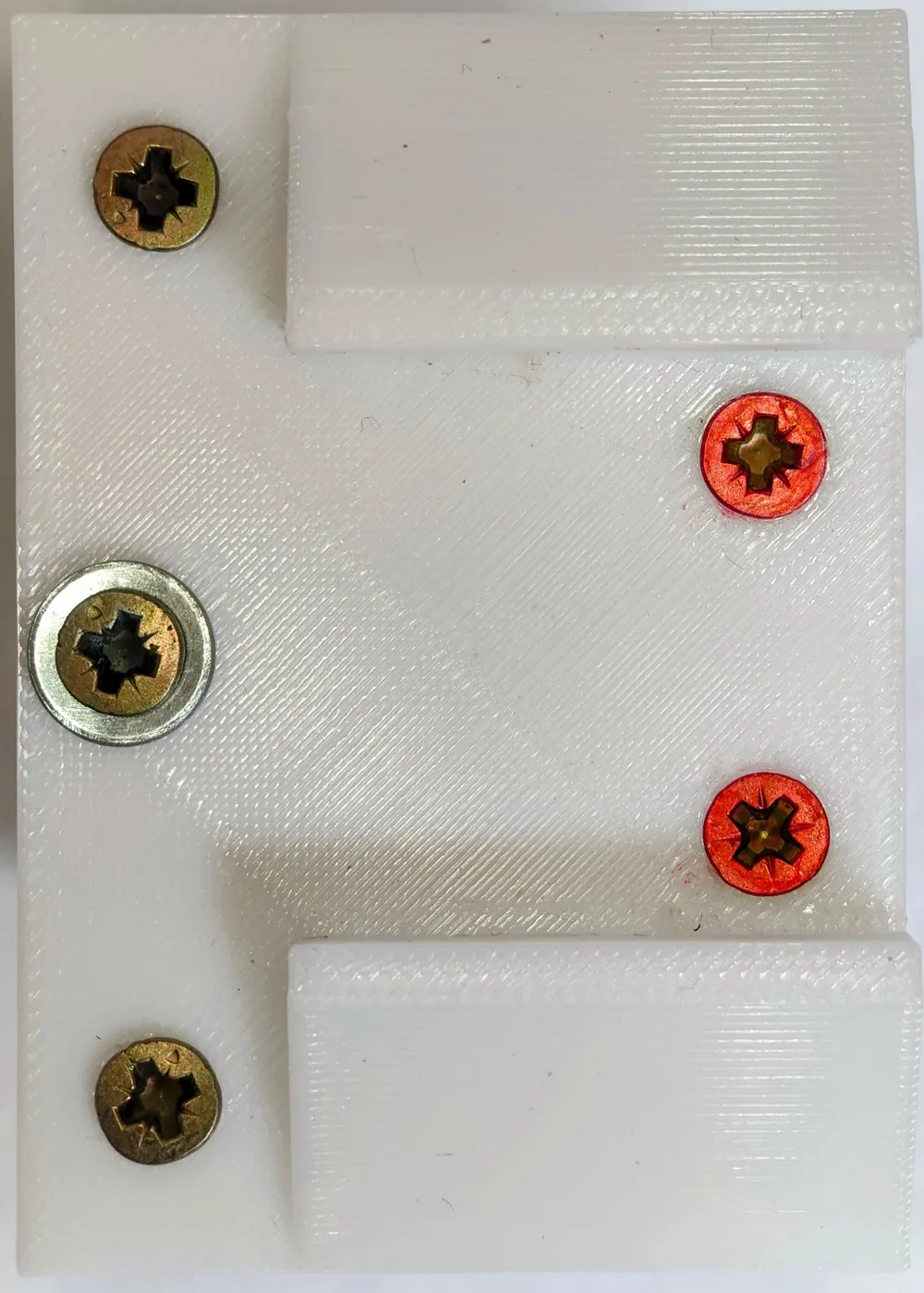

• Mounting: Fastened with 5 flat head screws and one or two flat washers

• Feature: Easy clip-in system



🖨️ Recommended Print Settings

• Infill: 15% - 20%
• Walls / Perimeters: 4 or 5
• Supports: Yes, supports needed!
• Brim: Recommended ( for better bed adhesion if needed)

• PETG or ASA recommended for saltwater resistance !!!!



  Thank you for downloading my model! If you like this design, please consider giving it a boost, leaving a like, or sharing a rating.

  If you have any questions or feedback, feel free to leave a comment below. Happy printing!
