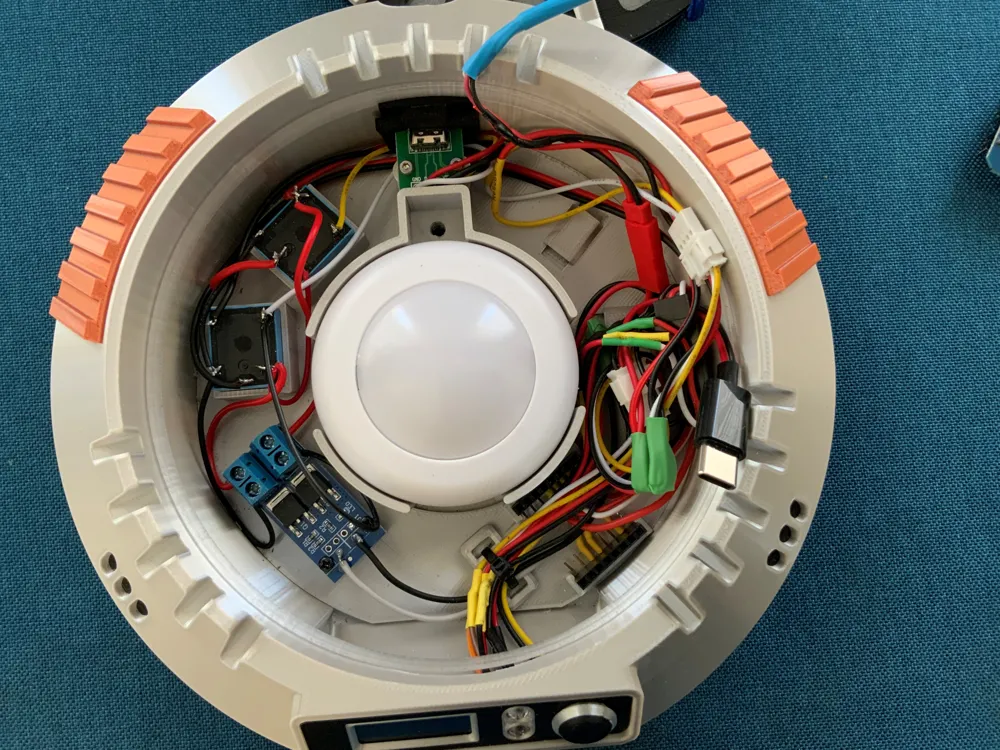

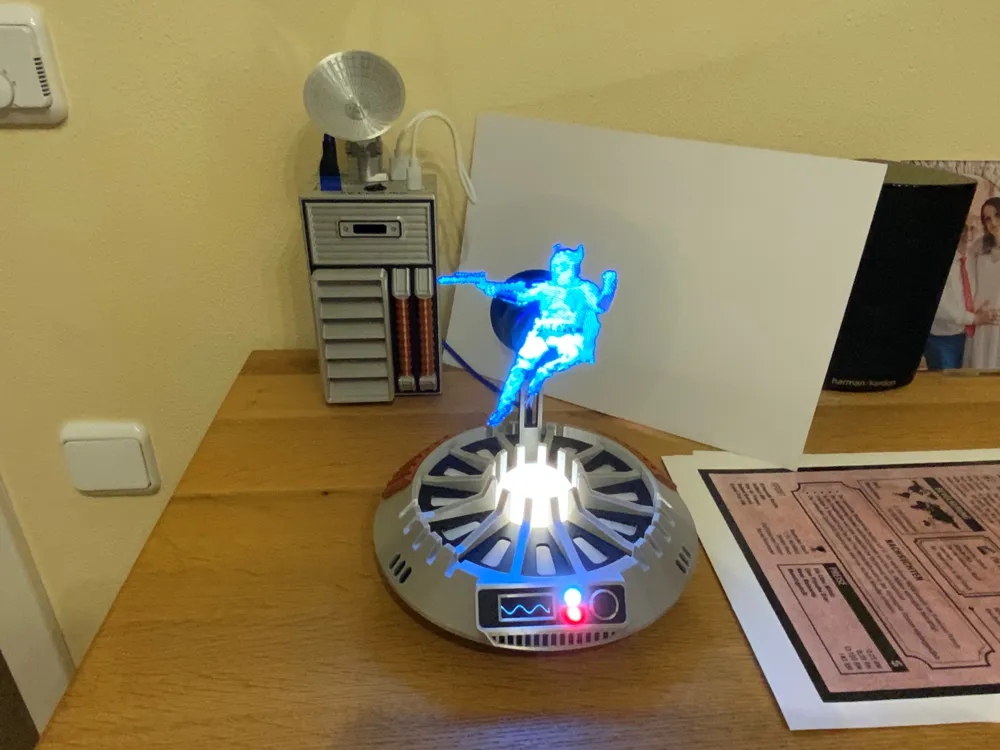

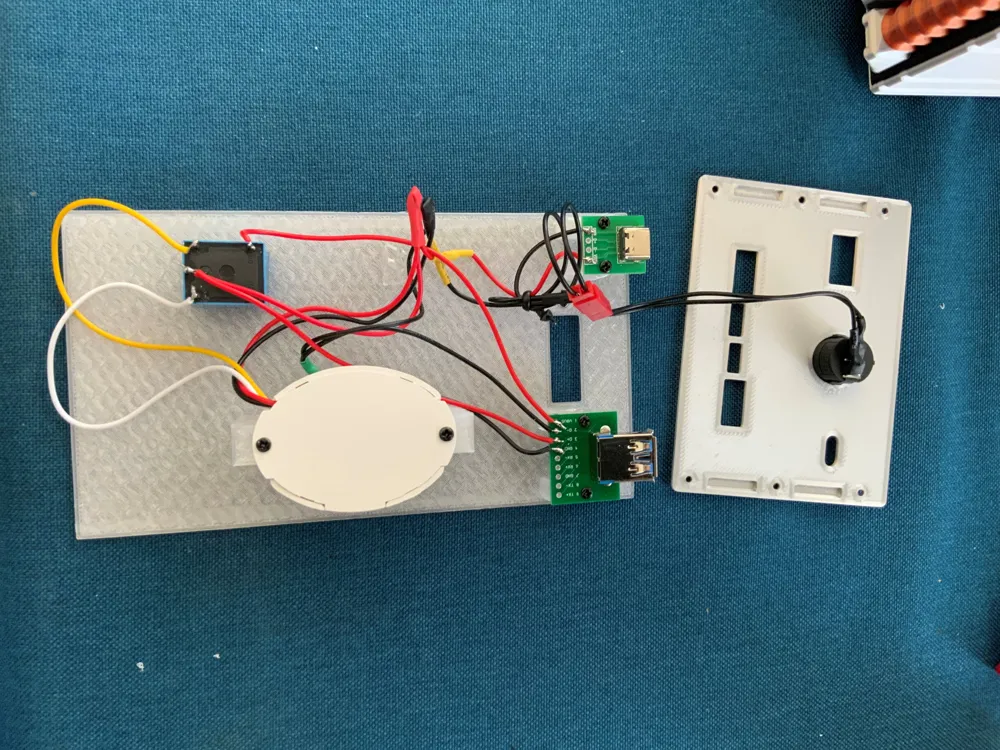

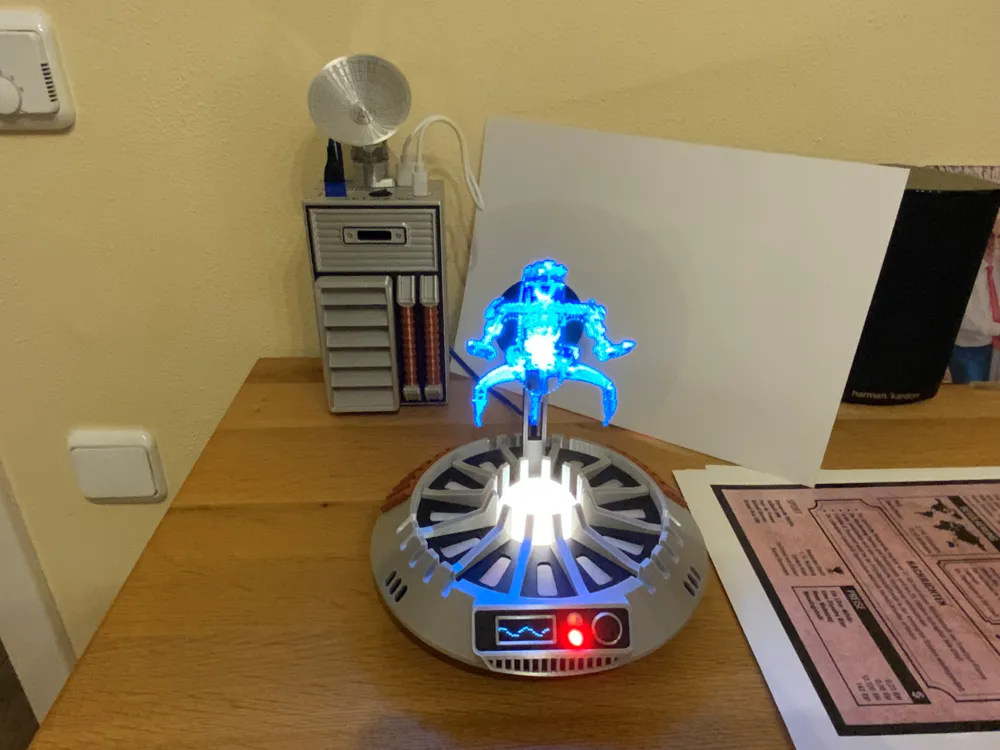

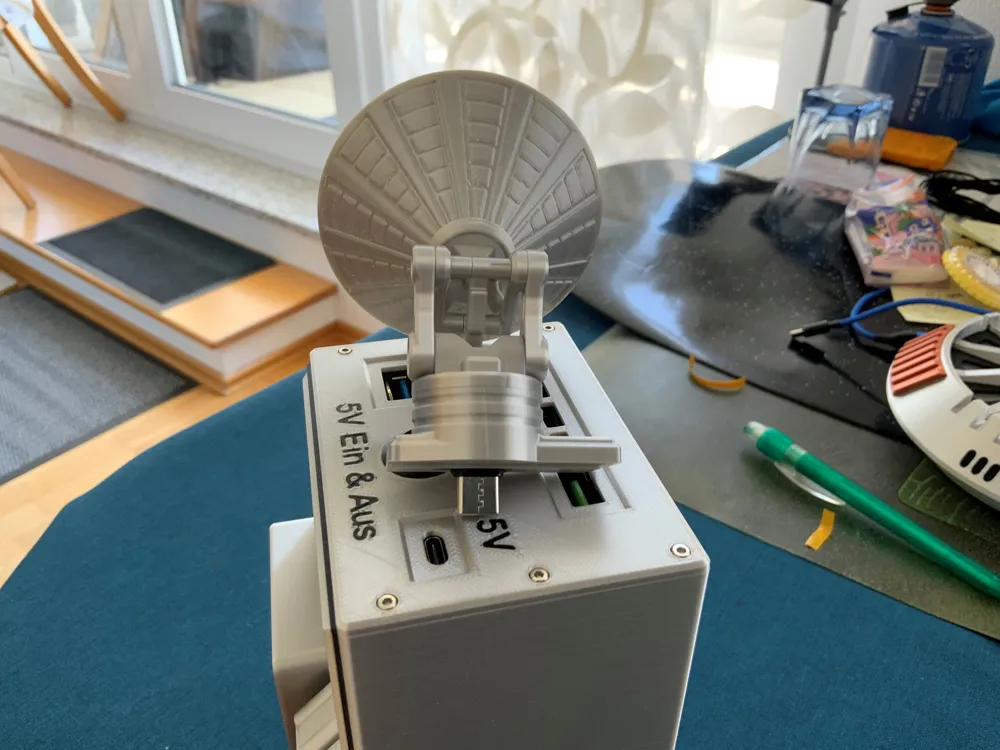

Hello, I have designed an extension for the Star Wars 3D Hologram It includes 3 different enclosures (with or without a power bank and with or without a satellite antenna holder) I built a complete electronic system myself (with a motion detector, display, LED, button, and Arduino) Instructions are available for download I designed the satellite antenna to look approximately like the one from the Millennium Falcon

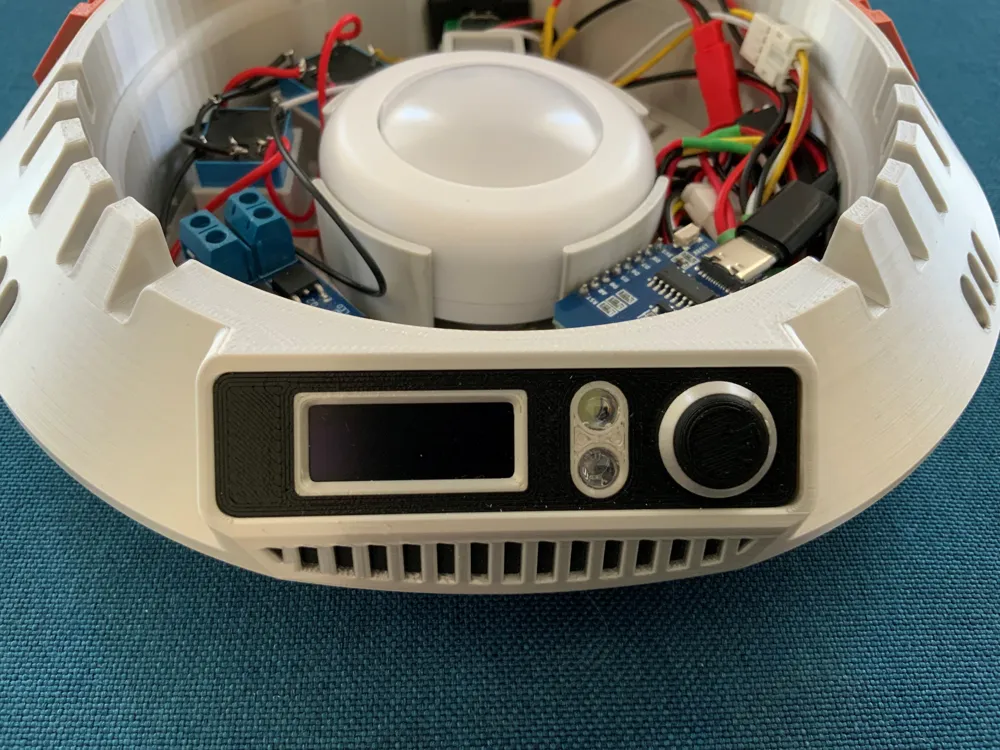

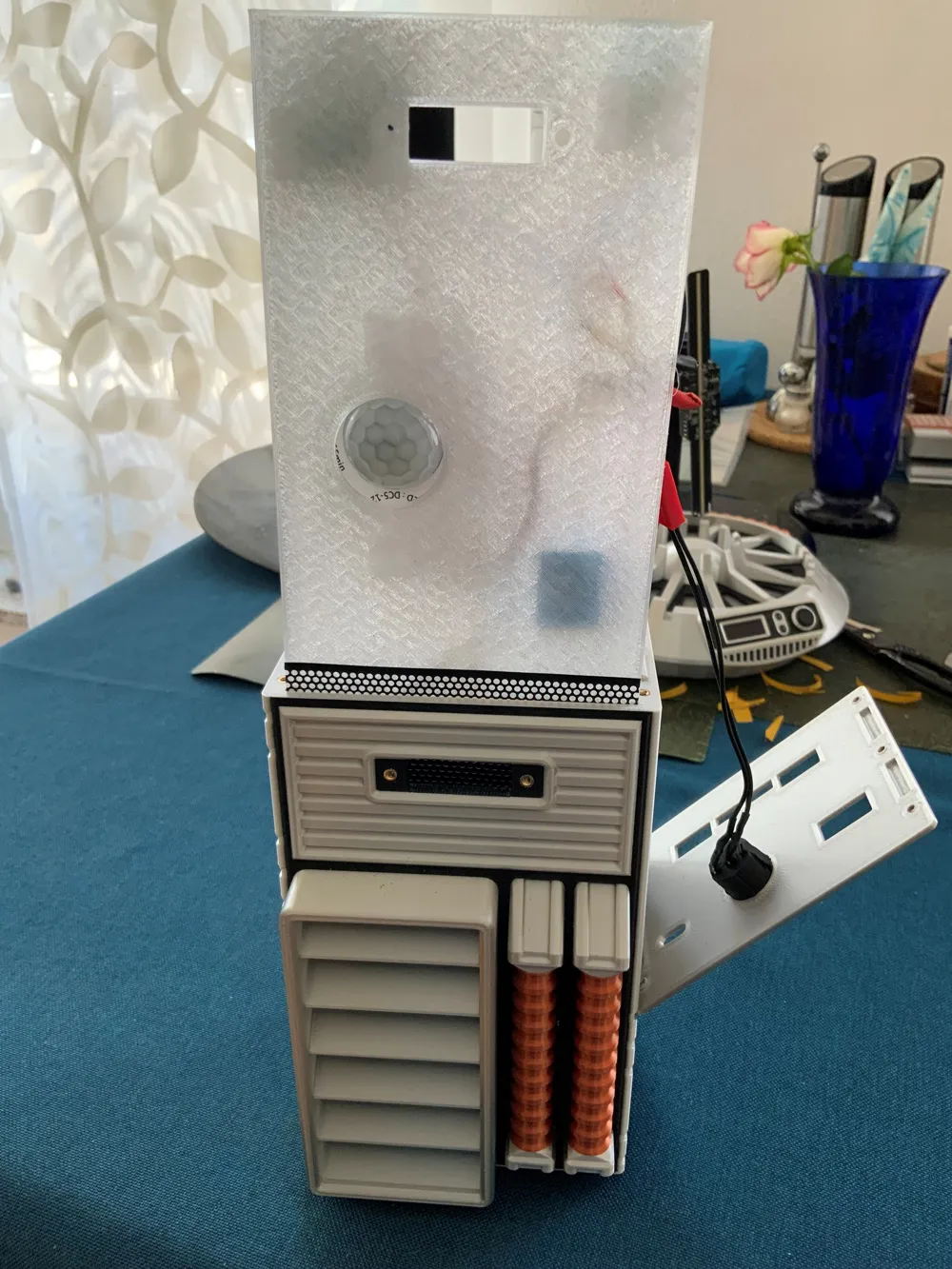

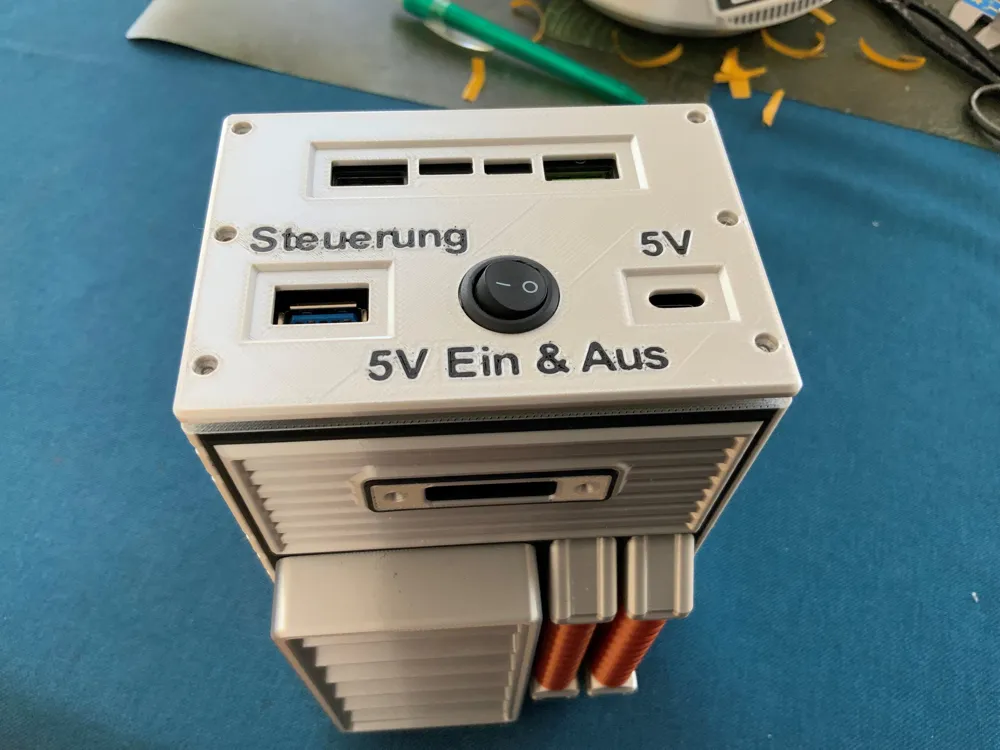

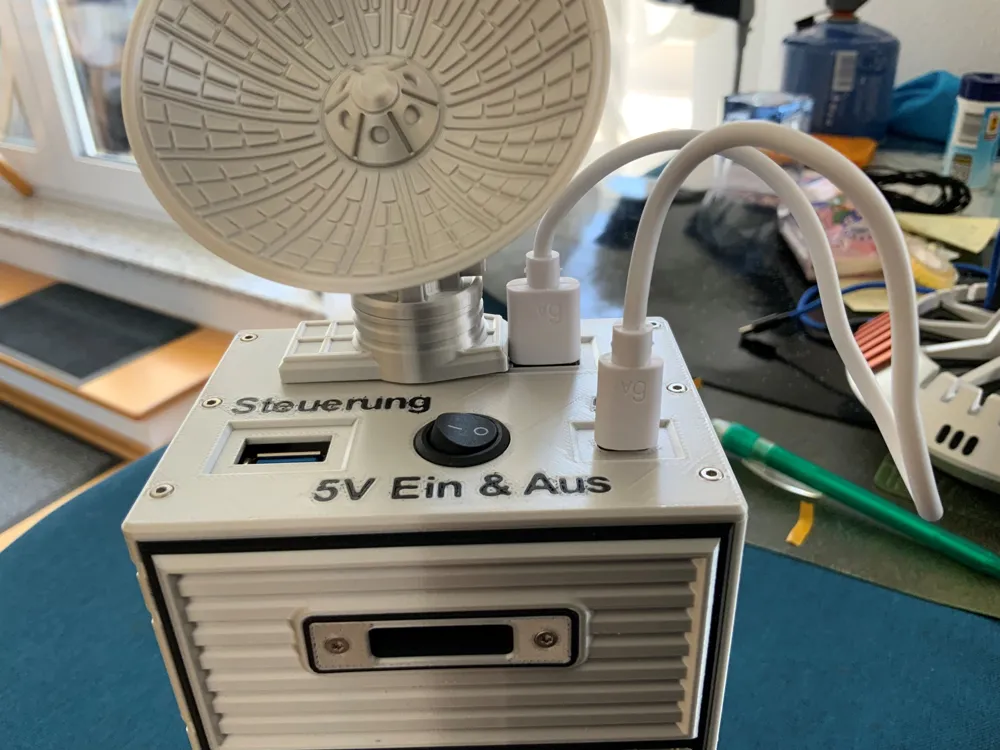

I programmed the Arduino so that the motion detector is always active upon startup and it runs only as long as the motion detector's time is set In addition, a clean, moving sine wave is displayed on the screen, and both LEDs on the control module light up If you press the button once, a messy, moving sine wave is displayed, and only the bottom LED (red) lights up This state runs until you press the button again, and it returns to the motion detector mode (including the display and the LED lights) On the enclosure where the motion detector is housed, there is an on/off switch at the top where you can also completely turn it off

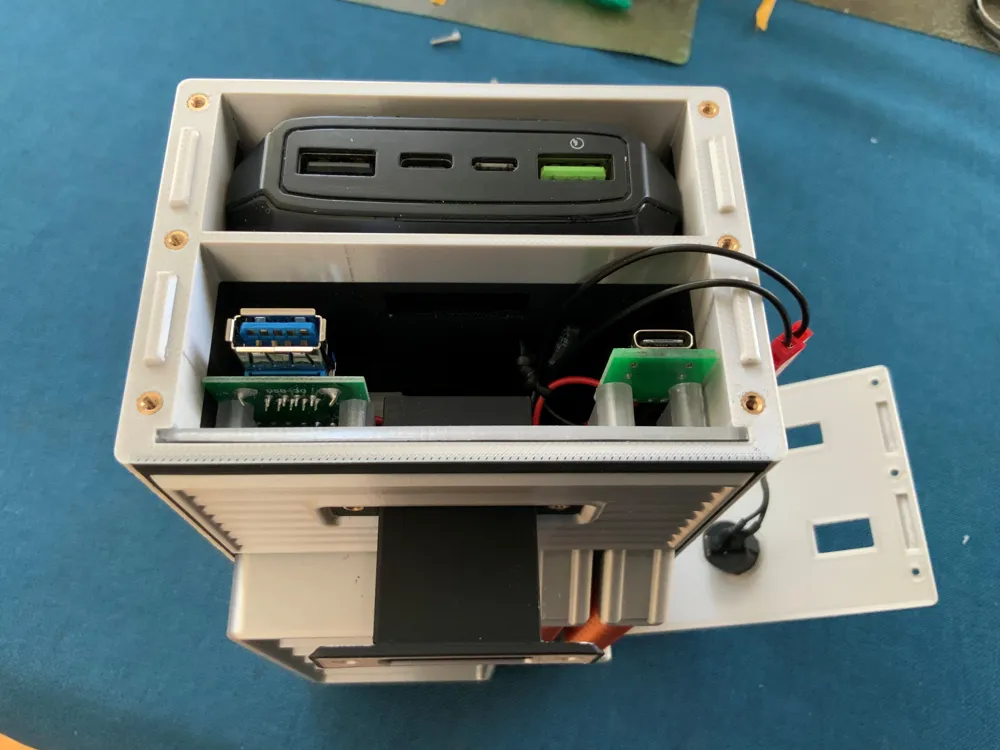

This power bank has been installed: Tronsmart Power Bank Edge 20000 mAh QC 3.0 Unfortunately, I can't find it for purchase online That's why I've also provided enclosures without a power bank for download, as you'll then need a 5V charger that should be quite powerful
You can only download the parts I designed myself from me; all other parts must be downloaded from the site I specified here
Assembly instructions, wiring instructions, Arduino programming, and I will also provide a few Star Wars 3D Holograms for download
If you want to print the part completely new, you must download the remaining parts here
Star Wars Hologram Fan Emitter Link: Star Wars Hologram Fan Emitter – Free 3D Print Model – MakerWorld

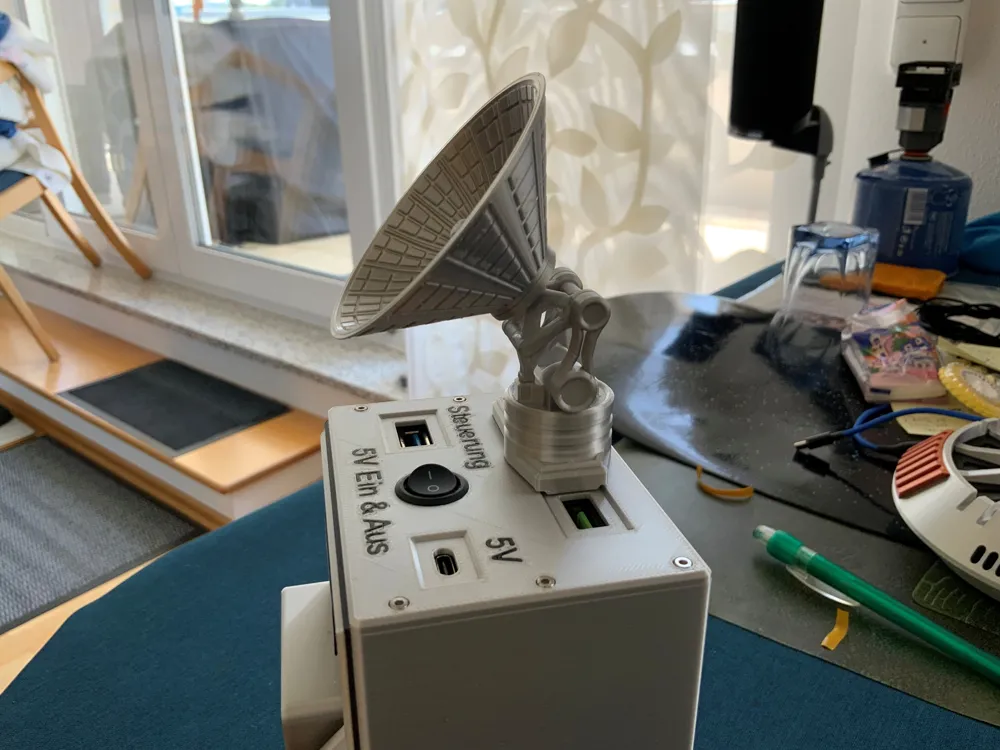

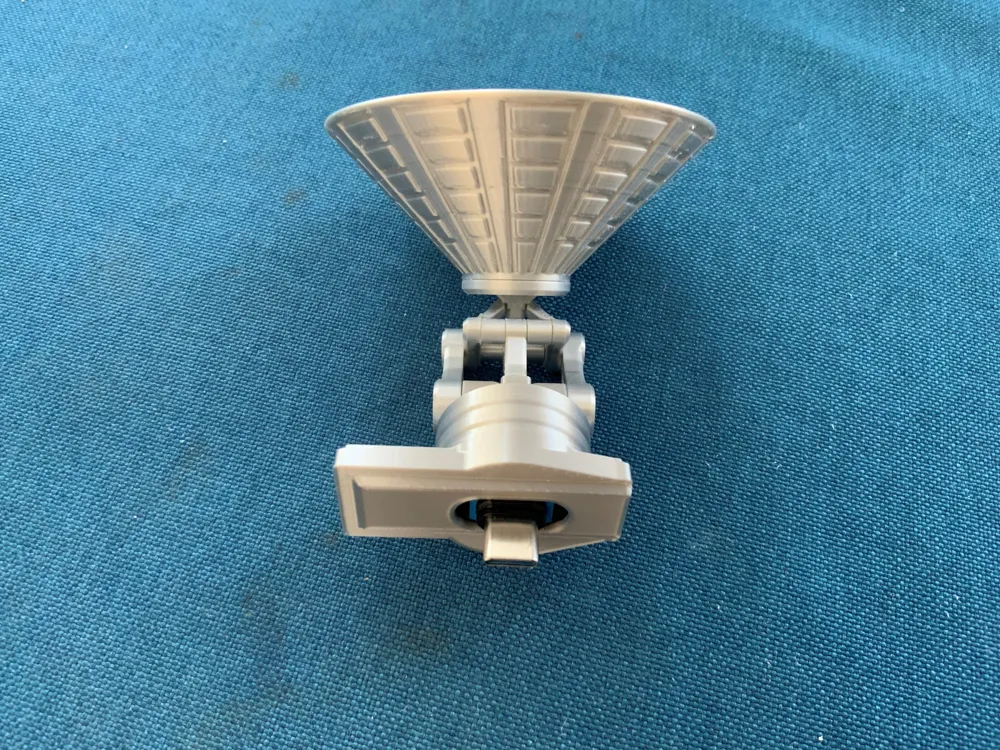

I printed the satellite antenna with a 0.2mm nozzle because it is very fine
Everything else was printed with a 0.4mm nozzle, almost all parts in PLA Silk and normal PLA, only the transparent parts for the LED lamp in PETG Translucent and one part in TPU
Have fun printing
