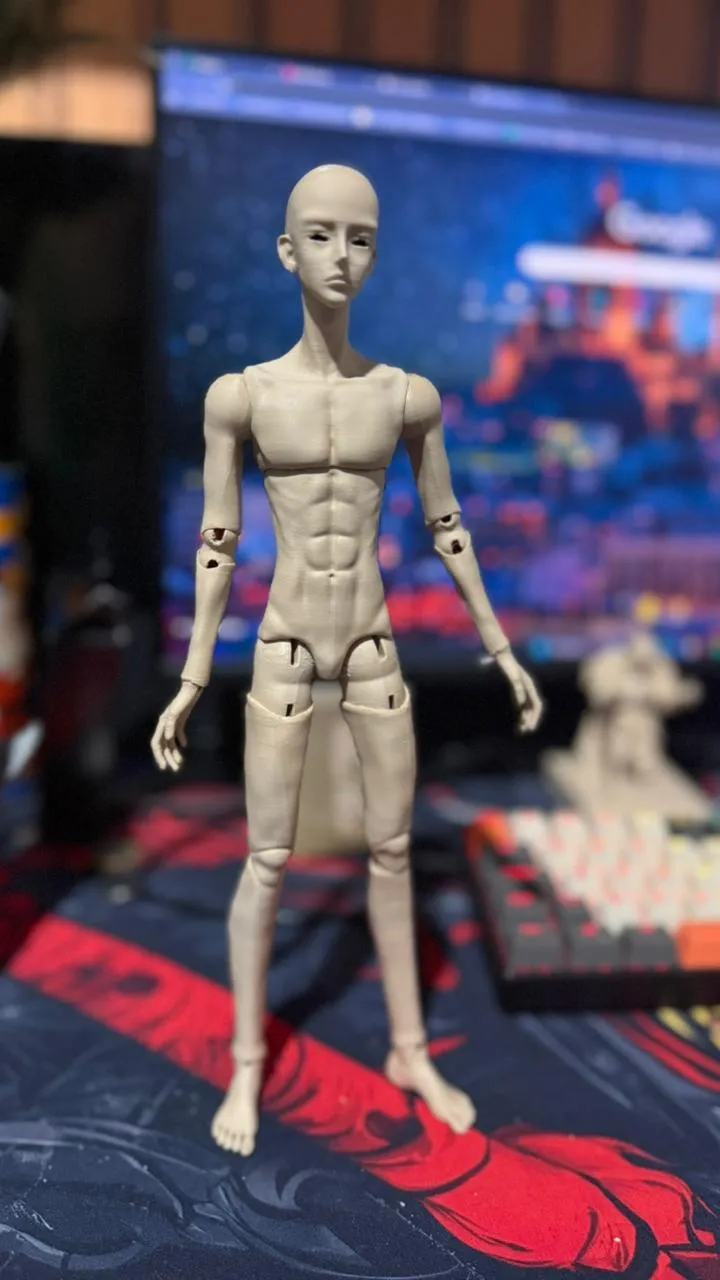

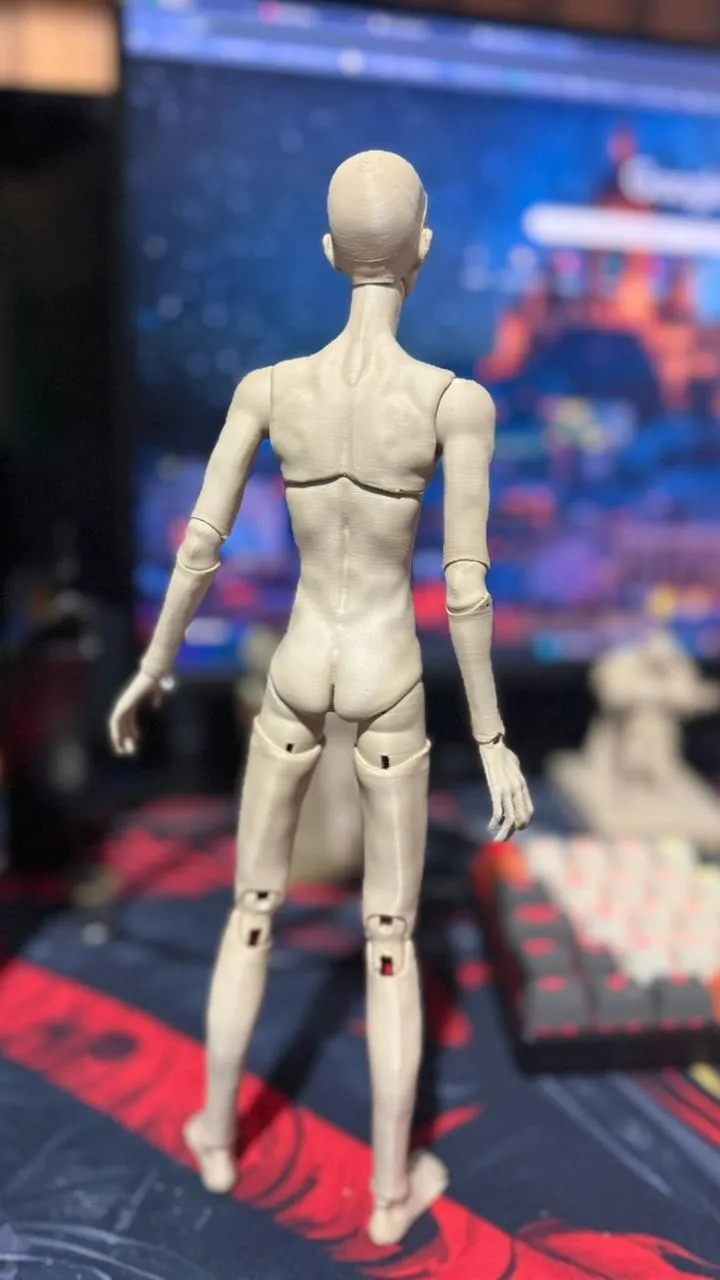

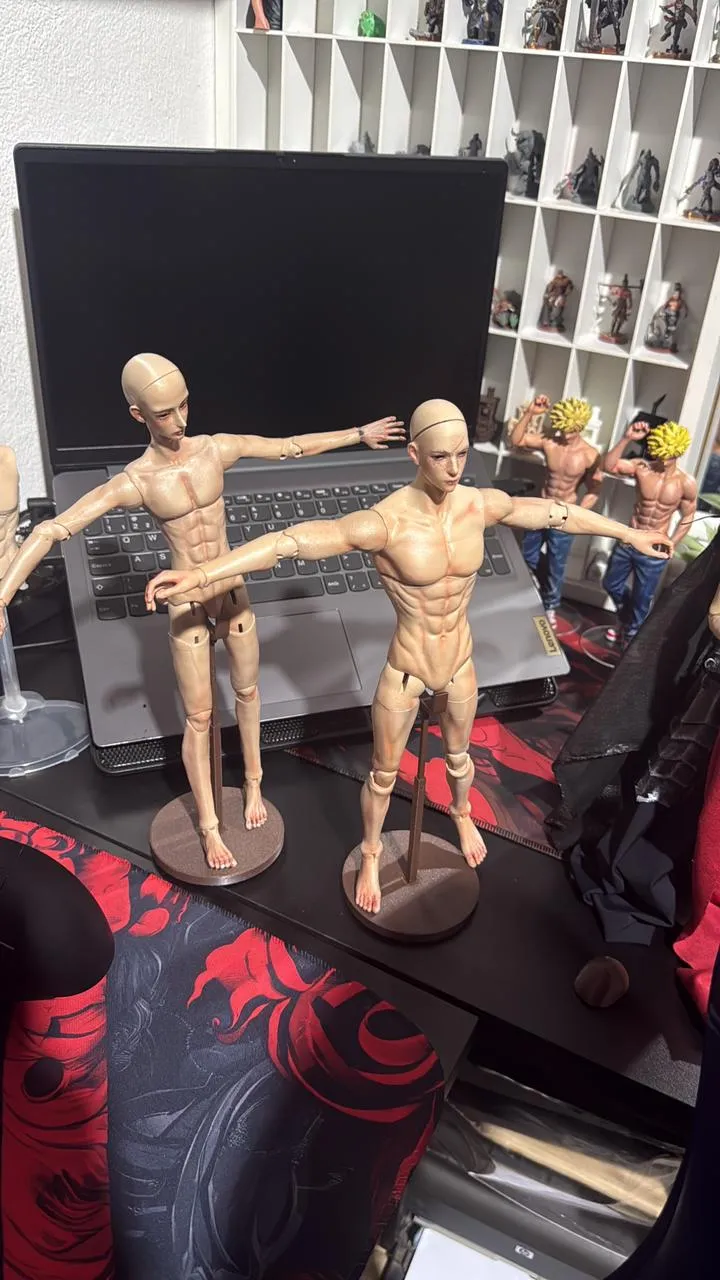

Bjd Male Boy version

📋 General Model Specifications

• Project Type: Articulated BJD (Ball-Jointed Doll)
• Version: Male
• Final Assembled Height: 25 cm
• Material Options: Filament (FDM) or Resin (SLA/DLP)

⚙️ Setup and Slicing Configurations

• Project Organization: Distributed across 5 build plates.
  • Objective: Isolate part groups, facilitate support removal, avoid overcrowding on the build plate, and minimize the risk of chain failures (if one part fails, it doesn't compromise the entire project).
• Resolution and Layers: Profile with a 0.16 mm adaptive layer height (adjusted from the nominal 16 mm value to standard slicer specifications).
  • Objective: The adaptive profile optimizes printing time by accelerating in straighter sections and focusing the 0.16 mm resolution on critical organic curves, such as facial details, musculature, and spherical joints.

💡 Technical Recommendations by Material

Filament Printing (FDM):

• Advantage: Excellent structural strength to withstand the tension of the elastics.
• Adjustment: The 0.16 mm adaptive profile provides a good balance between surface quality and machine time. The use of PLA+ or PETG is highly recommended for greater mechanical durability in the joints.

Resin Printing (SLA/DLP):

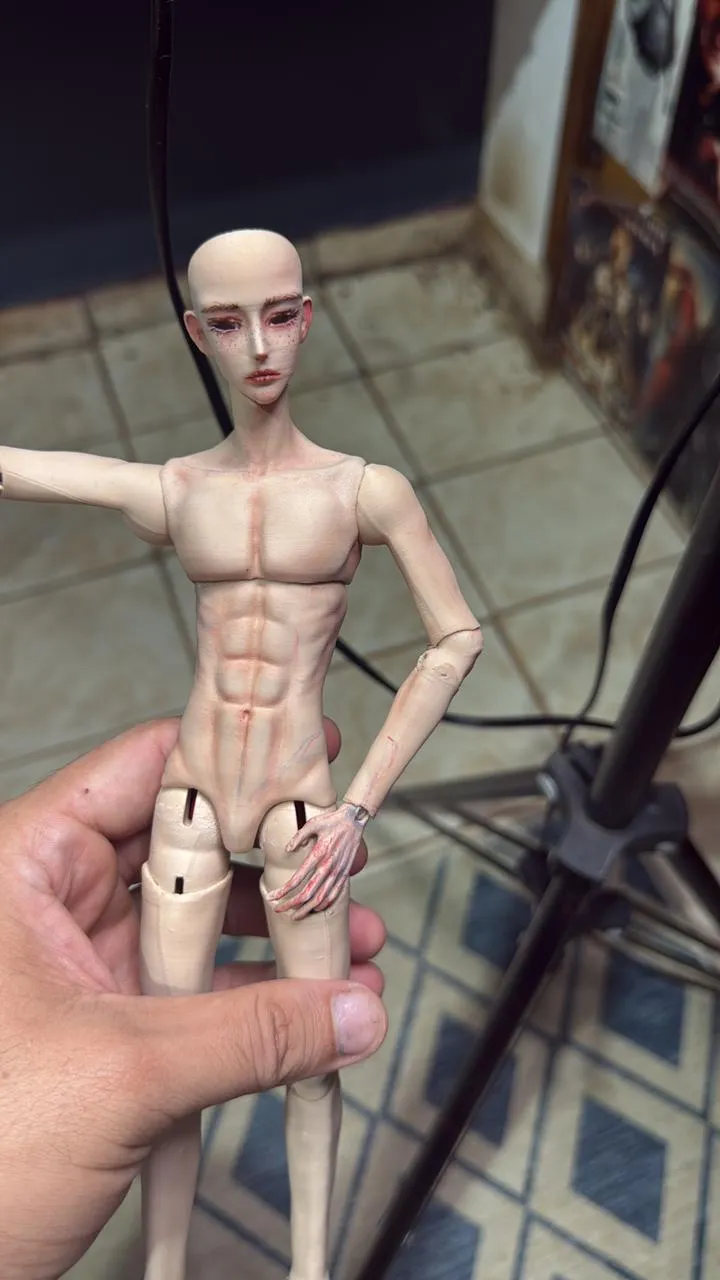

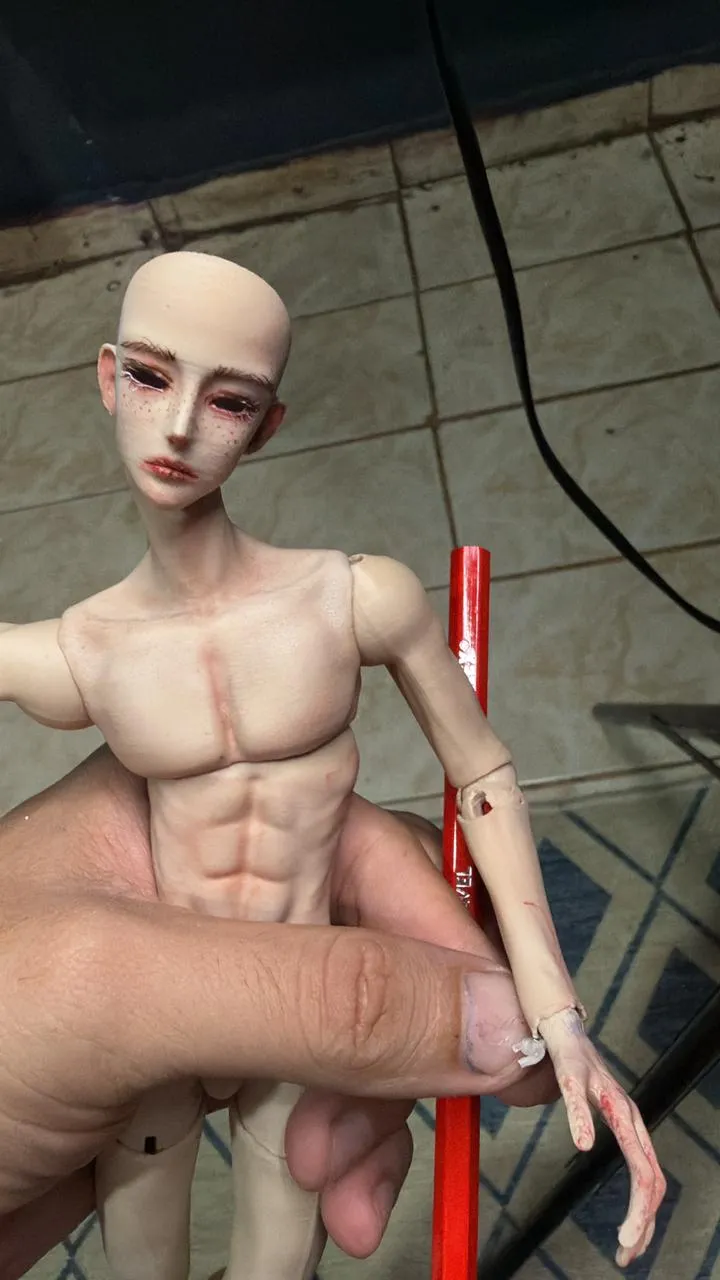

• Advantage: Flawless surface finish, ideal for realistic skin painting and makeup (face-up).
• Adjustment: For BJD parts, it is highly recommended to use a mixture of standard resin with flexible resin, or to exclusively use ABS-Like / Tough resins. This prevents the joints from experiencing premature wear or shattering under the pressure of internal tensioning.
