CCF C43 Disc Shooter Free version by CCFDIY

CCFDIY

Props & Cosplays>Cosplay Weapons

IP Report

GIF

Print Profile(14)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

H2D

0.2mm layer, 4 walls, 25% infill

Designer

6.5 h

1 plate

4.7(71)

0.2mm layer, 4 walls, 25% infill

Designer

5 h

1 plate

4.7(524)

More powerful elastic components（更强的弹力组件）

Designer

23 min

1 plate

4.9(52)

DISC ONLY

28 min

1 plate

5.0(185)

Click to see more

Open in Bambu Studio

Boost

5226

10271

1479

2.9 k

13.6 k

5.2 k

Released

Description

Boost Me (for free)

CCF C43 飞盘发射器免费版本，无五金，无需支撑打印。阉割了空仓挂机功能，喜欢的话可以B站赞助得到完全版本。

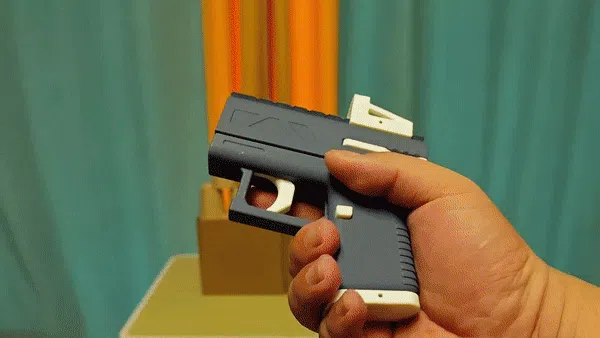

C43 Disc Shooter Free version，No metal parts, no need to support printing. The function of empty magazine hold open has been emasculated.If you like it, you can buy the full version.

额外零件清单：普通皮筋2个，4MM直径空心皮筋一小节。

Extra parts list: 2 ordinary rubber bands, 1 bar of hollow rubber bands with a diameter of 4MM.

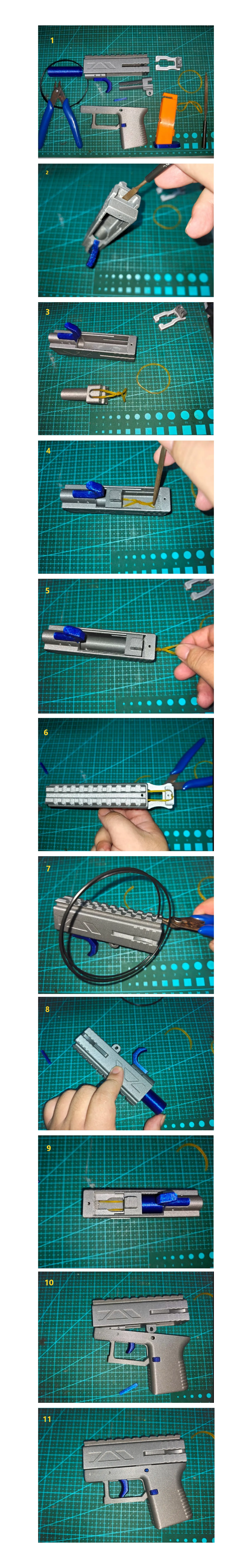

安装视频video：

【（3D打印飞盘发射器）阿祖，我要和你比速度！】 https://www.bilibili.com/video/BV1hD421V72k/?share_source=copy_web&vd_source=6856160a573c116c926a1b9e085a2494

toy gun

shooter

toy

Comment & Rating (1479)

@ollie.bobba

Boosted

Great model! Lots of Fun! I used the tiny hair rubber bands and they work amazing since they are small and very stretchy. Since I used the textured heat bed I had to sand off the texture side of the magazine to fit correctly or else it gets stuck. I need to print an orange tip for it since it is so realistic. Looking forward to more accessories, possibly more sights?

The designer has replied

@CCFDIY

I suggest you print with colored filament

@ollie.bobba

Boosted

Replying to @CCFDIY :

Probably a good idea. Do you have any other barrel versions or slides with the cut outs?

@Kza3D

Boosted

Very cool, this is a print I intend to make

@catherinemae

I printed this but wasn't able to assemble successfully. I am missing the parts that circled. What are those called and where can I get them?

The designer has replied

@CCFDIY

This is the filament ... , the thick one is a rubber tube, which can be printed with TPU, and I see that someone has uploaded a model

@user_3396683966

Replying to @CCFDIY :

where can i get the model

@user_2381999248

Boosted

how do I print more discs?

@caa1211

It operates smoothly, rubber bands for slingshots are generally hard to obtain, but even without the rubber band magazine installed, it won't fall off.

The designer has replied

Show original

@CCFDIY

Yes, it can be played normally by friction.

Show original

@user_2780131660

The color scheme is beautiful, but I wouldn't dare print structural parts with silk filament, the overhangs are prone to failure.

Show original

@123ethanchan

Boosted

Replying to @CCFDIY :

i actually prefer no spring/tube for mag release

@Dubtee

I built it. The issues I've come across are: A. The back of the slide is very weak, broke during assembly. Should add supports to the interior. B. The rubber band for the slide is near impossible to assemble, I could only get it on one time and it popped off first shot. C. The rubber band in the magazine doesn't have a big enough channel so it gets bound up. A little silicone lubricant helps but it still binds once tension is released. I really like that you can use filament instead of screws to lock all of the components together, and the build looks very slick. All in all I give it 4 stars, but would get 5 if the rubber bands were a bit easier to assemble.

The designer has replied

@CCFDIY

Thanks for the comment, you can try PETG printing, it will be much stronger. Also, you can take a look at my assembly video, there is a simple way to install the rubber band. Finally, I'm already thinking about strengthening the sliding sleeve.

@Dubtee

Replying to @CCFDIY :

Thanks! I'll attempt with CF petg because I have some in green I'm eager to use, once that's updated. As for the video, the link doesn't work whenever I copy/paste it into my browser. I'm in the US. Are you able to upload to YouTube?

(Edited)

@Serpandrew

Boosted

Print Profile

BETTER TPU cylinder with FLAT CUT 1 walls, 5% infill

worked great thanks. printed a couple spares as well

@EVERYTHINGPLUSU

awesomeeeeeee

@user_2408488938

Replying to @EVERYTHINGPLUSU :

Are those for the band?

@user_2408488938

Replying to @user_2408488938 :

Like the green thingy

@edasku

Print Profile

0.2mm layer, 4 walls, 25% infill

really like how it looks just dont have the parts to complete it rubber bands are too big and cant find hollow rubber tube and also the magazine is stuck but that is proabably my fault

@ollie.bobba

Boosted

I used these tiny little hair rubber bands and they worked great they almost look like the colorful ones that go on braces. No rubber tube either but it can still work without. My magazine got stuck too but I figured it was the textured heat bed that caused it so I sanded off that layer and it slid right in. That white on black looks great!

@edasku

Replying to @ollie.bobba :

thank you i will try that too

@CU_Mojo

Boosted

little sanding does wonders for it. I sanded down where the barrel goes into the grip, the catch for the mag, the mag, the pin holding the barrel into the grip. not much, just a little.

@AtnZ

Boosted

first print got some spaghetti. not sure if it's filament's problem. and some bridging areas seemed need support. reprinted one added some supports and worked well. Excellent toy!

The designer has replied

@CCFDIY

Slower speeds can work better

@AtnZ

Boosted

Replying to @CCFDIY :

ah, I think I know why I had spaghetti. it's actually due to the video recording. I usually send printing from my phone but I sent one job via my laptop yesterday and checked video recording before sending. then a warning popped up about video recording might affect print quality. I searched and found it's not just myself having that issue. there was an adjustment could be made but I could not find it.

@CCFDIY

Replying to @AtnZ :

Print a video option, don't check it.

@forte96

Print Profile

0.2mm layer, 4 walls, 25% infill

printed with PLA and both prints were kinda bad, parts are made to be almost same size so they does t fit, parts are easily breaking :/ ended up throwing parts away. cant give 4 or 5 as it was unusable :( sorry, but for me it was bad print. Even tried to glue some parts after breaking, but no help.

Strength Issue

@CCFDIY

Sorry, this should be a material problem, you can try printing with PETG

@forte96

Will give it a try and edit rating accordingly

@123ethanchan

Boosted

For mgazines i ended up needing to print in ABS and make the top stop part 999walls

@jakub.rogoolski

Print Profile

0.2mm layer, 4 walls, 25% infill

nice

@Holzy7

Boosted

did u use the hollow rubber band

@Holzy7

Boosted

OK thank you do you know if you can use it without it because I just printed mine everything is working fine Except it’s not shooting Do you think it’s only because I have disk

@jakub.rogoolski

Replying to @Holzy7 :

I use rubber bands but I first grease the moving parts

@skkai

Boosted

This is incredibly fun, thank you for sharing! For those who don't have printed dowels, I recommend using toothpicks - they are a perfect fit.

The designer has replied

Show original

@CCFDIY

No need to print the connector, simply insert the filament directly.

Show original
