Model Introduction: Catapult Chariot — Blaze
Print Profile(1)
Bill of Materials
- 995舵机 x 1:
Description
I. Core Model Information

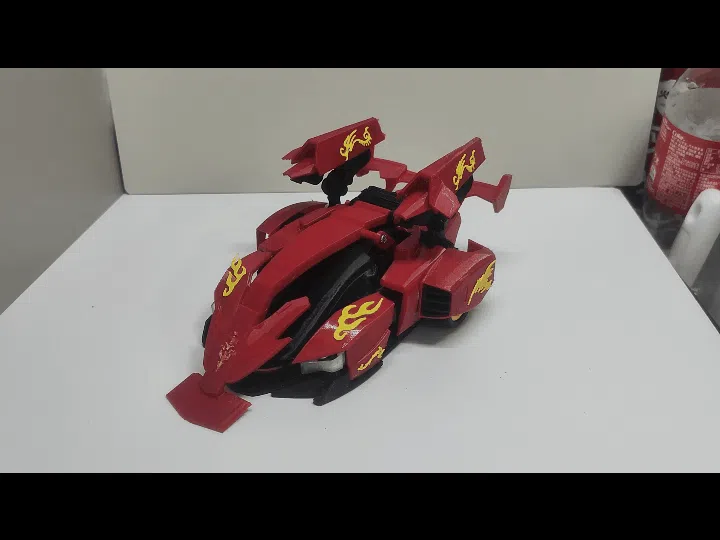

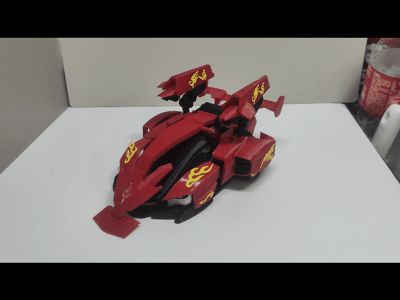

Model Name: Catapult Chariot — Blaze
Design Inspiration: Centered on the core theme of "Flame Dragon Pattern", this model integrates traditional Chinese dragon elements with futuristic sci-fi racing aesthetics. Its red and gold color scheme delivers a strong sense of speed and aggressiveness. Like a blazing crimson flame, it dominates the track with unstoppable momentum.
Production Method: A fully self-designed 3D-printed model. It adopts modular assembly to realize multi-structure linkage, balancing the precision of mechanical structure and stunning visual impact of the appearance.
Required Materials: CyberBrick kit and one 995 servo (approximately 10 RMB, 90° or 180° configurable; the original servo included in the kit has insufficient torque)
II. Appearance & Design Details

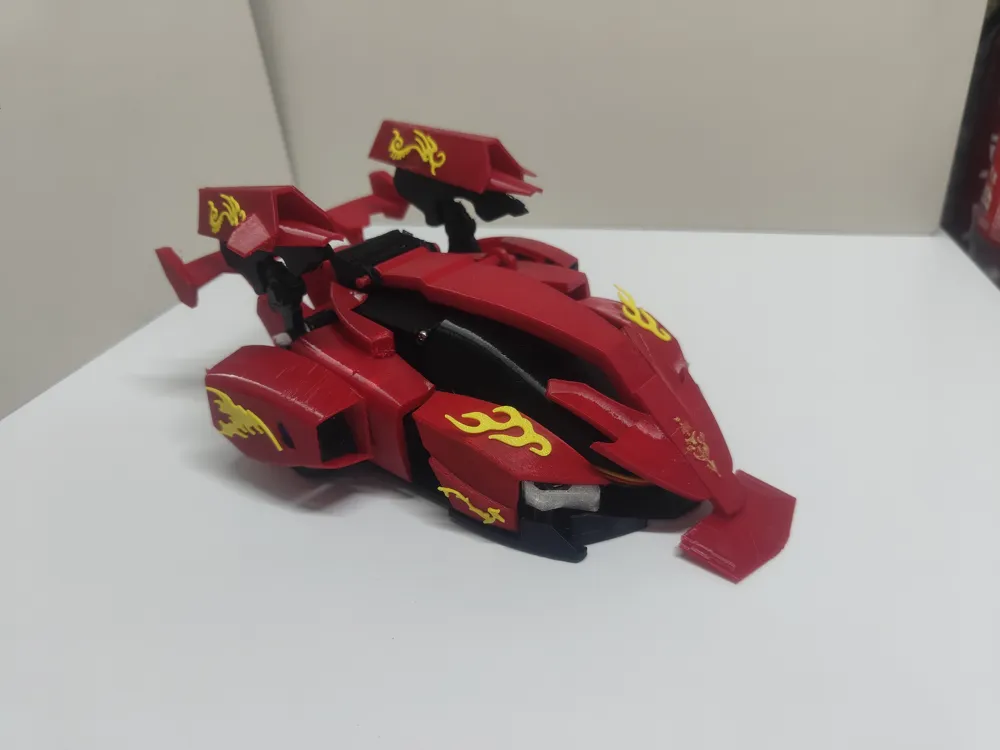

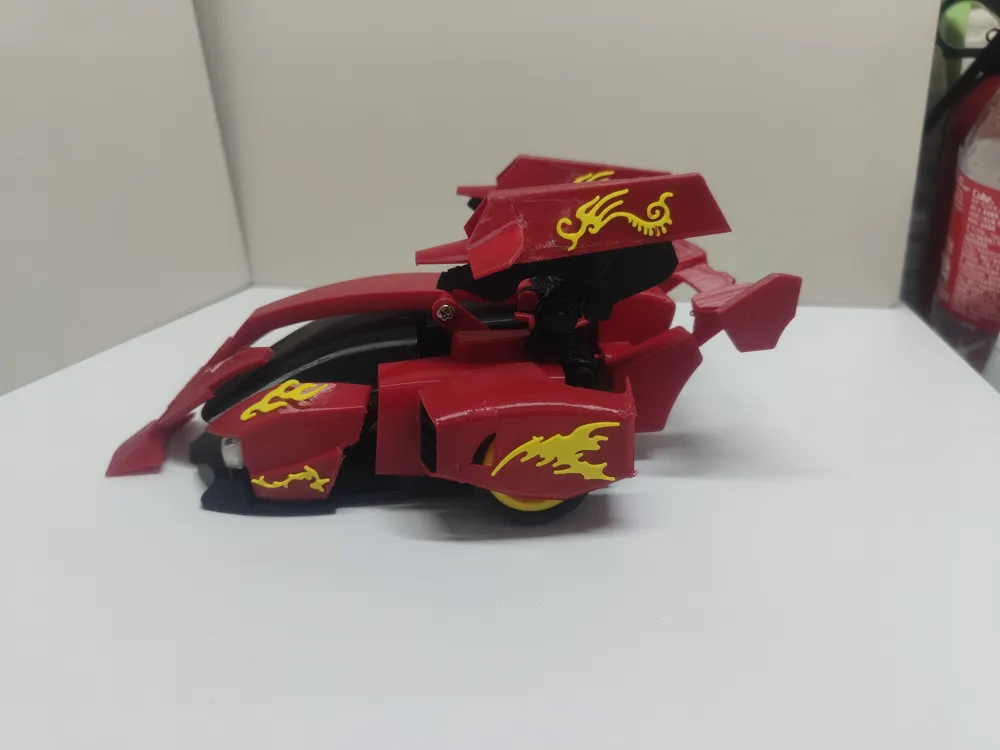

Main Body Design: Adopting a low-profile streamlined F1-grade racing car body with sharp-angled red armor covering the whole vehicle. The design reduces air resistance and forms a sturdy flame-like armor that protects the core mechanical structure. The black internal structure creates a striking color contrast with yellow dragon and flame patterns. The delicate golden dragon patterns echo the "Blaze" theme, endowing the model with unique recognition of Chinese-style sci-fi aesthetics.

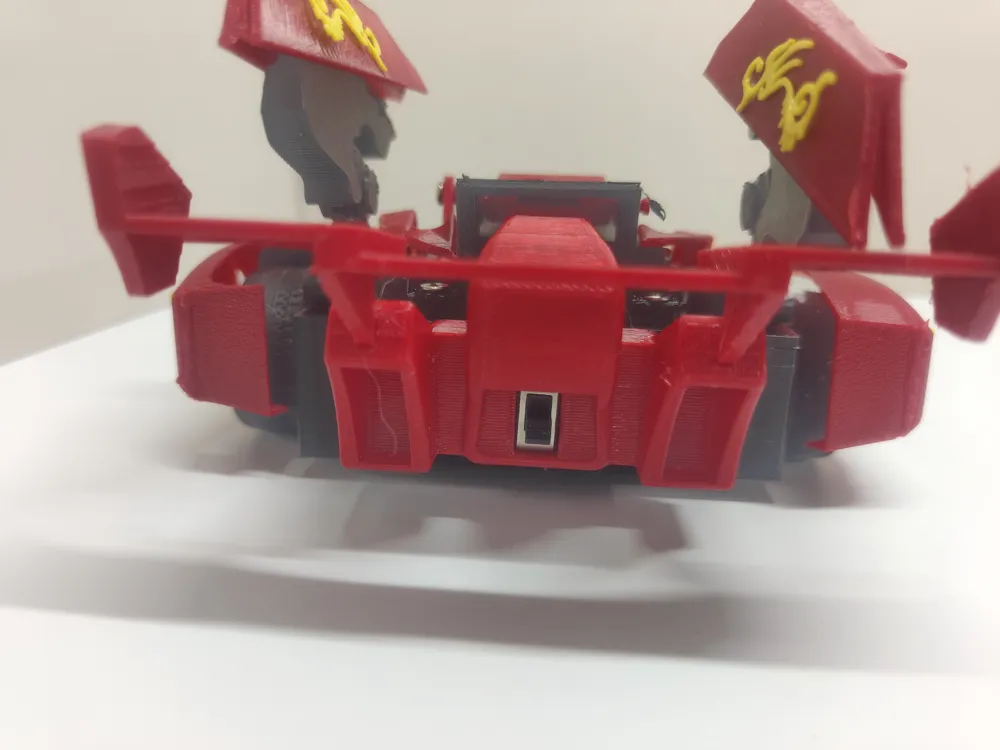

Wing Design: The rear of the vehicle is equipped with a two-section movable wing set, modeled after the stretched posture of dragon wings. Featuring mechanical joints for multi-angle adjustment, the wings stay poised and ready in static state and adjust angles according to the vehicle’s posture during operation, enhancing the overall racing sense and imposing presence.
Coating & Texture: The main body features a matte red paint finish paired with glossy yellow patterns. The layered textures generated by 3D printing are finely polished, combining the handmade texture of a fine model with the rugged temperament of industrial machinery. The red and gold color scheme delivers stunning visual tension when the lights are on.
III. Core Functional Highlights
| Battle Tipping Function | A hidden catapult mechanism is built into the front and lower body of the chariot. It triggers during battles to flip enemy vehicles, restoring the strategic depth and thrilling experience of competitive model battles. |
| Custom Lighting System | Reserved mounting positions on the front and body support customized LED light sets. The lit lights simulate the luminous effect of burning flame engines, creating an immersive atmosphere for night displays. |
| Movable Adjustable Wings | The dual rear wings support multi-angle swinging. Fixed with screw joints, they adjust smoothly without jamming, enabling various static poses such as diving and power-stance preparation. |
IV. Scenarios & Gameplay Adaptation
Static Display: Matched with a black or track-style base, it serves as a high-grade desktop collection ornament. The eye-catching red and gold color scheme and rich details make it perfect for multi-angle shooting and exhibition.

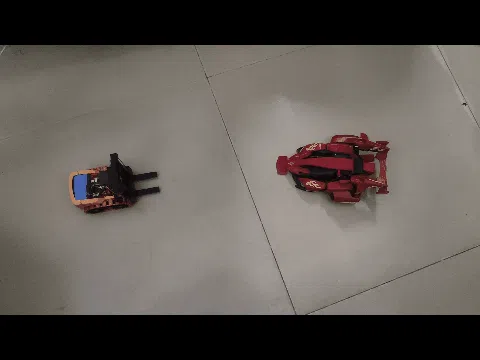

Dynamic Battle Gameplay: Compatible with modified drive wheels, it supports high-speed racing and head-to-head battles on desktop tracks. Combined with the flipping catapult mechanism, it restores the classic fun of competitive four-wheel model racing.
Custom Lighting Modification: Users can install LED light sets in different colors as needed. Paired with the original flame-themed design, it creates an immersive visual effect of a "blazing war chariot".
V. Creative Concept
The Catapult Chariot — Blaze is more than a pure racing model. It represents a perfect fusion of traditional Chinese elements and innovative mechanical design. The dragon and flame patterns embody the unique domineering aura of traditional Chinese culture, while the movable structures, competitive battle mechanisms and customizable lighting bring dynamic vitality to the static model. It fully interprets the competitive spirit of "Blaze marches forth, unbeatable in all battles".
