Parametric Square Gauge Cover Generator

Parametric Square Gauge Cover Generator

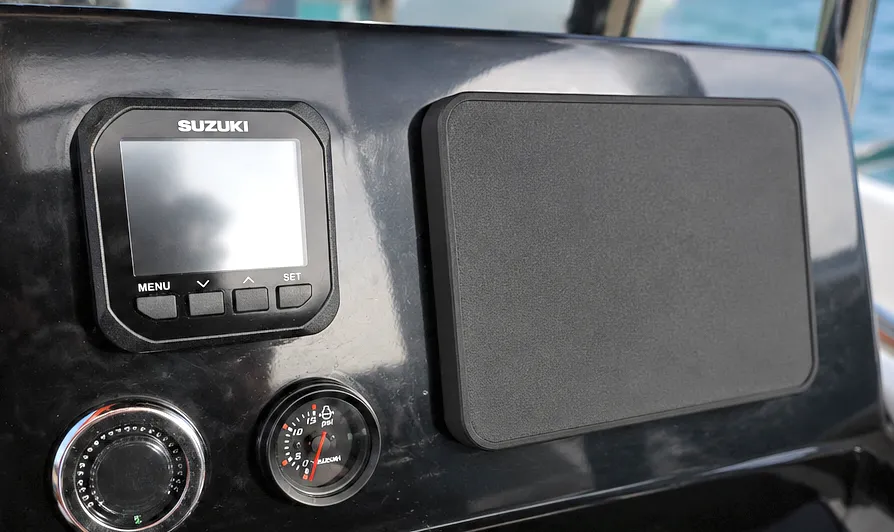

Create custom-fit protective covers for marine displays, electronics, dashboards, gauges, simulator panels, RV screens, and more.

This fully customizable OpenSCAD generator allows you to create rectangular and square protective covers with adjustable sizing, depth, wall thickness, fit clearance, and optional rounded corners.

Perfect for protecting expensive electronics and displays from:

• UV exposure
• Dust
• Scratches
• Weather
• Sun damage

Click on Customize to open the generator.

🚀 Quick Start

1. Define Your Cover

Adjust:

• Width
• Height
• Depth
• Wall thickness
• Front thickness
• Fit clearance
• Corner radius

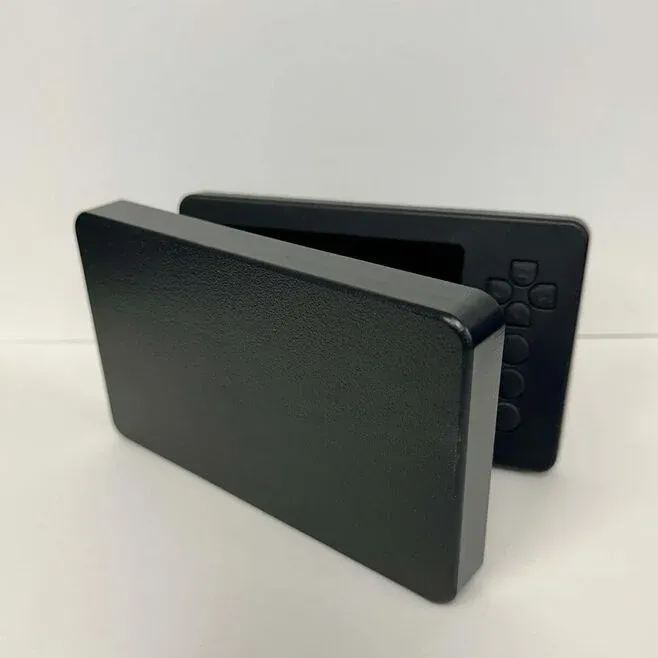

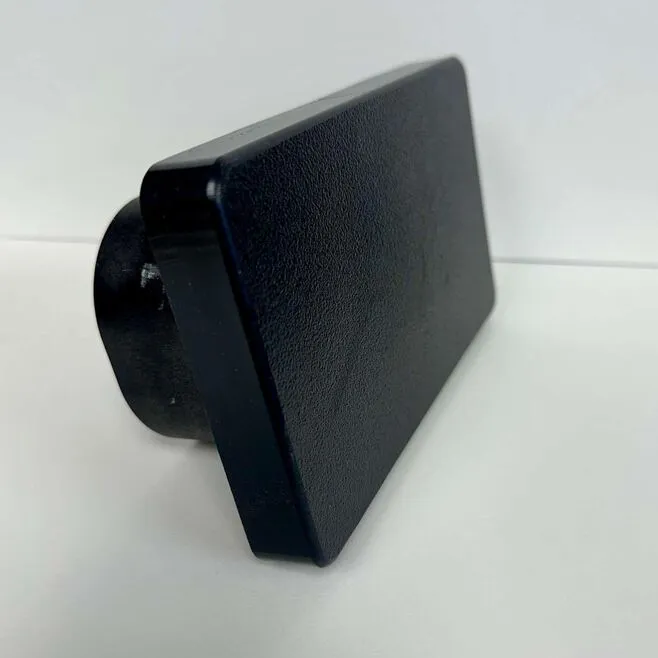

The generator automatically creates a clean protective cup-style cover sized to your specifications.

2. Customize the Design

Fine-tune your cover for:

• Marine electronics
• Dashboard gauges
• RV displays
• Automotive screens
• Simulator panels
• DIY electronics projects

Choose:

• Sharp square corners
• Rounded corners
• Deep or shallow covers
• Tight or loose fitment

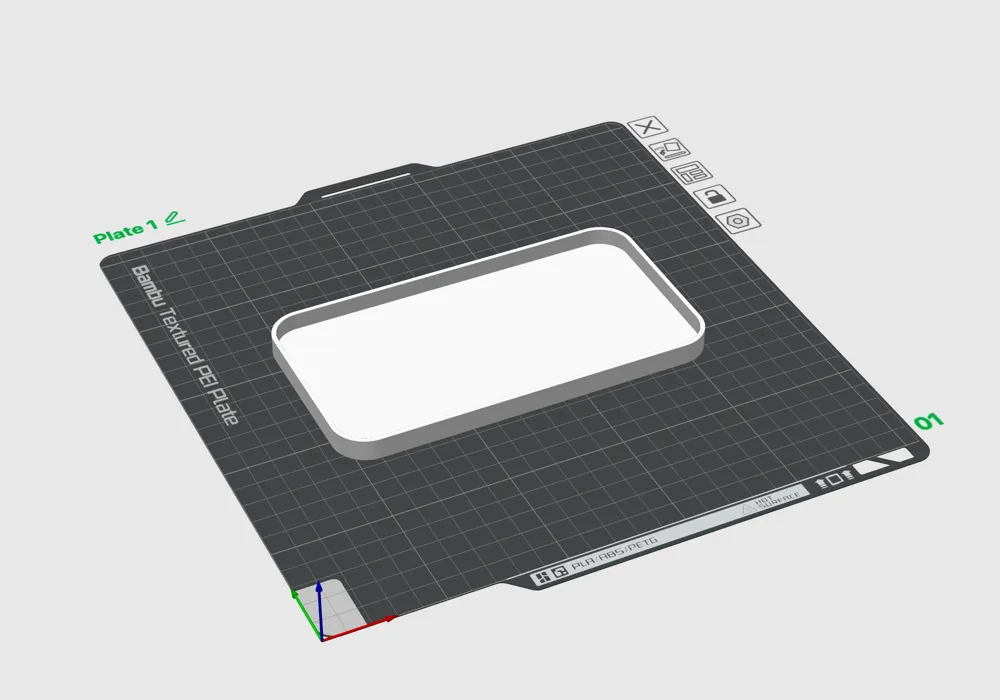

3. Render & Print

• Generate your custom model
• Export directly to your slicer
• Print and install

🎉 Done.

⭐ Features

Fully Parametric

Every major dimension is customizable.

Optional Rounded Corners

Go from sharp square edges to heavily rounded designs.

Clean Geometry

Simple reliable modeling for easy slicing and dependable prints.

Marine & Outdoor Friendly

Designed to help protect electronics from harsh environments.

Fast Printing

Minimal material usage with strong geometry.

🧵 Print Recommendations

PETG no supports, 0.2mm layer, 2 walls, 15% gyroid infill
