Olight Arkfeld/Leatherman Arc Sheath Extra

This holster is a remix built from several excellent community designs. Credit goes to the original holster creators as well as Tyler, whose combined Leatherman Arc and Olight Arkfeld holster remix inspired me to make my own version.

Tyler’s design did a great job showing how well these two tools work together in a single carry setup and was the main inspiration behind this project.

For my version, I wanted to keep the integrated bit and ratchet storage from another Arc holster design while also combining it with the Arkfeld holster setup. To do that, I resized and repositioned the original models and created a new backing piece that ties everything together and allows for belt clip mounting.

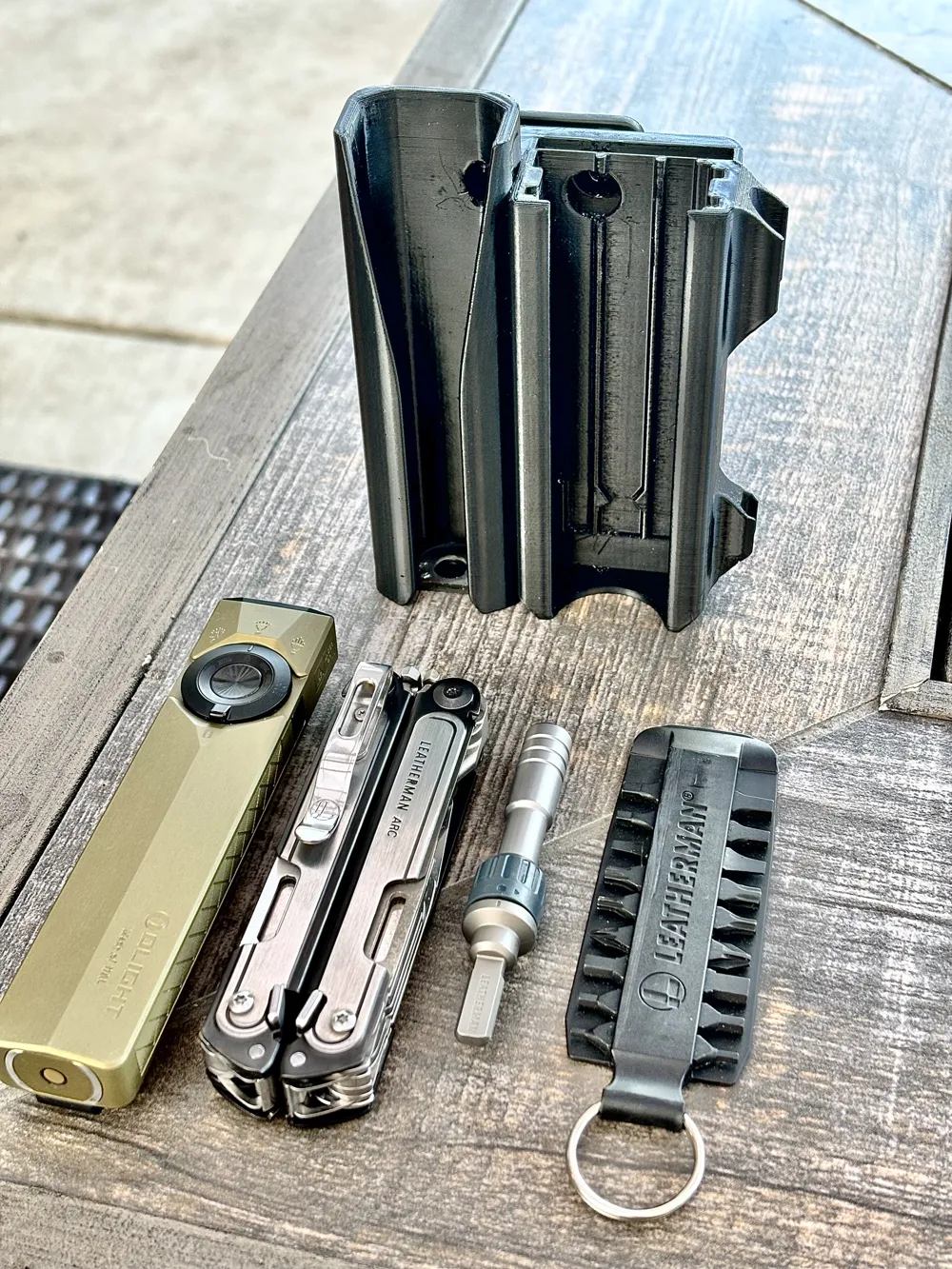

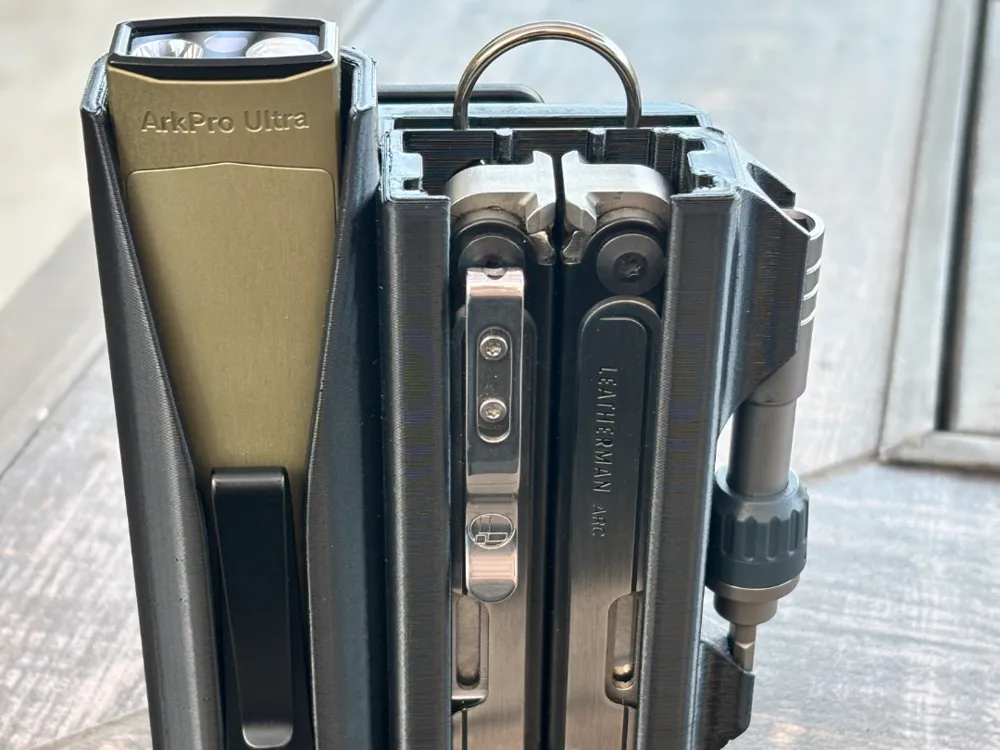

The end result is a compact carry setup that keeps the Arc, Arkfeld, ratchet, and bits together in one place while still remaining comfortable and easy to access.

Big thanks again to the original creators and Tyler for the designs and inspiration that made this remix possible.

Note scaling may be off slightly and i printed in ASA with 5 walls.

the following parts list is from Tyler's original post:

List of parts:

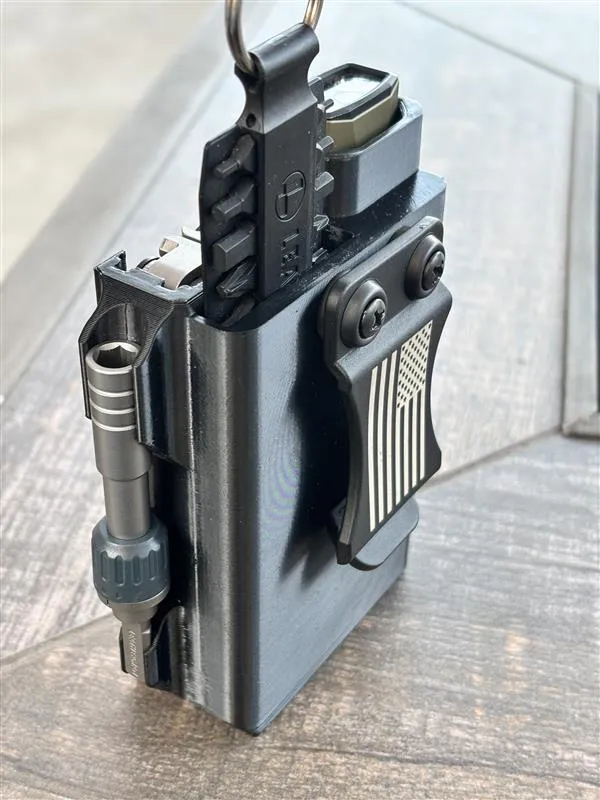

• Belt Clips - I find these to be much more robust than anything I tried to print on the model. I have included indented holes to account for this specific clip. Also it allows for easy on and off the belt functionality. https://www.amazon.com/dp/B095VHFXTM?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
• Washer x 1: 3/4in - This is necessary for the arkfeld's retention. It magnets to this and holds it in the sheath. The original designer included a cutout for this to be included and glued in.
• Super Glue
• Sponge Foam - I use this for helping the rattle that occurs from movement when wearing the sheath. You can see in the picture where I put some on the arkfeld holster and the leatherman holster at the bottom. Additionally, I put some on my leatherman itself on the sides of the hammer end in order to help the rattle.  https://www.amazon.com/dp/B076X52MYB?ref=ppx_yo2ov_dt_b_fed_asin_title
