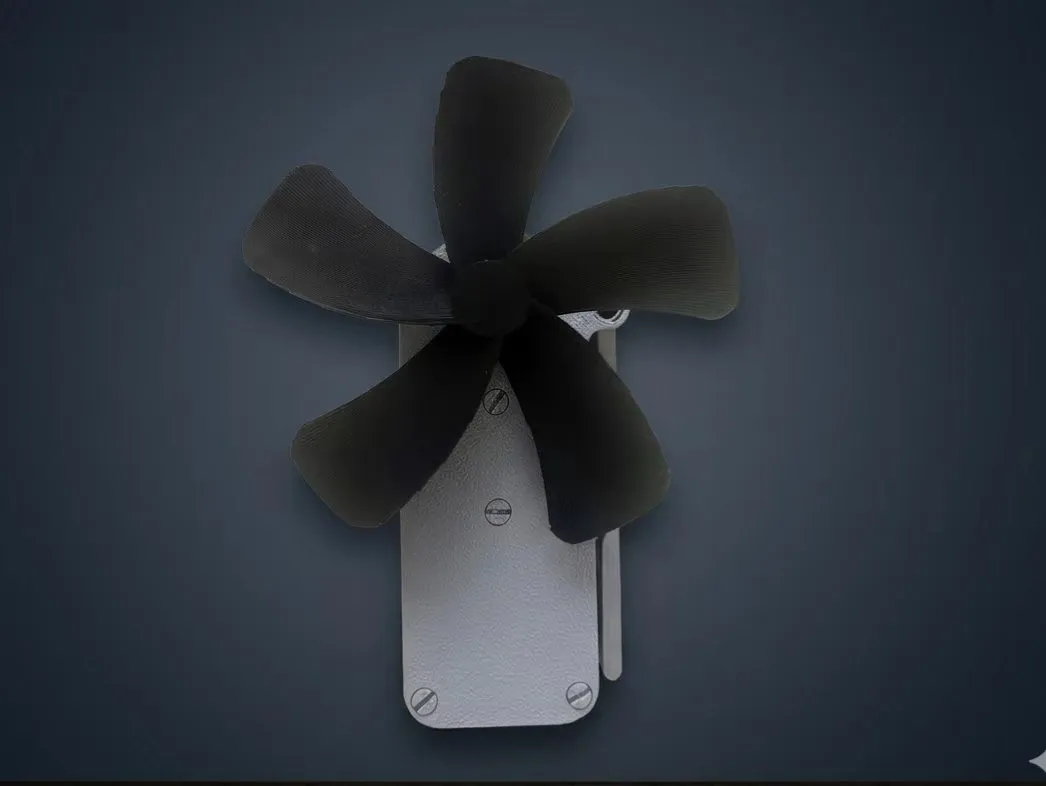

Portable Pocket Fan (Powerful and Foldable)
Print Profile(5)
Description
Boost Me (for free)
This model took me a lot of time to modify and test. If you like it, please support me
Model Features
Pure 3D printed manual push fan, no glue needed, no hardware needed
Compact size, foldable fan blades
Minimal supports, negligible, easy to print, strong airflow, helping you stay cool this summer
This model provides three types of fan blades, each with different characteristics, please print and test them yourself
Double-layer four-blade foldable fan blades、Single-layer two-blade foldable fan blades、Five-blade fixed shaft fan blades
The model's fan blades are an open structure and may cause personal injury due to accidental contact, material breakage, runaway blades, etc. Use this model at your own risk.
Assembly Instructions
It is recommended to print this model using PETG. PLA can also be used, but its lifespan will be significantly shorter.

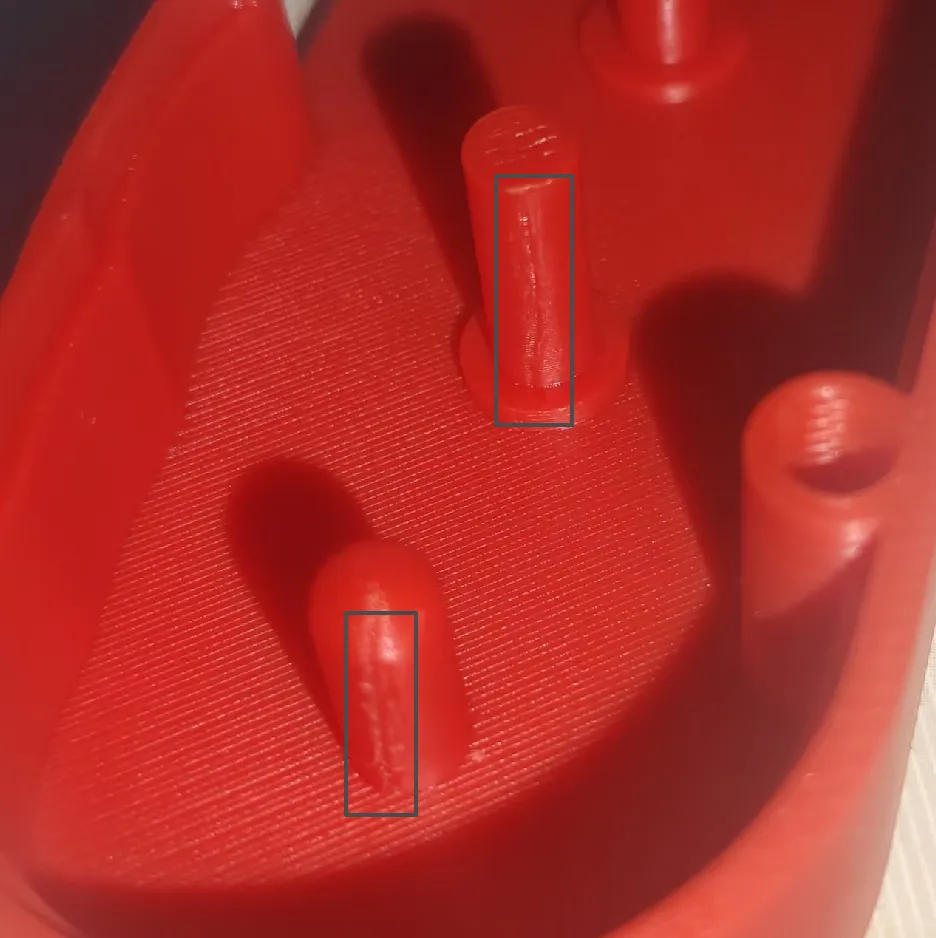

During printing, your printer may have tolerance issues causing the gears to not run smoothly on their respective shafts. If this issue occurs, please print the large tolerance version of the gear if the original does not work smoothly — Large Tolerance Gear

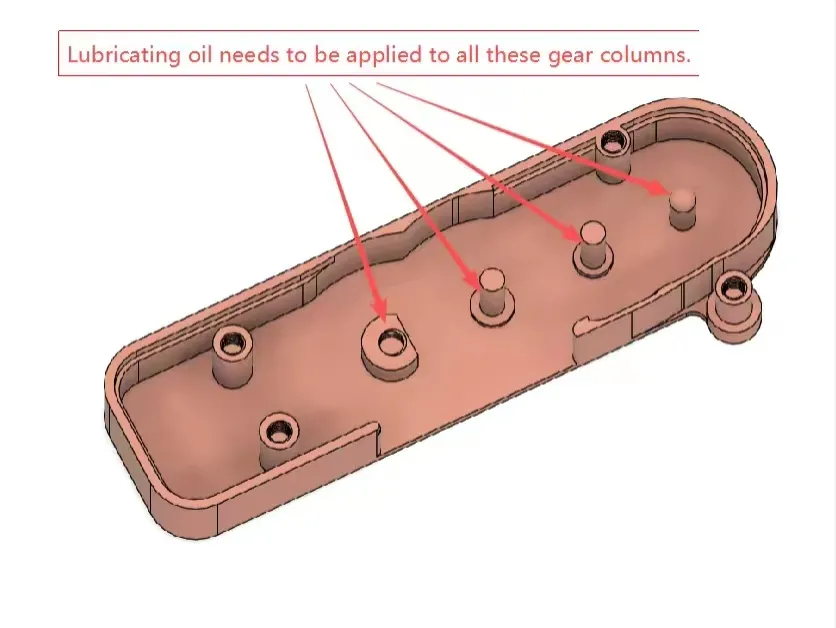

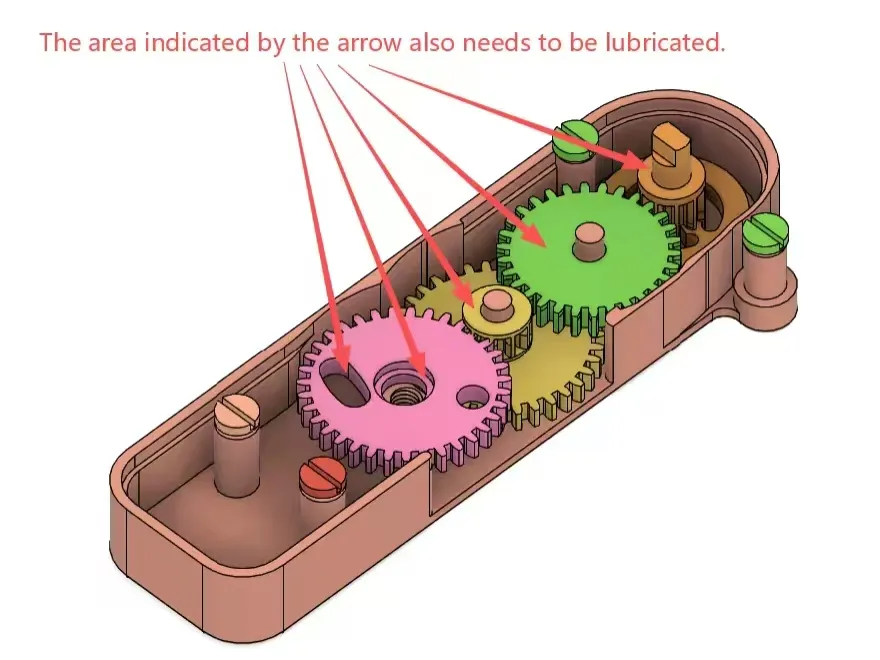

It is recommended to apply lubricant to all moving contact surfaces to make the fan run smoother

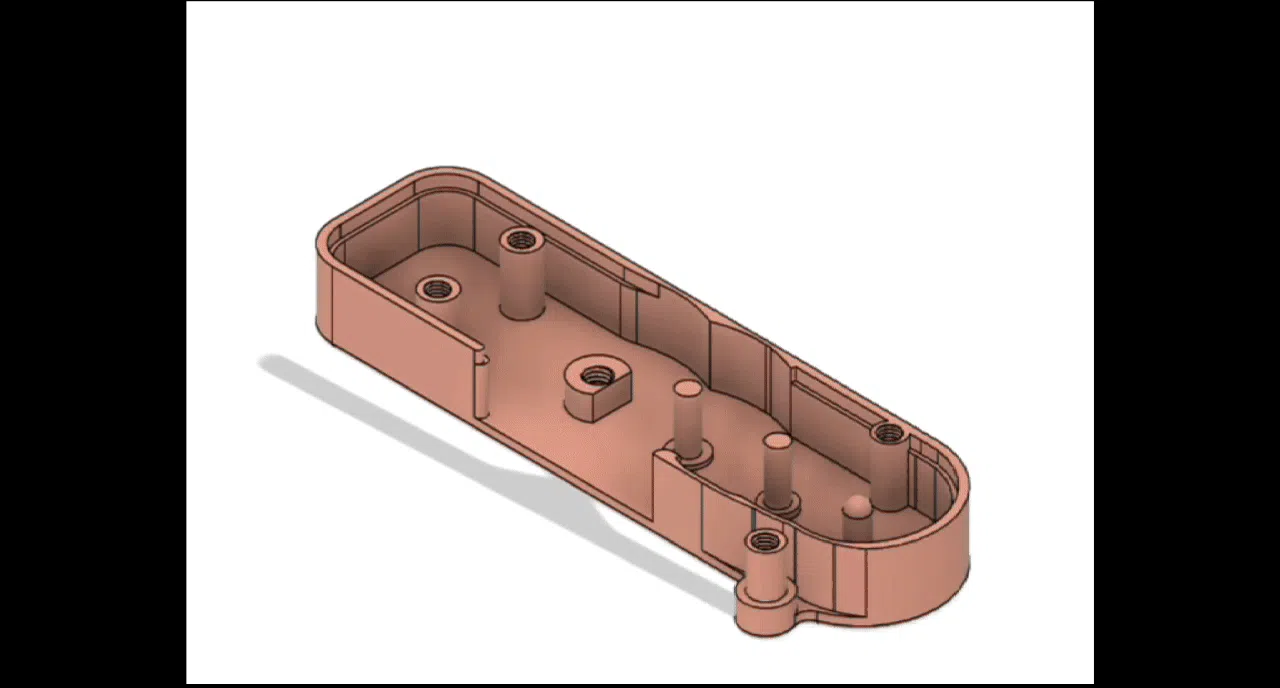

Assembly Diagram
Portable Pocket Fan V2 (Mini Version)
This version is significantly smaller, but its performance is slightly reduced and it only supports fixed fan blades
Boost Me (for free)
If you like this model, please boost me
