2D Corner Bracket / Connector Generator Customizer

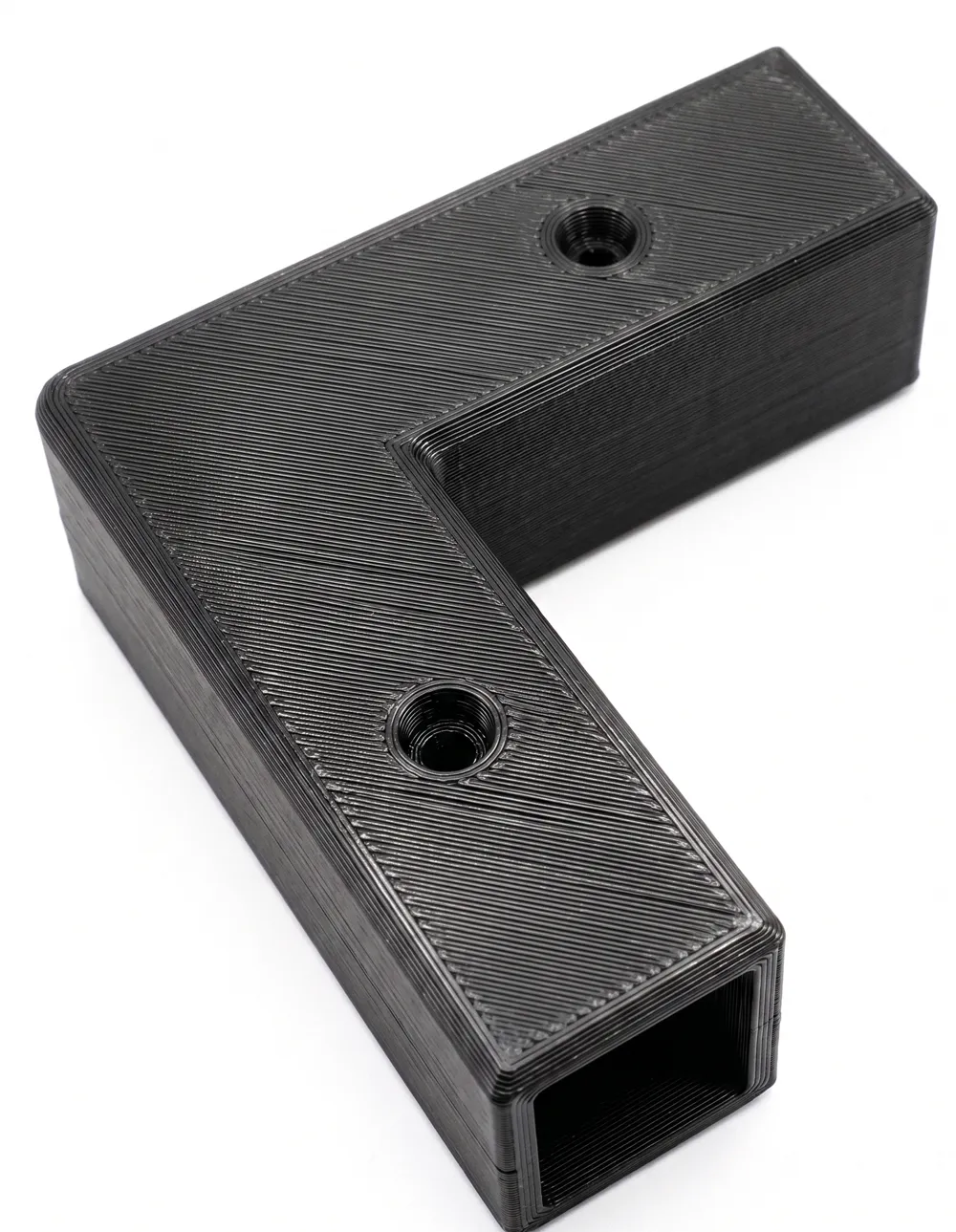

This is a fully customizable 2D corner bracket designed to join rectangular wood, plastic, or metal profiles at any custom angle. Whether you are building furniture, custom frames, shelving, or workshop jigs, this model eliminates the need for proprietary connectors.

Features & Customization Capabilities

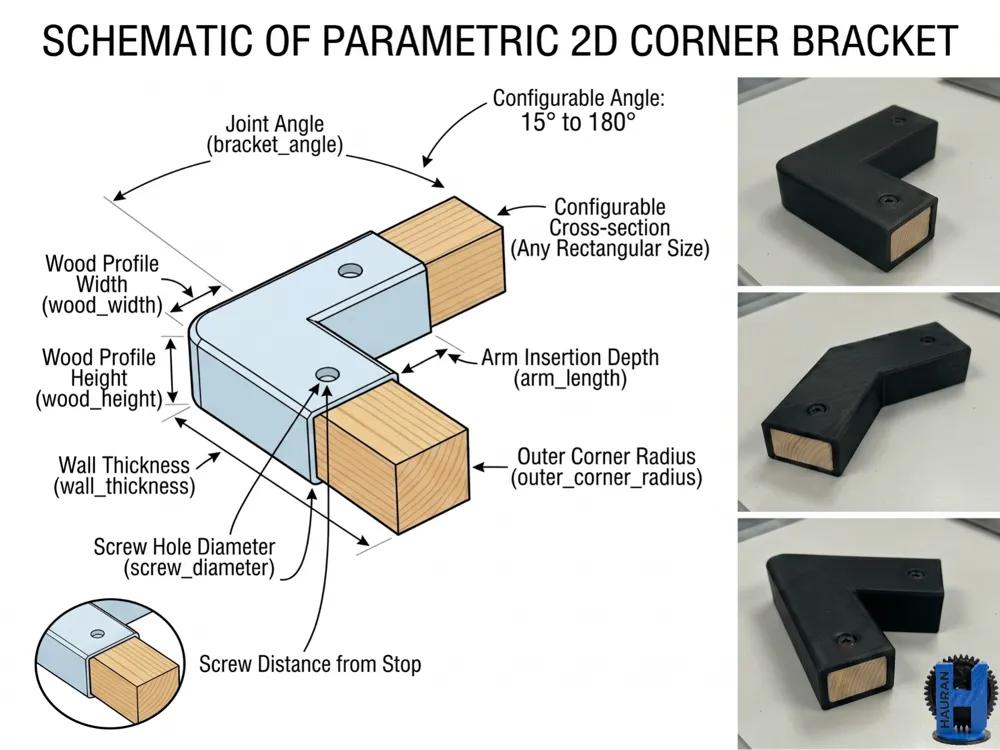

Using the built-in portal configurator, you can tweak every critical dimension of the bracket to perfectly match your hardware and project needs:

• Adjustable Joint Angle: Configurable anywhere from 15° to 180° to create custom geometric shapes and frames.
• Arbitrary Cross-Sections: Change the wood_width and wood_height to match any rectangular or square stock.
• Heavy Duty Adjustments: Fine-tune the arm_length (insertion depth) and wall_thickness to determine how rugged the final joint will be.
• Integrated Physical Stops: Flat internal collision walls ensure that your profile slides in exactly the right distance on both sides.
• Countersunk Screw Holes: Features automatic countersunk screw channels on either one or both sides (holes_both_sides), with adjustable diameter and head size for clean, flush mounting.
• Corner Treatment: Features an adjustable outer_corner_radius for sleek rounded edges or perfectly sharp corner joints.
• Built-in Tolerance: Includes a customizable clearance setting to ensure a snug or loose slip-fit depending on your printer's calibration.
