Precision Bearing Catapult | No Support
Print Profile(1)
Bill of Materials
Description

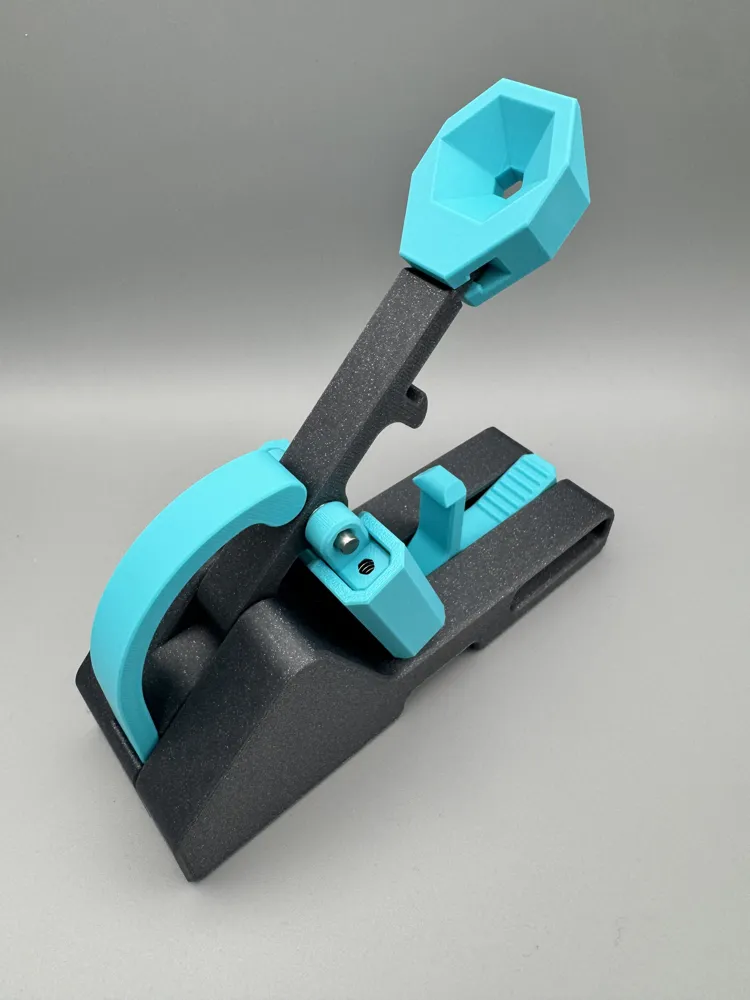

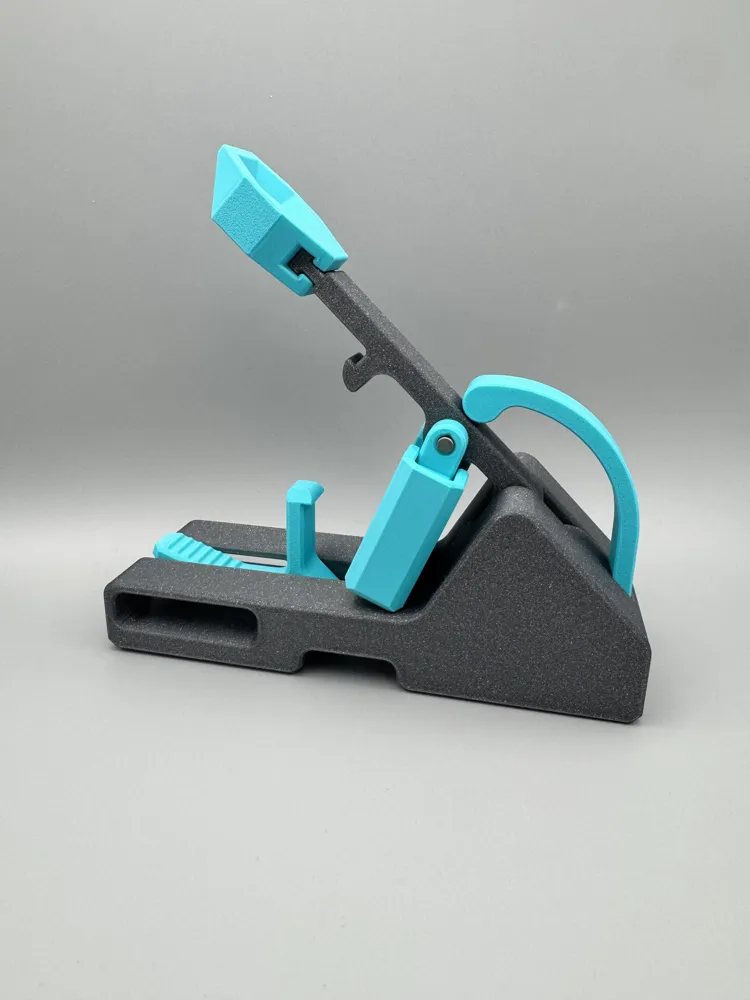

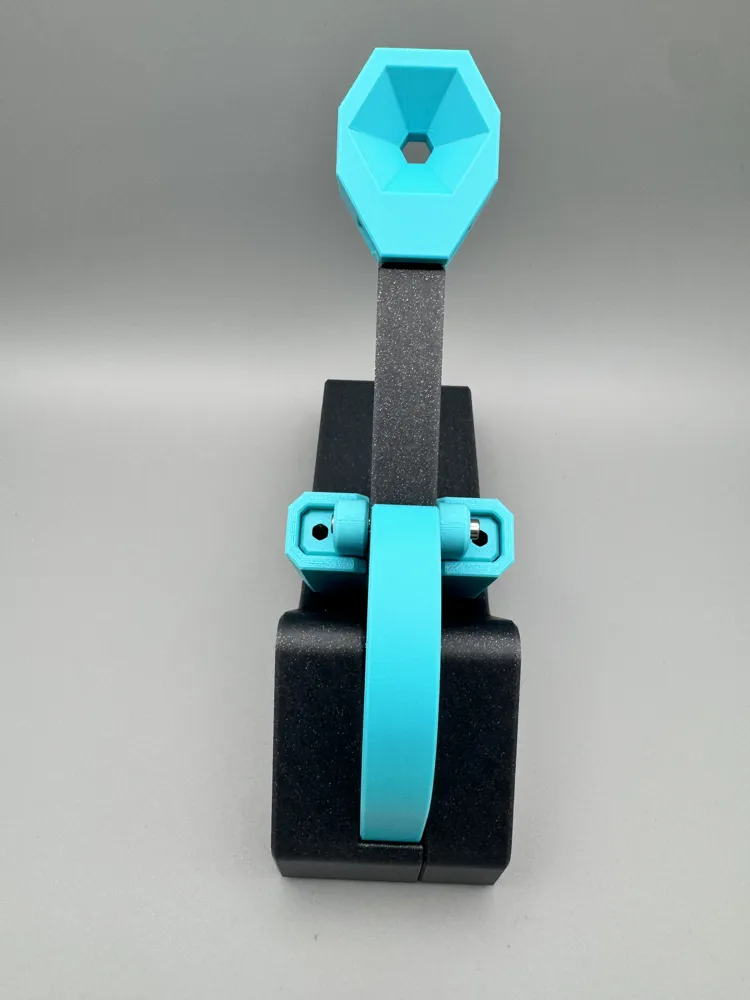

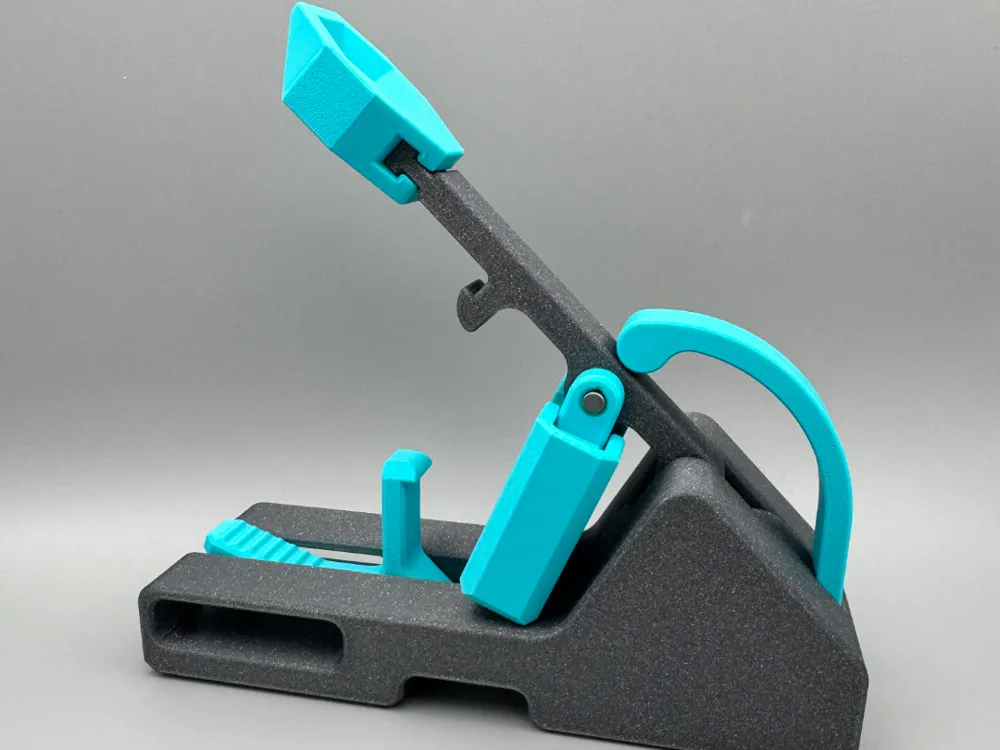

A desktop catapult with real bearings and steel springs for reliable performance.
This catapult uses 5mm bearings and steel compression springs instead of printed parts for smooth, consistent action. The trigger mechanism uses a return spring, and the main power comes from up to five compression springs that can be adjusted for different throwing distances. Real dowel pins and bearings ensure more accurate and precise launches.
Why This Design Is Awesome:
Real Bearings - 5mm precision bearings for smooth rotation and long life
Steel Springs - Adjustable power with 1-5 compression springs
Dowel Pin Assembly - Press-fit pins hold everything together securely
No Supports Required - Clean, easy printing with no cleanup
Trigger Return Spring - Automatic reset after each launch
Works with V3 Arbor Press - Makes bearing installation easy and precise (link below)
Hardware Needed:
- 6× 5mm ID x 10mm OD x 4mm thick bearings
- 4× 5mm × 35mm dowel pins
- 5× 8mm OD x 40mm L x 0.6 wire diameter compression springs (main power)
- 1× 7mm OD x 12mm L x 0.5 wire diameter spring (trigger return)
Bill of Materials available through:
- MakerWorld Maker Supply (one-click ordering)
Complete Build Guide
Design walkthrough, print bed setup, and assembly instructions with bearing press technique: https://youtu.be/TKfoD_alMHE
Arbor Press v3: https://makerworld.com/en/models/2199325-improved-3d-printed-arbor-press-v3-no-support?from=search#profileId-2389112
