Modular Miter Box System – For 0.1mm Hyper Cut Saw
Print Profile(1)
Description
Japanese notation is at the bottom of the page
Bring Absolute Precision to Your Workbench!

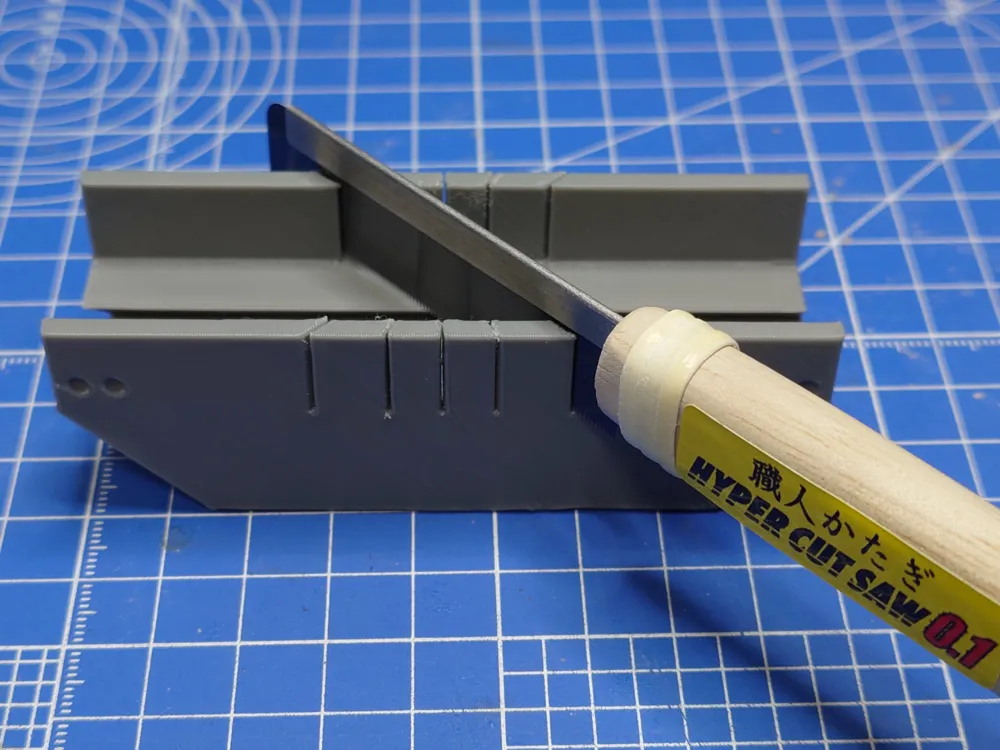

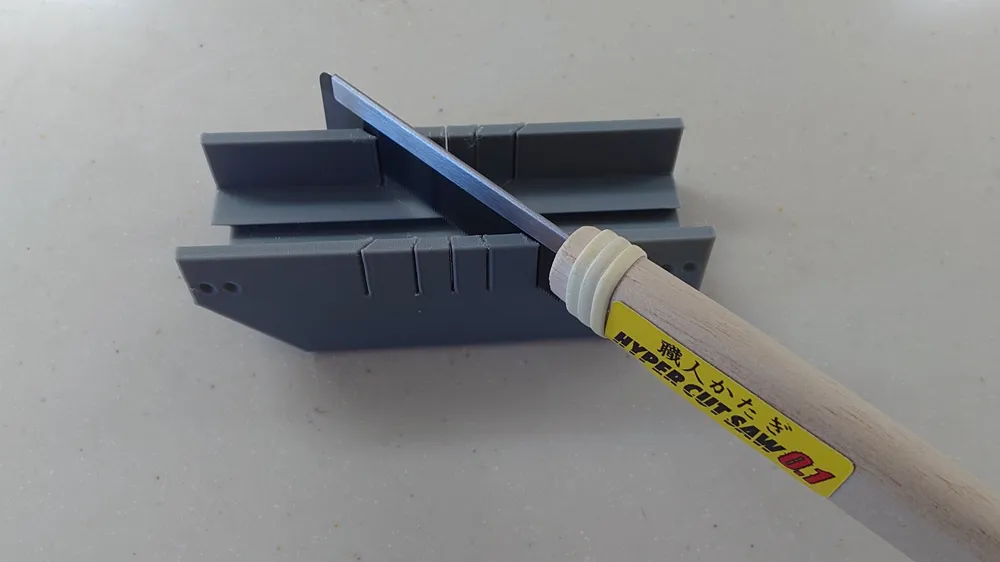

Standard miter boxes have wide guide slots that cause ultra-thin razor saws to wobble, ruining your high-tolerance cuts. This modular micro miter box is engineered from the ground up specifically for the razor-thin 0.1 mm (0.004") Japanese Hyper Cut Saw series (and similar micro-saws).
Whether you are working on Gunpla kitbashing, scale modeling, miniatures, scratch-building, or delicate electronics enclosures, this system guarantees perfectly square 90°, 45° and 22.5°cuts every single time.
🌟 Key Features

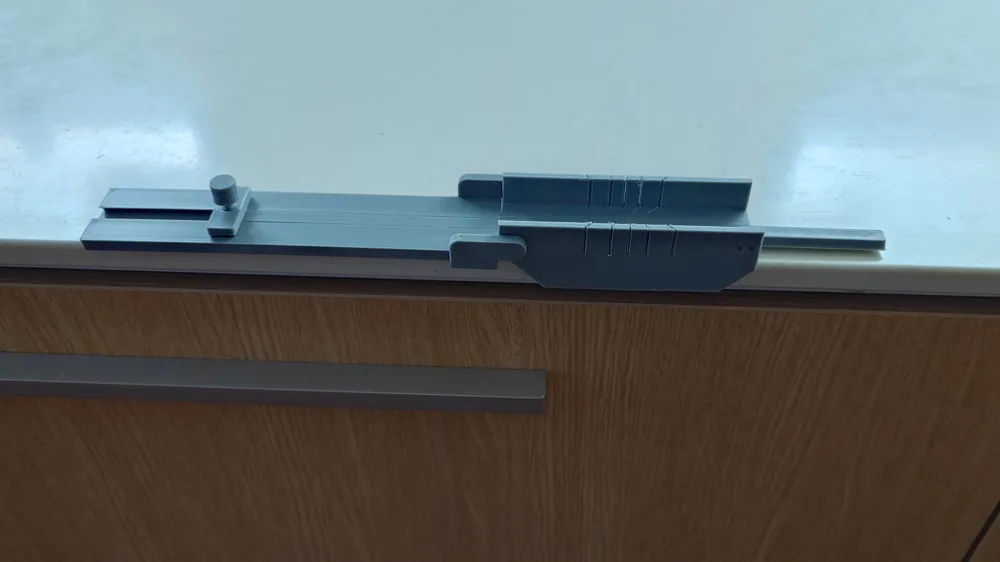

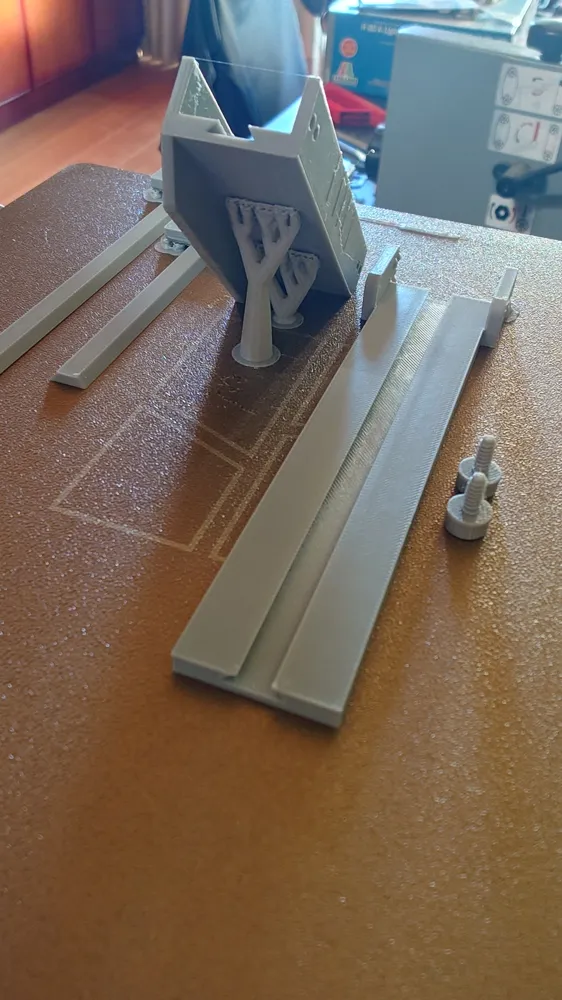

- Modular Track System: The main miter box snaps seamlessly onto an extension bed that can be used on either end.

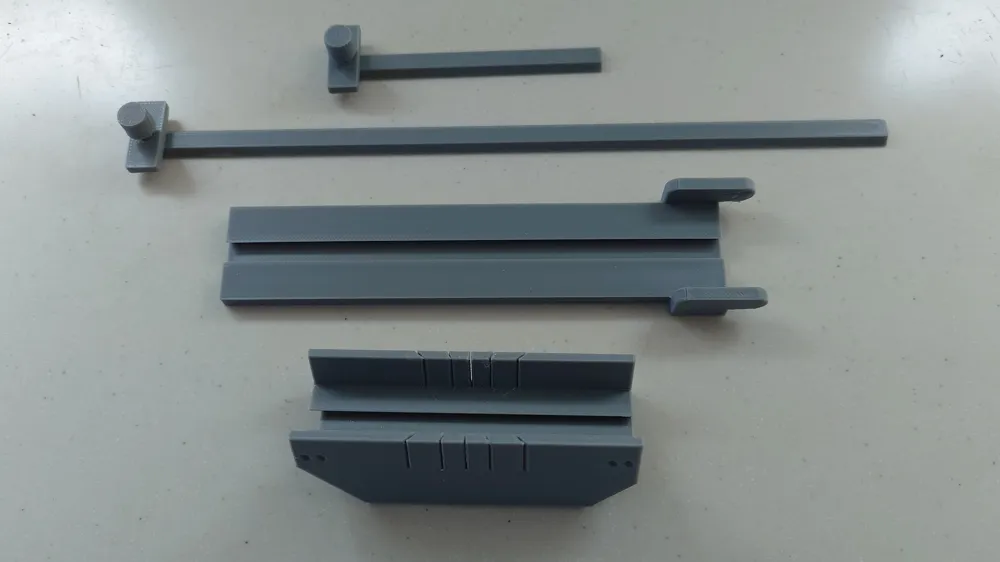

- Repeatable Cut Lengths: Includes two interchangeable sliding arms with adjustable thumb-screws—one short slider and one long slider—letting you dial in identical duplicate cuts flawlessly.

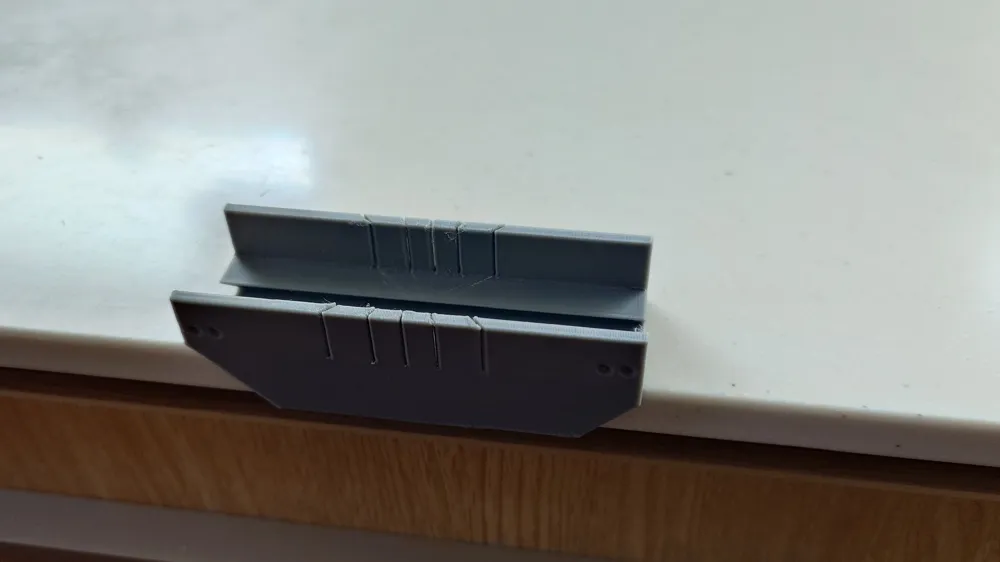

- Workbench Lip: Features an integrated front lip to easily hook against the edge of your desk or cutting mat for rock-solid stability.
- Capacity: Designed to accommodate materials up to 25 mm wide × 11 mm high (approx. 0.98" × 0.43").

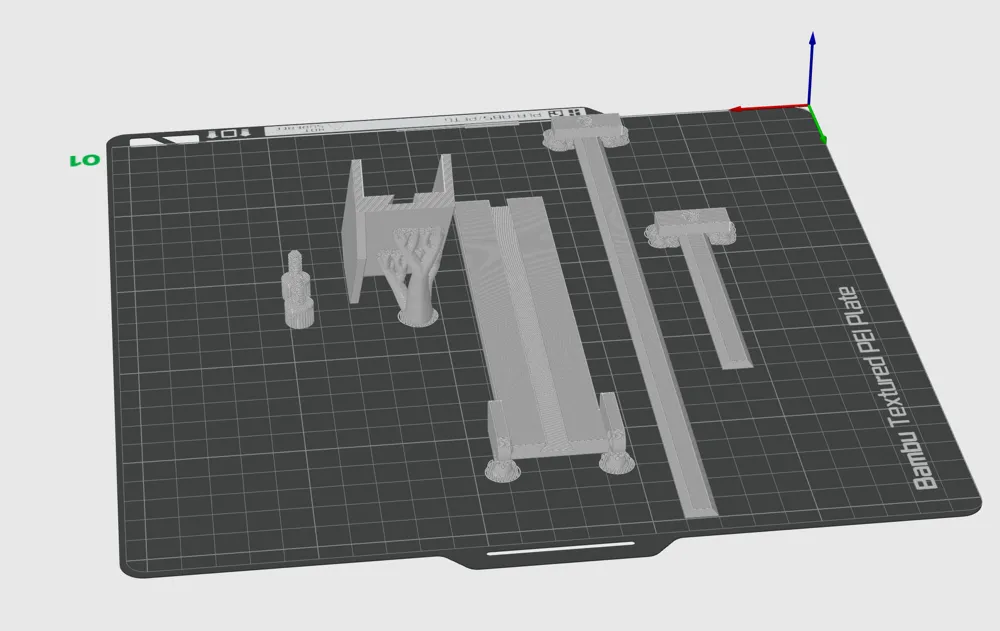

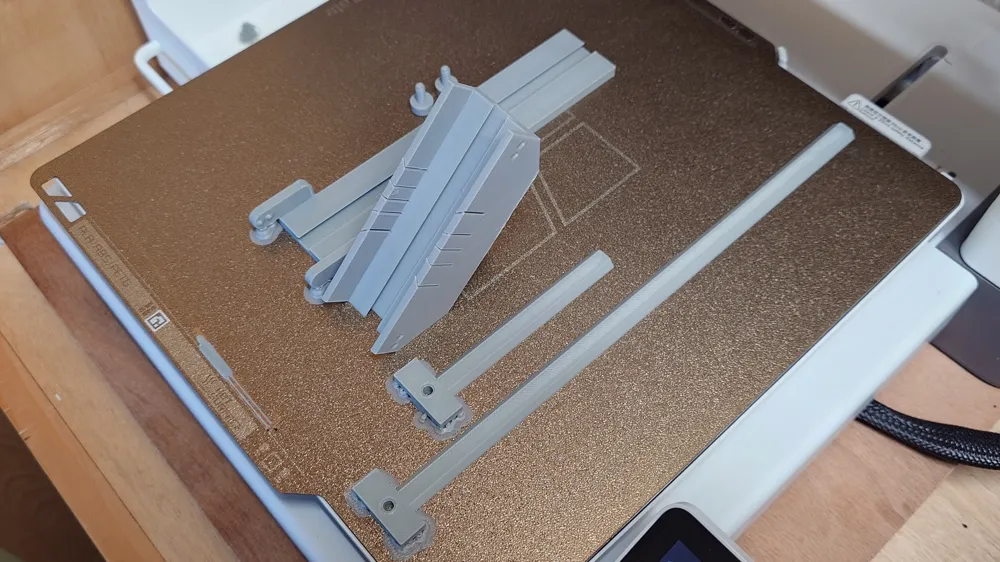

🖨️ Recommended Print Settings
- Material: PLA works beautifully!
- Pro-Tip for Ultimate Precision: While a standard 0.4 mm nozzle at 0.2 mm layer height works great, if you want an ultra-crisp look and even tighter slot tolerances, drop your layer height to 0.1 mm and/or swap to a 0.2 mm nozzle!

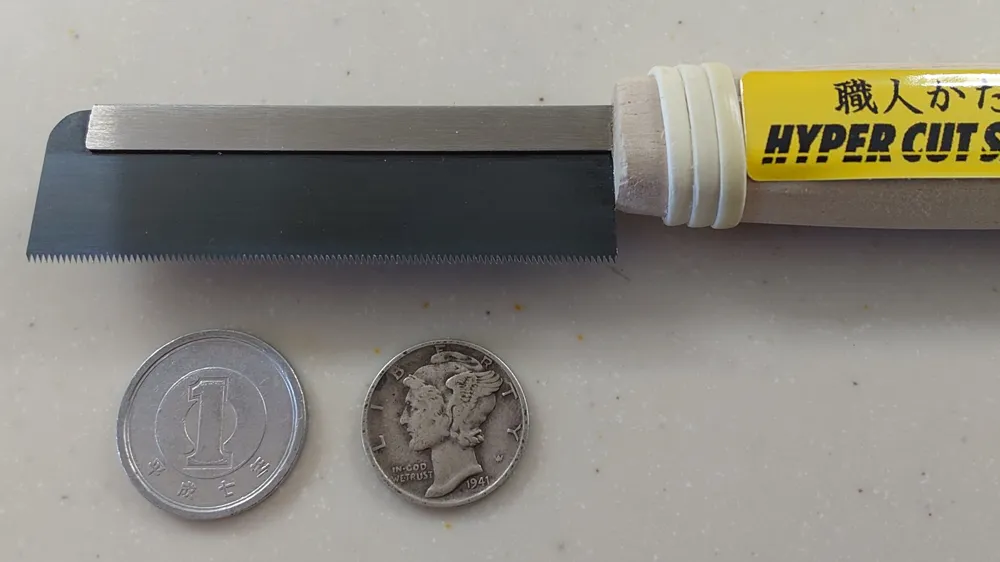

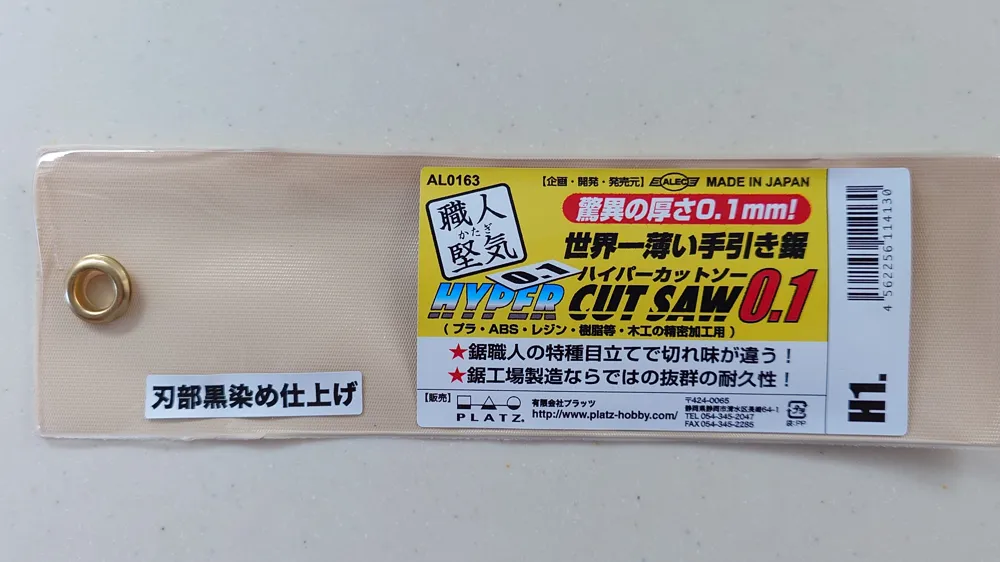

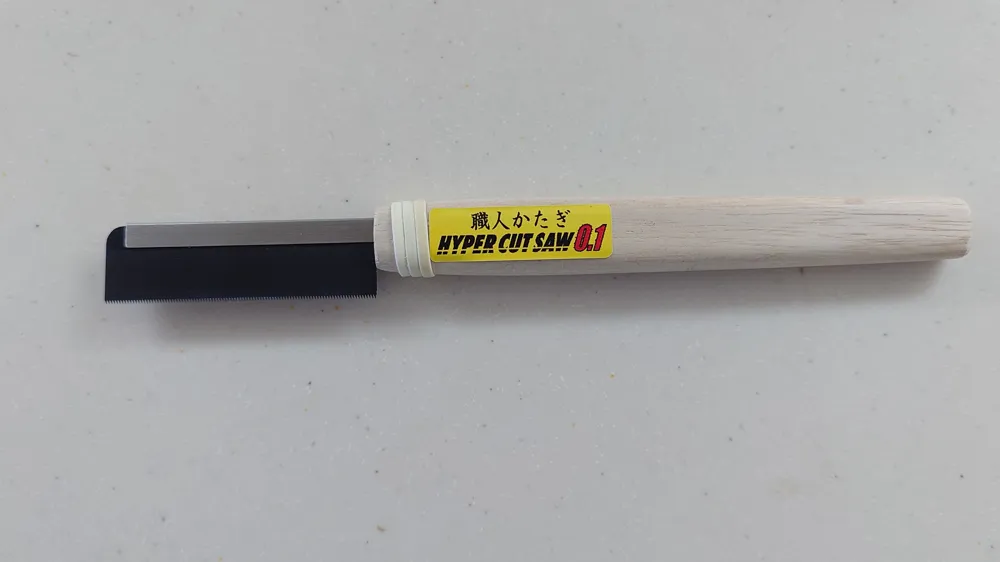

If your interested in the saw the website is www.platz-hobby.com
If you love this model and it saves your tiny scale-modeling pieces from getting ruined, please leave a review and make a post! Your support helps me earn points to keep designing!
Japanese
A miter box that maximizes precision for model and miniature making!
Standard miter boxes have wide guide gaps, causing ultra-thin saw blades like 0.1mm (such as Shimomura Alec's "Shokunin Katagi Hyper Cut Saw 0.1") to wobble. This model is an ultra-high precision mini miter box completely optimized for razor-thin blades of 0.1 mm (0.004 inches)
It enables precise 90°, 22.5°, and 45° cuts for all fine hobby work such as Gunpla, scale models, miniatures, scratch-building, and precise woodworking
🌟 Key Features
- Modular Track System: The main miter box body is compatible with an extension bed (track) that can be snapped onto either end
- Accurate Mass Production and Repeatable Cuts: Two types of sliders (short and long) that can be secured with thumbscrews are included. You can accurately cut multiple pieces of the same length
- Excellent Stability: By hooking the front lip (catch) onto the edge of your desk, it prevents the main body from moving back and forth during cutting
- Supported Size: Materials up to 25 mm wide × 11 mm high (approx. 0.98 × 0.43 inches) can be cut
🖨️ Recommended Print Settings
- Material: PLA recommended
- For those seeking even greater precision: While printing with a standard 0.4mm nozzle and 0.2mm layer height is sufficiently practical, if you want to make the appearance even more beautiful and maximize the precision of the slits, printing with a 0.1mm layer height or a 0.2mm nozzle is recommended
If you like this design, please leave a "like" or ⭐⭐⭐⭐⭐ rating, and post photos of your prints! It will be an encouragement (points) for my next work!
