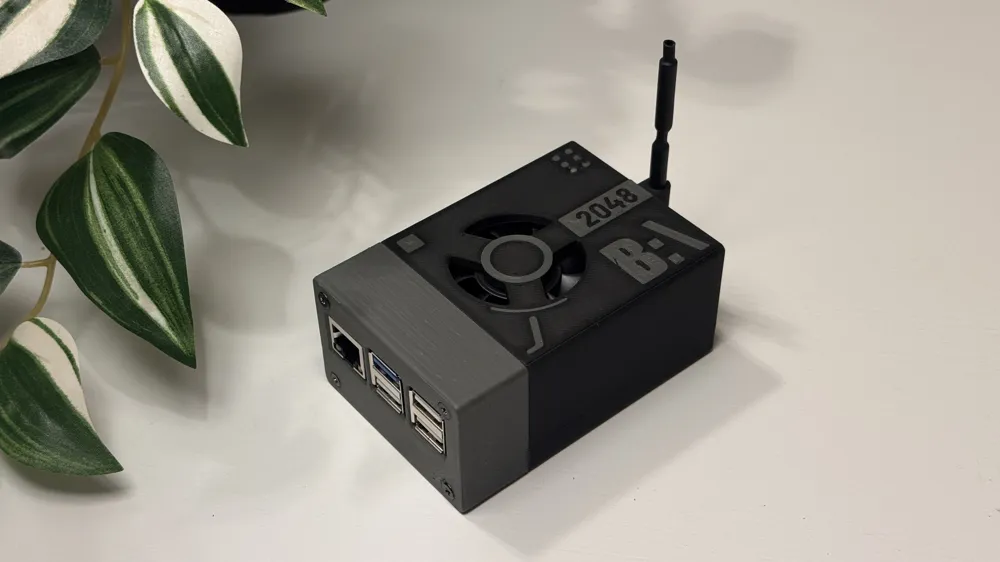

OrangePi 4 Pro Case
The case is build from scratch, printed several times and tuned for accuracy. An OPi 4Pro has been mounted and tested properly. It has 3 main parts: top, bottom, side, and 3 small parts: power switch, reset switch, antenna holder. The upload includes both .step and .stl files.
Additional components required:
- m2.5 insert (3mm height, OD 3.5mm) x 12
- m2.5 6mm screw x 8
- m2.5 12mm screw x 4
- m2.5 6mm standoff x4
Check the YouTube video for assembly guidelines:
"This design is released under GNU General Public License v3.0. The license on this platform (CC BY-SA) is selected because it is functionally equivalent for 3D models—both require attribution and share-alike. The source files (STEP format) are included as required by GPL v3.0."
