AMD BC-250 Case with fullATX PSU
Print Profile(4)




Description
Hi,

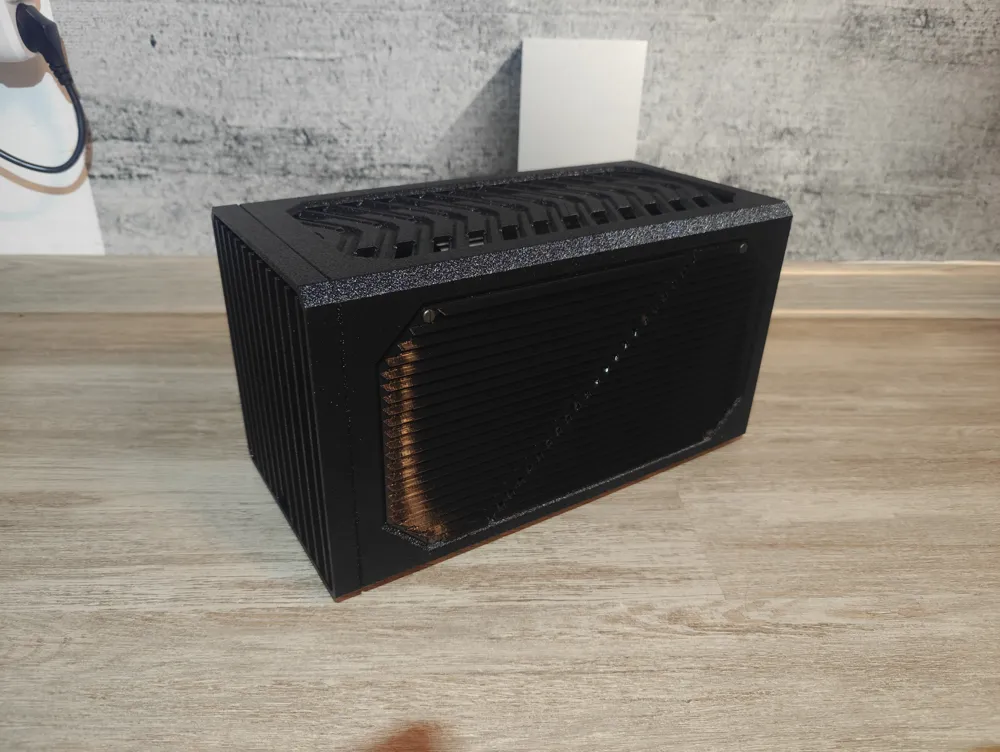

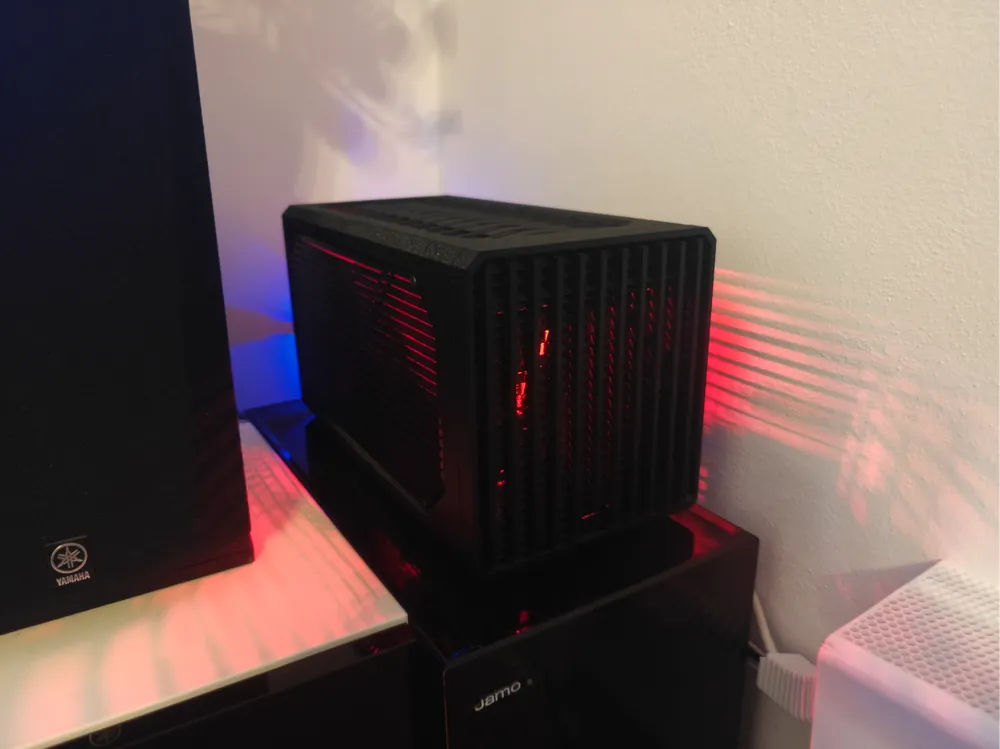

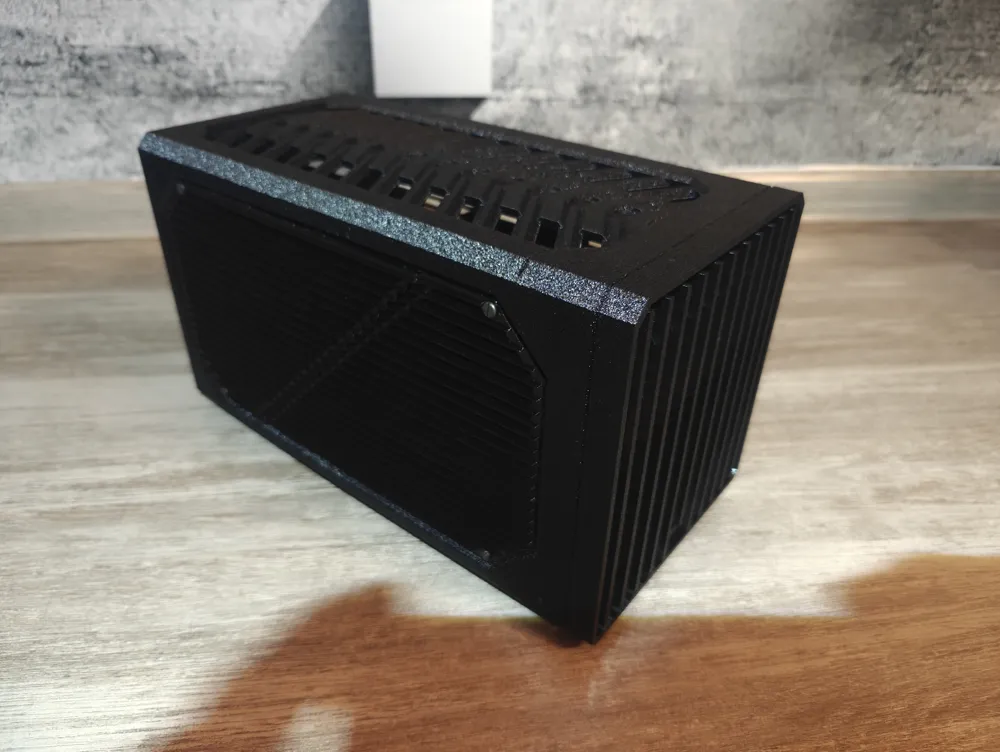

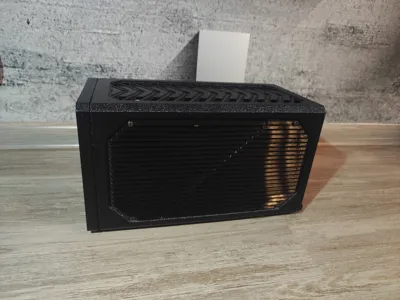

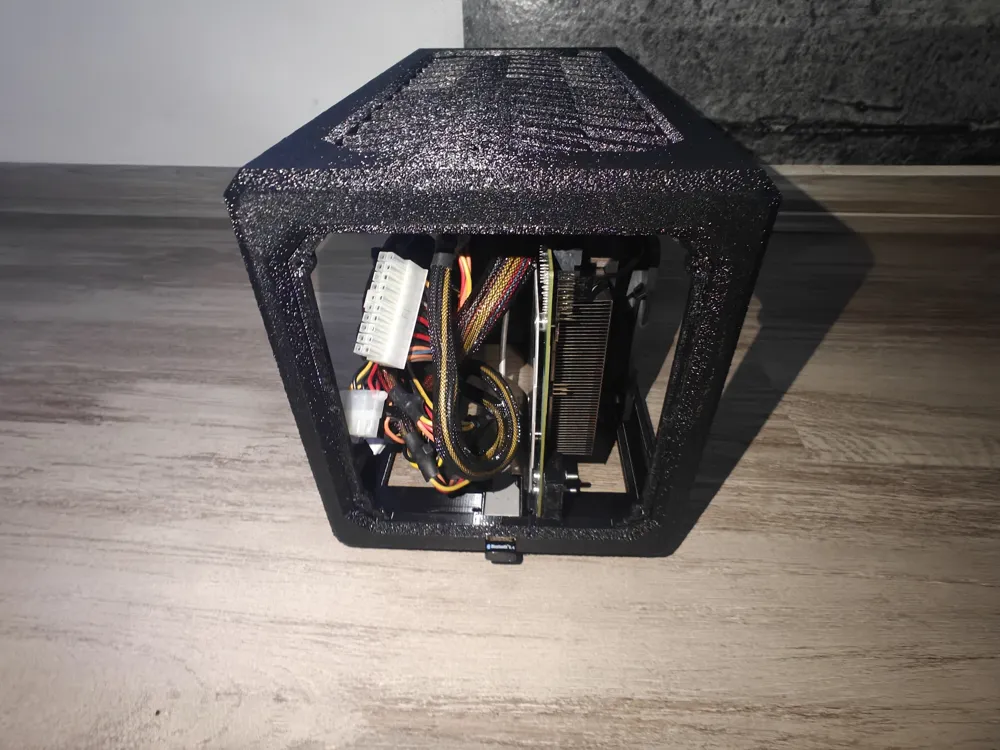

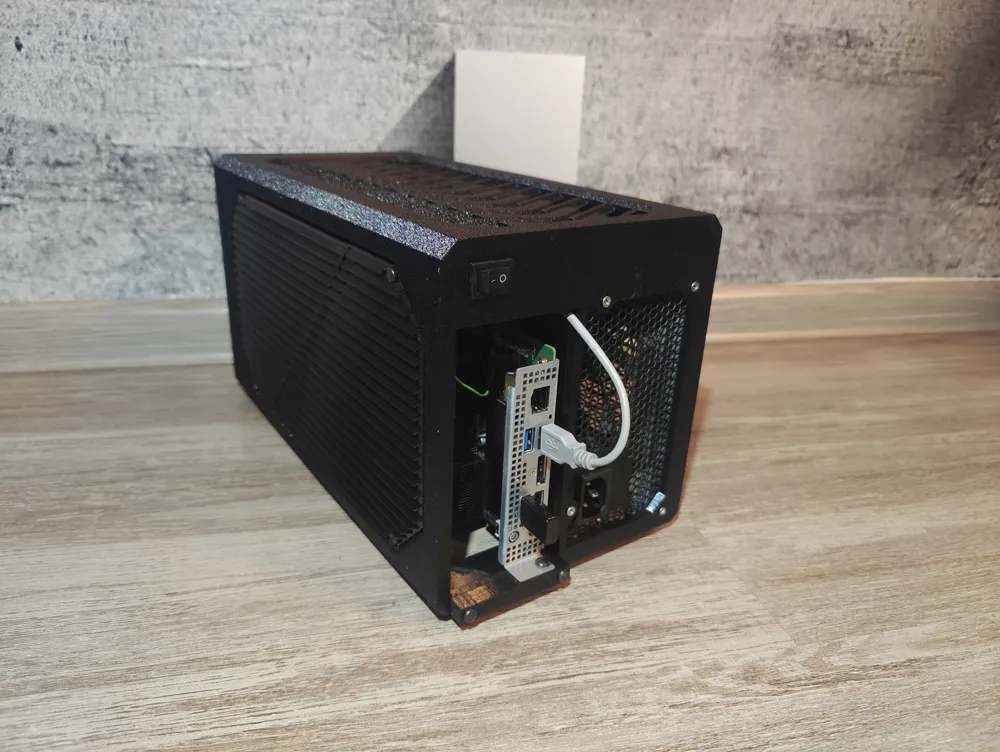

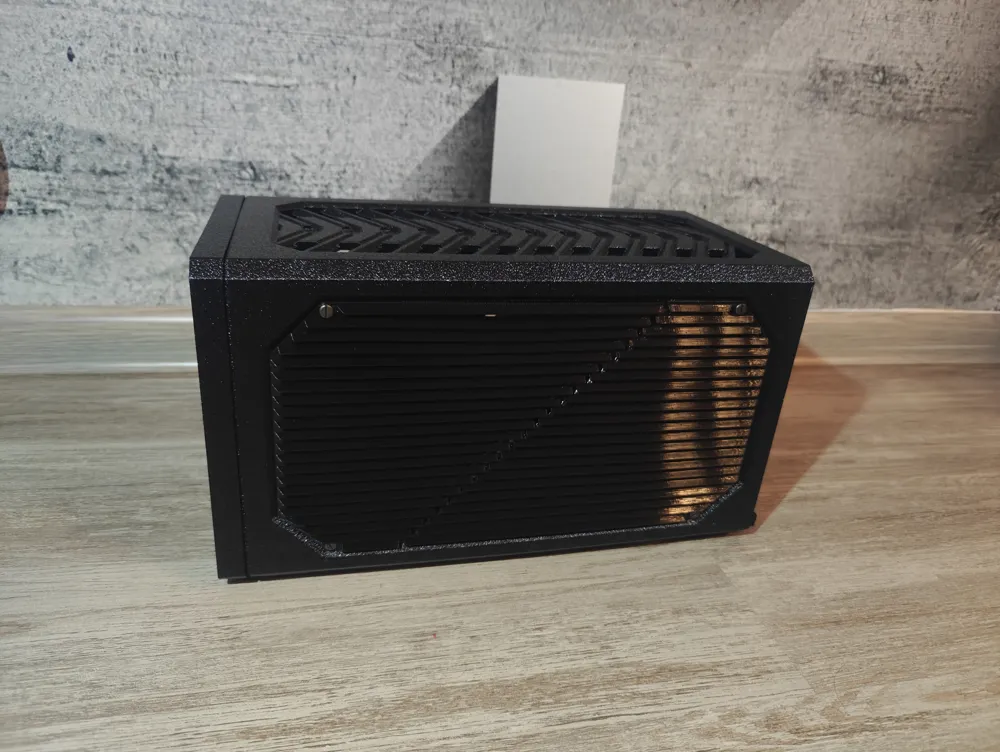

Here is my case for the AMD BC-250 with a full-ATX PSU. I tried to design the case to be as airy as possible; according to my measurements, temperatures are about 2–3°C higher than without the side panels and front cover.
Everything is easily printable in PETG except for the front panel, which is printed entirely with supports, and the contact layer is made of PLA so that the supports can be removed easily and the quality suffers as little as possible.
I used 3.5x10 and 3.5x16 screws and double-sided tape. Superglue would probably suffice, but this way the case is completely disassemblable for access to the components.
I hope it serves you well, L
Translated with DeepL.com (free version)
CZ:
Ahoj,
zde je muj Case pro AMD BC-250 s fullATX PSU. Snažil jsem se dělat case tak aby byl co nejvic vzdušný, dle měření jsou teploty o cca 2-3°C horší než bez bočnic a předního krytu.
Vše je jednoduše tisknutelné z PETG až na přední kryt který je kompletně tisknutý s podporama a kontaktní vrstva je z PLA aby šly dobře sundat a kvalita utrpěla co nejméně.
Použil jsem vruty 3,5x10 a 3,5x16 a oboustranou lepící pásku. Nejspíš by stačilo použít sekundové lepidlo, ale takhle je case kompletně rozložitelný pro přístup ke komponentum.
Snad Vám poslouží dobře, L
