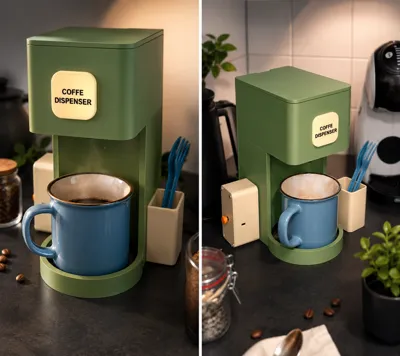

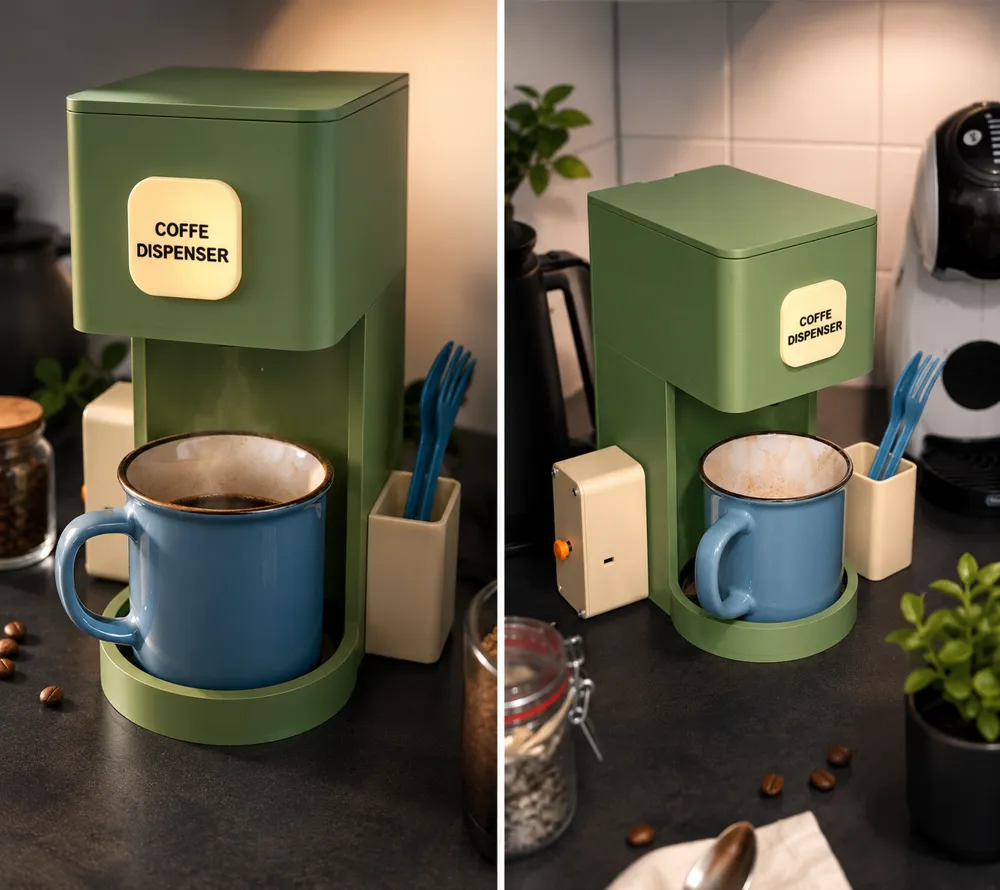

Coffee and Cocoa Powder Dispenser Cup Holder

Cold Coffee & Chocolate Powder CUP Dispenser

Bring a unique mix of functionality, electronics and modern 3D printing design to your setup with this fully modular Cold Coffee & Chocolate Powder Dispenser.

This project was created to offer a compact and stylish way to dispense powdered coffee or chocolate while also integrating interactive electronic components powered by the Bambu Lab CyberBrick ecosystem.

The design combines:

• modular assembly
• magnetic closures
• motorized dispensing
• LED lighting effects
• removable containers
• upgradeable components

Everything has been optimized for easy printing, simple assembly and future customization.

Main Features

• Motorized dispensing system

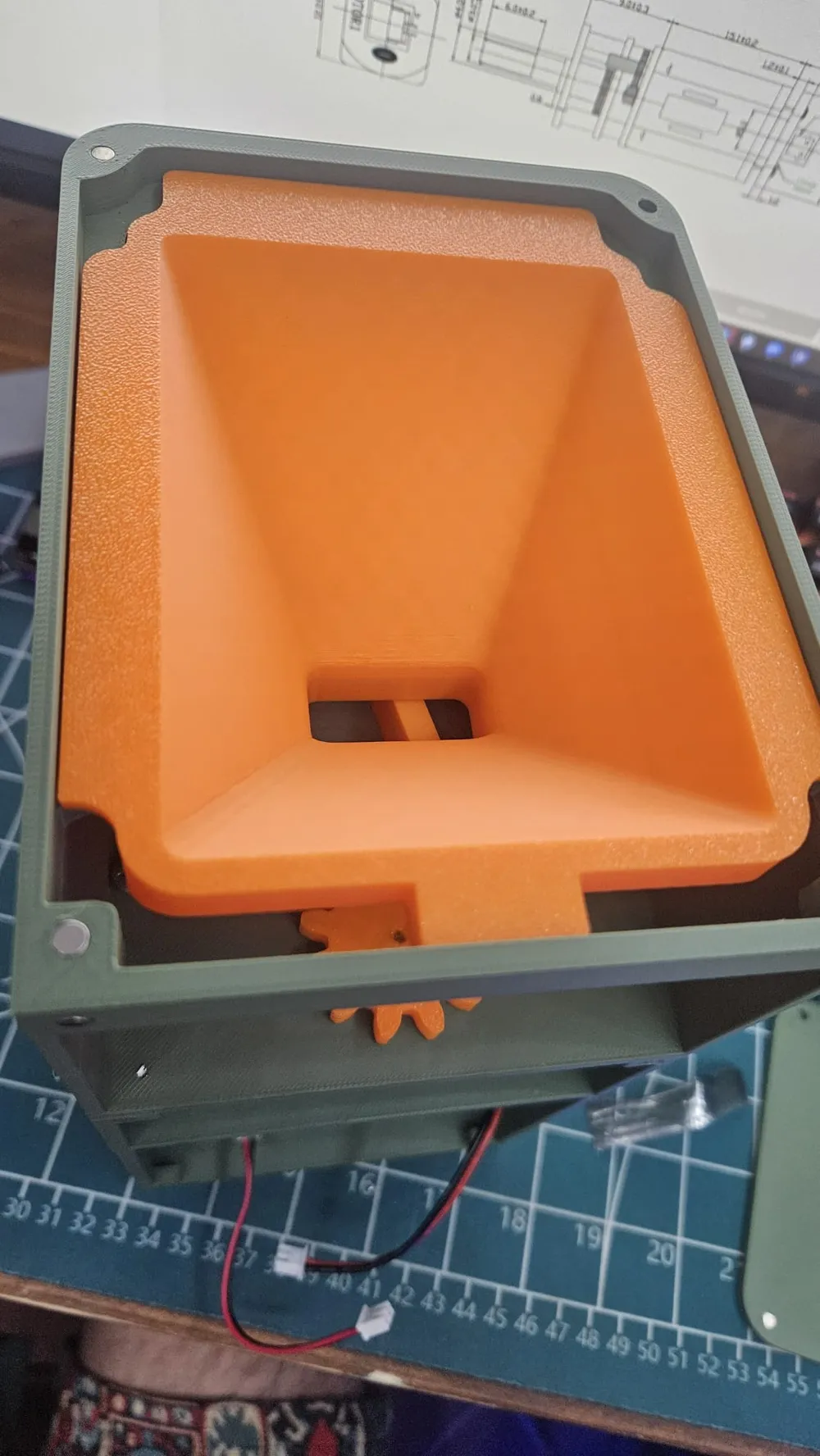

• Modular container structure
• Magnetic removable covers
• Integrated LED lighting
• Compact modern design
• Easy maintenance and cleaning

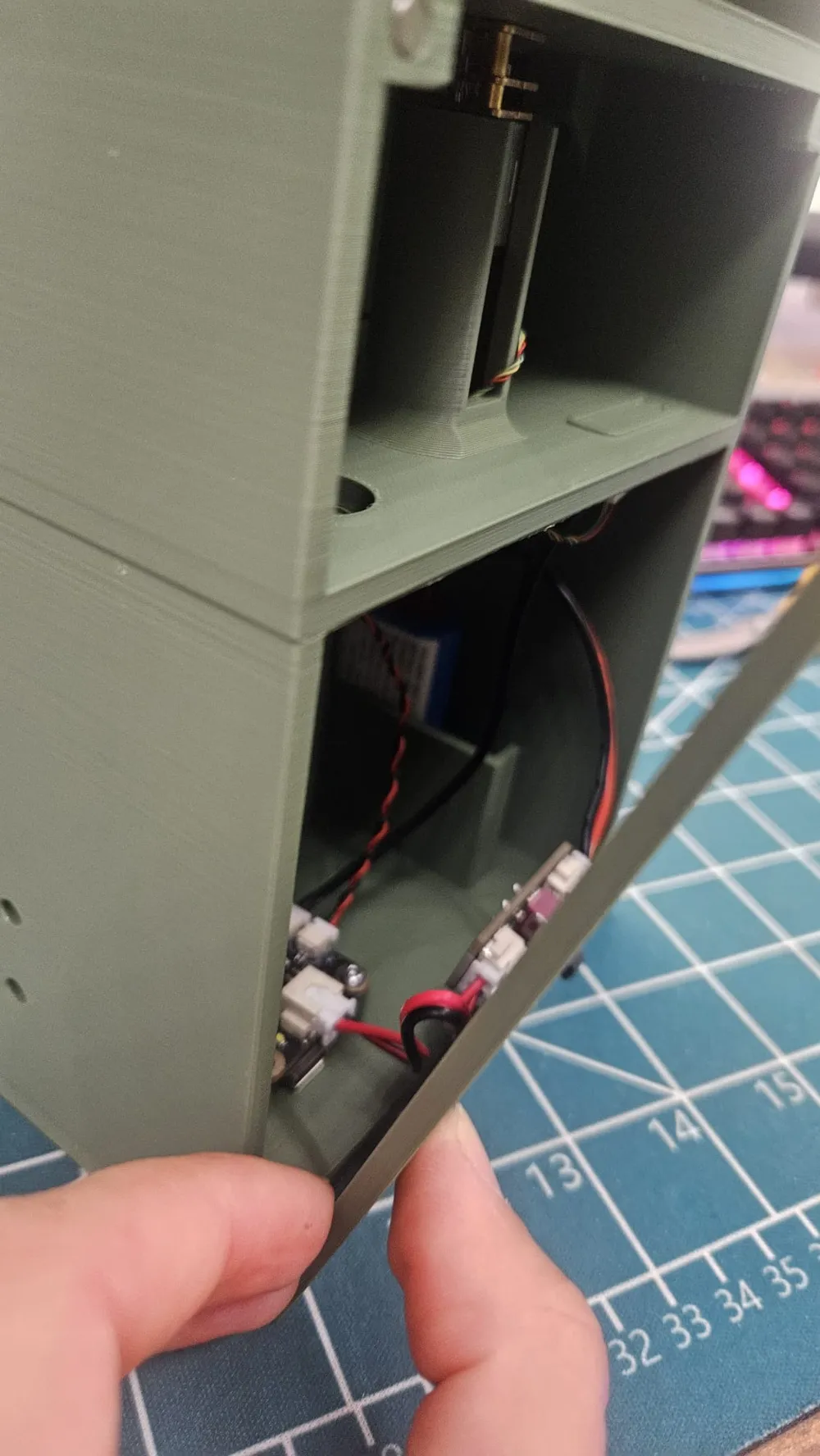

• Hidden electronic compartments

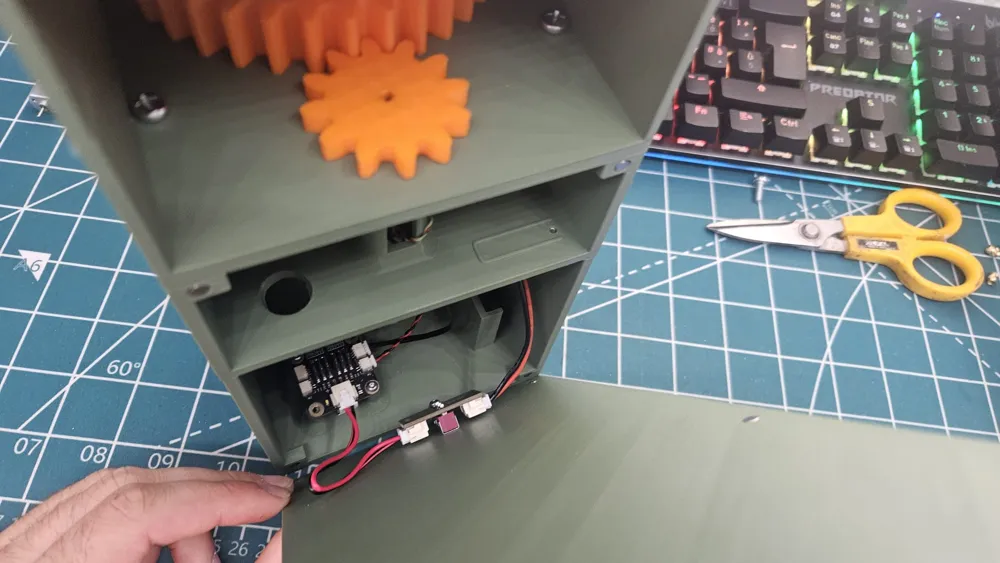

• Smooth gear-driven mechanism
• Designed for coffee powder and chocolate powder

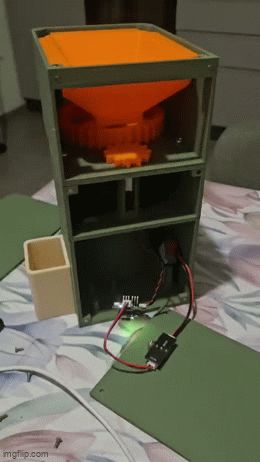

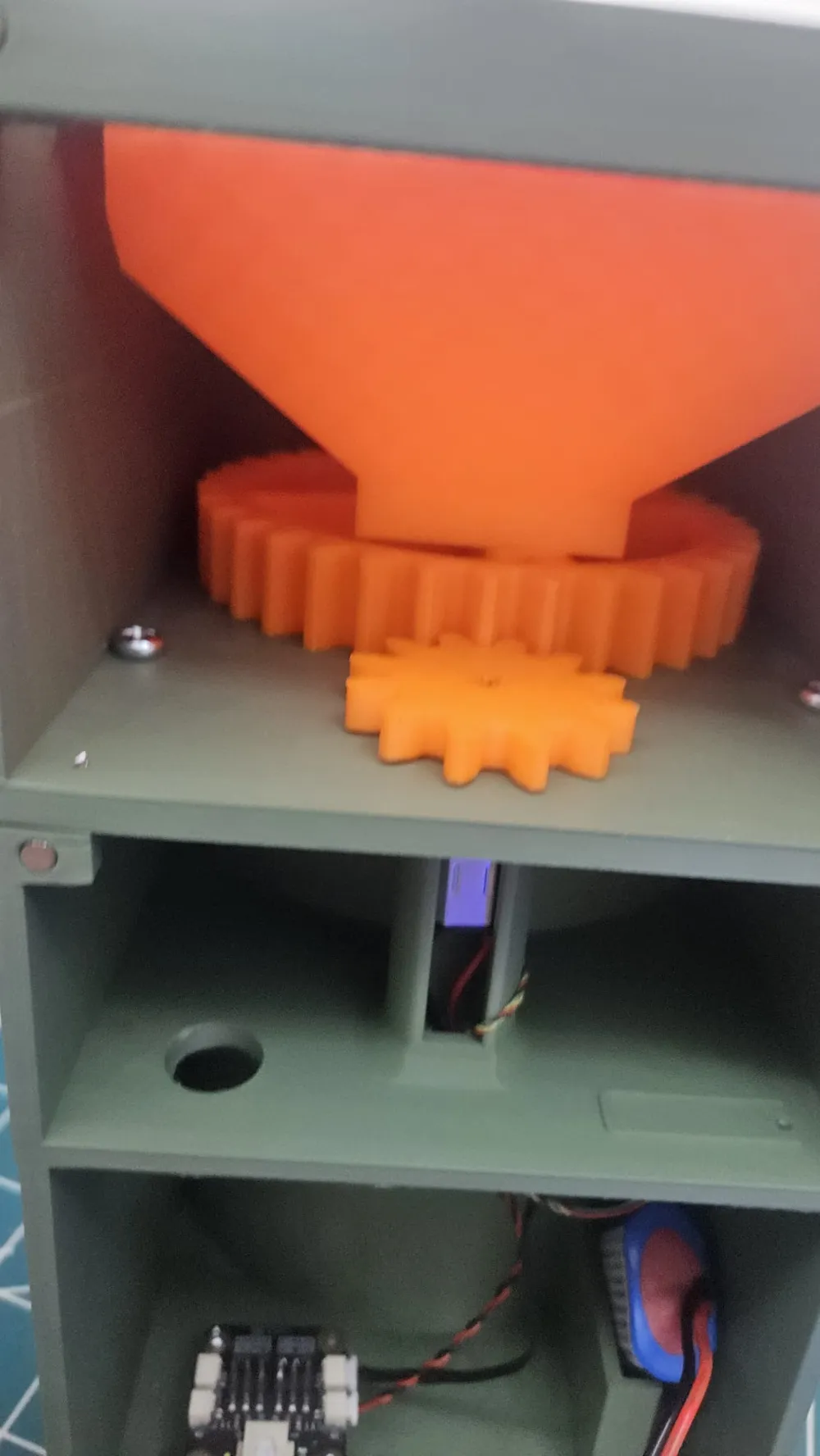

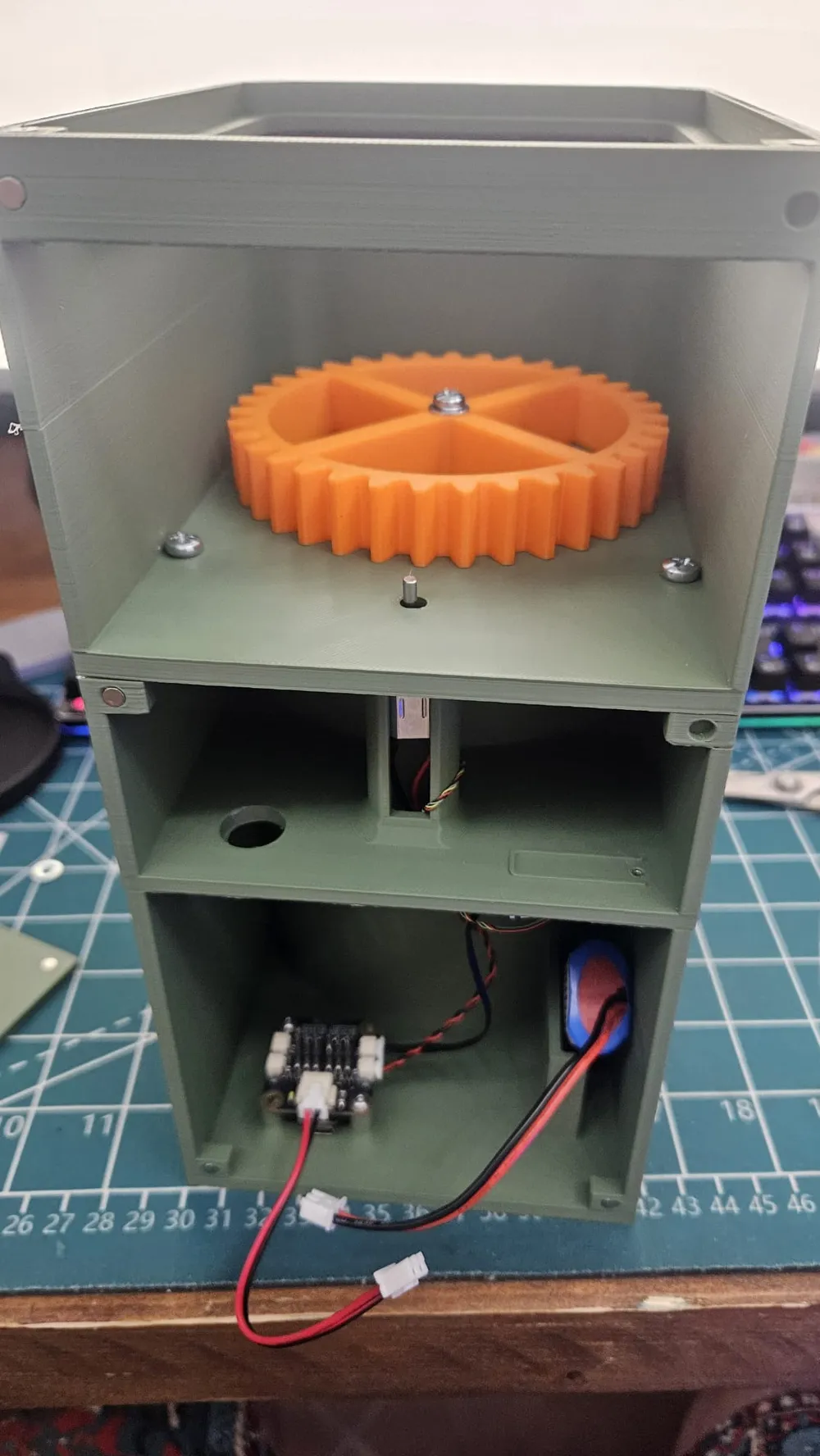

The internal rotating mechanism uses a geared DC motor to provide controlled dispensing while keeping the entire system compact and reliable.

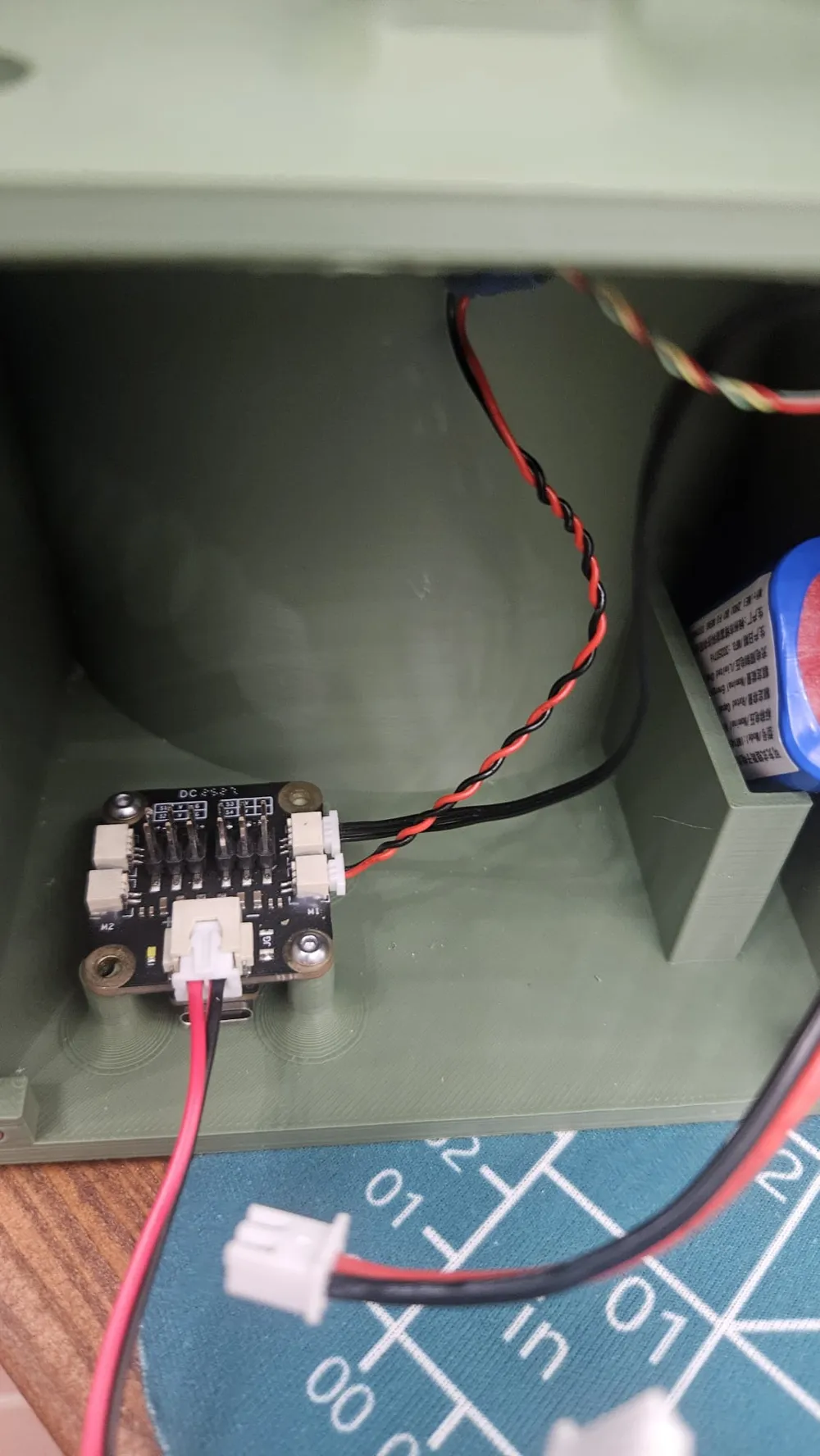

Electronics & CyberBrick Integration

This project uses several components from the Bambu Lab CyberBrick ecosystem, including:

• receiver/transceiver module
• LED driver
• LED light
• button module
• battery
• power switch
• dc motor gearbox

These components allow the dispenser to become more interactive and visually appealing while maintaining a clean integrated design.

BOM (Bill of Materials)

• 24x magnets — 4mm x 2mm

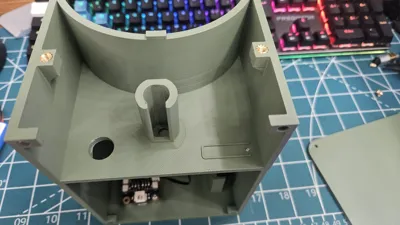

• 3x M4 heat-set inserts
• 4x M3 heat-set inserts
• 10–12x M2 screws
• 1x DC geared motor from Bambu Lab
• 1x M4 screw (25–30 mm) + nut
• 2x M4 screws (16 / 20 / 25 mm compatible)
• 1x CyberBrick LED
• 1x LED driver
• 1x receiver module
• 1x button module
• 2x power switches
• 2x batteries

Assembly Notes

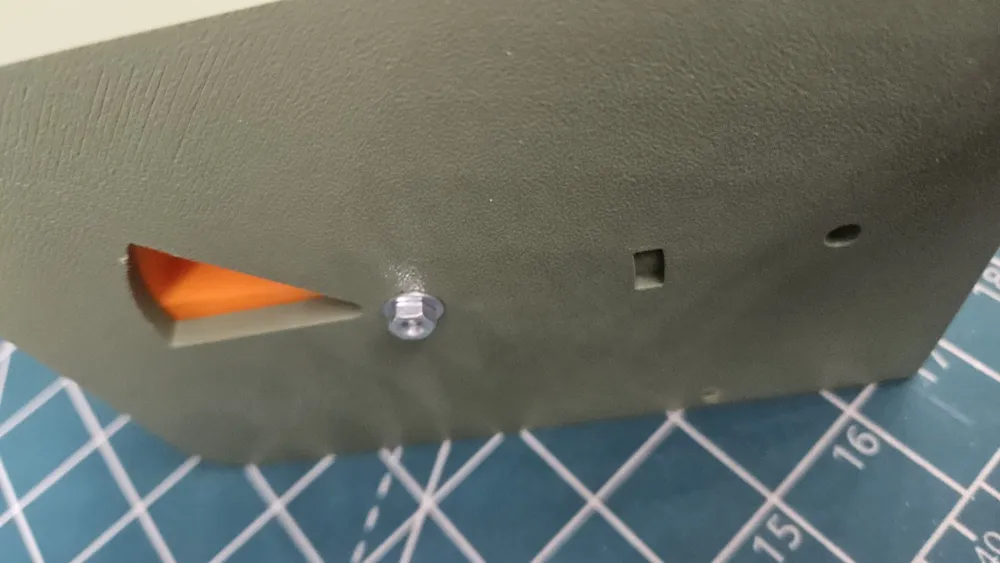

• Do not overtighten the rotating gear screw to ensure smooth movement.
• Check magnet polarity before installation.

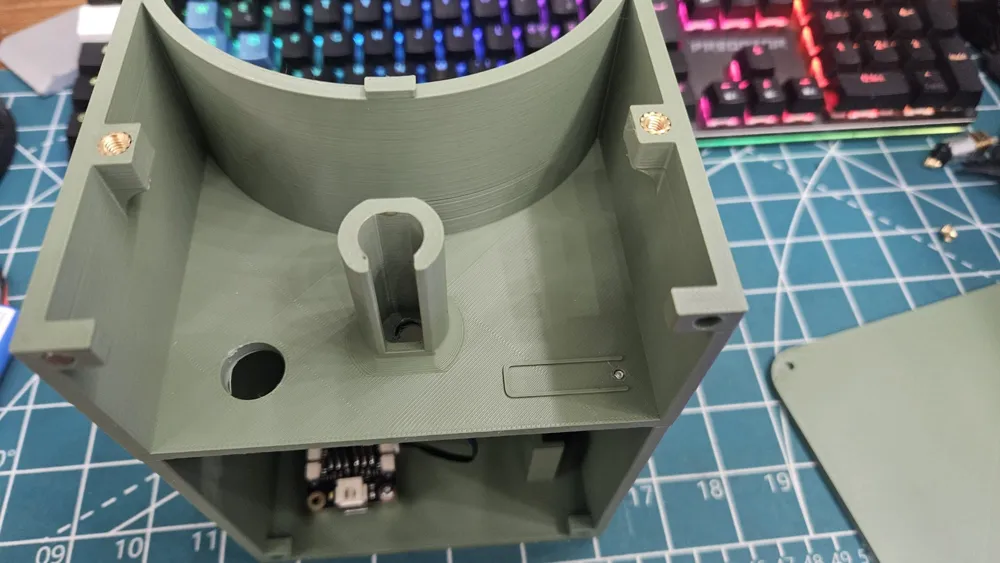

• Heat-set inserts are recommended for durability and repeated use.
• The current version is compact and perfect for small servings.

Future Improvements

The first upgrades are already available in Plate 8 – Upgrades.

Future versions may include:

• larger powder storage capacity
• improved dispensing flow
• expanded accessory system
• additional lighting effects
• enhanced modular attachments

Recommended Print Settings

• PLA / PETG recommended
• 0.20 mm layer height
• 15–20% infill
• Supports only where required
• Matte filament recommended for best appearance

Perfect For

• Coffee lovers
• Chocolate drink setups
• Smart kitchen accessories
• CyberBrick projects
• Interactive desk gadgets
• DIY electronics enthusiasts
• Modern coffee station decor

I’ve already made the first improvements, which you can find on Plate 8 under the section called “Upgrades”. I highly recommend using these updated parts for a better overall experience.

I also plan to continue improving the design in the future. One of the main upgrades that is still needed is a larger storage container, since the current version is a bit small and can only hold enough powder for a few cups.

Thanks again for the support, and feel free to share your feedback or ideas for future improvements!
