Garden Windmill
Print Profile(2)
Description

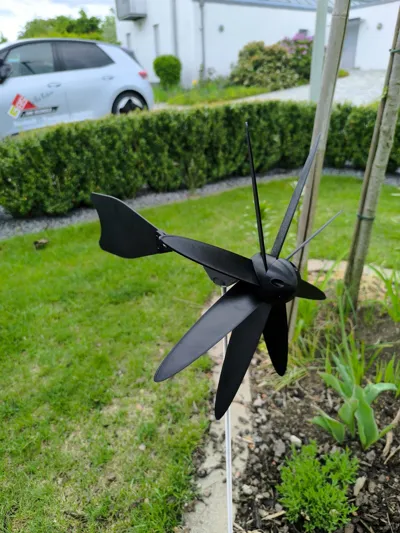

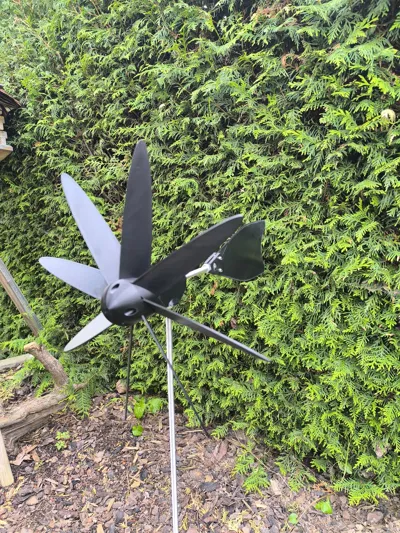

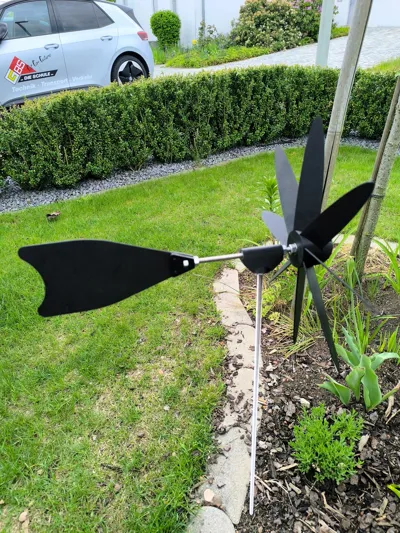

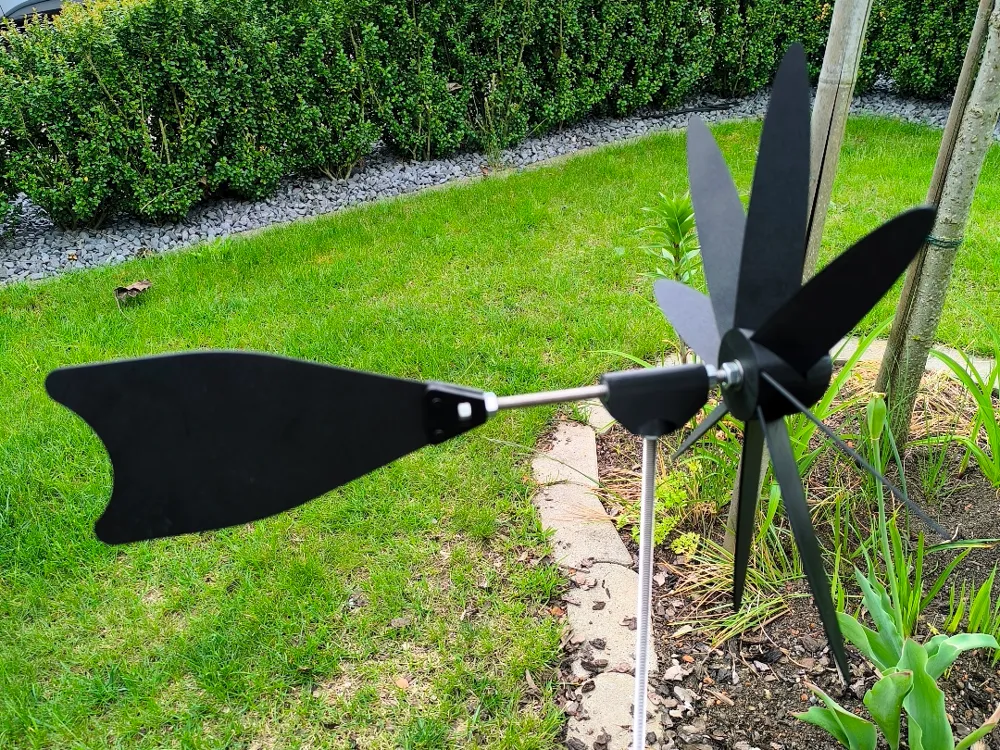

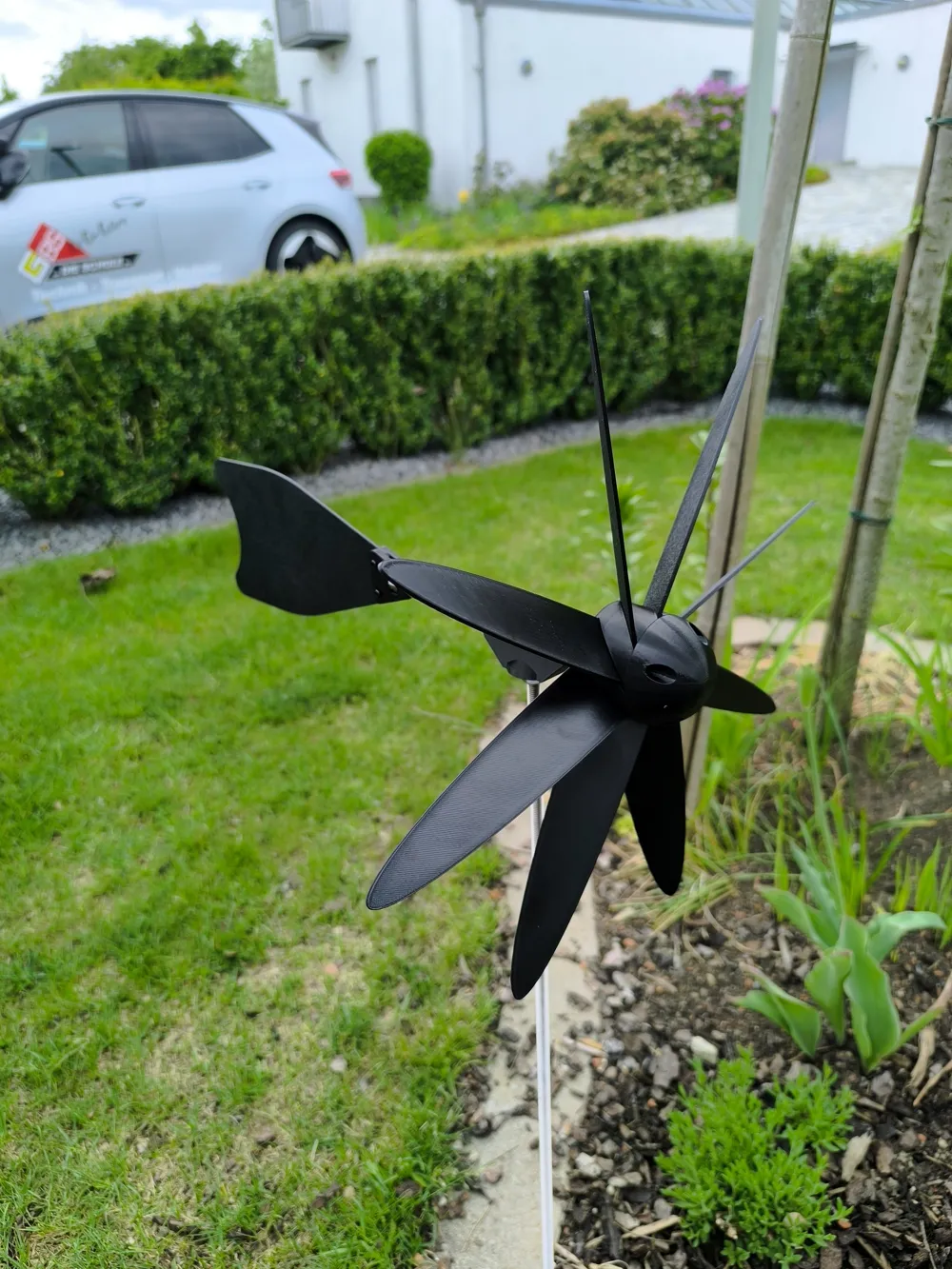

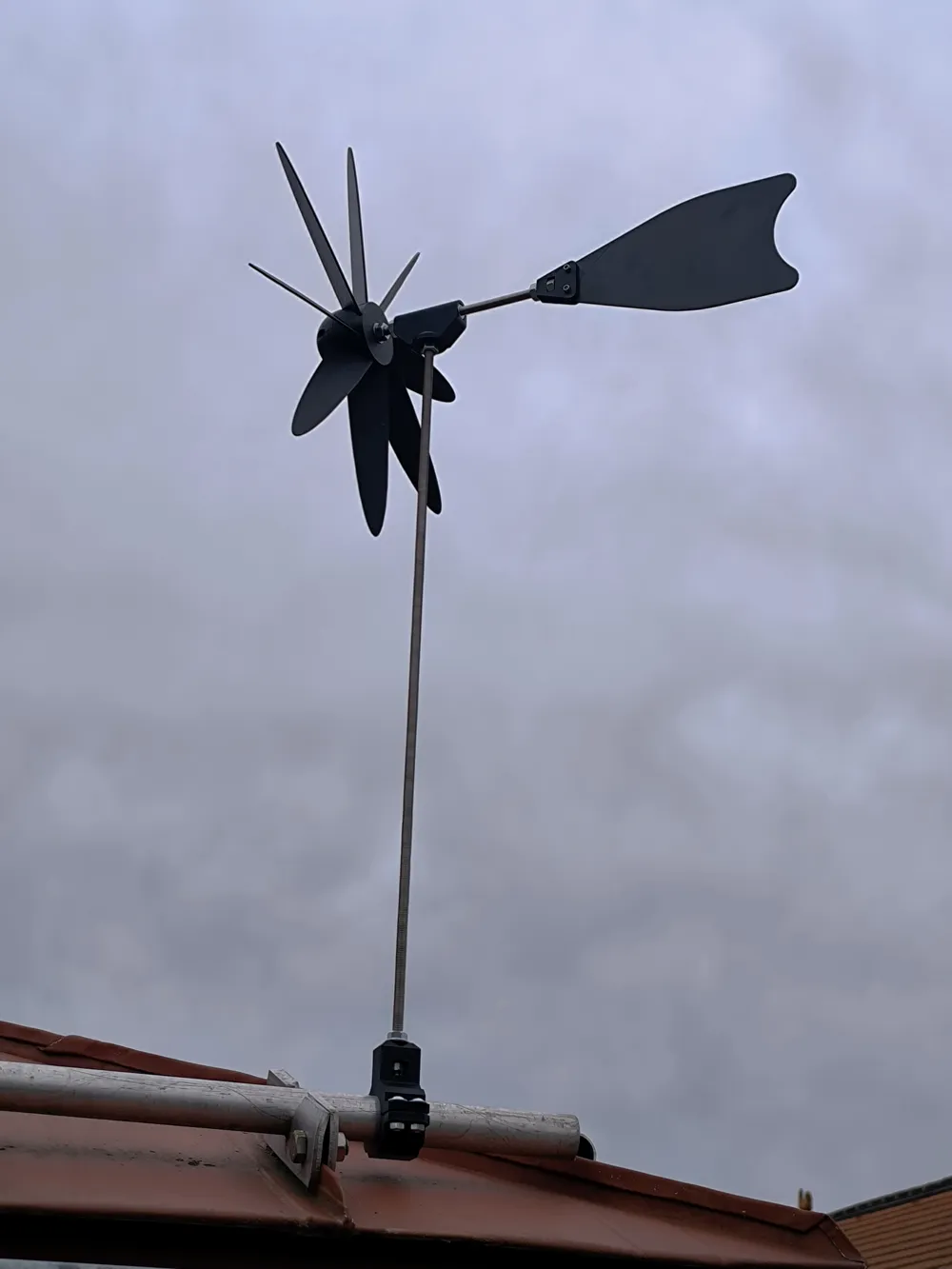

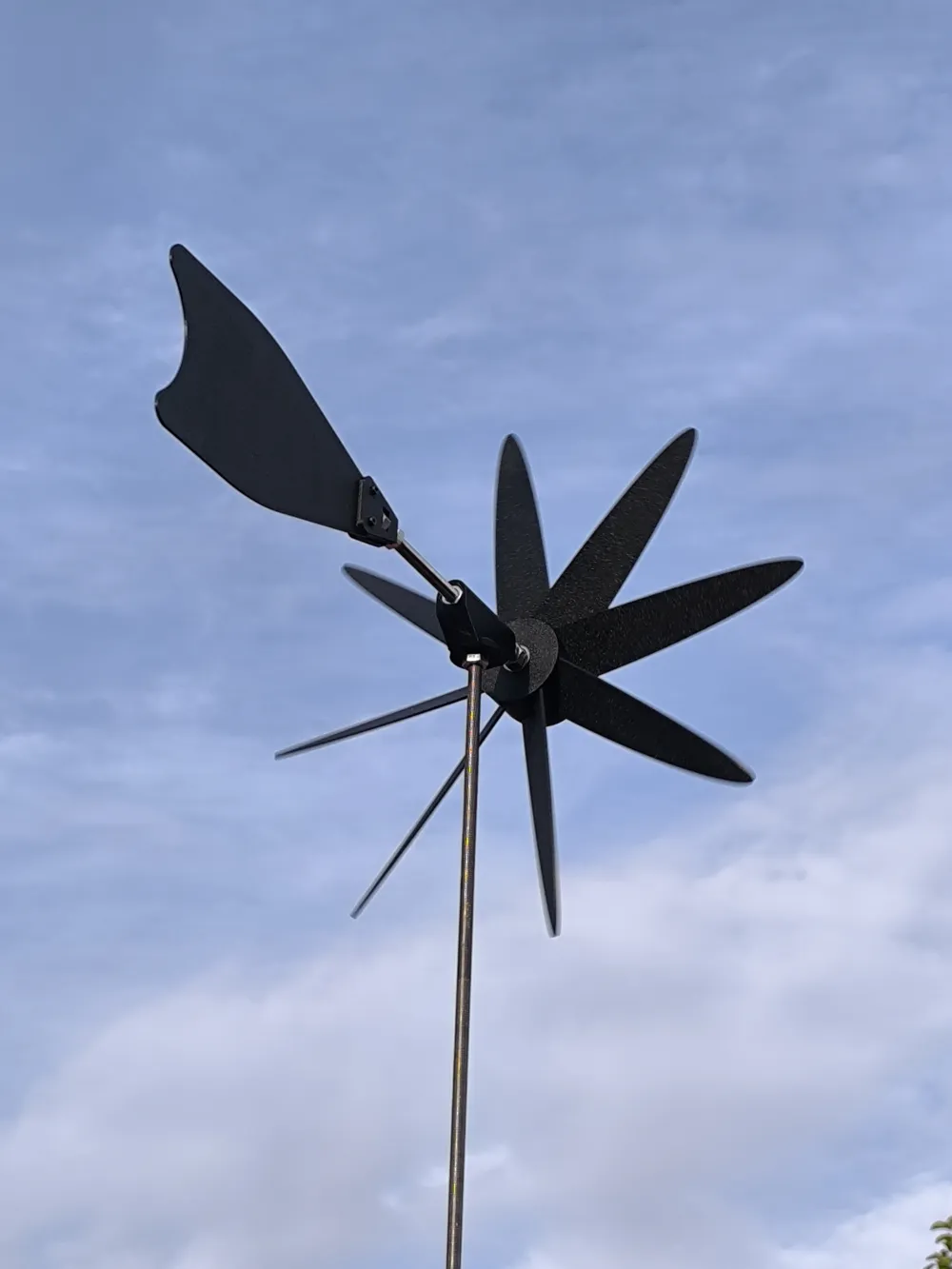

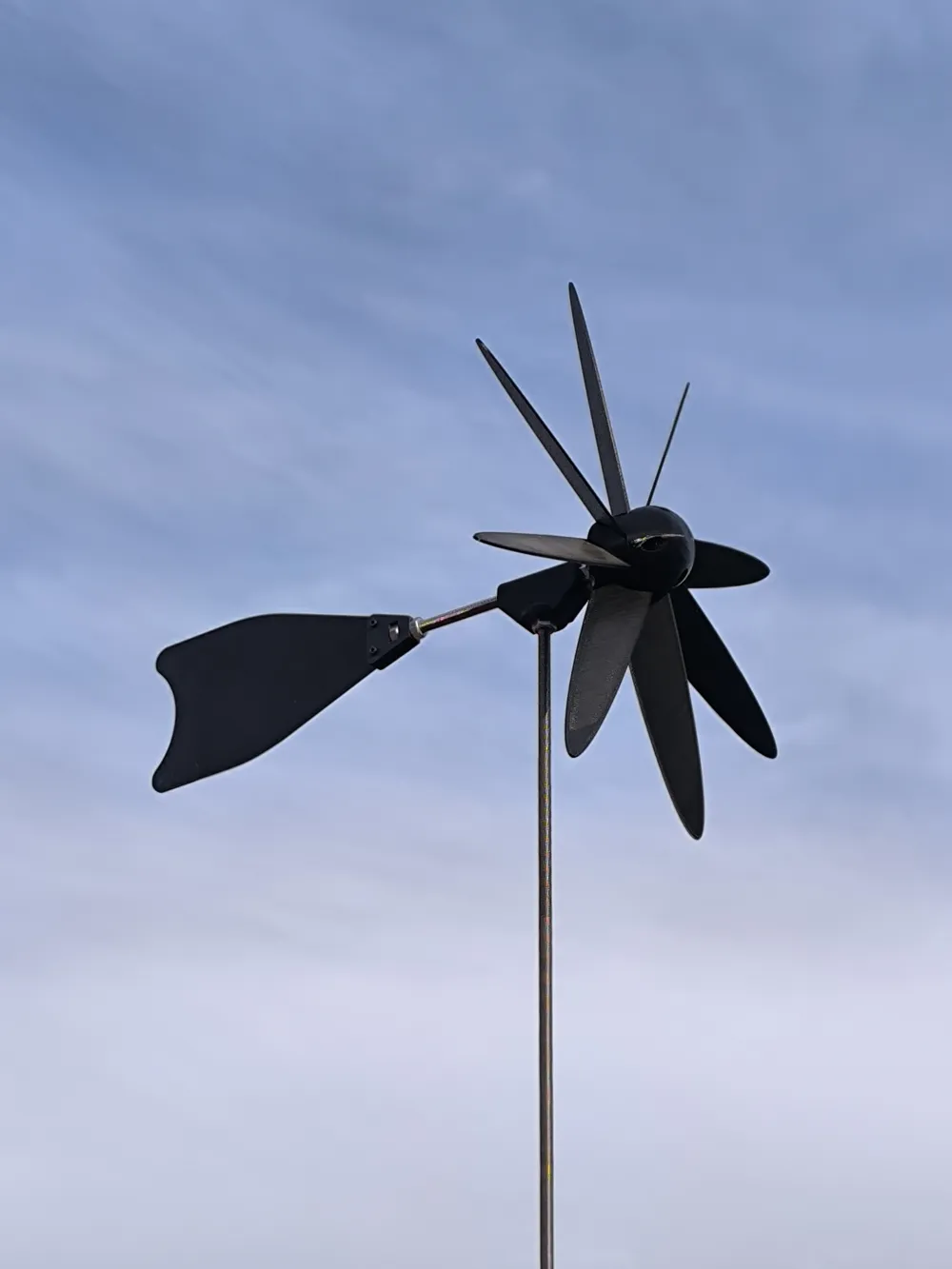

Simple 3D printable wind spinner with ball-bearing spinner for particularly quiet and smooth operation
I printed the wind spinner from PETG, the parts are somewhat flexible and thus withstand strong storms
The model consists of the following parts:
- Base
- Tail
- Tail Holder

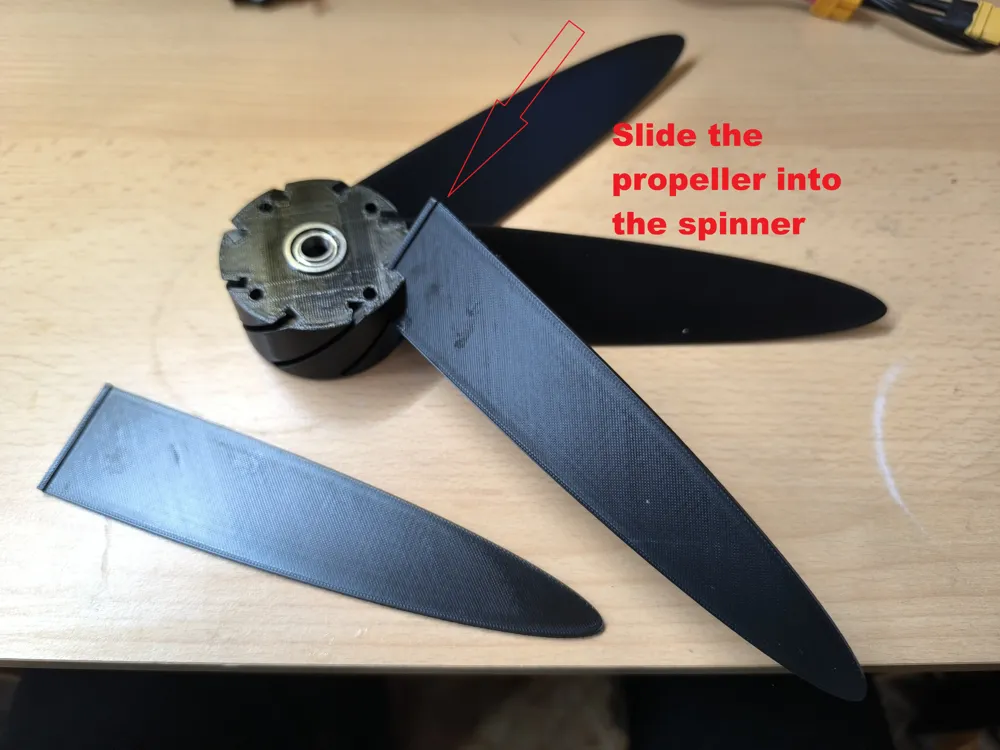

- Spinner
- Spinner Base
Additionally required hardware
- 9x M8 nuts
- approx 20 cm M8 threaded rod
- 1x additional M8 threaded rod as a mount

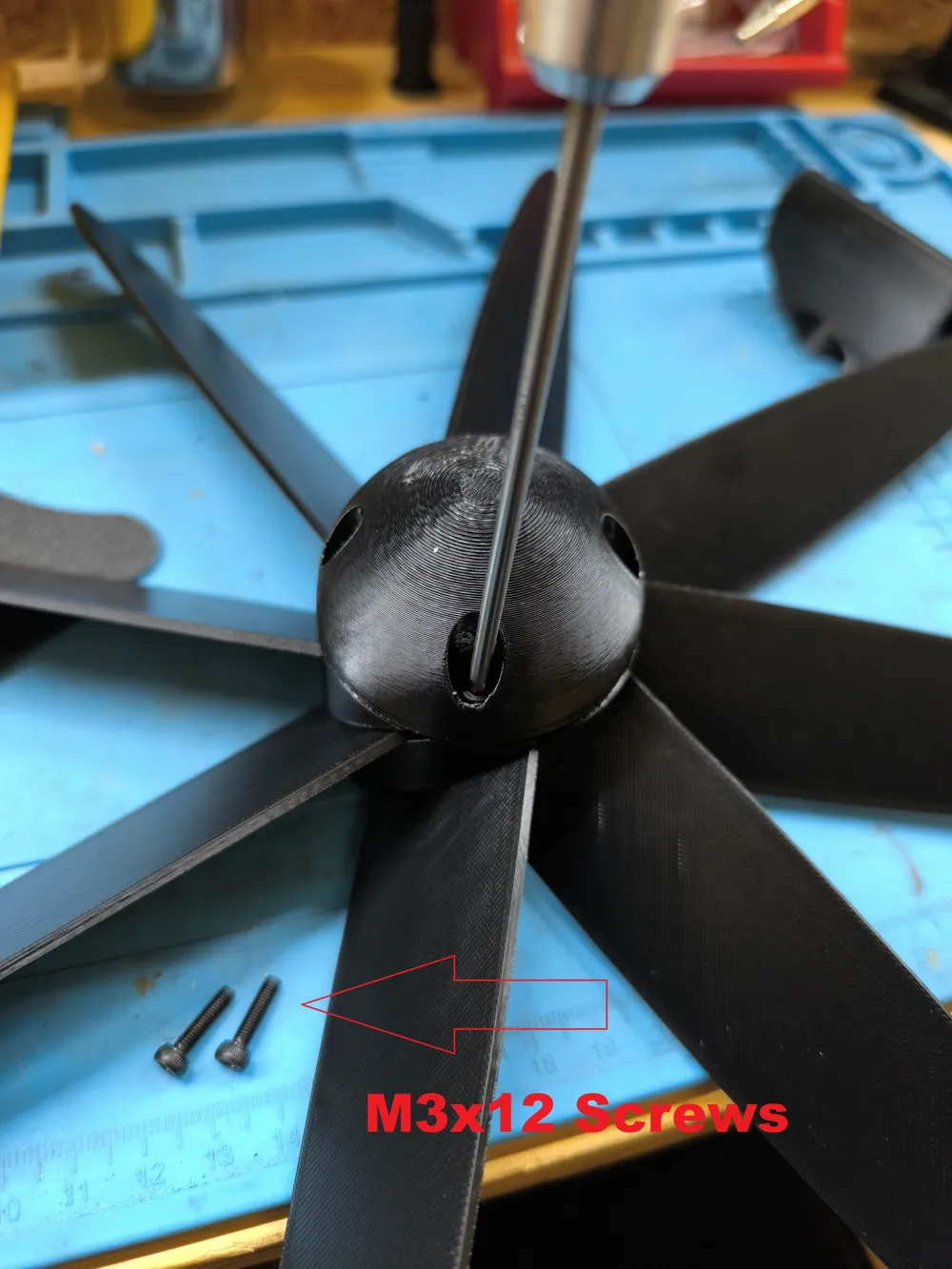

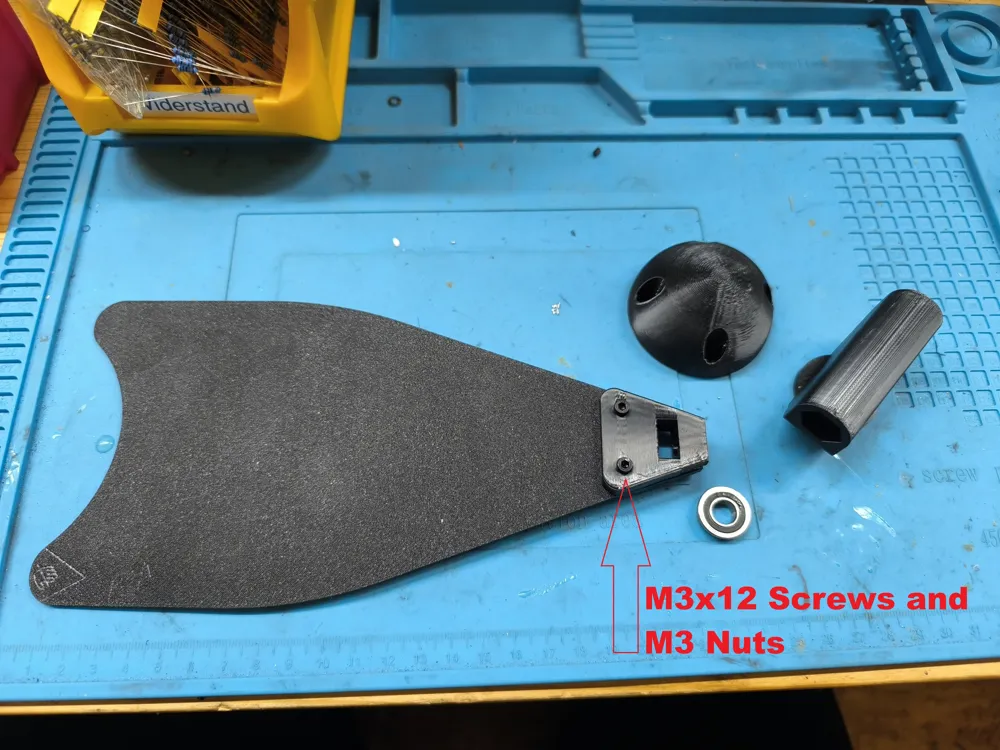

(length depending on desired assembly height) - 6x M3x12 screws
- 2x M3 nuts

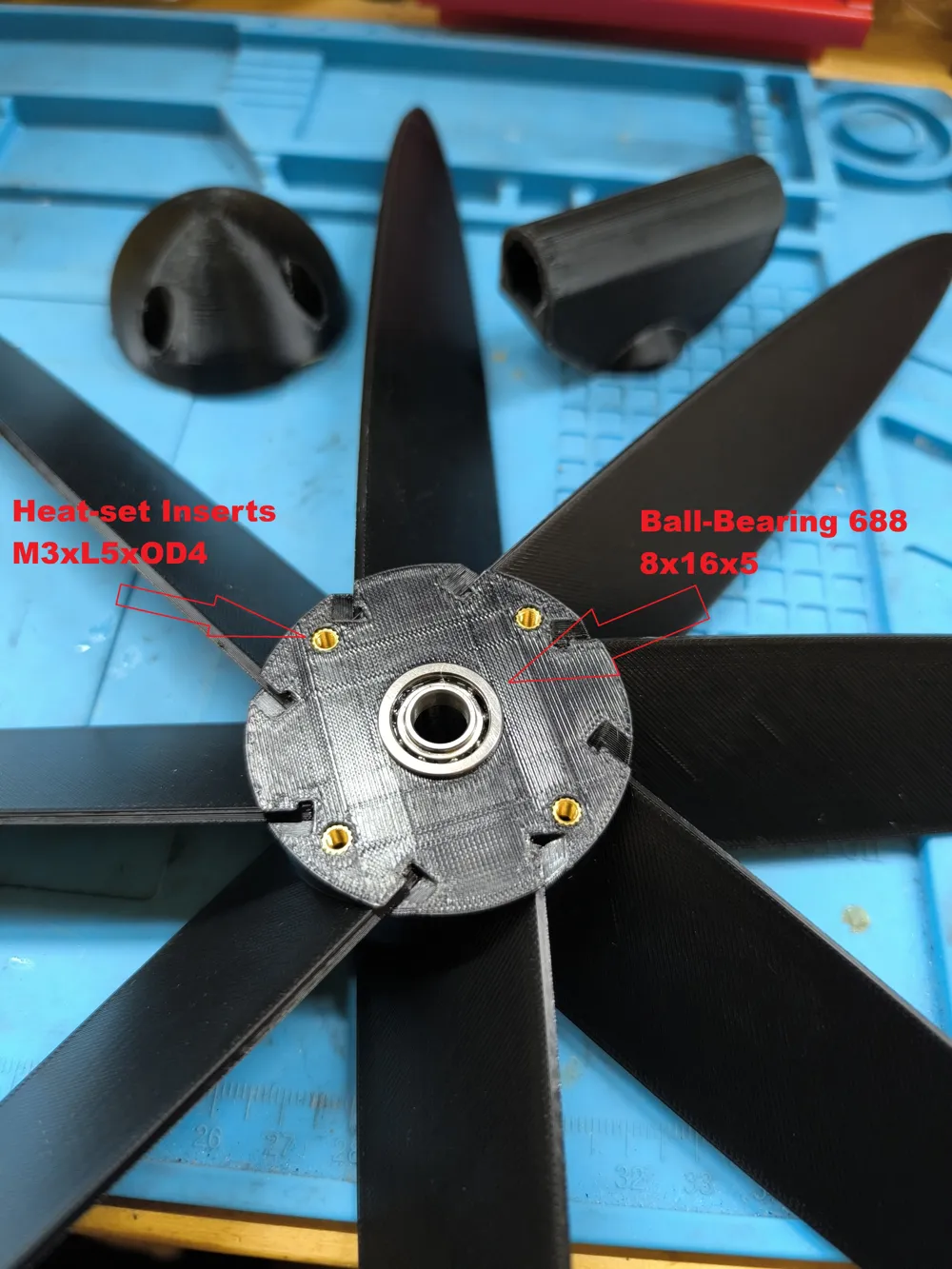

- 4x Heat Insert Nuts M3xL5xOD4
- 3x 688ZZ bearings (8x16x5 mm)
- some thread locker
Notes
- The ball bearings ensure very smooth operation even with little wind
- PETG is recommended for outdoor use

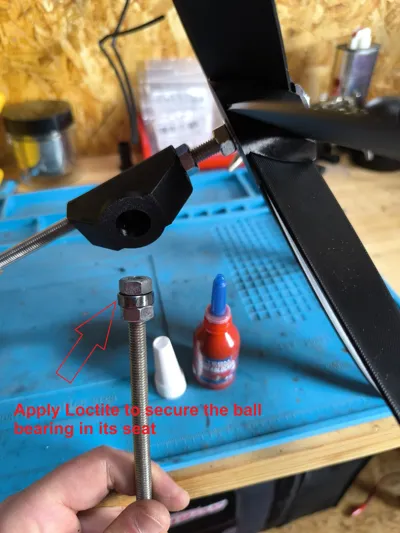

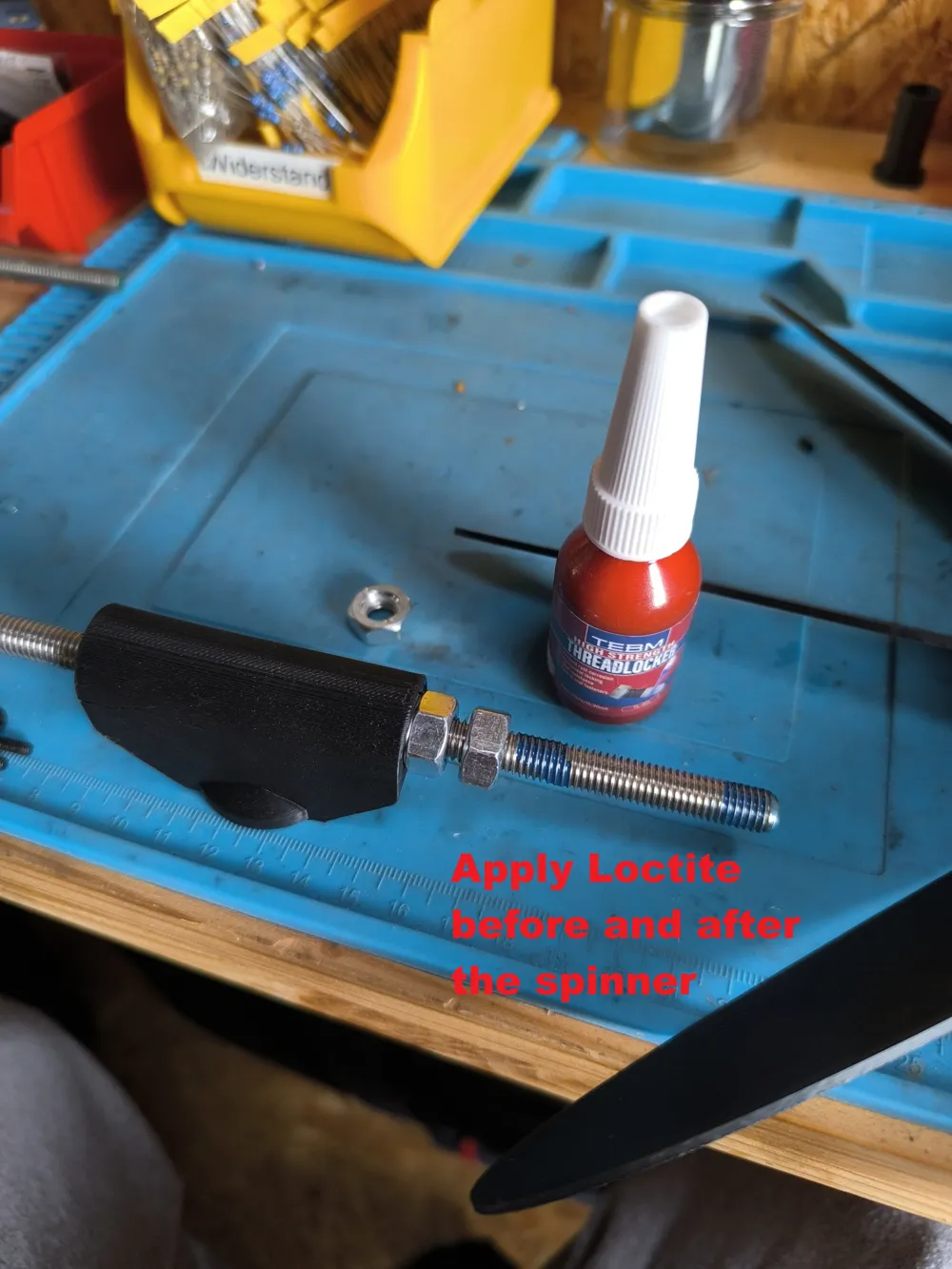

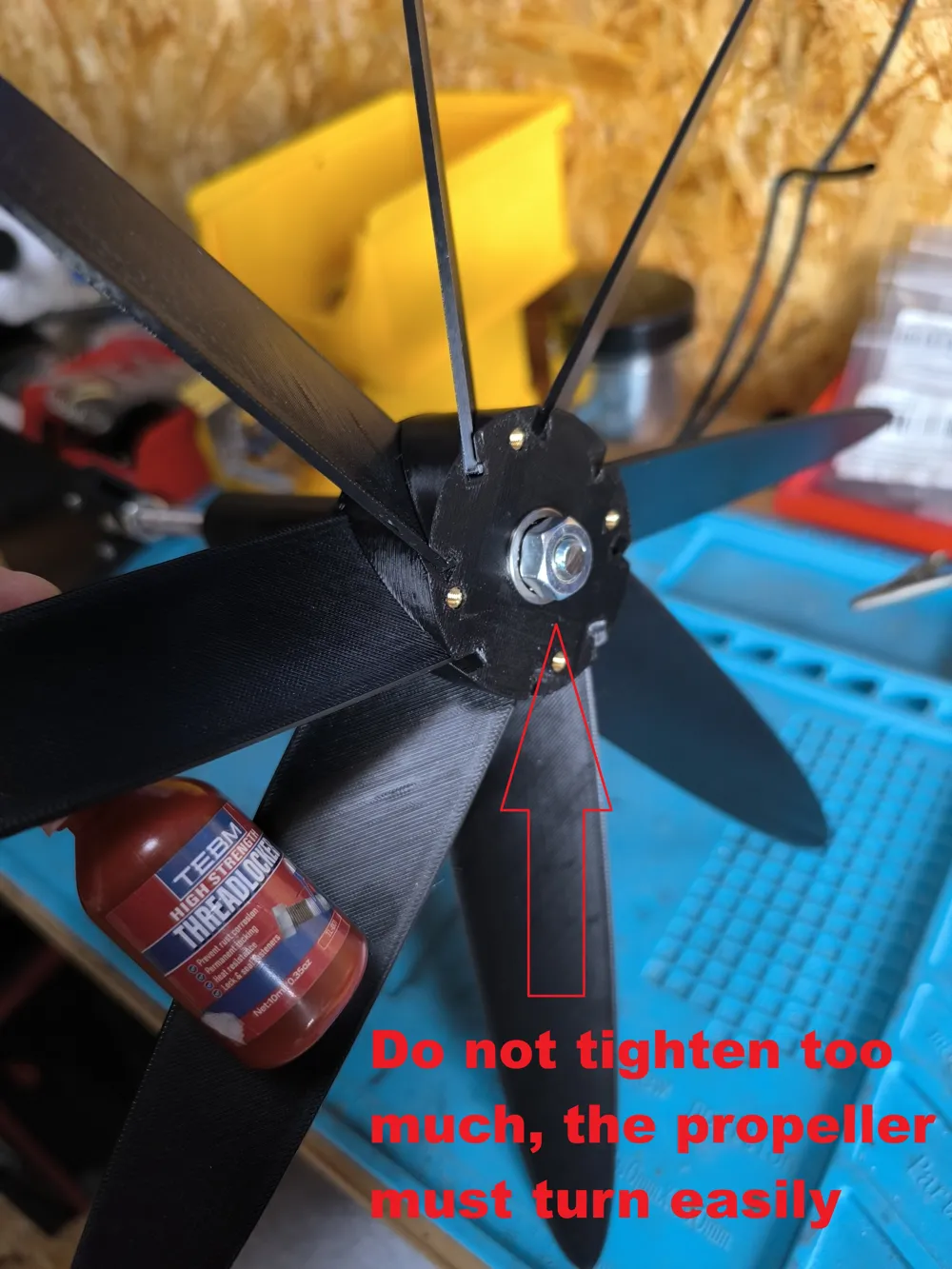

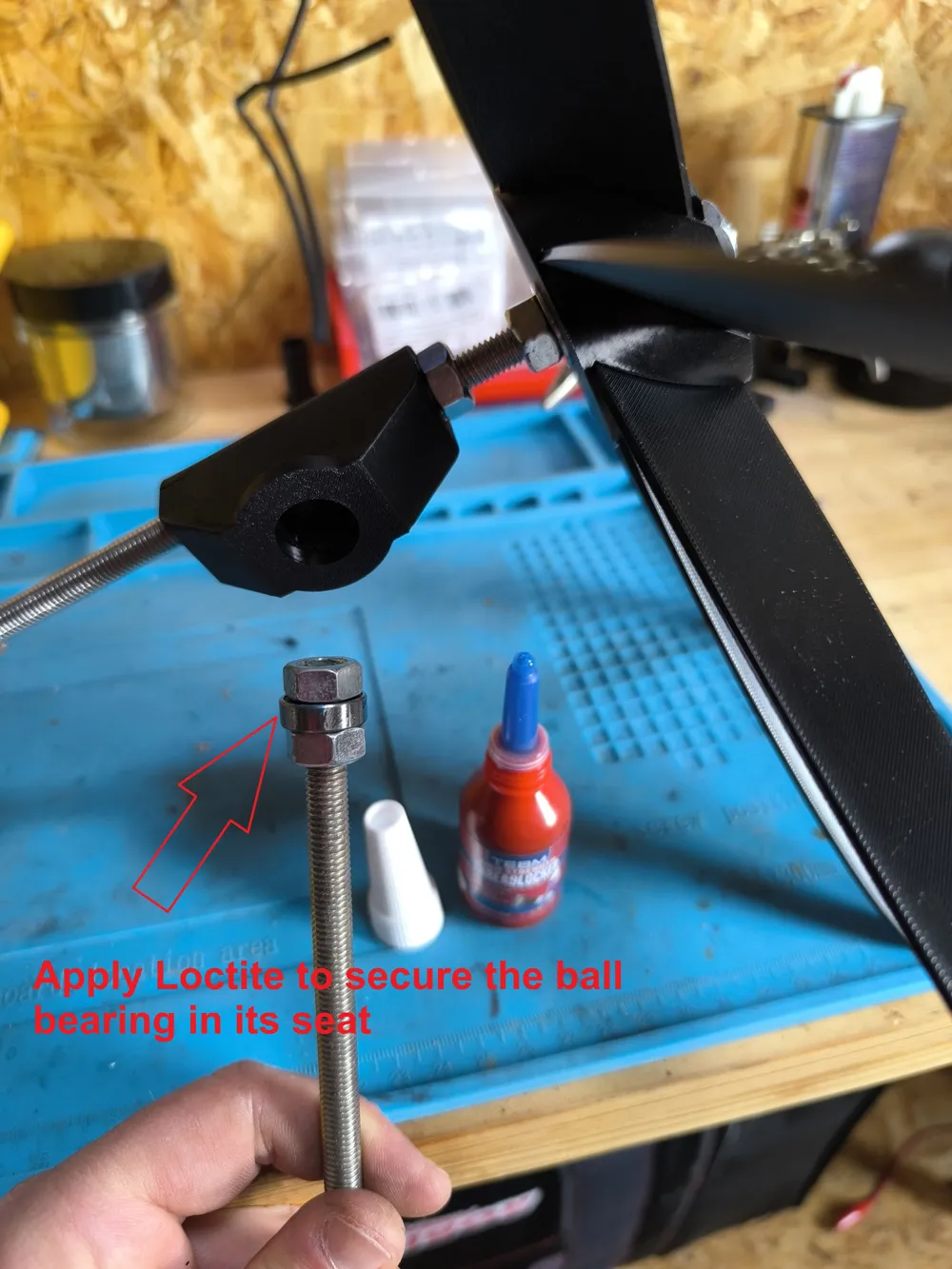

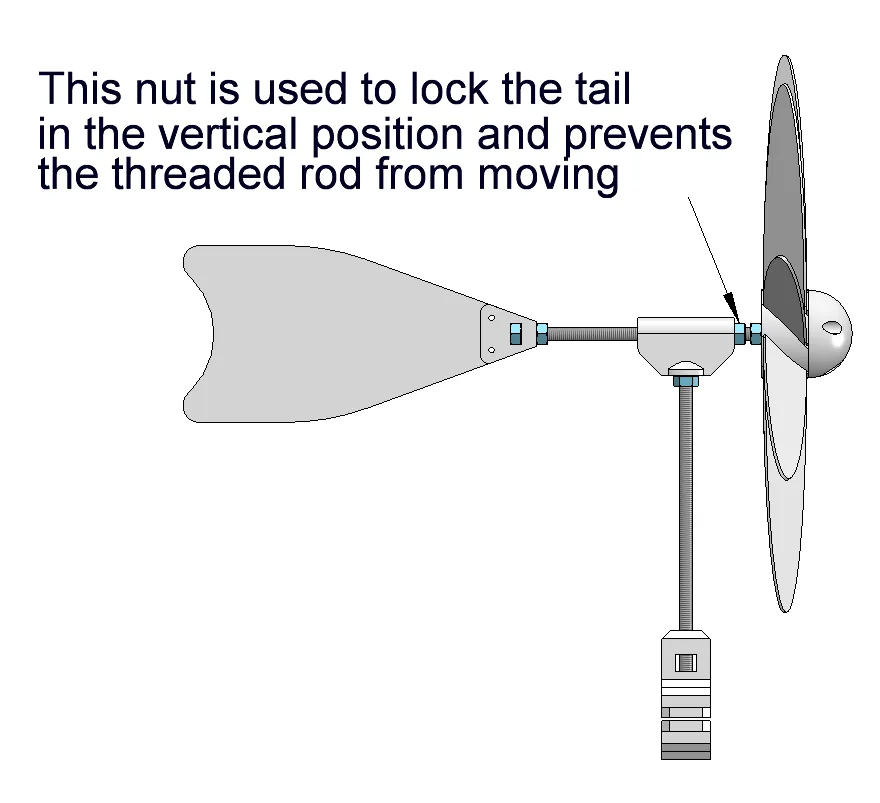

- Thread locker prevents nuts from loosening due to vibrations

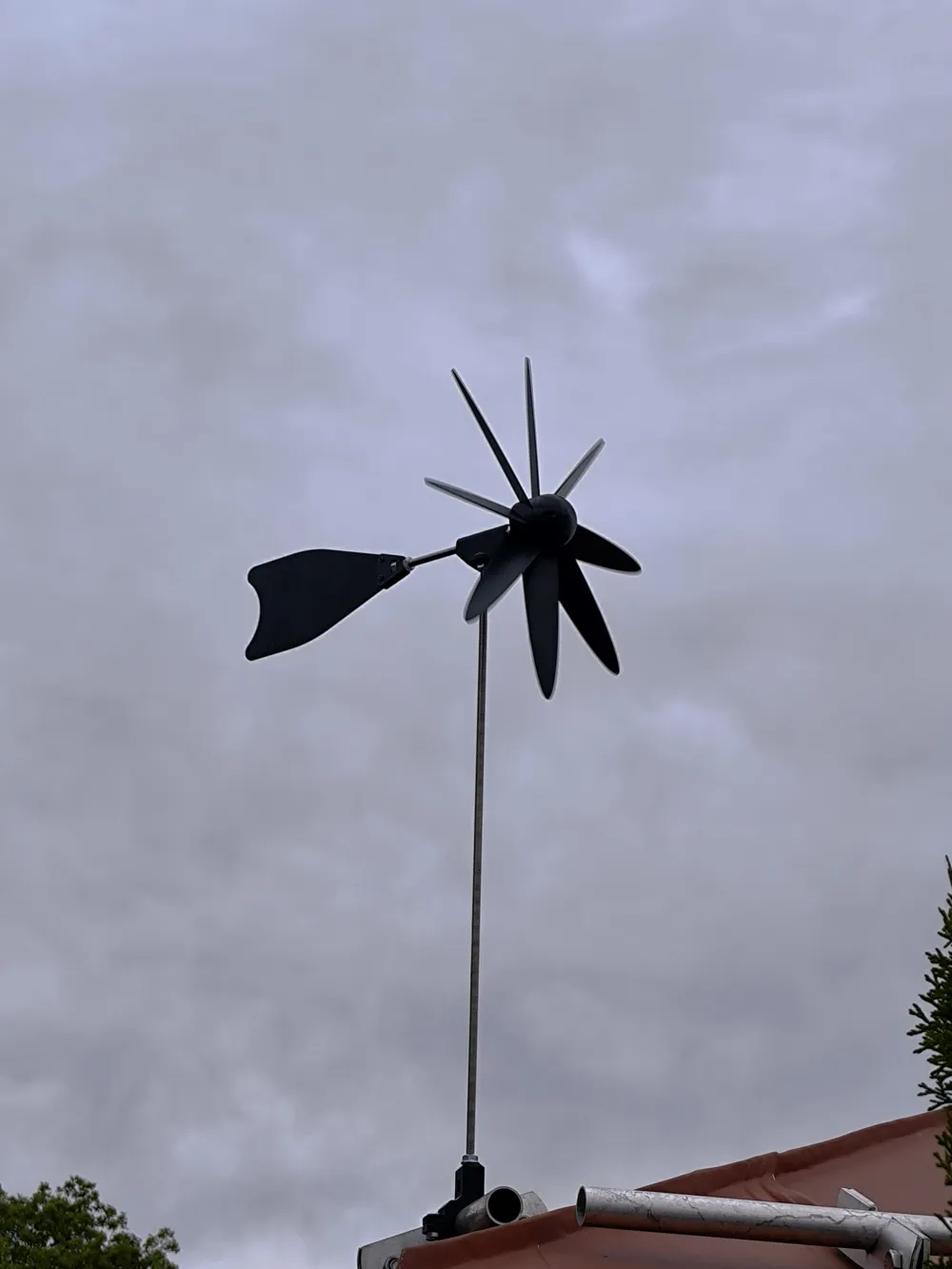

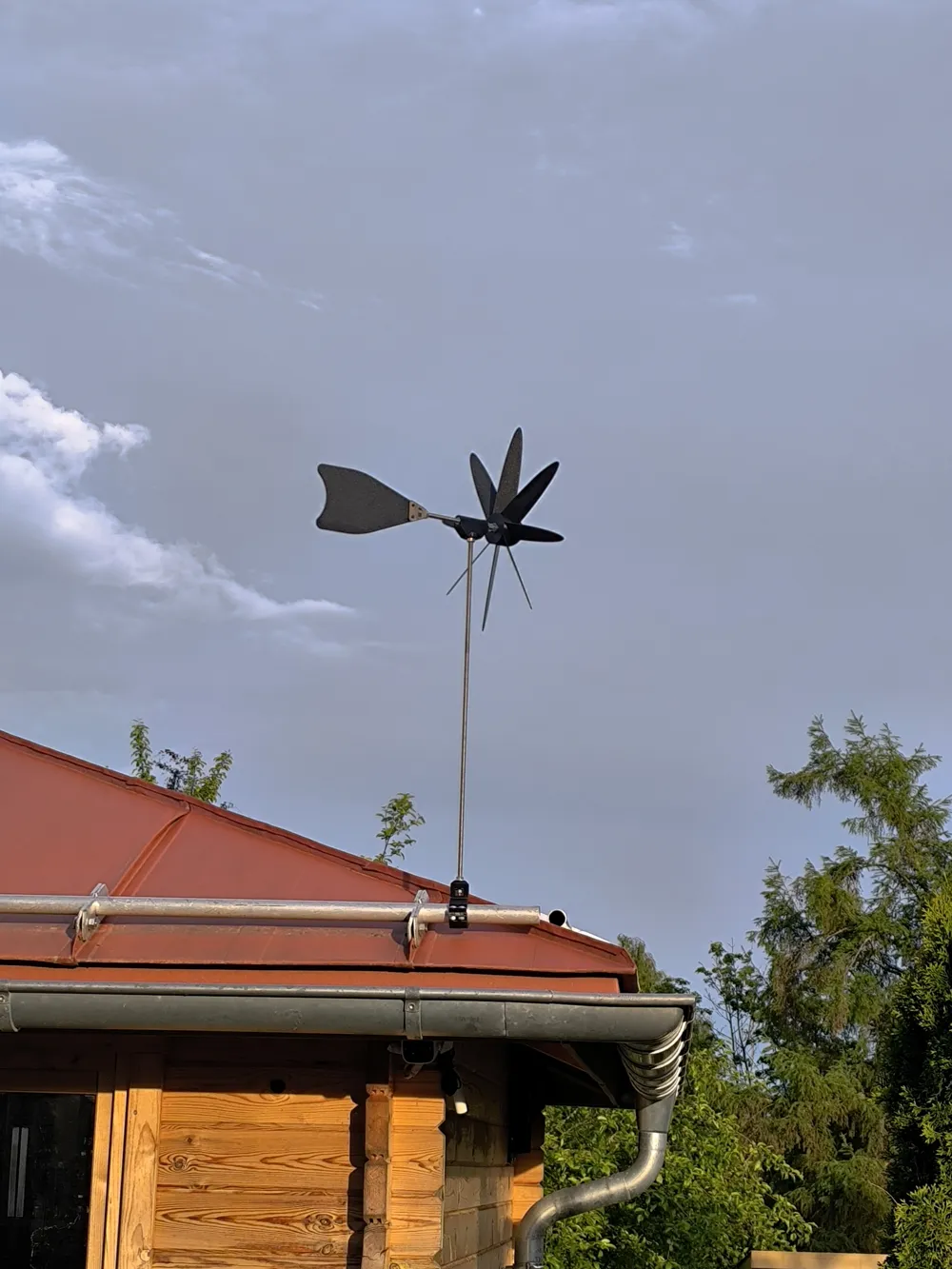

- The height can be flexibly adjusted using the second M8 threaded rod
Have fun printing and assembling!
English Description
Decorative 3D printable wind spinner with ball bearings for smooth and low-friction rotation
The model consists of:
- Base
- Tail
- Tail Holder
- Spinner
- Spinner Base
Additional hardware required
- 9x M8 nuts
- approx 20 cm M8 threaded rod
- 1x additional M8 threaded rod for mounting
(length depends on desired installation height) - 6x M3x12 screws
- 2x M3 nuts
- 4x Heat Insert Nuts M3xL5xOD4
- 3x 688ZZ bearings (8x16x5 mm)
- thread locker
Notes
- Ball bearings provide very smooth spinning even in low wind
- PETG or ASA is recommended for outdoor use
- Thread locker helps prevent nuts from loosening due to vibration
- The mounting height can easily be customized using the second M8 threaded rod
Happy printing!
