Slingshot Fork for 20x20 Aluminum Strut - Profile
Print Profile(0)
Description

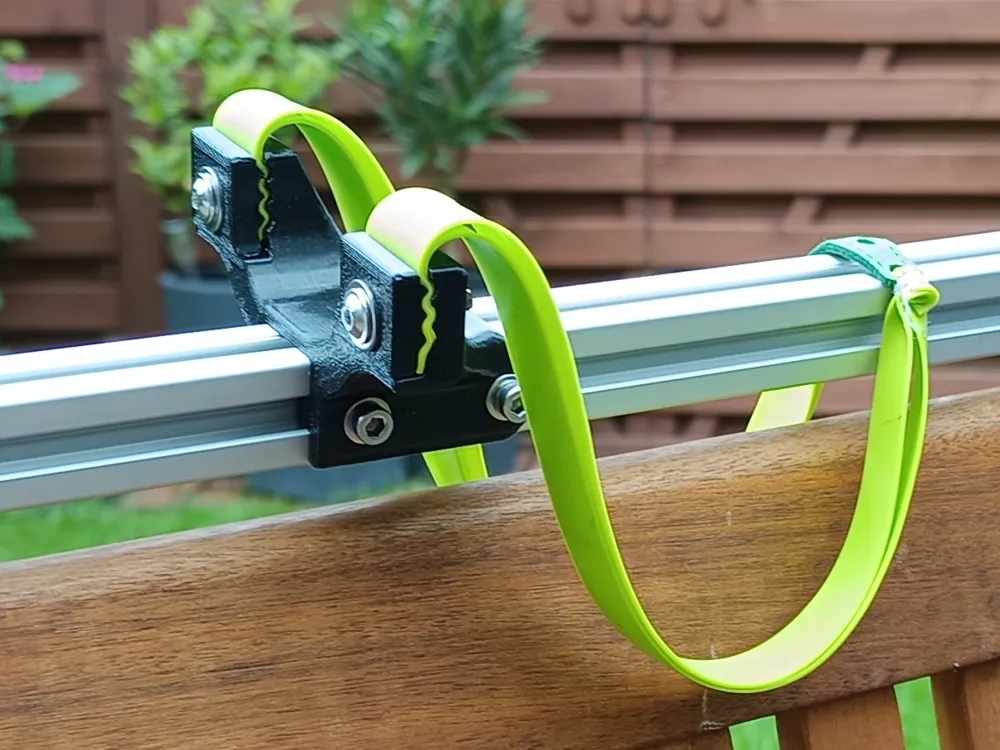

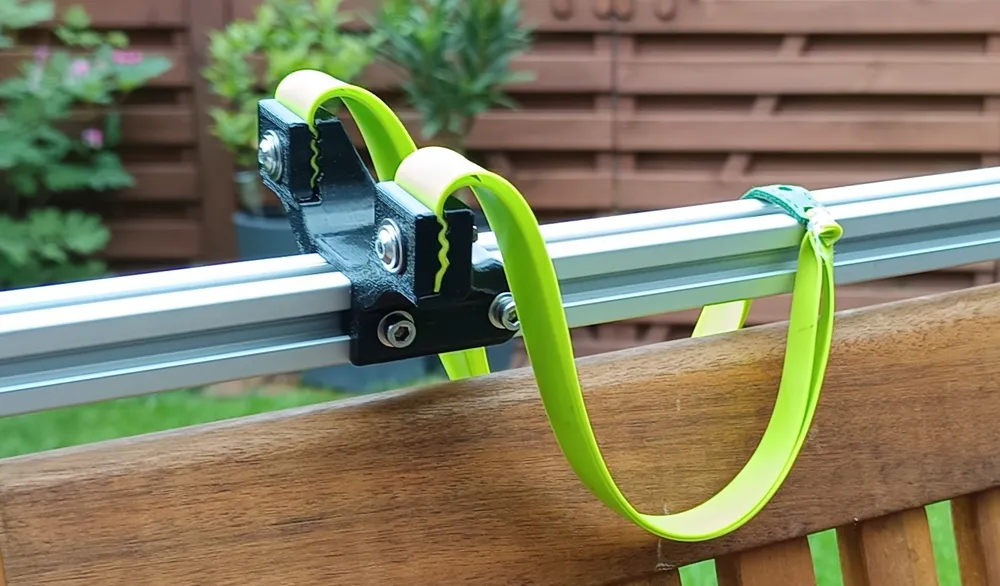

The slingshot fork is suitable for a 20x20 aluminum strut profile and can be adjusted by sliding for different bands and desired tension.
Material PETG, Infill 100%, Layer height 0.20, Supports yes
Copy and mirror the clamp in the slicer.
For thread production, an M4 tap (first pass only) is required, as well as:

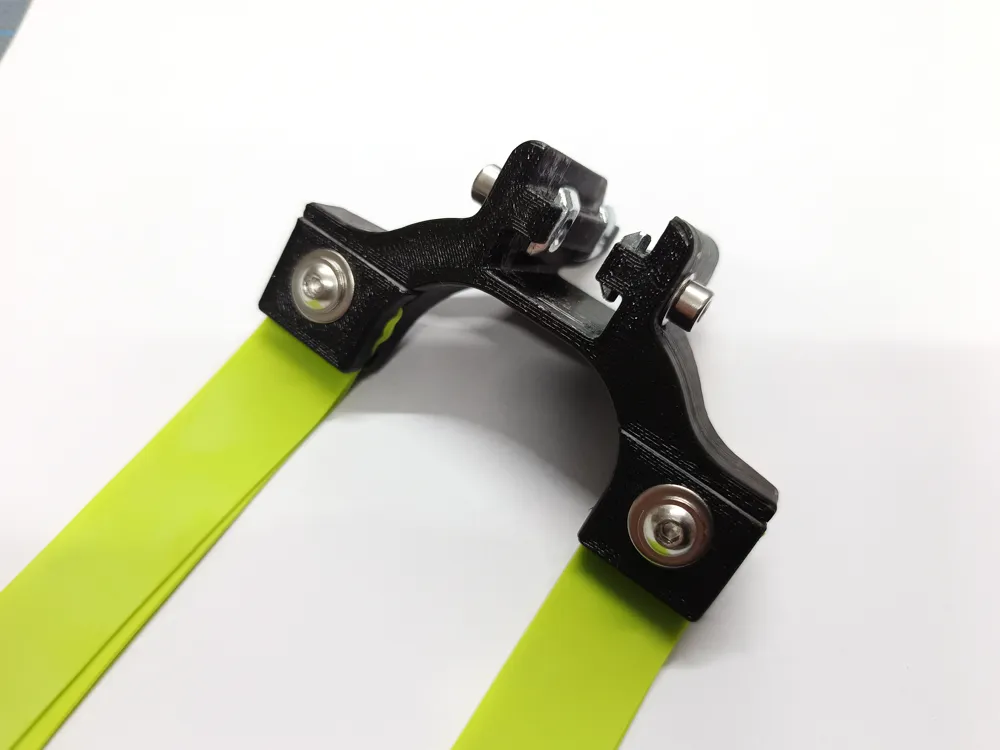

Screw - 4 pcs. M4 x 10 and 2 pcs. M4 x 20
Washer 6 pcs. 4 x 12 or 4 x 10

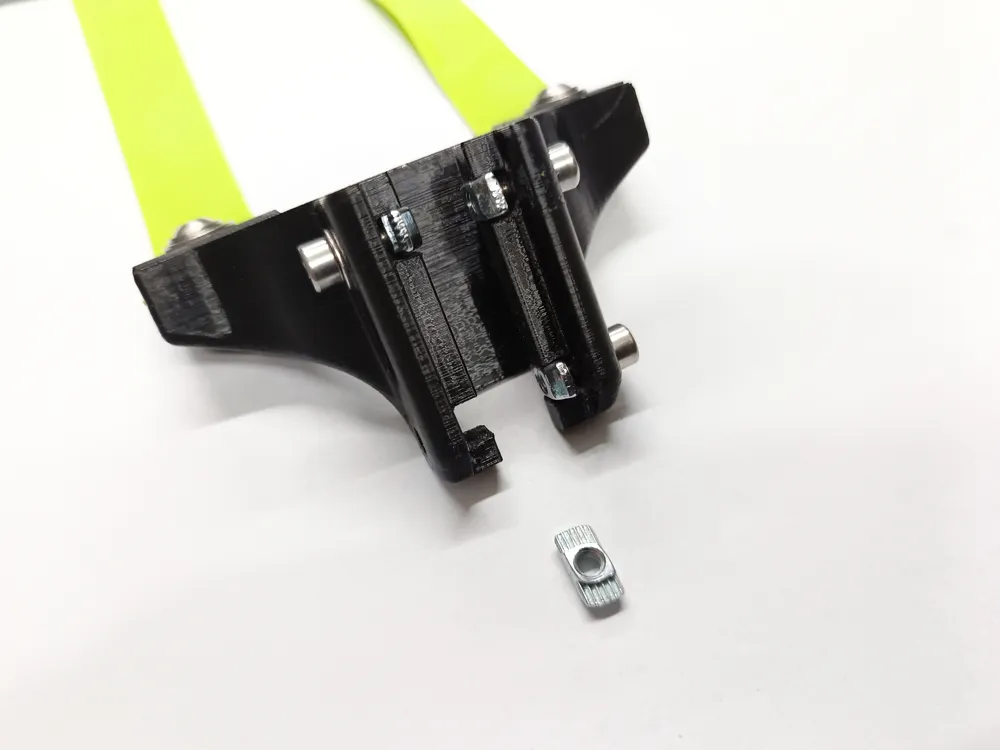

T-nut suitable for the aluminum profile - 4 pcs. M4, narrow pivotable version (approx. 6mm wide)
