RC Heli, Boom - Antenna Mount

RC Heli, Boom - Antenna Mount

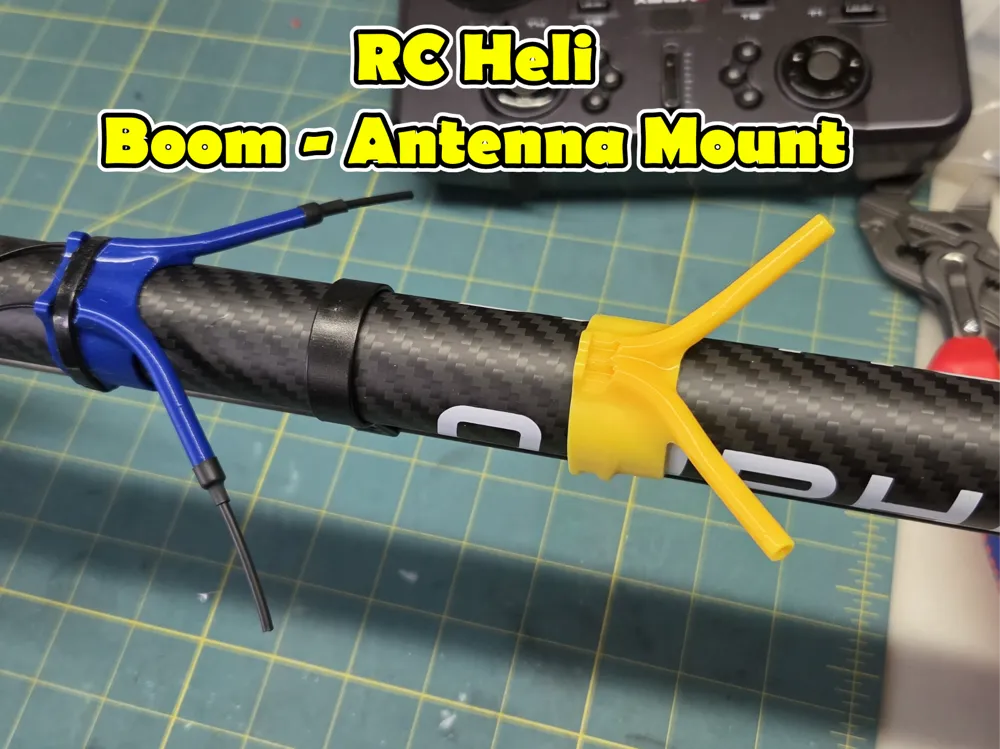

Designed for a boom with diameter Ø28 mm and the FrSky VANTAC RF007 Archer+ flight controller - may suite other units as well.

There is two options - both in the same print profile, but on different plates:

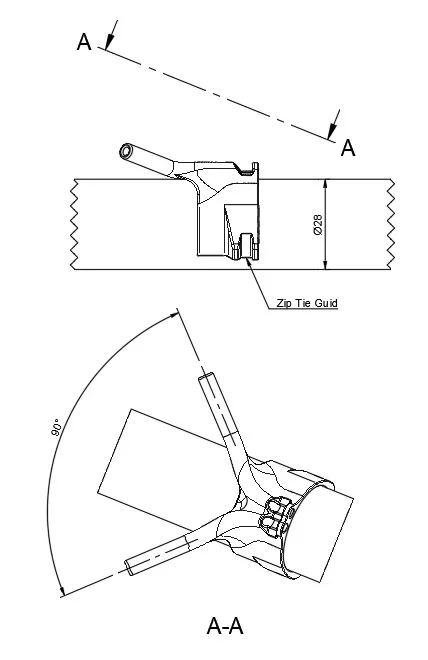

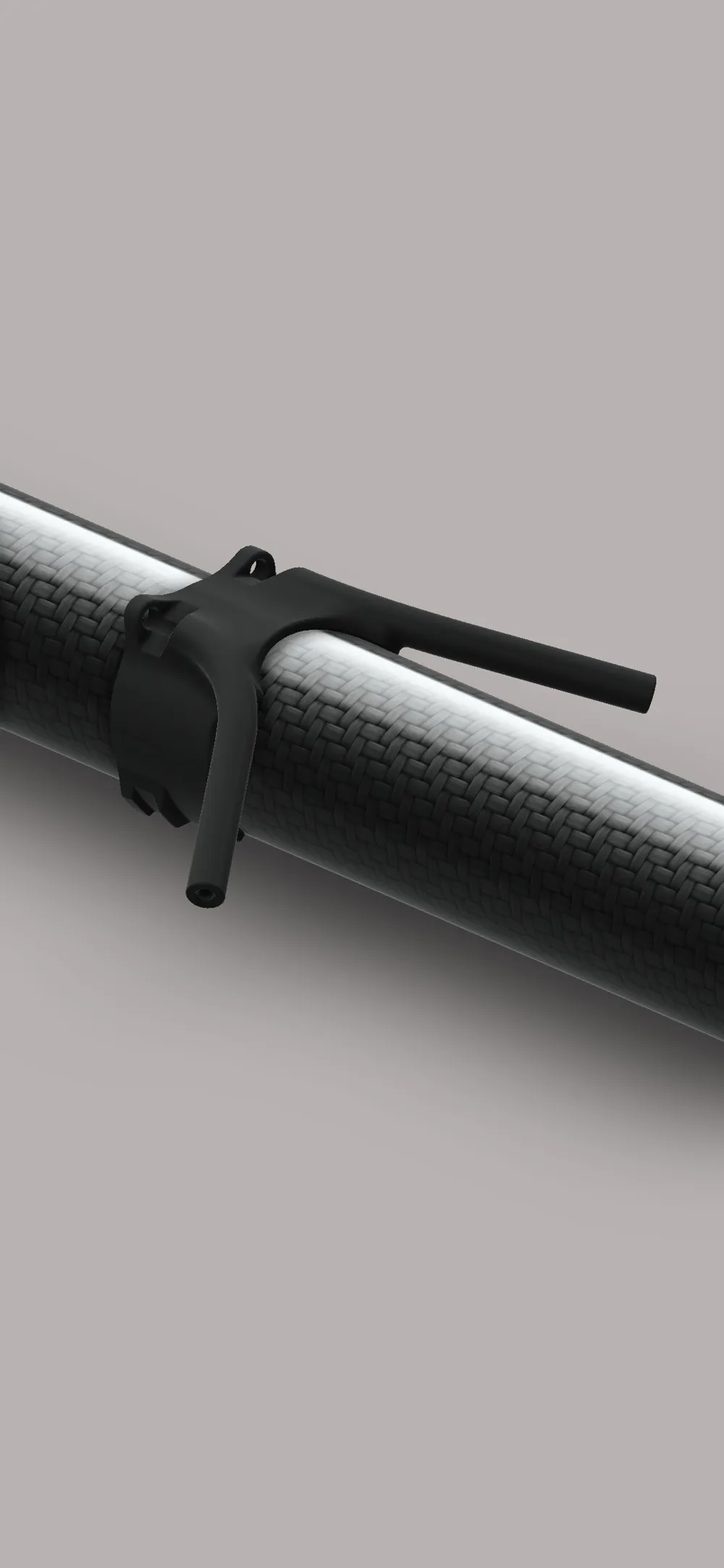

• Pitch Up - where the antennas are pitche out and upwards of the boom

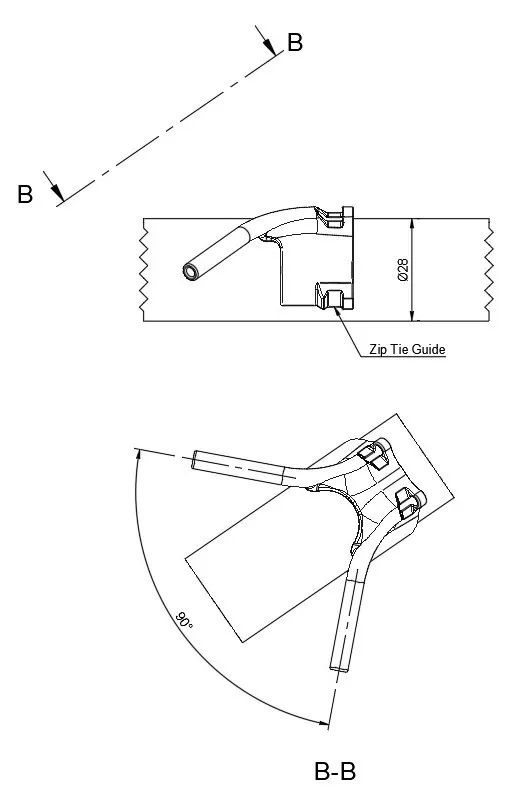

• Pitch Down - where the antennas are pitched out and downwards of the boom

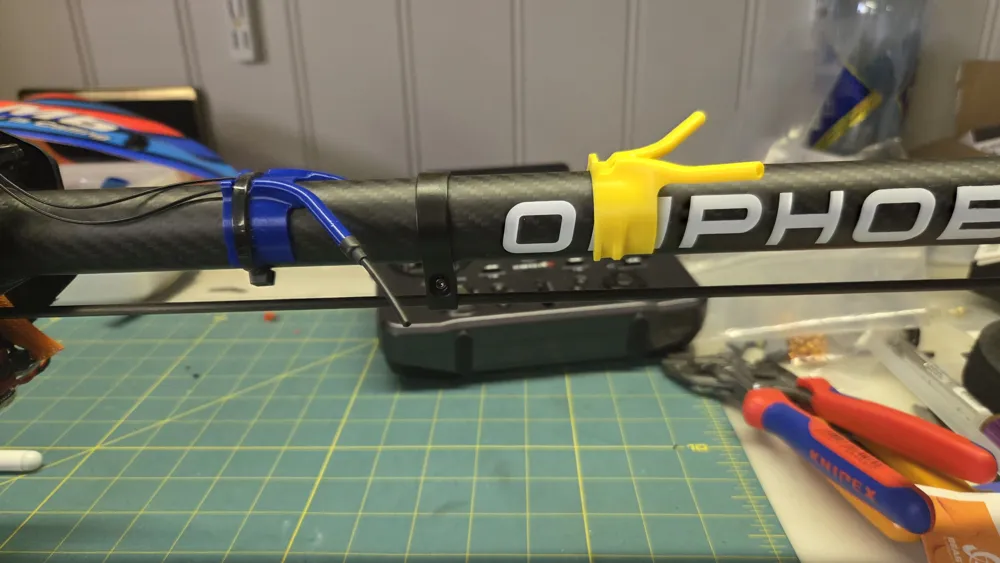

Common for both designs are that the two antennas are orthogonally oriented, and placed approx 20 mm away from the boom.

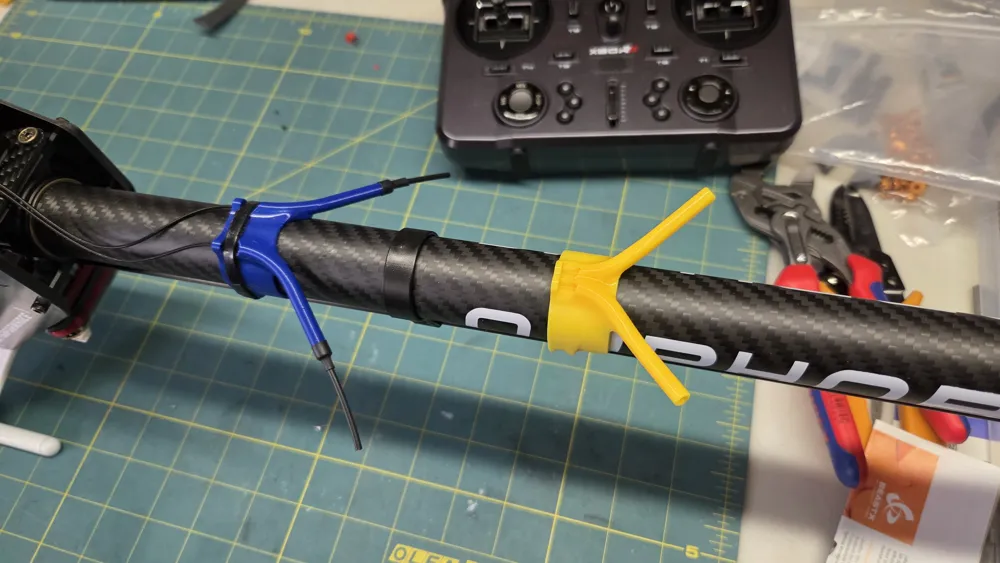

The mount is secured to the boom with a Zip Tie - I utilize some heat shrink tubing to fix the antenna edges -allowing them to penetrate the mount by approx 20 mm.

I have printed mine in PETG - I do not advice to print this in any material with any form for CF additive.

Update 24.05.2026: I advice to print this in TPU

Pitch Up	Pitch Down
