Crocus spinner
Crocus spinner
Designer
3.8 h
2 plates

Open in Bambu Studio
Boost
68
154
2
2
49
24
Released

Description



This is a crocus flower wind spinner for the garden - no supports or extra parts needed!

Crocuses are gorgeous hardy early blooming flowers that come in purple, yellow, white, and lavender.  Saffron, the most expensive spice in the world, actually comes from a specific variety of crocus.

Crocus flowers in bloom


The design approach is very clever, all you need is the flower and the pointed stem for a very low friction spinner, no bearing required.  Credit to the tulip designs that have been shared on Makerworld (1, 2, & 3) for the pointed stick idea, and now this design adds some variety to the bunch!

These work great with all your typical filaments, I used ASA for durability outdoors.  Low friction is ideal so it's a good idea to avoid matte filaments.

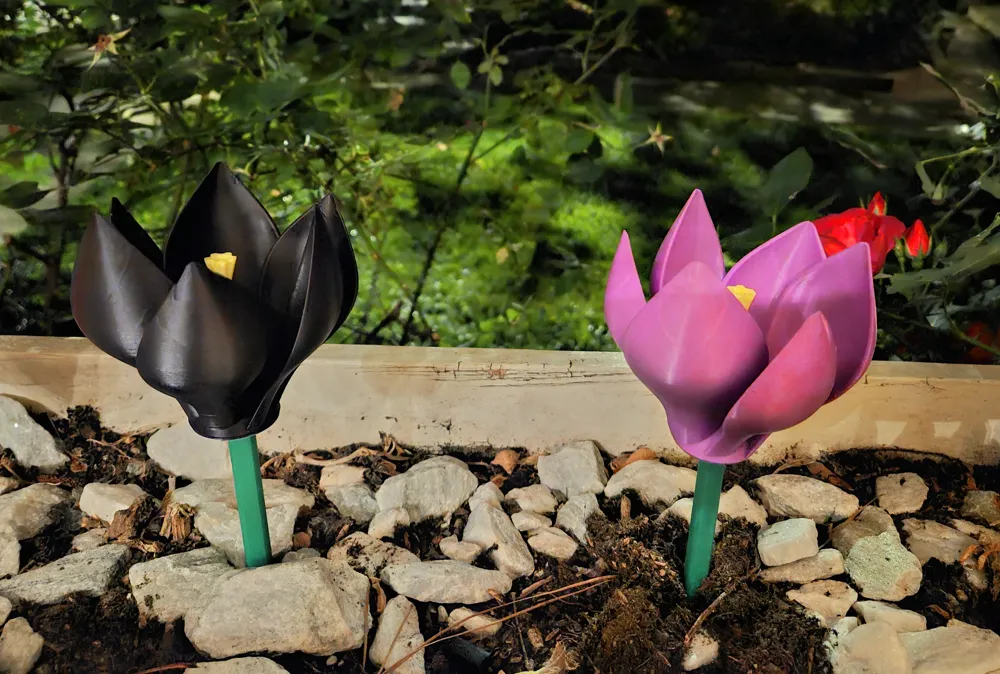

The flower is thin to keep it lightweight, and the print profile has X-Y contour compensation set to 0.15mm which adds a little bit more thickness overall and makes it print well with classic walls.  Another option that makes it even more lightweight is to disable that setting and use arachne walls, with the tradeoff that there will be some minor line indentations on the petals where wall counts transition. You can see a bit of in the very dark purple flower in one of the photos.  Both look great if you ask me, and hopefully they'll be too busy spinning to ever notice!

Comment & Rating (2)

(0/1000)

I have printed it a few times now and have to say, top notch, easy to print and just works. I printed the middle core separately and then glued it as it saves a lot of time
Show original
0
Reply
Thank you very much, it spins with the slightest breeze. The absence of bearings is clever; don't forget to enable the "detect thin walls" option for proper pressing.
0
Reply
