Ryobi P118 Battery Charger SKADIS mount

This is a SKADIS panel mount for a Ryobi P118 18v battery charger that has a 114.3mm distance between the charger mounting holes. This may fit other chargers that have the same 114.3mm spacing, but it has the additional ears so to support the feet on the charger for more stability.

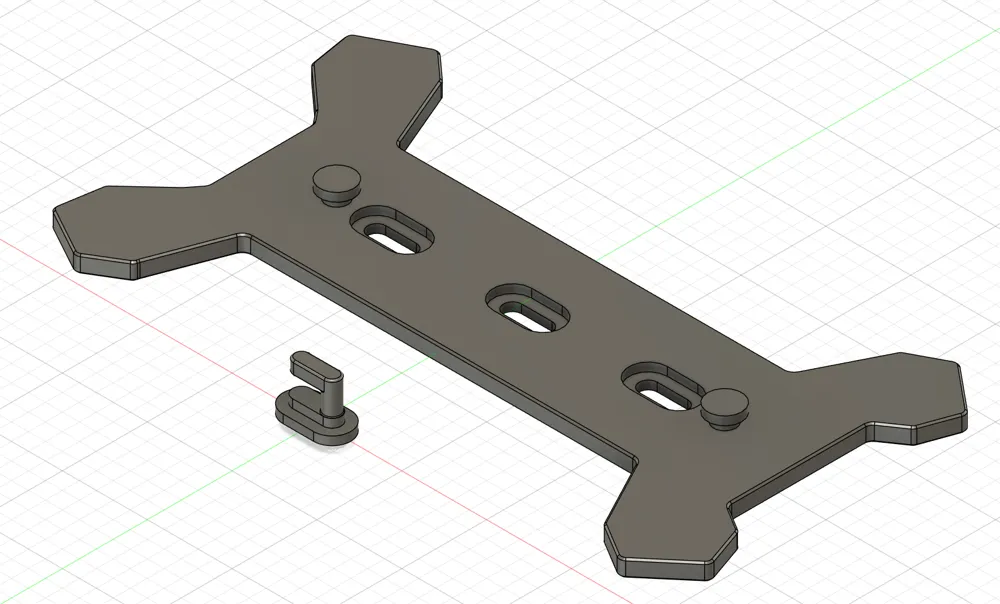

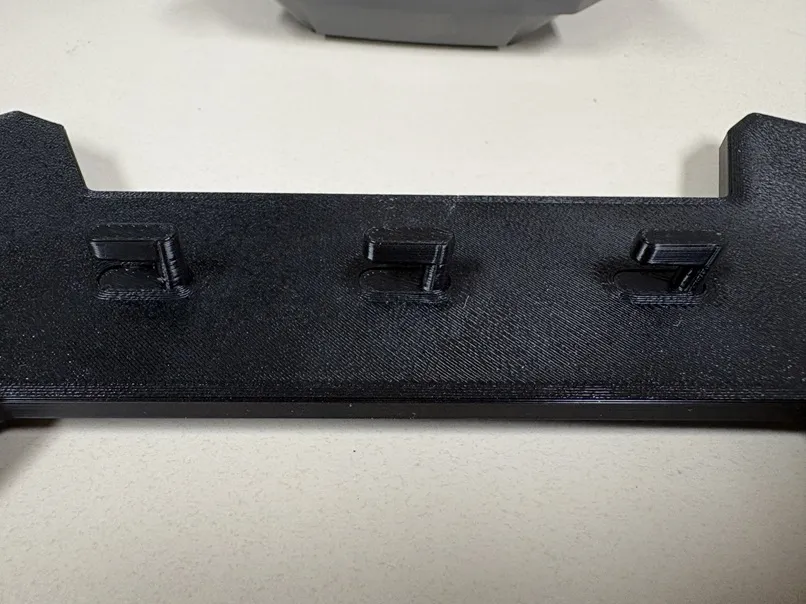

It is designed for everything to be printed flat on the print bed and requires a very small amount of supports.  The SKADIS pins are a friction fit into the main body when the pins are mounted flat as in the project file.  I have not had a problem yet with any shear forces breaking the pins, but you can always print the pins on their side for more strength.  If they are printed on their side, they will need a little bit of clean up to make them lock cleanly into the main body.
