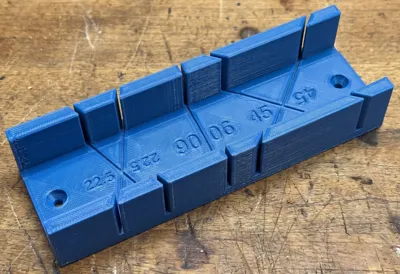

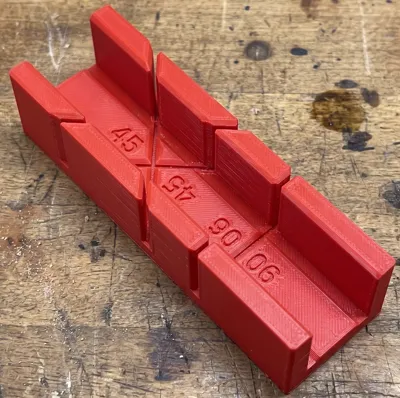

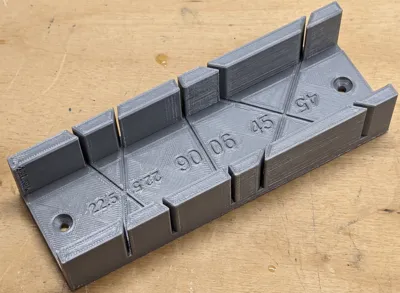

Ultimate Parametric Miter Box
Stop struggling with miter boxes that don't fit your project! This fully parametric tool allows you to generate a custom miter box tailored exactly to your specific workpiece and saw blade. Whether you are working on tiny dollhouse moldings or large architectural trim, you can now print a jig that provides 100% precision.
Key Benefits
- Perfect Fit: Adjust the Inner Width and Wall Height to match your material exactly, eliminating wobbling.
- Precision Cutting: Set the Blade Width (including tolerance) to ensure your saw stays perfectly on track.
- Enhanced Stability: Features a raised inner platform that reduces friction and provides a space for sawdust, ensuring your workpiece sits flat.
- Secure Mounting: Integrated countersunk holes (fully adjustable) allow you to screw the box to your workbench.

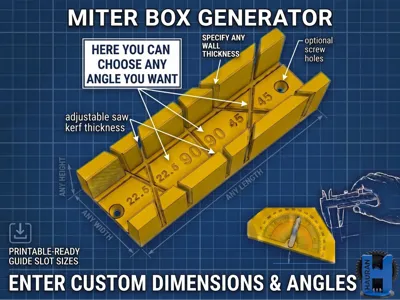

Customization Options
Using the built-in Customizer, you can modify:
- Dimensions: Total length, width, and height.
- Wall Thickness: Beef up the walls for heavy-duty use or keep them thin for quick prints.
- Angles: Need 42.58 Degree? Go for it!
- Mounting: Toggle and resize screw holes for your hardware.
Printing Recommendations
- Material: PETG or ASA (for better wear resistance), though PLA works fine for one-off projects.
- Infill: 25-40% (Gyroid recommended) for structural rigidity.
- Walls: At least 3-4 perimeters to withstand the saw blade friction.
